Products overviewKPS 120 SF NR CO2 (DK-SE-NO) BLAST CHILLER/FREEZER – FOR REMOTE CO2
860120075

KPS 120 SF NR CO2 (DK-SE-NO) BLAST CHILLER/FREEZER – FOR REMOTE CO2

Blast chillers / freezers

BLAST CHILLER/FREEZER (SF) FOR REMOTE CO2 COOLING SYSTEMS.

Room with factory fitted blast chiller controller (master). Allows for integration of your own preferred slave controller.
The integrated blast chiller controller (master) gives a signal to the super heat controller (230V). Including heated floot and ramp.

Provided and installed by cooling contractor:
Not factory fitted are:
  • Super heat controller (slave)
  • Expansion valve and coil
  • Pressure transmitter and super heat sensor
  • Other needed parts for the injection of refrigerant and controlling the super heat


Solution available on request:
  • 'No Room' solution available on request. Gram controller and evaporator unit only.


General description:

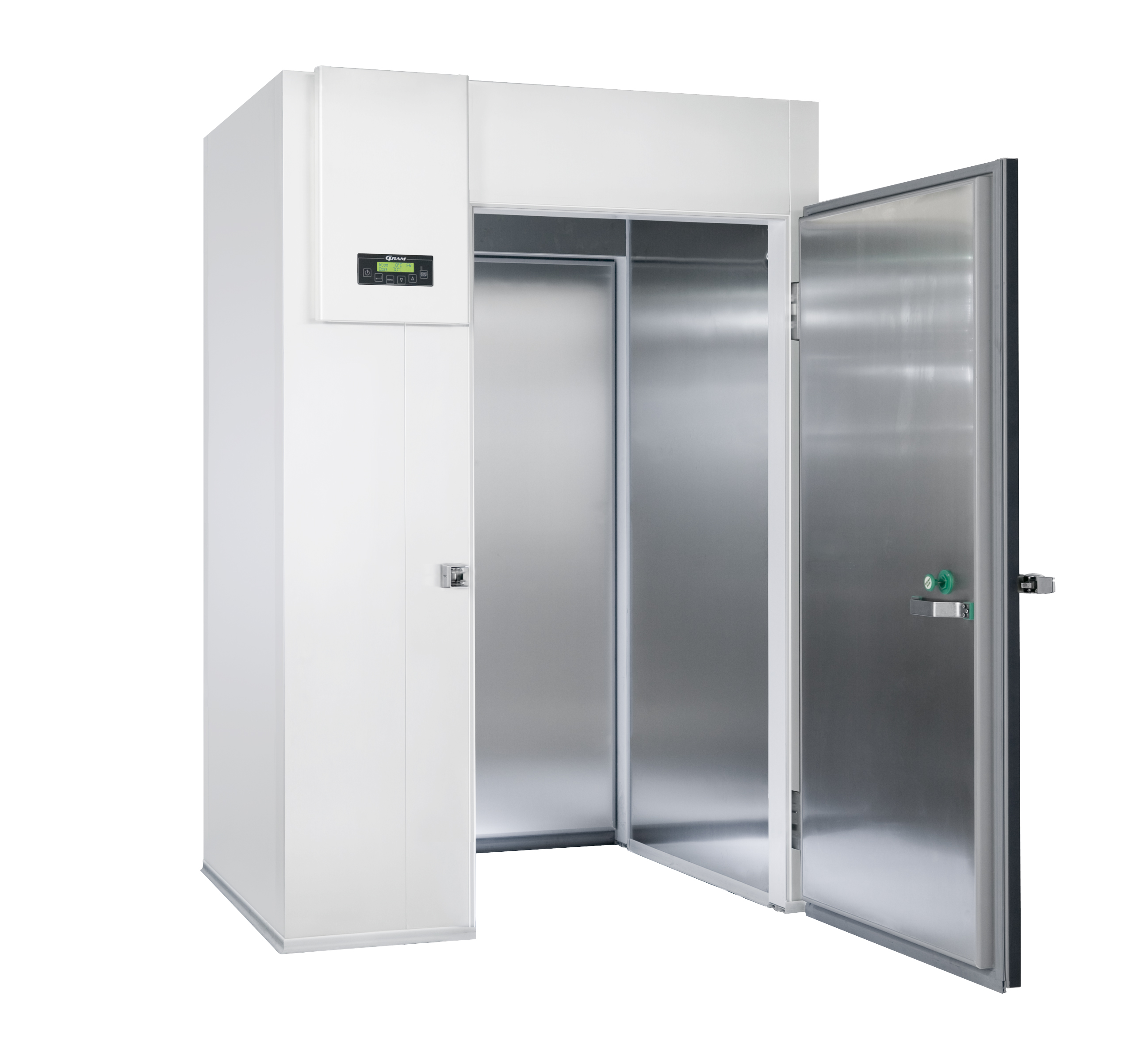

The KPS 120 blast chiller is available as roll-in or roll through units with one or two doors. With two door models the food can be rolled from the kitchen directly into the blast chiller and through for storage in refrigerated cold rooms. It is necessary to connect this unit to an external drain.

Product not available
Get quote View spec sheet
Key features Specifications Documentation

Key features

Technology

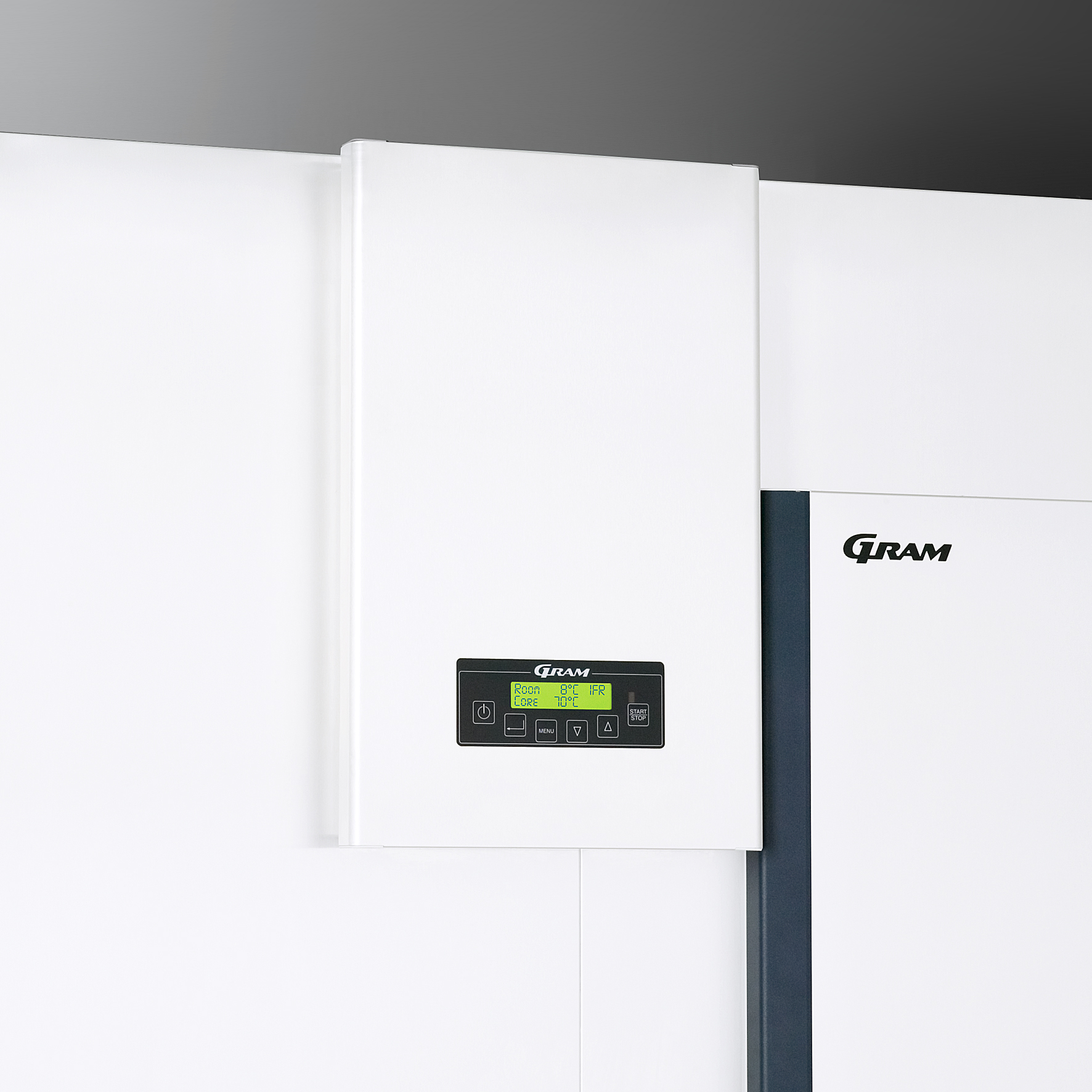

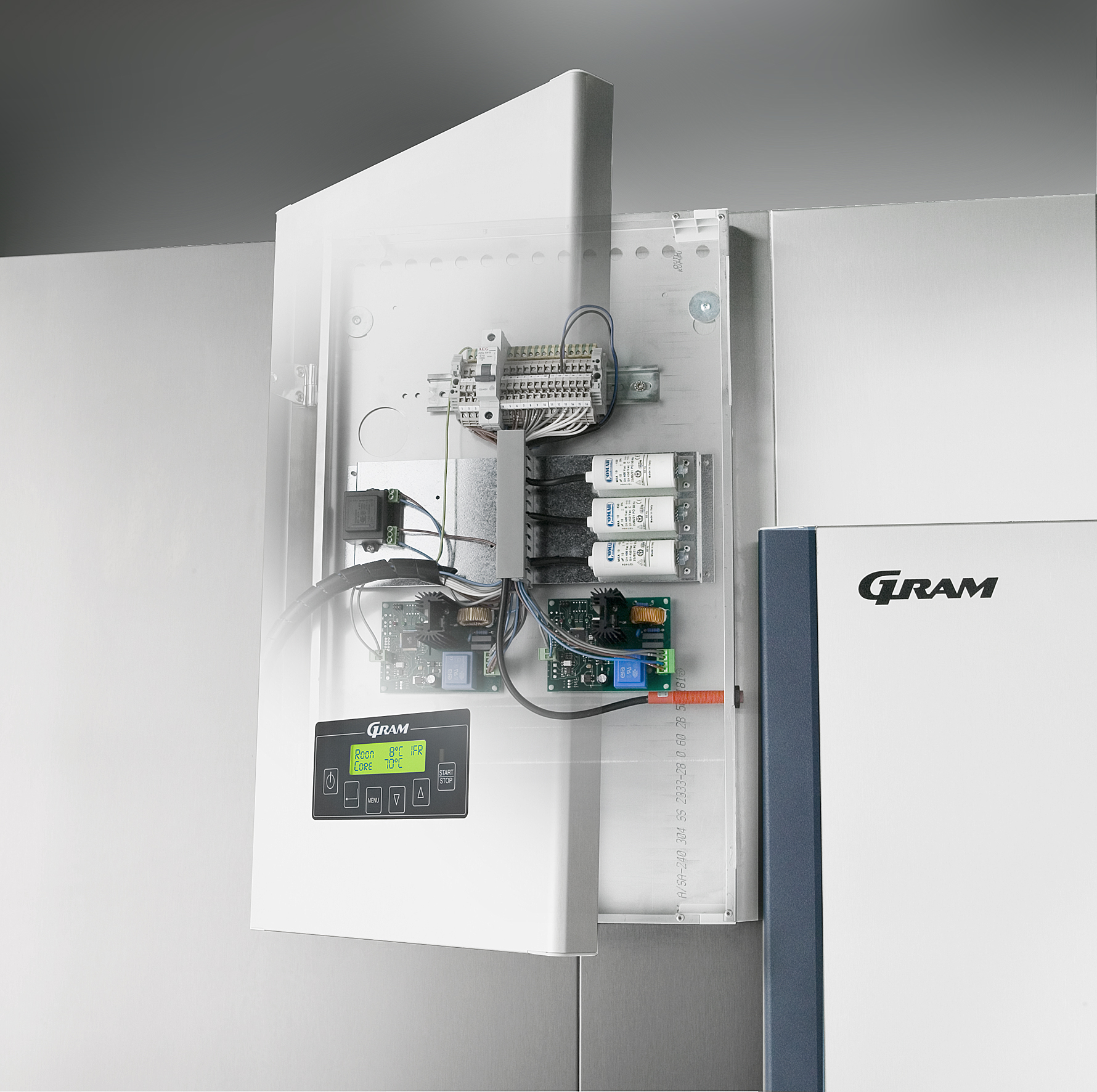

Room with factory fitted blast chiller controller (master). Allows for integration of your own preferred slave controller.

The integrated blast chiller controller (master) gives a signal to the superheat controller (230V). Including heated floor and ramp.



Food Safe

Food items are handled in full compliance with the HACCP guidelines. HACCP alarms and an automatic shift to ‘storage mode’ are useful extras to help you to ensure the highest food safety at all times.



High Food Quality

Taste, texture, appearance as well as vitamins and nutrient content are preserved. The use of IFR function also protects against surface freeze damage.



Versatility

Offers different operational modes: IFR operation, time or temperature controlled chill cycle. Up to 20 customized cycles can be stored.



Modularity and Scalability

Available as reach-in, roll-in or roll-through models for small or big scale operations. Part delivery or turn key.



Specifications

Specification Value
Item number 860120075
Model name KPS 120 SF NR CO2 (DK-SE-NO)
Brand Gram
Title BLAST CHILLER/FREEZER - FOR REMOTE CO2
Please observe It is necessary to connect this unit to an external drain. The product is delivered unassembled in parts on 1 pallet (module 1) or 2 pallets (module 2)
Width (packed) 1630 mm
Width inside 1430 mm
Depth (packed) 1230 mm
Depth inside 1030 mm
Height (packed) 2130 mm
Height inside 2030 mm
Product availability -- Not available
Connection load 1946 kW
Exterior White Finish
Interior Stainless
Gross weight 260 kg
Insulation thickness 100 mm
Insulation type Cyclopentane
Options Roll-through (D), Stainless exterior (CS), Door left (DL), No Room (NR), Complete unit mirrored (MI)
Power supply 230V, 50Hz
Temperature range -25/+10°C
Chilling capacity 120
Refrigeration capacity 9040
GWP 1 GWP
Refrigerant type attOpt_remote_co2_r744
SKU 860120075

Documentation

Documentation
Declaration of conformity Download
765041176_001.pdf Download
Instruction manual Download
765072807_Wiring_Diagram_KPS_120_180_CF.pdf Download
