KM-115B Crescent Ice Maker, Self Contained

Ice makers

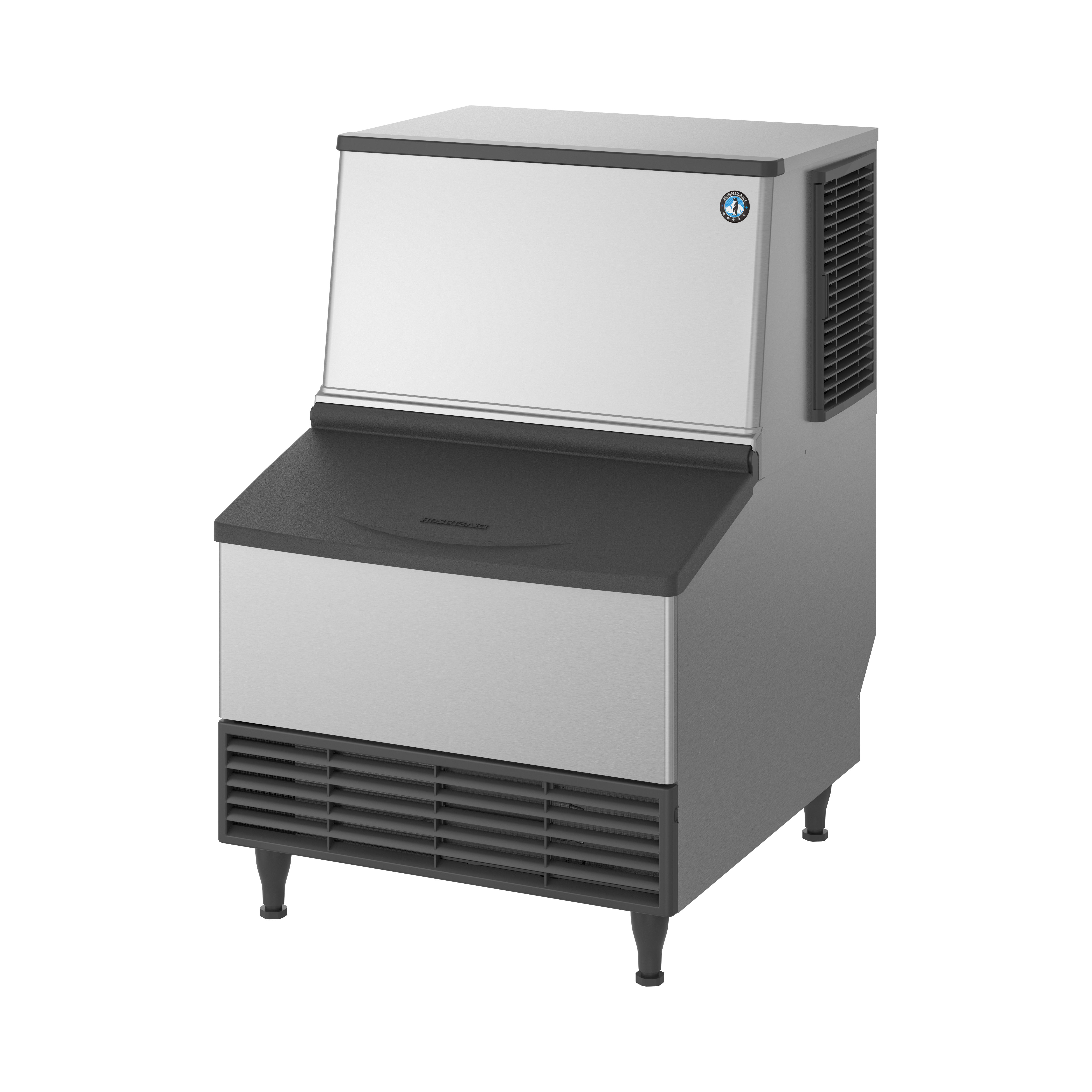

This Hoshizaki KM-115B is a self-contained Crescent Edge ice maker producing up to 112 kg of high-quality Crescent Edge Ice per 24 hours, meeting even the strictest hygiene requirements and suitable for all operational requirements and kitchen measurements.

The KM Edge range has an enlarged, bonded evaporator surface. Accelerating harvest cycles, the technology behind the KM Edge range will help you to increase your serving capacity instantly. More ice in less amount of time.

Get quote View spec sheet

Key features Specifications Documentation

Key features

The KM-115B uses refrigerant R404A.

Unique Technology

The double-sided evaporator in all KM machines is made of stainless steel – the best material for improved longevity, food safety, and cleaning without damaging to the machine. The external material is made of . Thanks to its rounded, yet edgy form, the Hoshizaki Crescent Ice will not cluster inside the ice chest. That is why it is considered the perfect ice shape for bottle coolers, allowing you to place bottles inside the ice effortlessly. The ice can be used for chilling drinks, fresh produce display, and bottle cooling as well as cooking.

Convenience

Always focusing on operating convenience and food safety, the air filters are easily accessible from the front for routine cleaning. With intake and outflow positioned at the front, the KM is ideal for built-in installation opportunities. “

Smart Design

Like all Hoshizaki ice makers, the KM-115B is designed to last and comes with smart design extras such as the double-sided, stainless steel evaporator, unique in the industry, produces more ice per cycle with lower energy consumption and resistance to descaling acids.

Flexibility

With outside dimensions W x D x H of 612 x 712 x 992 mm, the KM-115B is compact and makes a perfect fit for small spaces.

Plug&Play

The smart plug-and-play design guarantees an easy and quick set-up.

Specifications

Specification	Value
Item number	F123-C141
Model name	KM-115B
Ice maker type	Crescent ice maker
Brand	Hoshizaki
Product configuration	Self Contained
Title	Crescent Ice Maker, Self Contained
Width (legs excluded)	612 mm
Width (packed)	695 mm
Depth (legs excluded)	712 mm
Depth (packed)	800 mm
Height (legs excluded)	992 mm
Height (packed)	945 mm
Electric Consumption	0.598 kW
Energy consumption	0.598 kWh
Exterior	Stainless Steel
Gross weight	82 kg
Net weight	62 kg
Power supply	1/220 - 240V/50Hz
Storage bin capacity	45 kg
Cooling system	Air Cooled
Ice type	Crescent Edge
Ice production	112
Water consumption - Air cooled ice makers	0.41
CO2 equivalent	1020 kg
Refrigerant type	R404A
SKU	F123-C141
