M113

IM-65PE Cuber, Self Contained

Ice
Get quote View spec sheet

Specifications

Specification Value
Item number M113
Model name IM-65PE
Ice maker type Cube icemaker
Brand Hoshizaki
Product configuration Self Contained
Warranty period 3 Years on Parts & Labour
Country of origin UK
Accessories included Installation kit, legs, Scoop
Sub series IM Cube
Title Cuber, Self Contained
Please observe Water cooled units should have the condenser circuit connected to a self-contained recirculating system. It is likely that the connection of such units to the mains water supply may be a contravention of local water authority by-laws.
Corresponding water filters 4HC-H Single Water Filter, 4HC Replacement Cartridge
Extended spec sheets approved 1
Width (legs excluded) 633 mm
Width (packed) 735 mm
Depth (legs excluded) 506 mm
Depth (packed) 570 mm
Height (legs excluded) 840 mm
Height (packed) 1012 mm
Volume (packed) 0.424 l
Dimensions legs for legs add 90-125 mm
Electric Consumption 0.29 kW
Ambient temperature (maximum) 40 u00b0C
Ambient temperature (minimum) 1 u00b0C
Voltage range Rated Voltage ±6%
Water supply pressure (maximum) 0.8MPa (8bar)
Water supply pressure (minimum) 0.07MPa (0.7bar)
Water supply temperature (maximum) 35 u00b0C
Water supply temperature (minimum) 5 u00b0C
Functions Automated
Electrical circuit breaker protection 5 A
Exterior Stainless steel AISI 441, Galvanized steel (Rear)
Gross weight 58 kg
Heat Rejection (AT 32ºC, WT 21ºC) 0.83 kW
Net weight 48 kg
Power supply 1/220 - 240V/50Hz
Storage bin capacity 26 kg
Cooling system Air Cooled

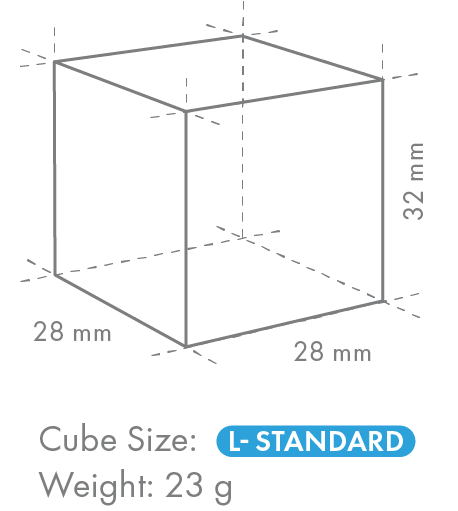

Ice type Large cubes, Standard
Ice production 58
Water consumption - Air cooled ice makers 0.43
Optional Extras 4HC-H water filtration, scoop holder kit, UV-C sanitization kit, internal drain pump (Pump motor kit and bracket)
CO2 equivalent 0.33 kg
Refrigerant 0.11 kg
Refrigerant type R290
SKU M113

Documentation

Documentation
Declaration of conformity Download
IM_65PE_D38041_0.pdf Download
Instruction manual Download

Accessories

Accessory name Item number
4HC-H Single M113
4 HC Replacement Cartridge M113
External drain pump M113
