| Specification | Value |
| Item number | M061 |

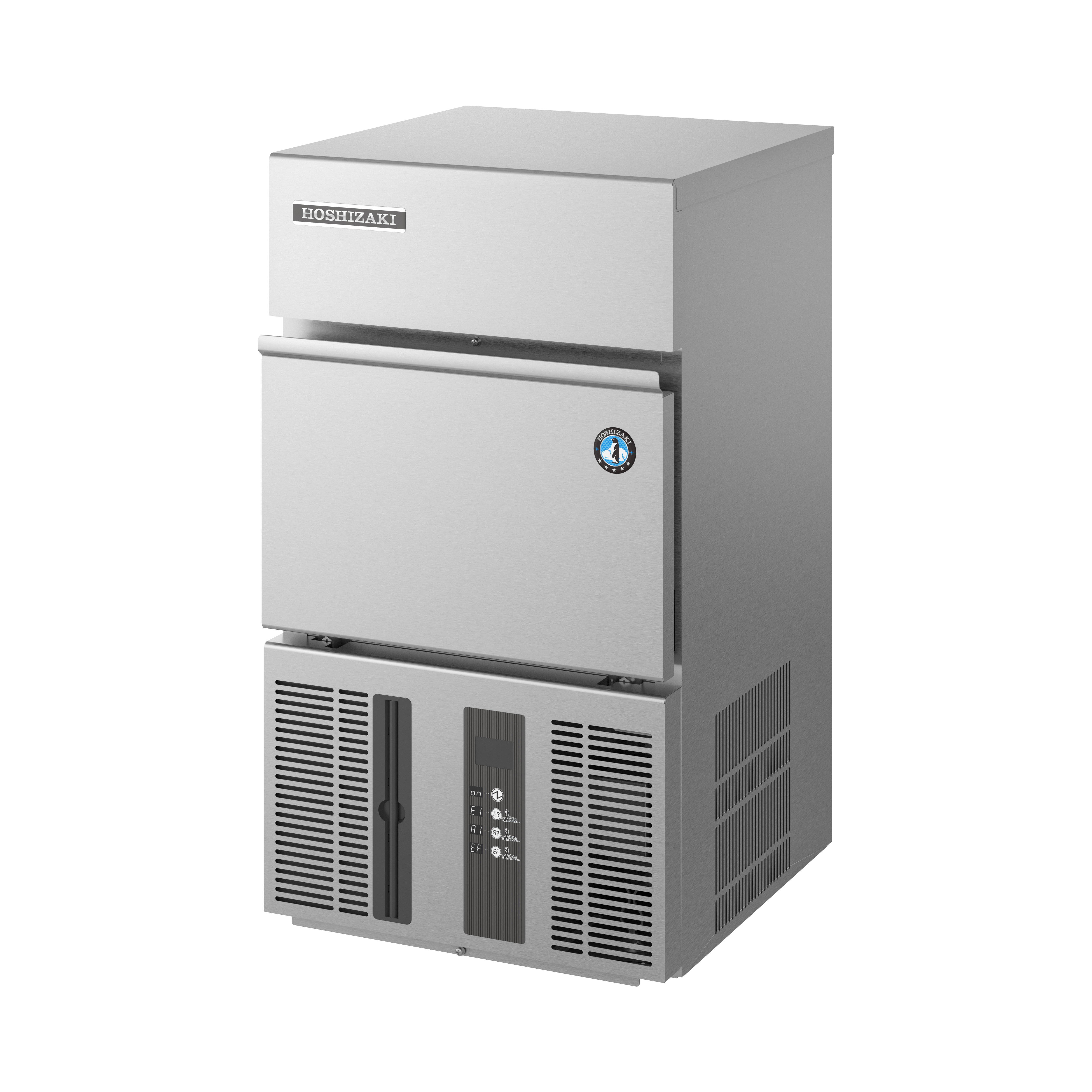

| Model name | IM-21CNE-HC |
| Brand | Hoshizaki |
| Product configuration | Self Contained |
| Warranty period | 2 Years on Parts & Labour |
| Country of origin | UK |
| Accessories included | Installation kit, Scoop |
| Title | Cuber, Self Contained |
| Please observe | Legs sold separately - contact UK sales office for pricing |
| Corresponding water filters | 4HC-H Single Water Filter, 4HC Replacement Cartridge |
| Extended spec sheets approved | 1 |
| Width | 398 mm |
| Width (packed) | 505 mm |
| Depth | 451 mm |
| Depth (packed) | 575 mm |
| Height | 695 mm |
| Height (packed) | 862 mm |
| Volume (packed) | 0.25 l |
| Dimensions legs | Optional: 90-135 mm extra |
| Electric Consumption | 0.225 kW |
| Energy consumption | 0.225 kWh |
| Ambient temperature (maximum) | 40 u00b0C |
| Ambient temperature (minimum) | 1 u00b0C |
| Voltage range | Rated Voltage ±6% |
| Water supply pressure (maximum) | 0.8MPa (8bar) |
| Water supply pressure (minimum) | 0.07MPa (0.7bar) |
| Water supply temperature (maximum) | 35 u00b0C |
| Water supply temperature (minimum) | 5 u00b0C |
| Product availability | -- Not available |
| Electrical circuit breaker protection | 5 A |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Gross weight | 39 kg |
| Heat Rejection (AT 32ºC, WT 21ºC) | 0.51 kW |
| Net weight | 34 kg |
| Power supply | 1/220 - 240V/50Hz |
| Sound level | 51.1 dB |
| Storage bin capacity | 11.5 kg |
| Volume, gross | 0.25 l |
| Cooling system | Air Cooled |

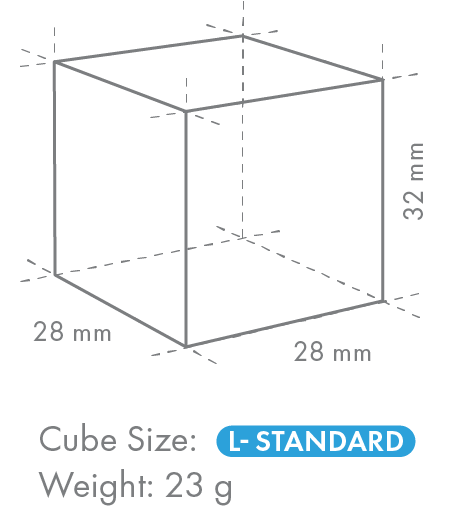

| Ice type | Large cubes, Standard |
| Ice production | 25 |
| Water consumption - Air cooled ice makers | 0.1 |
| Optional Extras | 4HC-H water filtration, external drain pump, legs |
| CO2 equivalent | 0.165 kg |
| Refrigerant | 0.055 kg |
| Refrigerant type | R290 |
| SKU | M061 |
