GRAM GASTRO K 2207 CSG A DL/2D/3D/3D L2

Gastronomy counters
A

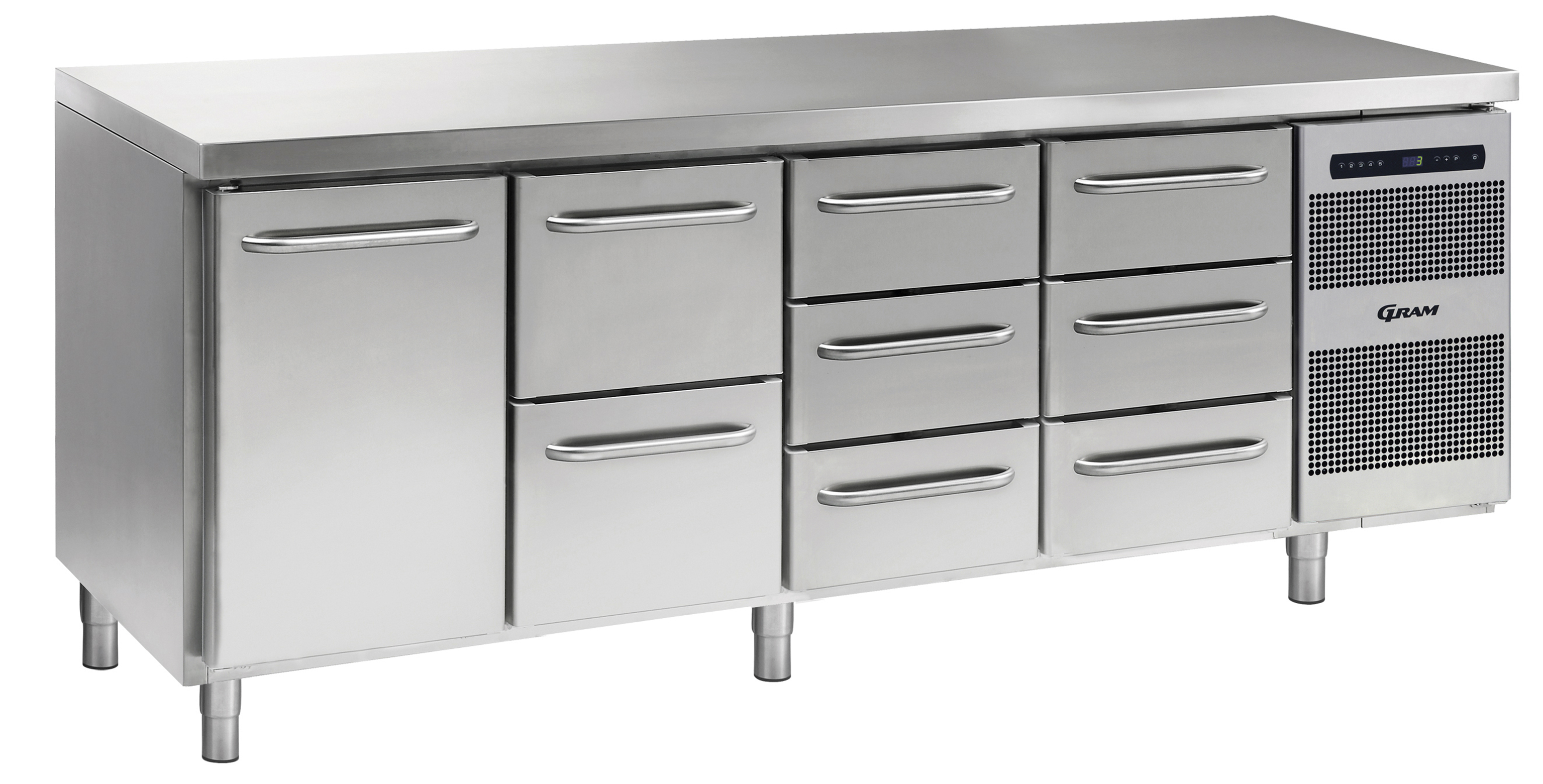

ECODESIGN ENERGY LABEL EXPECTED BY 1ST SEPTEMBER 2016 Equipped with stainless steel solid top, 1 door section with 2 stainless shelves, 1 drawer section wtih 2 x 1/2 drawers and 2 drawer sections each with 3 x 1/3 drawers. Height: 885/950 mm Worktop depth: 700 mm Volume, gross: 668 ltr. Exterior/Interior: Stainless/Stainless GASTRO 07 comprises of 1/1 GN counters. Available with 2, 3 or 4 sections. Flat worktop or saladette worktop. Doors or drawers, with or without lock. Available with electronic elevation and prepared for remote compressor.

Product not available
Get quote View spec sheet

Key features

Temperature Control

Thanks to the Gram air distribution system, temperatures inside the counters always maintain a uniform and correct level.

This includes rapid temperature recovery after every door opening.



Modularity & Scalability

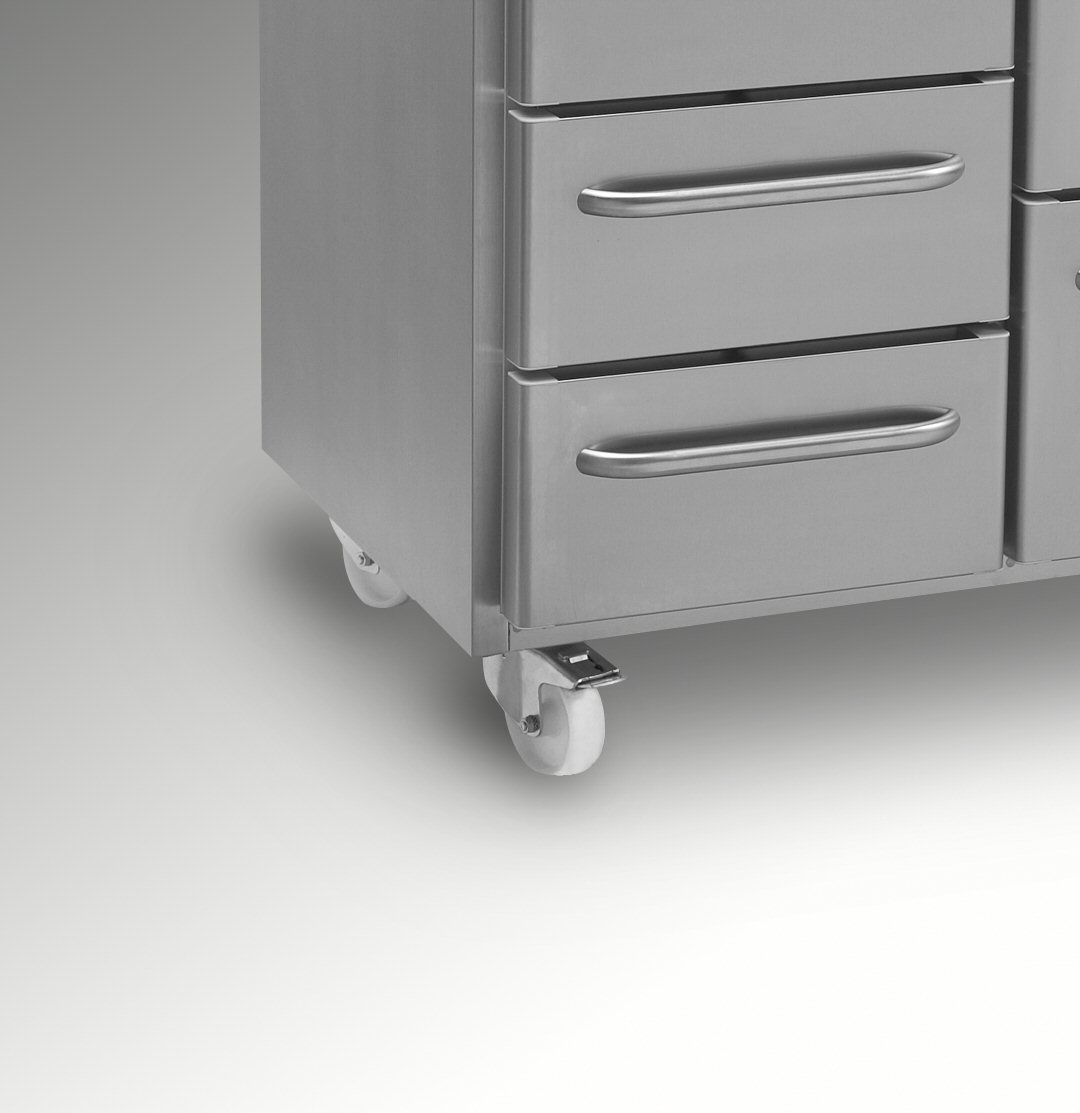

With GRAM GASTRO 07 counters you can put together your individual workplace. Choose your combination of worktop, doors, and drawers, legs /castors/electric elevation, temperature ranges and accessories.



Easy Maintenance

A compact slide-out refrigeration unit for easy maintenance and service access. Removable and easy to clean condenser filters and gaskets.



High Standard in Hygiene

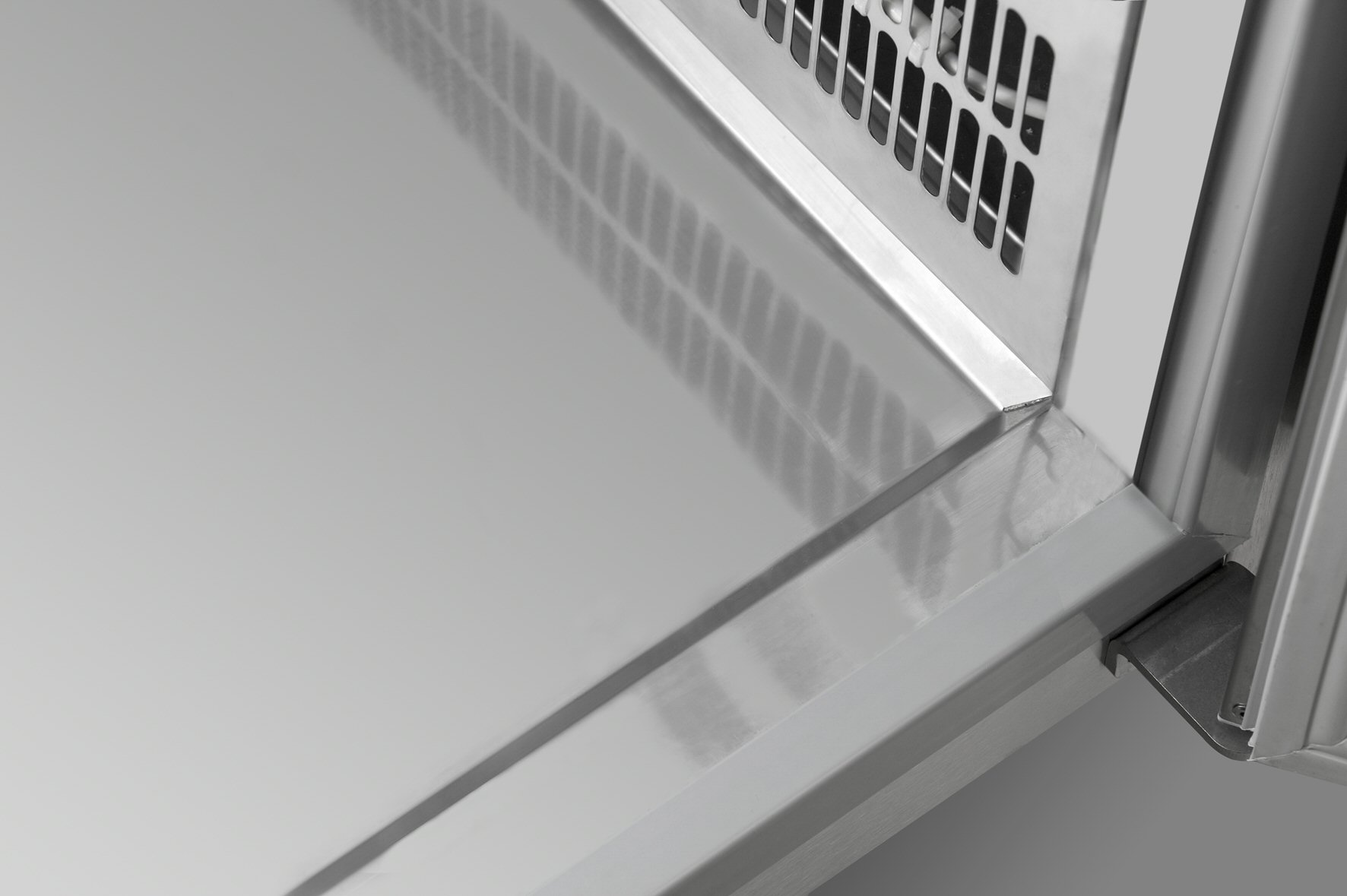

  • The counter almost entirely consists of smooth surfaces – the perfect design for easy, quick and thorough cleaning.
  • ‘Drip Nose’ edges on worktops to prevent the ingress of water.
  • Worktops with splashbacks to protect your counter from spillage.
  • Removable drawer and door gaskets for easy cleaning.
  • Pan-shaped inside base with rounded corners to catches fluid.



Allergy-Proof

Counters are made from nickel-free stainless steel.

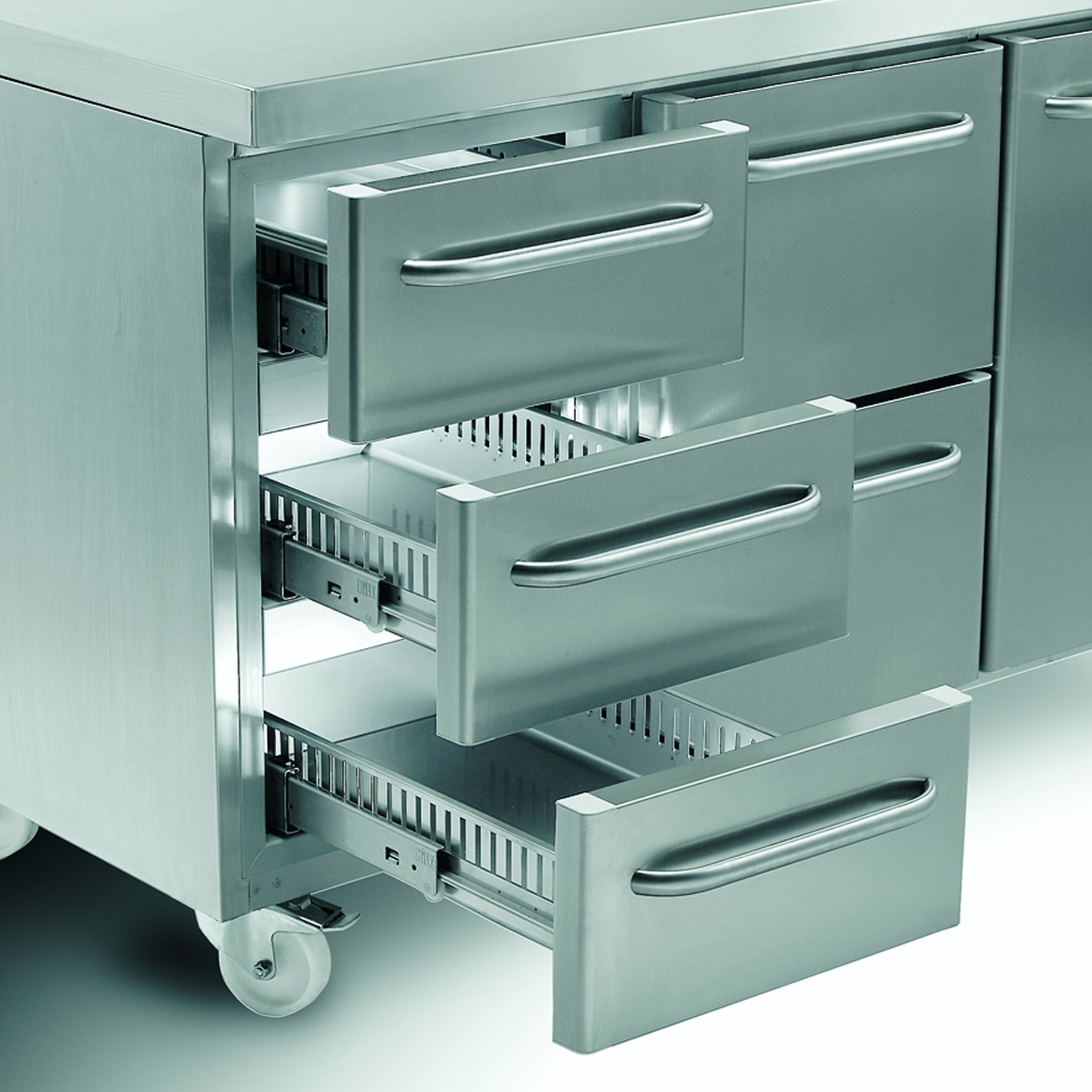

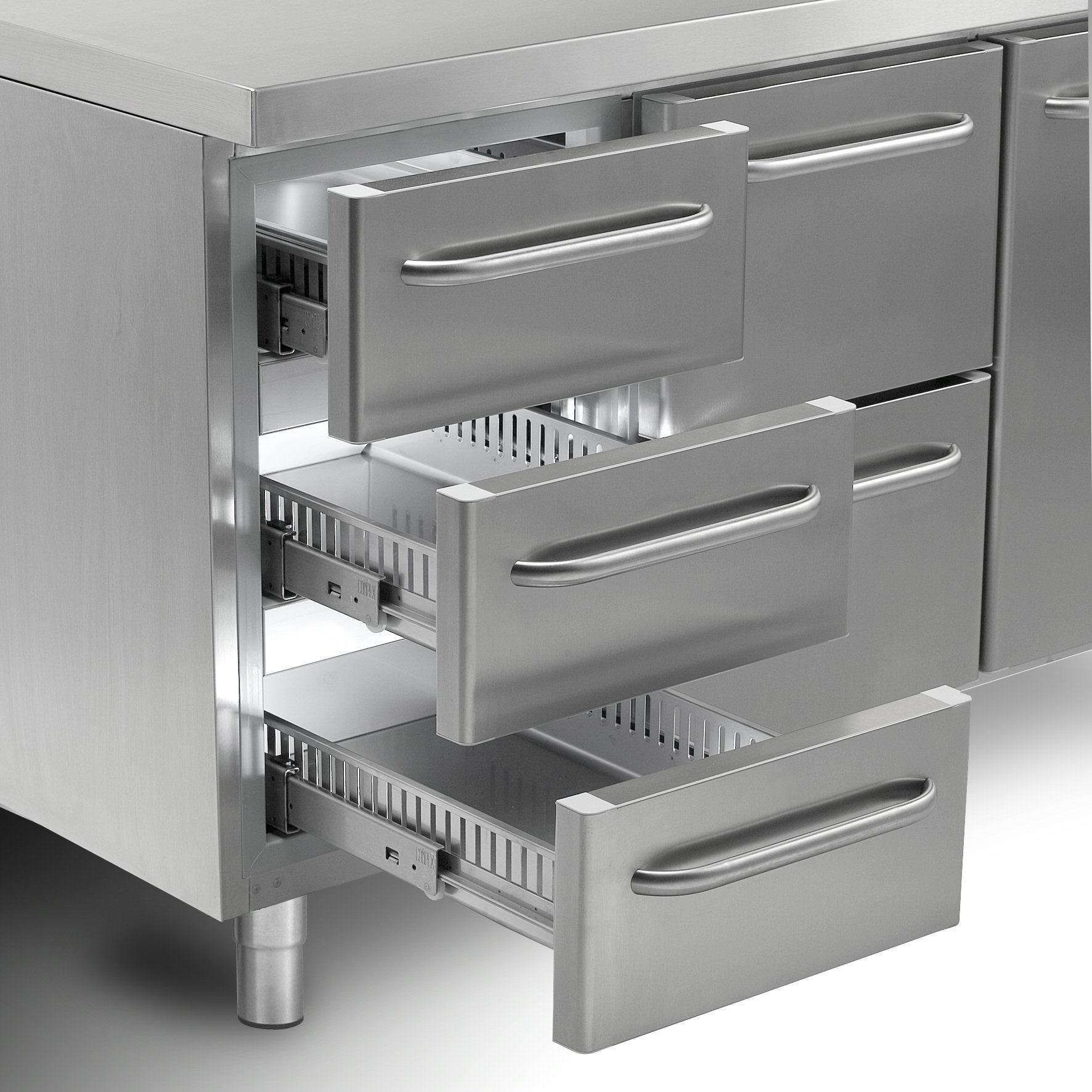

Ergonomic and practical design

  • Anti-tilt shelves and drawers with pull-out stop.

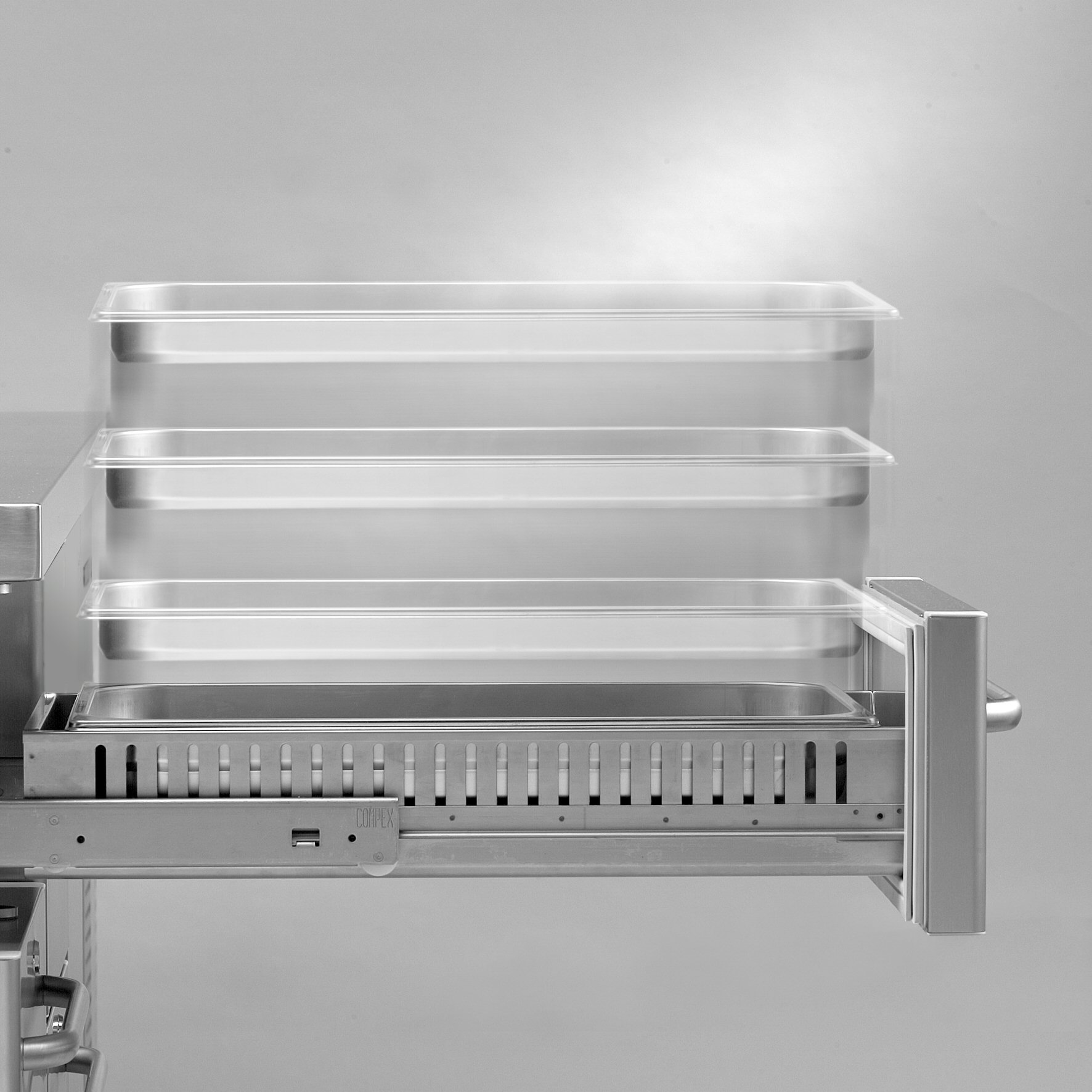

  • Extra-long telescopic rails on drawers – GN trays can be lifted in and out without tilting.



Specifications

Specification Value
Item number 952200506
Model name GRAM GASTRO K 2207 CSG A DL/2D/3D/3D L2
Brand Gram
Equipped with Stainless steel solid top, 1 door section with 2 stainless shelves, 1 drawer section with 2 x 1/2 drawers and 2 drawer sections each with 3 x 1/3 drawers
Width 2163 mm
Depth 700 mm
Height including legs (minimum) 885 mm
Height including legs (maximum) 950 mm
Energy consumption 652 kWh
Energy efficiency class A
Energy Efficiency Index (EEI) 24.96 EEI
Number of shelves 2
Shelf size 1/1 GN
Product availability -- Not available
Climate class 5 (max. ambient 40°C w/ 40% RH)
Connection load 190 kW
Exterior Stainless Steel
Interior Stainless
Gross weight 221 kg
Insulation thickness 50 mm
Insulation type Cyclopentane
Legs / Castors H = 135-200 mm (L)
Net usable volume 321 l
Net weight 221 kg
Power supply 230V, 50Hz
Temperature range +2/+12°C
Volume, gross 668 l
Volume, net 321 l
Door Type Solid Door
Refrigeration capacity 406
CO2 equivalent 0.291 kg
GWP 3 GWP
Refrigerant 0.097 kg
Refrigerant type R290
SKU 952200506

Documentation

Documentation
Declaration of conformity Download
K_2207_G__Drawer_version_.pdf Download
Instruction manual Download
765041457.pdf Download
765073131.pdf Download
