GASTRO K 1807 CSG A DL/DL/DR C2

Gastronomy counters
C

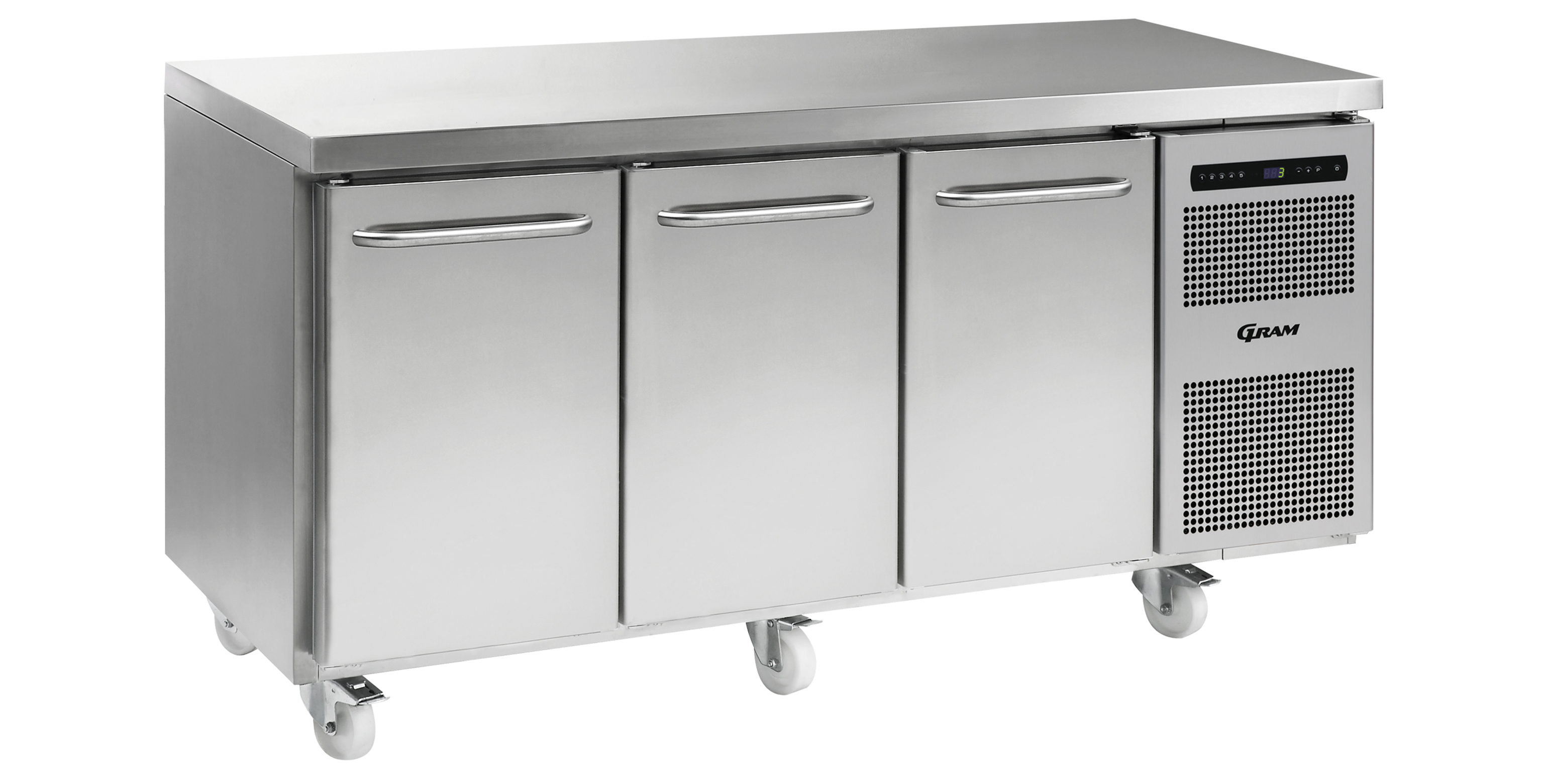

The GASTRO 07 series is 1/1 GN refrigerated and freezer counters that can be used as an island suite, or be placed against a wall or, if necessary, under an existing worktop. The series is available with 2, 3 or 4 refrigerated sections. The K1807 is a 3 door counter Volume Gross: 506 ltr Height: 905mm Materials Exterior/ Interior: Stainless / Stainless The range includes flat and saladette worktops with or without splashback – saladette worktops with insulated or acrylic lids. The cabinet is also available with insulation board only, i.e. without a worktop. Gantry is an optional extra. Each of the refrigerated sections are available with door and drawer sets (freezer counter only with door sets), with or without locks. Also each section is offered with 2 grey wirebaskets, instead of shelves. Internal and external surfaces are made of stainless steel. The height of the cabinet is 750 mm + the chosen legs/castors. The depth of the worktop is 700 mm. Counters with internal compressor are also available with electric elevation for flexible working height from 850 to 1050 mm.

Product not available
Get quote View spec sheet

Specifications

Specification Value
Item number 861802393
Model name GASTRO K 1807 CSG A DL/DL/DR C2
Brand Gram
Equipped with Stainless steel solid top, 3 door sections each with 2 stainless shelves
Width 1726 mm
Depth 700 mm
Height 905 mm
Energy consumption 1244 kWh
Energy efficiency class C
Shelf size 1/1 GN
Product availability -- Not available
Climate class 5 (max. ambient 40°C w/ 40% RH)
Connection load 235 kW
Exterior Stainless Steel
Interior Stainless
Gross weight 150 kg
Insulation thickness 50 mm
Insulation type Cyclopentane
Legs / Castors H = 125 mm (C)
Net usable volume 287 l
Net weight 150 kg
Power supply 230V, 50Hz
Temperature range +2/+12°C
Volume, gross 506 l
Volume, net 287 l
Door Type Solid Door
Refrigeration capacity 389
CO2 equivalent 0.21 kg
GWP 3 GWP
Refrigerant 0.07 kg
Refrigerant type R290
SKU 861802393

Documentation

Documentation
Declaration of conformity Download
K_1807_G_DL_DR_DR.pdf Download
Instruction manual Download
7460614.pdf Download
7460613.pdf Download
