F054-C106

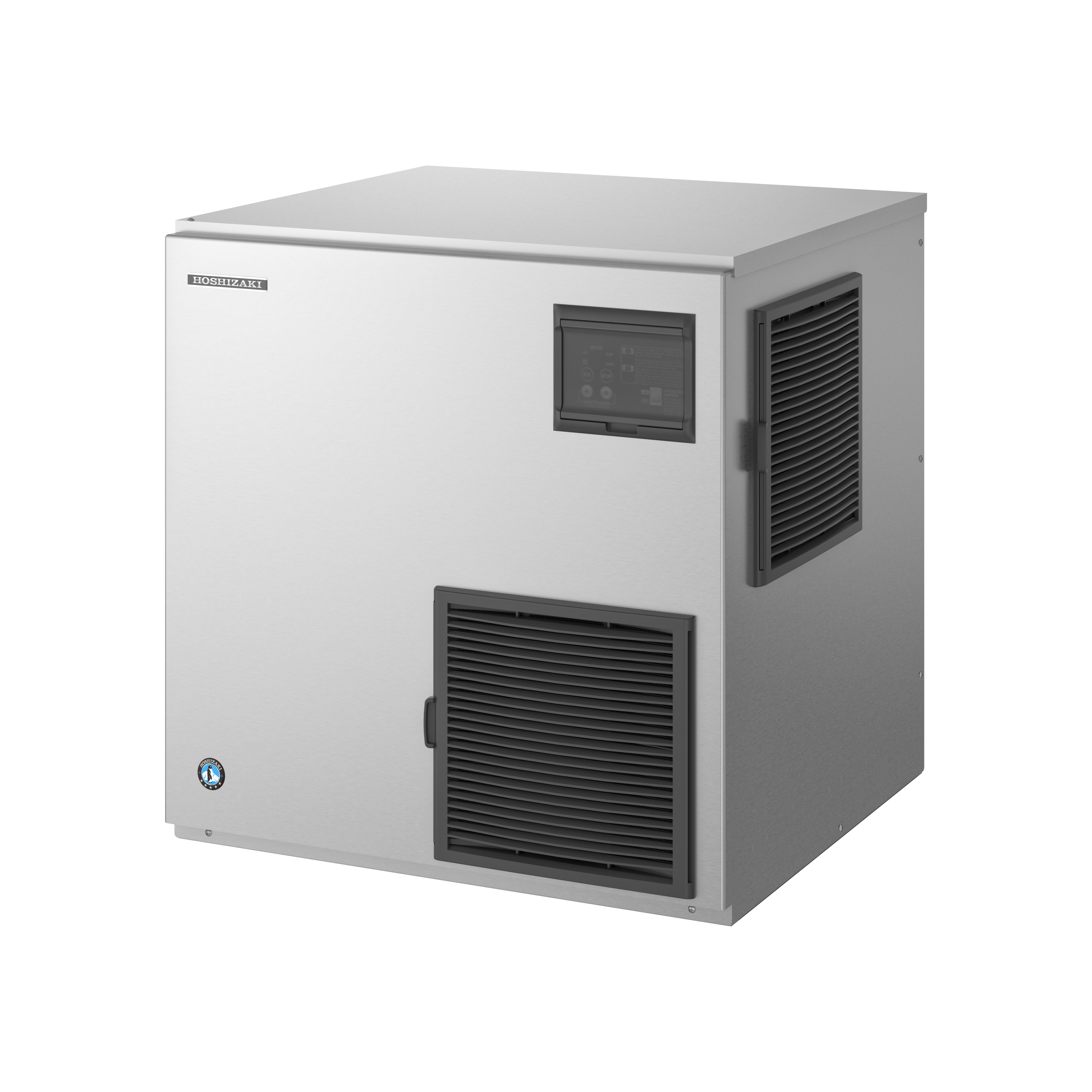

FM-750AKE-N Nugget Ice Maker, Modular

Ice makers

The Hoshizaki FM-750AKE-N is a modular Nugget ice maker producing up to 590 kg of high-quality nugget ice per 24 hours.



In cocktails, the dry and hard ice nuggets are the ideal cooling agent, as they deliver just the right amount of dilution, especially for strong-spirited drinks like Mojitos and Tiki Cocktails.

Get quote View spec sheet

Key features

The FM-750AKE-N uses refrigerant R404A.



Material

The exterior is made of stainless steel. The closed water circuit provides maximum protection against any type of contamination during the entire ice production process. All Hoshizaki machines are easy to use, clean, and maintain.



Unique Technology

The FM series has a worktime-based replacement system, which can be monitored with an intuitive control display for preventive maintenance. Hoshizaki was the first to introduce an automated water circuit rinse cycle, to prevent harmful mineral residues from clogging the hydraulic

system and maintaining top sanitary conditions.



Smart Design

Like all Hoshizaki Ice makers, the FM-750AKE-N is designed to last and comes with smart design extras. The Nugget ice maker uses carbon graphite bushings instead of conventional ball bearings allowing the machine to work entirely without grease. Here, the absence of moving parts prevents wear and tear,  while the water-lubricated bearings protect the system from unpleasant calcification and bacterial contamination.



Flexibility

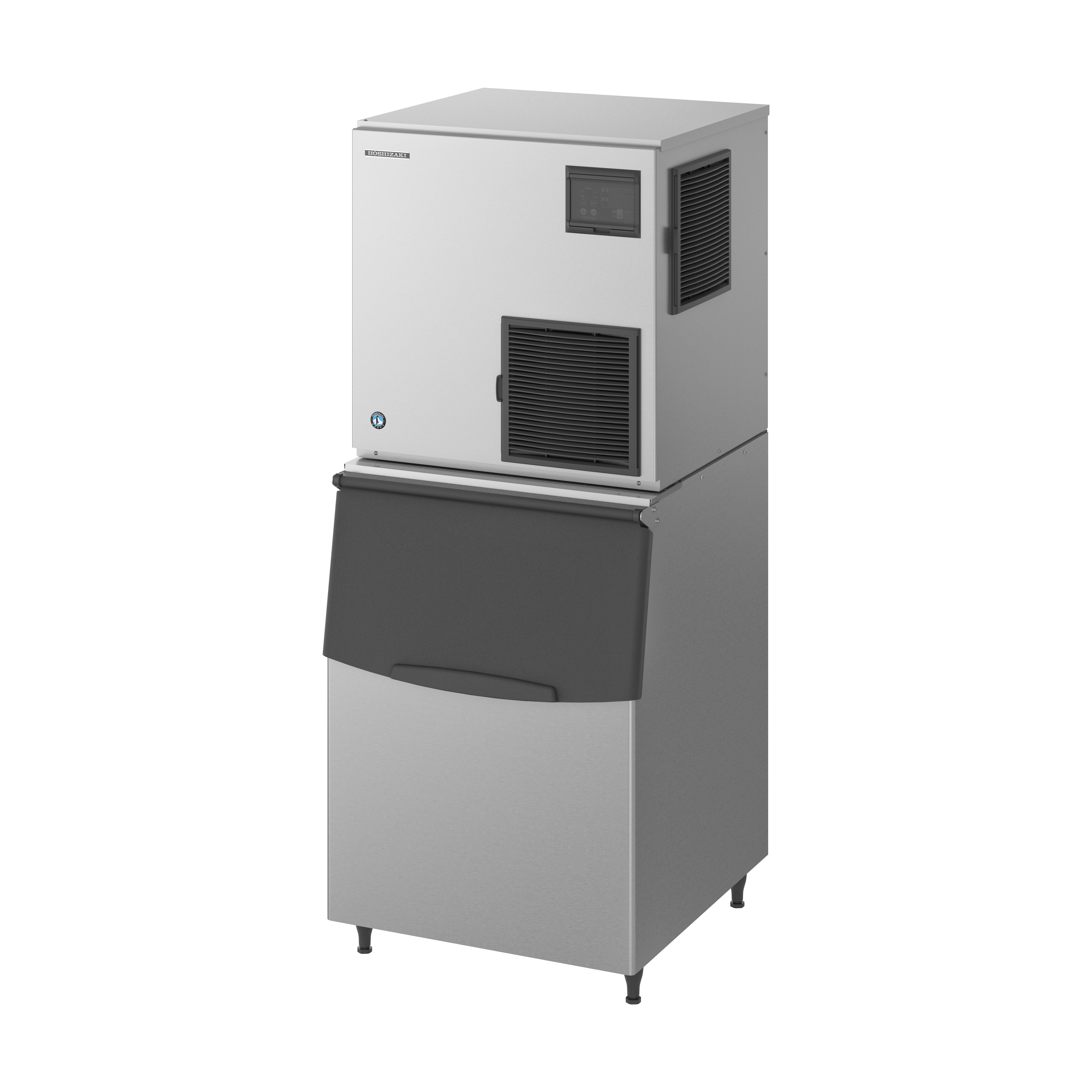

Need to amp up your production capacity? The variable setup with modular bins and bases allows the user to mix and match a number of devices, depending on individual requirements and conditions.



Plug&Play

The smart plug-and-play design guarantees an extremely easy and quick set-up.

Specifications

Specification Value
Item number F054-C106
Model name FM-750AKE-N
Ice maker type Nugget Ice Maker
Brand Hoshizaki
Product configuration Modular
Title Nugget Ice Maker, Modular
Width (legs excluded) 763 mm
Depth (legs excluded) 700 mm
Height (legs excluded) 780 mm
Electric Consumption 2.01 kW
Energy consumption 2.01 kWh
Product availability -- Not available
Exterior Stainless Steel
Gross weight 143 kg
Net weight 133 kg
Power supply 1/220 - 240V/50Hz
Cooling system Air Cooled
Ice type Nugget
Ice production 590
Corresponding Bin(s) B-210SA
CO2 equivalent 4508 kg
Refrigerant type R404A
SKU F054-C106

Documentation

Documentation
Declaration of conformity Download
l2f054203.pdf Download
Instruction manual Download
