FM-170AKE-SB(SA) Flaker, Modular

Ice makers

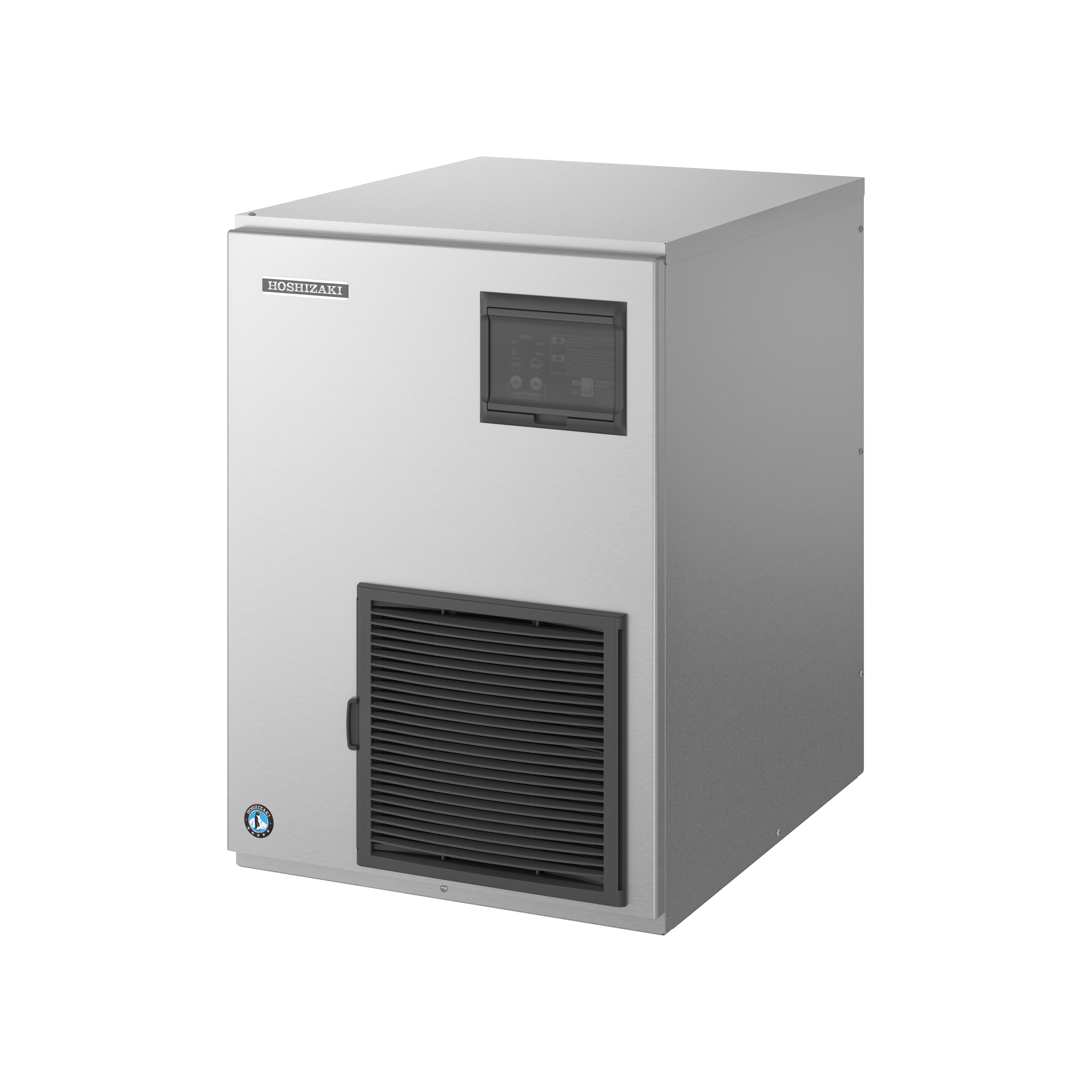

This Hoshizaki FM-170AKE-SB(SA) is a modular flake ice maker producing up to 170 kg of high-quality [flake] ice per 24 hours.



Hoshizaki ice makers generate quality granular ice, such as flake ice.

The light texture of granular ice has a quick cooling effect, creating an environment of uniform temperatures, without causing unpleasant freezer burn. This is why Hoshizaki Flake Ice is highly popular and considered the ideal material to prepare and layer attractive food displays.



For flake ice, the extruding head is equipped with wide channels and multi-blade cutters.

Get quote View spec sheet

Key features

The FM-170AKE-SB(SA) uses refrigerant R134a.



Material

The exterior is made of stainless steel. The closed water circuit provides maximum protection against any type of contamination during the entire ice production process. All Hoshizaki machines are easy to use, clean, and maintain.



Unique Technology

The FM series has a worktime-based replacement system, which can be monitored with an intuitive control display for preventive maintenance. Hoshizaki was the first to introduce an automated water circuit rinse

cycle, to avoid harmful mineral residues from clogging the hydraulic system and maintaining top sanitary conditions.



Smart Design

Like all Hoshizaki ice makers, the FM-170AKE-SB(SA) is designed to last and comes with smart design extras. The flake ice maker uses carbon graphite bushings instead of conventional ball bearings allows the machine to work entirely without grease. Here, the absence of moving parts prevents wear and tear,  while the water-lubricated bearings protect the system from unpleasant calcification and bacterial contamination.



Perfect Fit

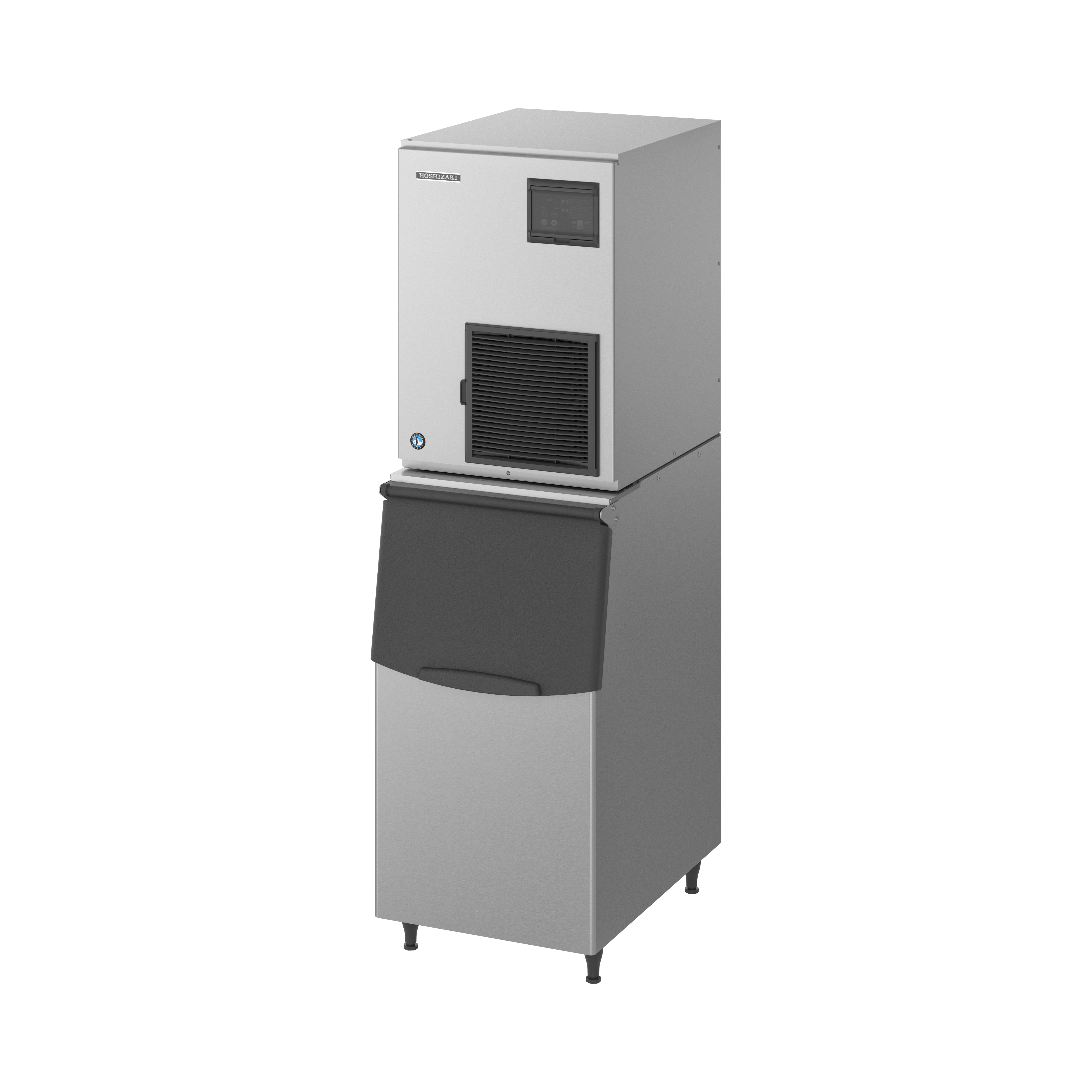

Need to amp up your production capacity? The variable setup with modular bins and bases allows the user to mix and match a number of devices, depending on individual requirements and conditions. The dimensions of the FM-170AKE-SB(SA) are 560 x 700 x 780 mm.



Plug&Play

The smart plug-and-play design guarantees an extremely easy and quick set-up.

Specifications

Specification Value
Item number F084-C801
Model name FM-170AKE-SB(SA)
Ice maker type Flake ice maker
Brand Hoshizaki
Product configuration Modular
Warranty period 2 Years on Parts & Labour
Country of origin UK
Accessories included Installation kit, Mounting bracket
Title Flaker, Modular
Please observe This type of icemaker is on special order only. Please take longer lead times into consideration.
Width (legs excluded) 560 mm
Width (packed) 665 mm
Depth (legs excluded) 700 mm
Depth (packed) 820 mm
Height (legs excluded) 780 mm
Height (packed) 950 mm
Volume (packed) 0.518 l
Electric Consumption 0.6 kW
Energy consumption 0.6 kWh
Exterior Stainless Steel
Gross weight 75 kg
Heat Rejection (AT 32ºC, WT 21ºC) 1.35 kW
Net weight 68 kg
Power supply 1/220-240V / 220-230V 50/60Hz
Volume, gross 0.518 l
Cooling system Air Cooled
Ice type Flake
Ice production 170
Water consumption - Air cooled ice makers 0.17
Corresponding Bin(s) B-140SA, B-210SA, B-340SA
CO2 equivalent 529.1 kg
Refrigerant type R134a
SKU F084-C801

Documentation

Documentation
Declaration of conformity Download
l2f054204.pdf Download
Instruction manual Download

Accessories

Accessory name Item number
4HC-H Single 9320-51
4 HC Replacement Cartridge 9655-11
