Products overviewCOMPACT M 620 RG C2 4N REFRIGERATOR W/EXTENDED TEMPERATURE RANGE

966230145

COMPACT M 620 RG C2 4N REFRIGERATOR W/EXTENDED TEMPERATURE RANGE

Freezers

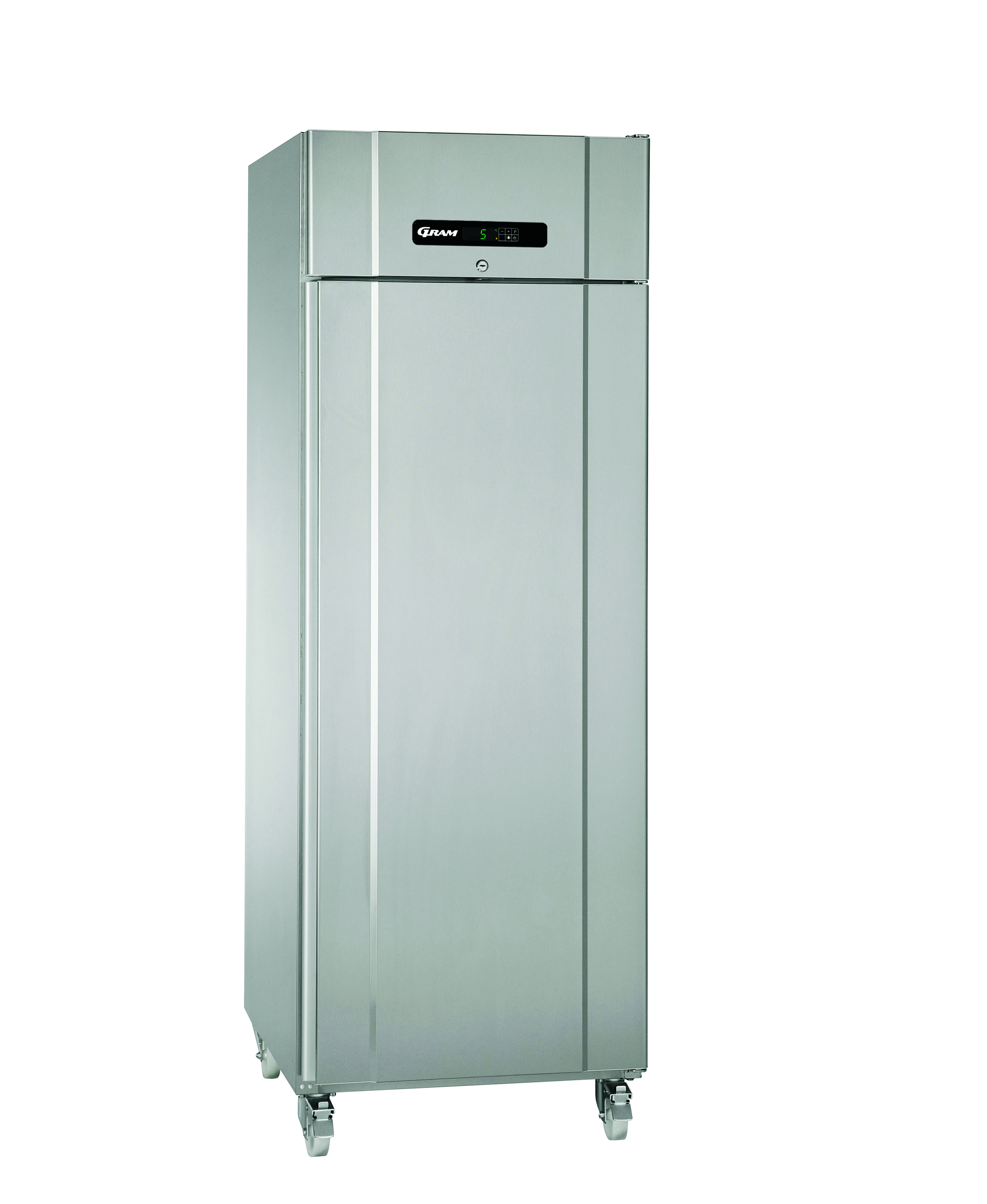

The GRAM COMPACT M 620 RG C2 4N is a REFRIGERATOR W/EXTENDED TEMPERATURE RANGE with a net internal volume of 421 Ltr.

The GRAM COMPACT series offers a rare combination: These cabinets are food safe, space-saving, and come with excellent energy ratings for its class. With a footprint of only 59,5 x, 64 cm these small space storage cabinets are easy to fit in, especially when space is limited. These specifications make the series such a popular choice of those operators who do not require heavy-duty Gastronorm equipment.

Product not available

Get quote View spec sheet

Key features Specifications Documentation

Key features

Food Safety

Thanks to the Gram air distribution system, temperatures are correct and uniform throughout the entire cold room, ensuring perfectly food-safe temperatures at all times

Low-Running Energy Costs

The Energy Efficiency Class of the COMPACT M 620 RG C2 4N is C. The COMPACT series offers a range of extremely energy-efficient refrigeration units for small spaces.

Comfortable Work Environment

Contributes to a healthier work environment with low noise levels 45.0000 dB(A), when the compressor is running. Low heat emission due to short compressor running times.

Hygiene & Ergonomic Design

Just like all GRAM units, the COMPACT series features several design extras, implemented to simplify daily cleaning routines. One of the features for optimized operator safety is the full-height integrated handles.

Modularity & Scalability

The COMPACT M 620 RG C2 4N strikes with its versatility, as the units can be stacked, paired, or even combined with other kitchen devices. Configuration possibilities include column combinations, side-by-side combinations, wall-mounted solutions, and the combinations with microwave ovens on top.

The COMPACT M 620 RG C2 4N comes with the following extras:

Refrigerant: The REFRIGERATOR W/EXTENDED TEMPERATURE RANGE uses HC refrigerant R600a
Air circulation system
Right-hand hinged door

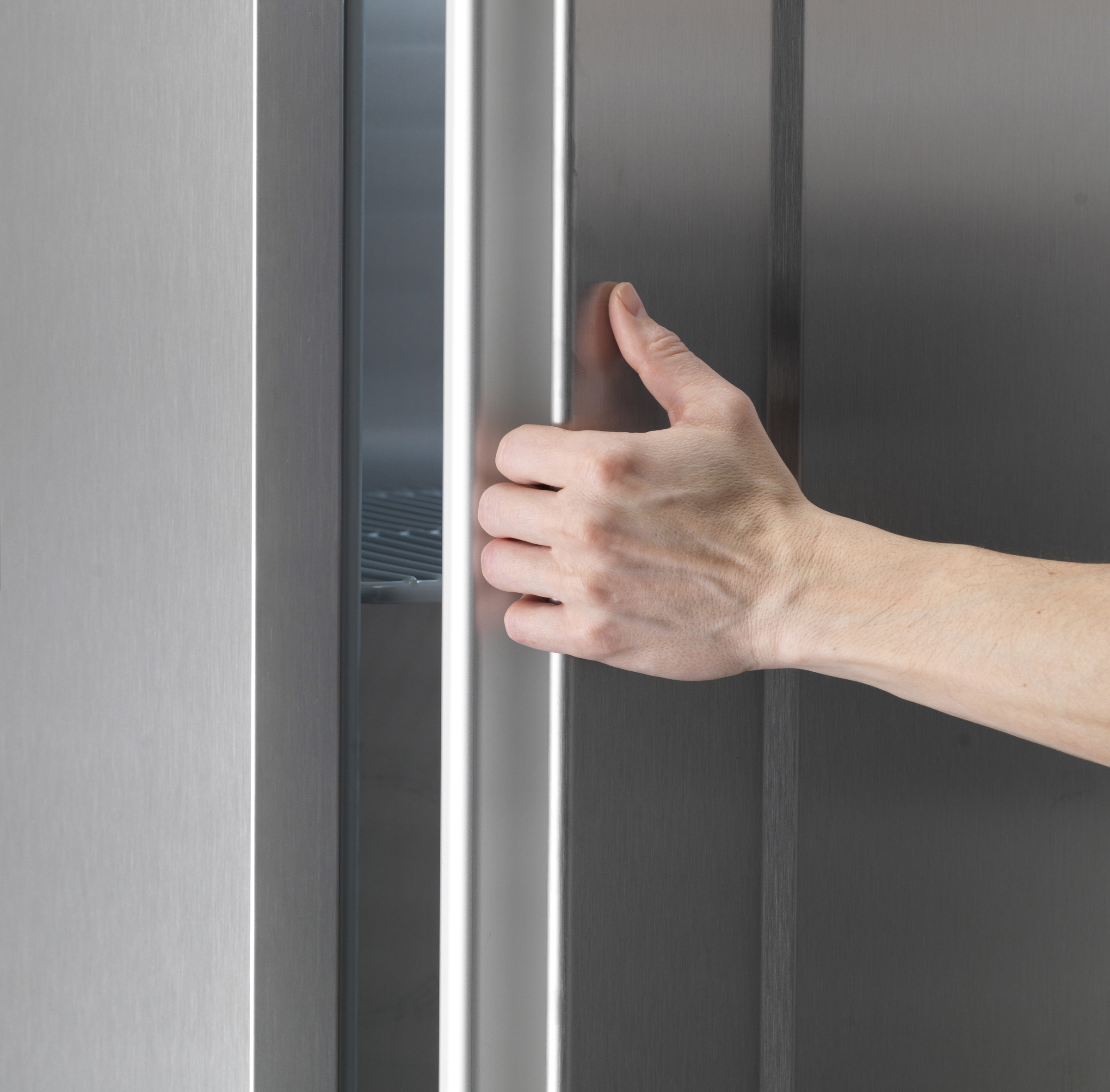

Integrated full height door handle
Internal LED light

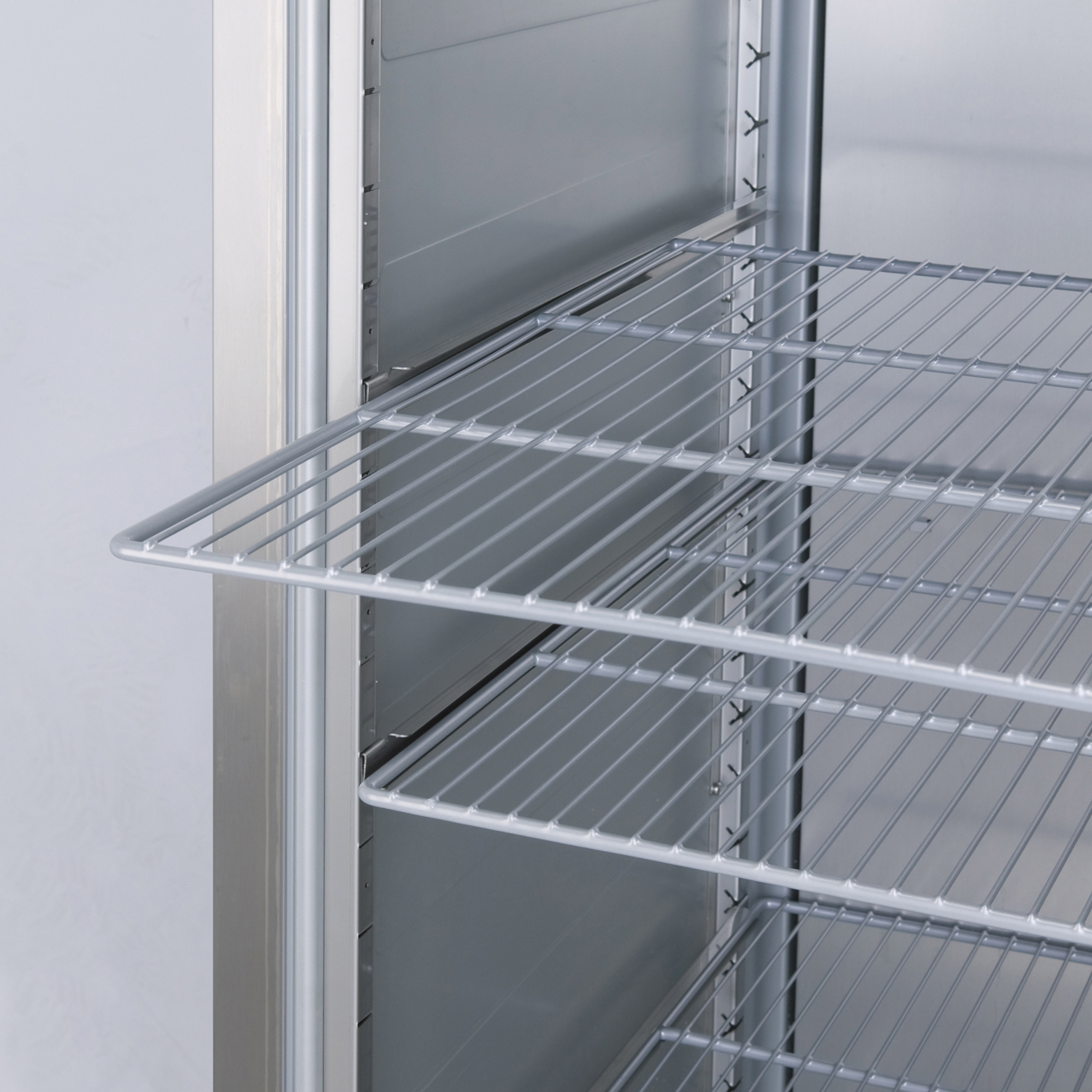

Anti-tilt shelves
Door lock for extra security
Pedal door opener for handsfree operation (optional accessory
Automatic defrost with re-evaporation of defrost water
10 years spare parts warranty guaranteed

Specifications

Specification	Value
Item number	966230145
Model name	COMPACT M 620 RG C2 4N
Brand	Gram
Warranty period	5 Years on Parts & Labour
Title	REFRIGERATOR W/EXTENDED TEMPERATURE RANGE
Equipped with	Right hand hinged reversible door with lock, 4 grey shelves, dry cooling. Exterior: Stainless. Interior: ABS lining in grey
Width	695 mm
Depth	874 mm
Height	2000 mm
Energy consumption	511 kWh
Energy efficiency class	C
Energy Efficiency Index (EEI)	39.24 EEI
Number of shelves	4
Maximum number of shelves	24
Shelf size	2/1 GN deep
Product availability	-- Not available
Climate class	5 (max. ambient 40°C w/ 40% RH)
Connection load	261 kW
Exterior	Stainless Steel
Interior	ABS Lining Grey
Gross weight	102 kg
Insulation thickness	60 mm
Insulation type	Cyclopentane

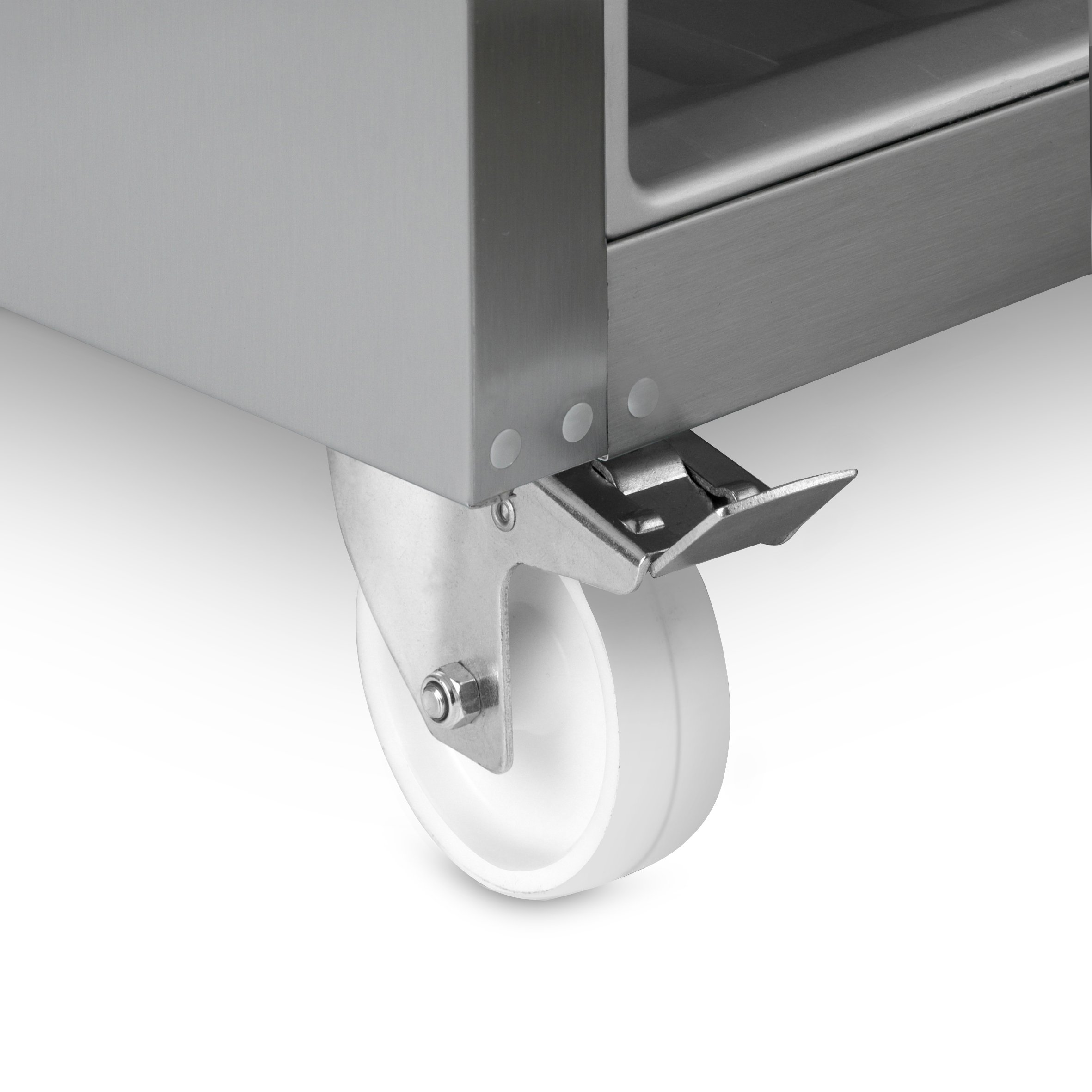

Legs / Castors	H = 125 mm (C)
Net usable volume	421 l
Net weight	102 kg
Power supply	230V, 50Hz
Sound level	45 dB
Temperature range	-5/+12°C
Volume, gross	580 l
Volume, net	421 l
Door Type	Solid Door
Refrigeration capacity	413
CO2 equivalent	0.186 kg
GWP	3 GWP
Refrigerant	0.062 kg
Refrigerant type	R600a
SKU	966230145
