BAKER M 140 CCG C1 50B DOUBLE DOOR REFRIGERATOR

Baker cabinets
B

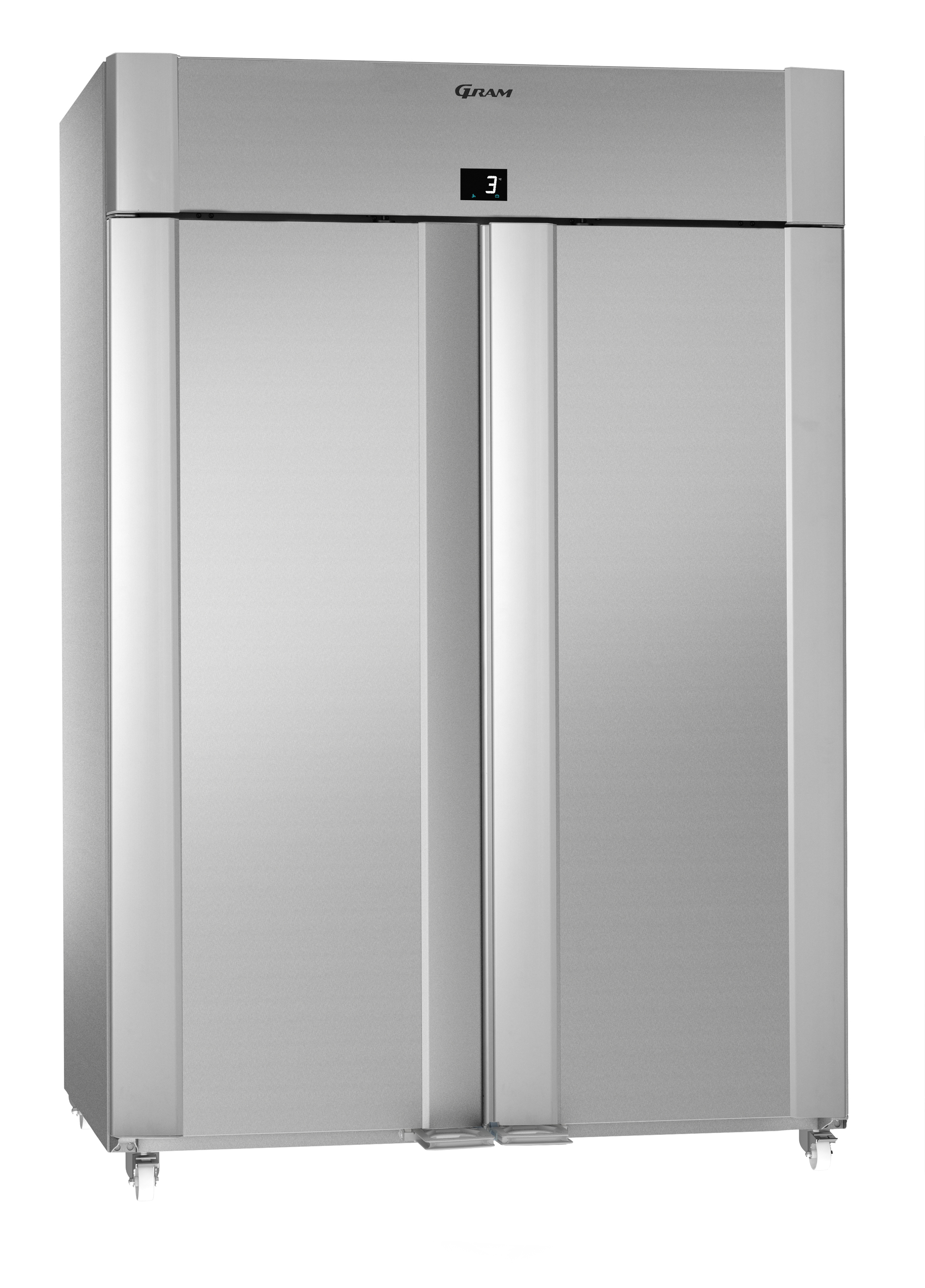

The GRAM BAKER M 140 CCG C1 50B  is a DOUBLE DOOR REFRIGERATOR with a net internal volume of  697 Ltr.



Generations of bakeries, confectioners, and patisseries are trusting GRAM BAKER storage and process cabinets to accommodate their bakery products. The GRAM air circulation system is key to maintain correct and uniform temperature and humidity levels inside the cabinet. The air is exhausted and refrigerated before being directed back into the cabinet, circulating around all food items. Thus, unwanted dehydration and skin forming of doughs can be avoided almost entirely.

Product not available
Get quote View spec sheet

Key features

Preserving Quality

Both storage and process cabinets come with built-in functionalities that preserve the quality of your bakery products at all times.



Low Running Costs

The energy-efficient refrigeration technology implemented in this wide line-up of storage cabinets can help saving running costs on a day-to-day basis.



Built-in Safety

All BAKER Cabinets come with a controller equipped with safety functions: Door alarm, alarms for high-temperature levels, or when the cleaning of the condenser filter is required to avoid overheating. A top panel perfectly protects the controller from water splashes.



Multi-Functional

The SF can be used as a quick chiller/freezer, storage freezer, storage refrigerator, or thawing cabinet. If required, the GA can be also used continuously as a freezer, as a refrigerator, or as a prover.



Designed for Bakers

The GRAM BAKER series strikes with features, specifically designed for the requirements of bakery businesses. The cabinet meets standard bakery tray sizes and the support rails can be individually positioned.



The BAKER M 140 CCG C1 50B comes with the following extras:

  • Right-hand hinged door with lock
  • Air circulation system
  • Dry cooling and controlled thawing (M versions)
  • Automatic defrost and reevaporation of water



Specifications

Specification Value
Item number 961401018
Model name BAKER M 140 CCG C1 50B
Brand Gram
Warranty period 5 Years on Parts & Labour
Title DOUBLE DOOR REFRIGERATOR
Equipped with One right and one left hand hinged door with lock, self closing doors and pedal door openers, LED light, drycooling and controlled rapid thaw, 50 pairs of adjustable trayslides, C1 castors.
Width 1400 mm
Depth 905 mm
Height 2100 mm
Energy efficiency class B
Energy Efficiency Index (EEI) 32.1 EEI
Product availability -- Not available
Climate class 5 (max. ambient 40°C w/ 40% RH)
Exterior Stainless Steel
Interior Stainless
Gross weight 220 kg
Insulation thickness 70 mm
Insulation type Cyclopentane
Legs / Castors H = 110 mm (C)
Net usable volume 697 l
Net weight 220 kg
Power supply 230V, 50Hz
Sound level 42.8 dB
Temperature range -5/+12°C
Volume, gross 1359 l
Volume, net 697 l
Door Type Double Door
Refrigeration capacity 560
CO2 equivalent 0.45 kg
GWP 3 GWP
Refrigerant 0.149 kg
Refrigerant type R290
SKU 961401018

Documentation

Documentation
Declaration of conformity Download
BAKER_PLUS_M_140_G__B__400x650_.pdf Download
Instruction manual Download
Wiring_diagram_ECO_and_BAKER_Plus_M_140.pdf Download
