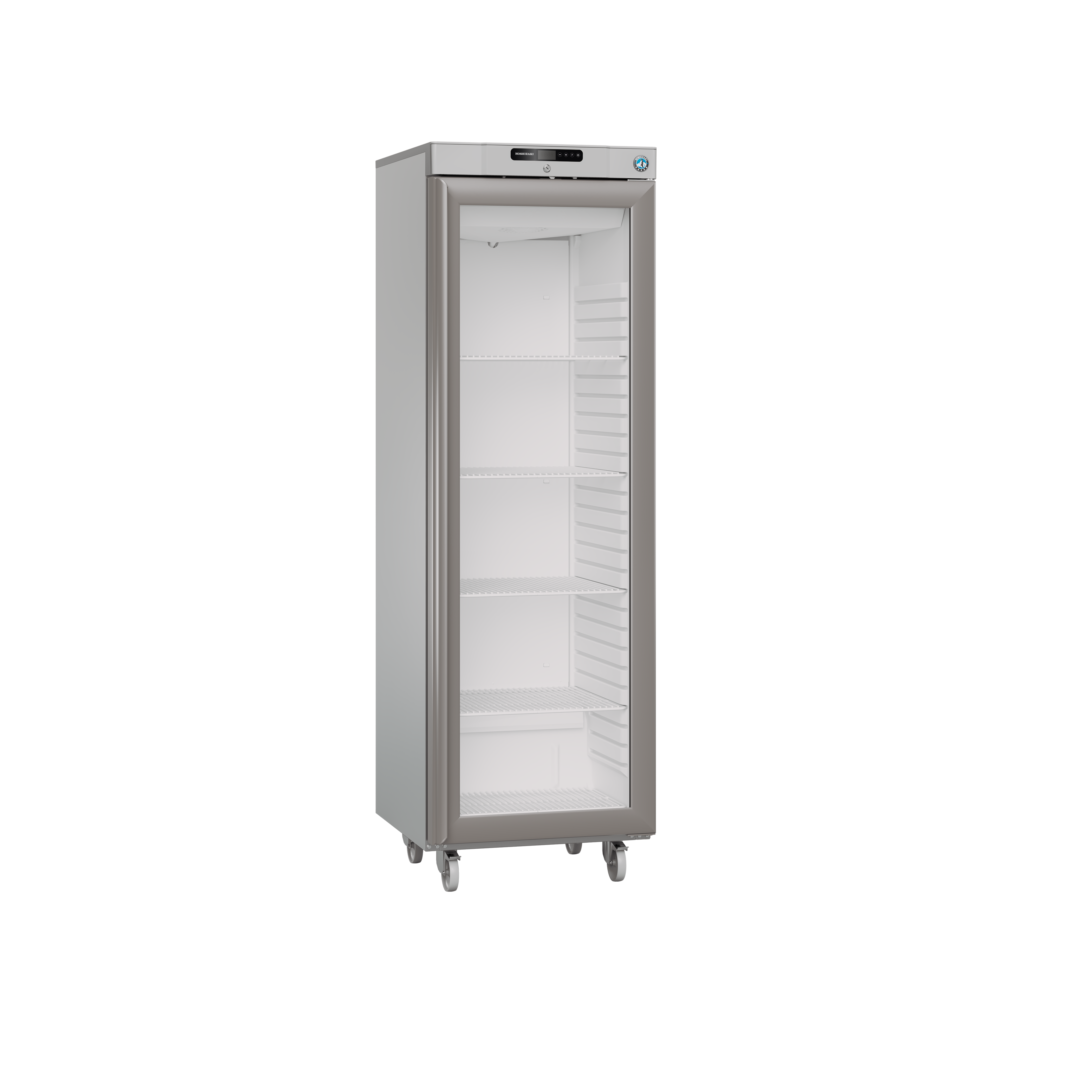

Advance F 70-3 L DR Freezer

Freezers

The Advance F 70-3 L DR is a with a net internal volume of 420 liters. The outside dimensions are mm.

Get quote View spec sheet

Key features Specifications Documentation Accessories

Key features

DURABLE MATERIALS

The interior and exterior are made of stainless steel, the best material for humid locations. ADVANCE cabinets are designed to withstand the demanding conditions of large kitchen operations.

MAXIMUM STORAGE SPACE

With shelves all the way from the top to the bottom of the cabinet, the inside space can be efficiently utilized for maximum produce storage.

HYGIENE AND FOOD SAFETY

Thanks to the rounded corners and seamless surfaces, frequented cleaning routines become a quick and simple task. The practical anti-tilting shelves prevent spillage. The cabinet has a rounded base and comes with removable gaskets for easy wiping.

MONO-BLOCK DESIGN

The ADVANCE refrigeration system uses a mono-block construction. This brings two important advantages. As the evaporator is positioned on top of the cabinet, valuable space inside the cabinet can be used for storage. Additionally, it is removable for easier maintenance and repair.

UNIFORM KITCHEN DESIGN

The exterior of all ADVANCE cabinets features a uniform design that fits seamlessly into your Hoshizaki kitchen concept.

TEMPERATURE STABILITY

The intelligent air distribution system allows high performance, ensuring temperature stability despite frequent door openings and during defrosting.

Specifications

Specification	Value
Item number	123701010
Model name	Advance F 70-3 L DR
Brand	Hoshizaki
Warranty period	5 Years on Parts & Labour
Country of origin	Turkey
Accessories included	3 grey shelves (530 x 650mm) + 1 bottom shelf
Title	Freezer
Equipped with	Right hand hinged reversible door with lock, automatic door closing, 4 grey shelves, LED lighting
Width	654 mm
Width (packed)	745 mm
Depth	830 mm
Depth (packed)	920 mm
Height including legs (minimum)	1980 mm
Height including legs (maximum)	2030 mm
Height (packed)	2090 mm
Volume (packed)	1.43 l
Energy consumption	2389 kWh
Energy efficiency class	D
Energy efficiency class standard	ISO 22041-2019
Energy Efficiency Index (EEI)	67.46 EEI
Number of shelves	4
Maximum number of shelves	22
Shelf size	2/1 GN deep
Climate class	5 (max. ambient 40°C w/ 40% RH)
Connection load	650 kW
Exterior	Stainless steel AISI 304
Interior	Stainless steel AISI 304
Gross weight	121 kg
Insulation thickness	60 mm
Insulation type	Polyurethane
Legs / Castors	H = 130-180 mm (L)
Net usable volume	420 l
Net weight	112 kg
Power supply	230V, 50Hz
Sound level	54 dB
Temperature range	-25/-12°C
Volume, gross	600 l
Volume, net	420 l
Door Type	Solid Door
Refrigeration capacity	506
Optional Extras	Set of legs 130-180 mm Set of castors 125 mm (2 x breaked and 2 x unbreaked) Grey shelf with back guard Grey bottom shelf with back guard Stainless shelf with back guard Stainless bottom shelf with back guard Set of stainless shelves (3 top and 1 bottom) with back guard Master key Pedal door openers with overload protection
CO2 equivalent	0.246 kg
GWP	3 GWP
Refrigerant	0.082 kg
Refrigerant type	R290
SKU	123701010

Documentation

Documentation
Declaration of conformity	Download
H_EL_ADVANCE_F_70.pdf	Download
Instruction manual	Download
Cooling_Circuit_Diagram_for_Cabinet_of_Advance.pdf	Download
Spec sheet	Download
ADVANCE_F70__F140_Wiring_Diagram.pdf	Download

Accessories

Accessory name	Item number
Shelf (grey) with back guard for GN 2/1 cabinets excl. shelf support	760660009
Shelf (stainless steel) with back guard for GN 2/1 cabinets	760660013
Set of castors 125 mm (2 x braked and 2 x unbreaked)	760660022
Set of legs 130-180 mm	760660118
Master key	760660430
Shelf (stainless steel) with back guard for GN 2/1 cabinets (bottom)	760660437
Shelf (grey) for GN 2/1 cabinets excl. shelf support (bottom)	760660442
Set of stainless steel shelves (3 top & 1 bottom) with back guard for GN 2/1 cabinets excl. shelf support (single door)	760660444
