GRAM GASTRO M 1407 CSG A DL/DR C2

Chłodnictwo
A

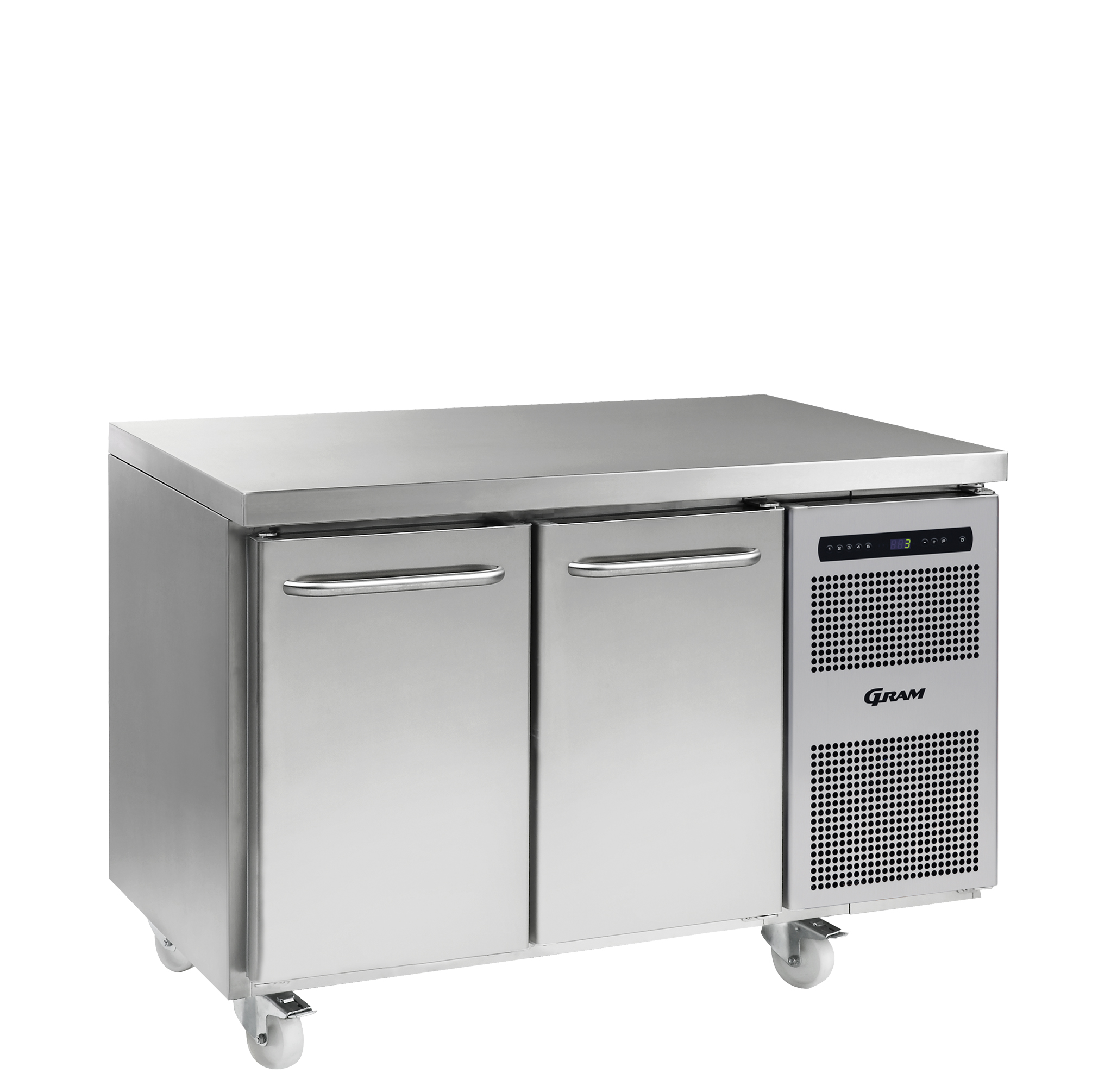

The GRAM GRAM GASTRO M 1407 CSG A DL/DR C2  is a with a net internal volume of  192 Ltr.



GRAM Gastro 07 is a series of 1/1 GN workstations, equipped with customizable sections. Furthermore, the highly modular refrigerated counter offers an abundance of practical configuration possibilities.



Produkt niedostępny
Uzyskaj wycenę Zobacz specyfikację

Najważniejsze cechy

Temperature Control

Thanks to the Gram air distribution system, temperatures inside the counters always maintain a uniform and correct level.

This includes rapid temperature recovery after every door opening.



Modularity & Scalability

With GRAM GASTRO 07 counters you can put together your individual workplace. Choose your combination of worktop, doors, and drawers, legs /castors/electric elevation, temperature ranges and accessories.



Easy Maintenance

A compact slide-out refrigeration unit for easy maintenance and service access. Removable and easy to clean condenser filters and gaskets.



High Standard in Hygiene

  • The counter almost entirely consists of smooth surfaces – the perfect design for easy, quick and thorough cleaning.
  • ‘Drip Nose’ edges on worktops to prevent the ingress of water.
  • Worktops with splashbacks to protect your counter from spillage.
  • Removable drawer and door gaskets for easy cleaning.

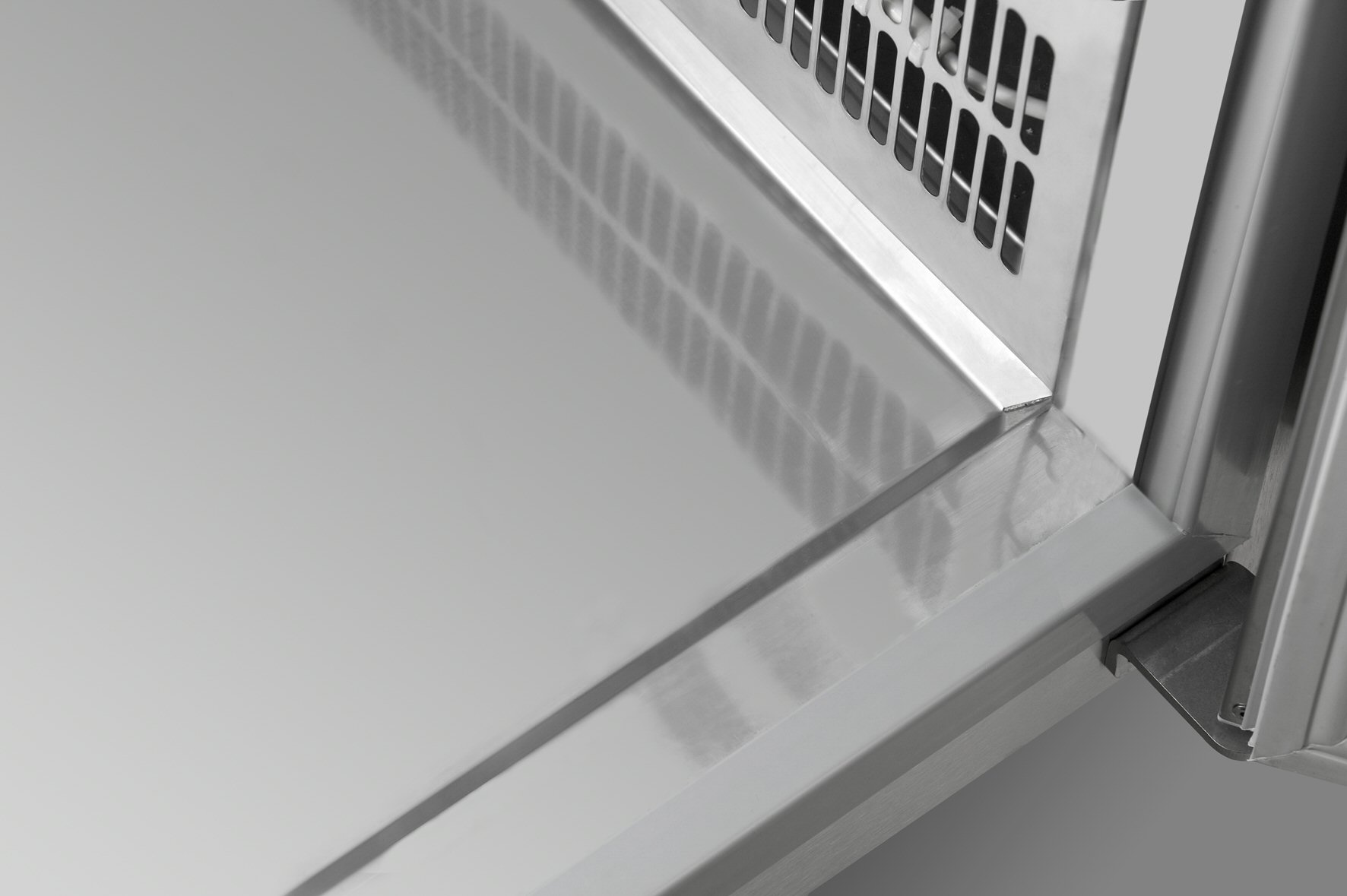

  • Pan-shaped inside base with rounded corners to catches fluid.



Allergy-Proof

Counters are made from nickel-free stainless steel.



Ergonomic and practical design

  • Anti-tilt shelves and drawers with pull-out stop.

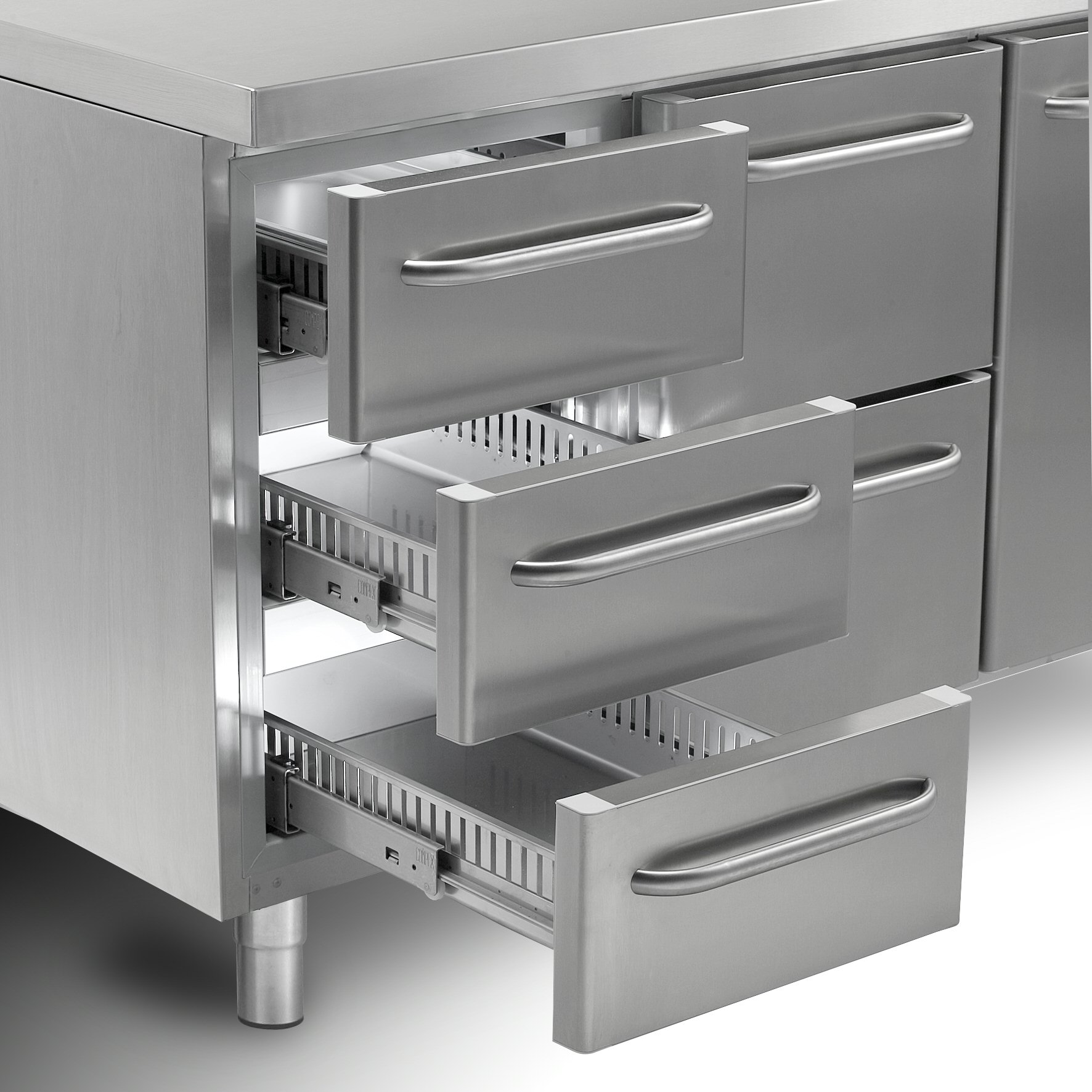

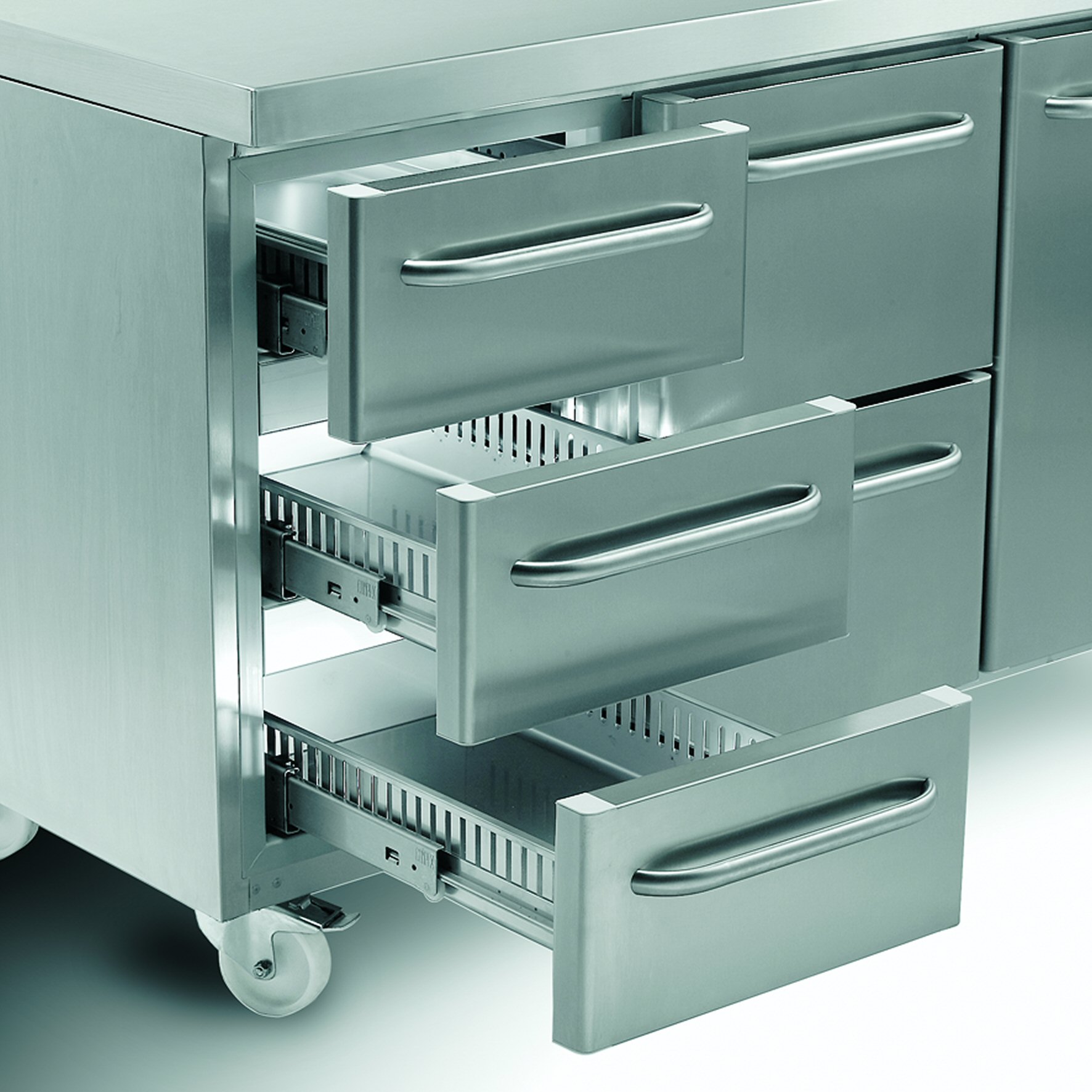

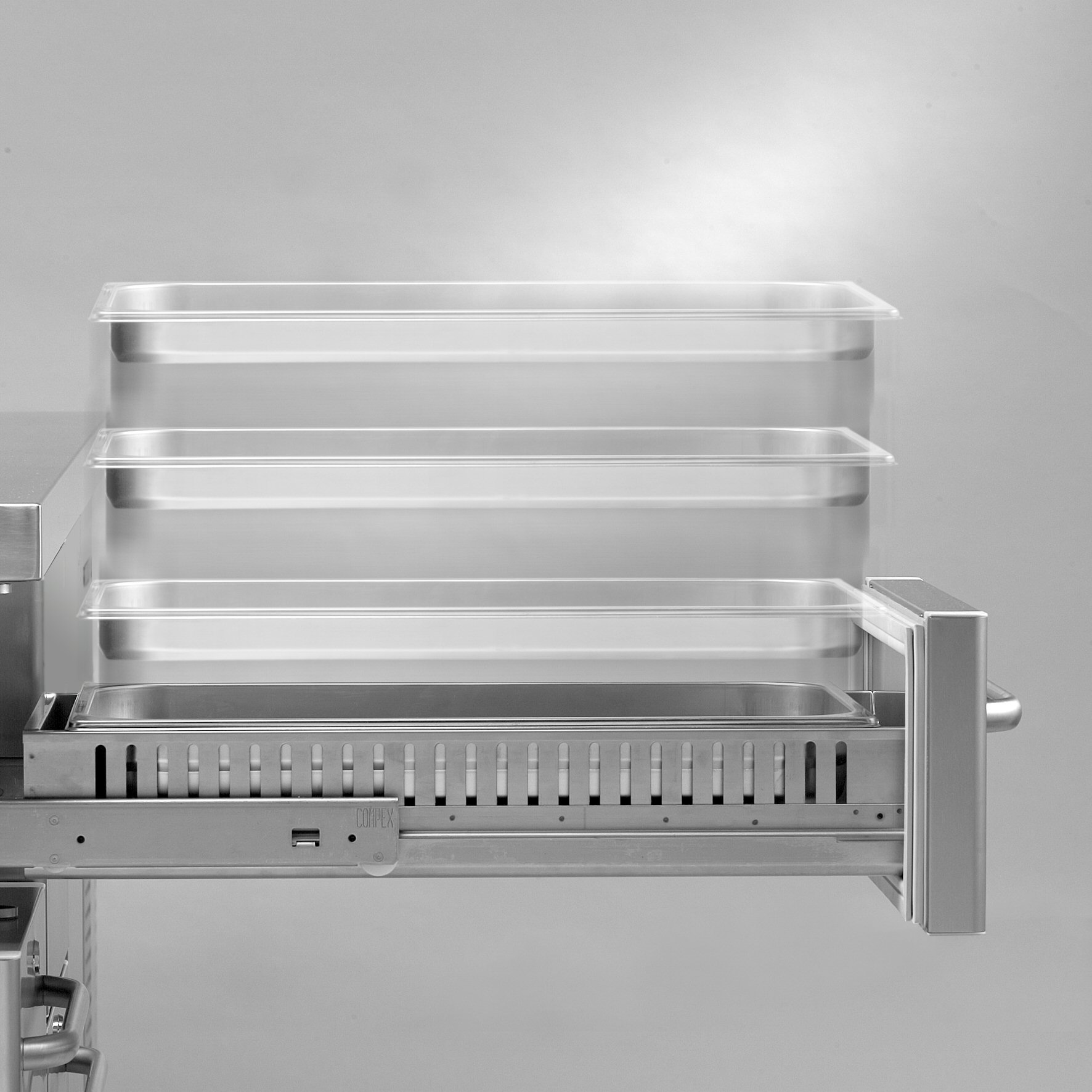

  • Extra-long telescopic rails on drawers – GN trays can be lifted in and out without tilting.



Specyfikacje

Specyfikacja Value
Numer Artykułu 951412021
Nazwa modelu GRAM GASTRO M 1407 CSG A DL/DR C2
Marka Gram
Wyposażony w Stainless steel solid top, 2 door sections each with 2 stainless shelves
Szerokość 1289 mm
Głębokość 700 mm
Wysokość 905 mm
Zużycie energii 476 kWh
Klasa energooszczędności A
Indeks efektywności energetycznej (EEI) 20.87 EEI
liczba rusztów 4
Rozmiar prusztu 1/1 GN
Product availability -- Not available
Klasa klimatyczna 5
Obciążenie przyłącza 205 kW
Zewnętrzny Stainless Steel
Wnętrze Stainless
Waga brutto 140 kg
Grubość izolacji 50 mm
Rodzaj izolacji Cyclopentane
Nóżki / Kółka H = 125 mm (C)
Objętość powierzchni netto 192 l
Waga netto 140 kg
Zasilanie 230V, 50Hz
Poziom głośności 45.1 dB
Zakres temperatur -5/+12°C
Objętość, brutto 345 l
Objętość, netto 192 l
Rodzaj drzwi Solid Door
Wydajność chłodzenia 406
Ekwiwalent CO2 0.291 kg
GWP 3 GWP
Czynnik chłodniczy 0.097 kg
Rodzaj czynnika chłodniczego R290
SKU 951412021

Dokumentacja

Dokumentacja
M_1407_G__door_version_.pdf Pobierz
Instruction manual Pobierz
7460595.pdf Pobierz
765073132.pdf Pobierz
