F083-C207

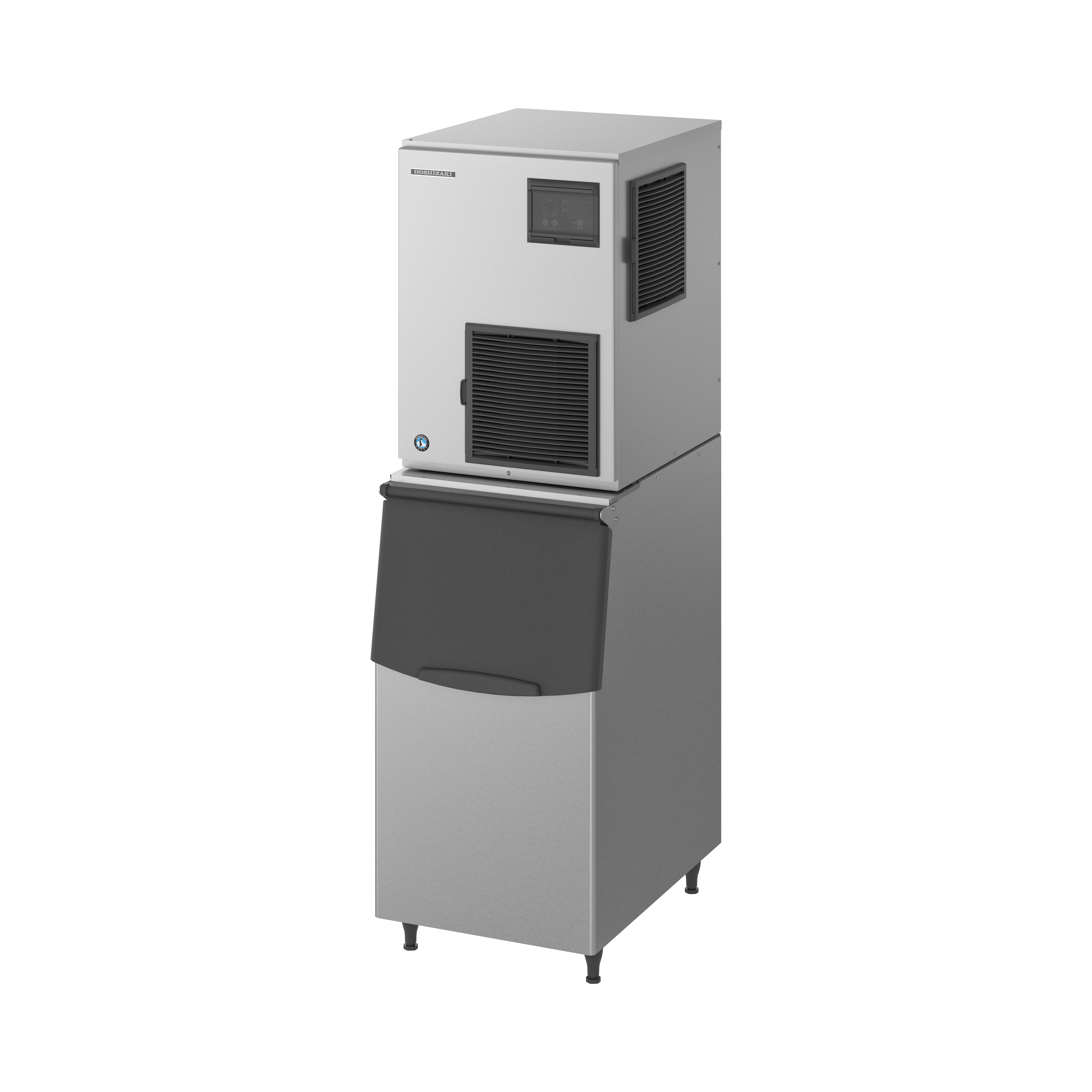

FM-600AKE-R452N-SB Nugget Ice Maker, Modular

Wytwornice do lodu

The Hoshizaki FM-600AKE-R452N-SB is a modular Nugget ice maker producing up to 530 kg of high-quality nugget ice per 24 hours.



In cocktails, the dry and hard ice nuggets are the ideal cooling agent, as they deliver just the right amount of dilution, especially for strong-spirited drinks like Mojitos and Tiki Cocktails.

Uzyskaj wycenę View spec sheet

Najważniejsze cechy

The FM-600AKE-R452N-SB uses refrigerant R452A.



Material

The exterior is made of stainless steel. The closed water circuit provides maximum protection against any type of contamination during the entire ice production process. All Hoshizaki machines are easy to use, clean, and maintain.



Unique Technology

The FM series has a worktime-based replacement system, which can be monitored with an intuitive control display for preventive maintenance. Hoshizaki was the first to introduce an automated water circuit rinse cycle, to prevent harmful mineral residues from clogging the hydraulic

system and maintaining top sanitary conditions.



Smart Design

Like all Hoshizaki Ice makers, the FM-600AKE-R452N-SB is designed to last and comes with smart design extras. The Nugget ice maker uses carbon graphite bushings instead of conventional ball bearings allowing the machine to work entirely without grease. Here, the absence of moving parts prevents wear and tear,  while the water-lubricated bearings protect the system from unpleasant calcification and bacterial contamination.



Flexibility

Need to amp up your production capacity? The variable setup with modular bins and bases allows the user to mix and match a number of devices, depending on individual requirements and conditions.

Specyfikacje

Specyfikacja Value
Numer Artykułu F083-C207
Nazwa modelu FM-600AKE-R452N-SB
Typ wytwornicy lodu Wytwornica lodu Bryłkach
Marka Hoshizaki
Konfiguracja produktu Modular
Okres gwarancji 2 lata na części zamienne i robociznę
KRAJ POCHODZENIA Wielka Brytania (UK)
Tytuł Nugget Ice Maker, Modular
AKCESORIA W KOMPLECIE Mounting bracket
Zwróć uwagę This type of icemaker is on special order only. Please take longer lead times into consideration.
Odpowiadające filtry do wody Filtracja wody Twin 4HC-H, Filtr wymienny 4HC
Szerokość 560 mm
Szerokość (w opakowaniu) 665 mm
Głębokość 700 mm
Głębokość (w opakowaniu) 820 mm
Wysokość 780 mm
Wysokość (w opakowaniu) 950 mm
Objętość (w opakowaniu) 0.518 l
Zużycie energii 1.95 kW
Zużycie energii 1.95 kWh
Temperatura otoczenia (maksymalna) 40 u00b0C
Temperatura otoczenia (minimalna) 5 u00b0C
zakres napięcia Rated Voltage ±6%
Ciśnienie wody zasilającej (maksymalne) 0.8MPa (8bar)
Ciśnienie wody zasilającej (minimalne) 0.05MPa (0.5bar)
temperatura wody (maksymalna) 35 u00b0C
Temperatura wody (minimalna) 5 u00b0C
Zewnętrzny Stal nierdzewna AISI 441, stal ocynkowana (tył)
Waga brutto 114 kg
Odprowadzanie ciepła (UT 32° C, WT 21° C) 3.7 kW
Waga netto 107 kg
Zasilanie 1/220 - 240V/50Hz
Objętość, brutto 0.518 l
System chłodzenia Chłodzona powietrzem
Rodzaj lodu Nugget
Produkcja lodu 530
Zużycie wody - Kostkarki do lodu chłodzoną powietrzem 0.56
Opcjonalne dodatki 4HC-H water filtration
OdpowiadajƒÖca bin(a) B-340SA
Ekwiwalent CO2 2782 kg
Czynnik chłodniczy 1.3 kg
Rodzaj czynnika chłodniczego R452
Odpowiednie topkitz TK-30 do B-140SA, B-210SA, B340SA (opcjonalne), TK-8D do B-210SA, TK-8D + TK18D do B-340SA
SKU F083-C207

Dokumentacja

Dokumentacja
DWG files Pobierz
Declaration of conformity Pobierz
l2f054204.pdf Pobierz
Instruction manual Pobierz

Akcesoria

Nazwa akcesorium Numer przedmiotu
9320-52 F083-C207
4 HC Replacement Cartridge F083-C207
