FM-1800ALKE-R452N-SB Nugget Ice Maker, Modular

Wytwornice do lodu

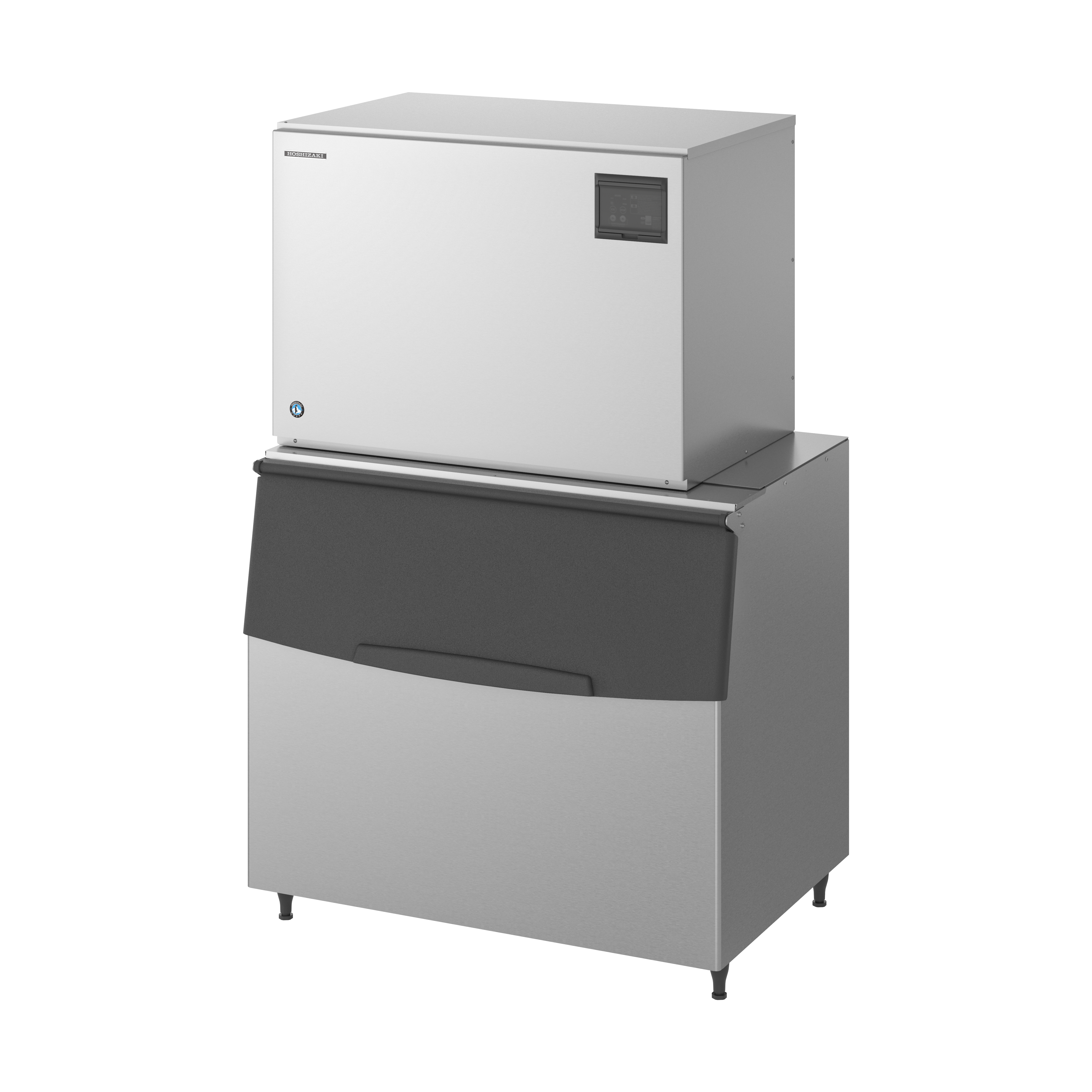

This Hoshizaki FM-1800ALKE-R452N-SB is a modular flake ice maker producing up to 1590 kg of high-quality flake ice per 24 hours.



Hoshizaki FM ice makers generate quality granular ice, such as Flake ice. The light texture of granular ice has a quick cooling effect, creating an environment of uniform temperatures, without causing unpleasant freezer-burn. This is why Hoshizaki Flake ice is highly popular and considered the ideal material to prepare and layer hygienic and attractive food displays.



For flake ice, the extruding head is equipped with wide channels and multi-blade cutters.

Uzyskaj wycenę View spec sheet

Najważniejsze cechy

The FM-1800ALKE-R452N-SB uses refrigerant R452A.



Material

The exterior and the auger are made of stainless steel. The closed water circuit provides maximum protection against any type of contamination during ice production. All Hoshizaki machines are easy to use, clean, and maintain.



Unique Technology

The inner workings of Flakers are designed to prevent unpleasant calcification and bacterial contamination. For example, the use of carbon graphite bushings instead of conventional ball bearings allows the machine to work entirely without grease.



Smart Design

Like all Hoshizaki Ice makers, the FM-1800ALKE-R452N-SB is designed to last and comes with smart design extras, such as the intuitive control display for preventive maintenance.



Perfect Fit

Need to amp up your production capacity? The variable setups with modular bins and bases allow the user to mix and match depending on individual requirements and conditions. The dimensions of the FM-1800ALKE-R452N-SB are mm.



Plug&Play

The smart plug-and-play design guarantees an easy and quick set-up.



Specyfikacje

Specyfikacja Value
Numer Artykułu F074-C207
Nazwa modelu FM-1800ALKE-R452N-SB
Typ wytwornicy lodu Wytwornica lodu Bryłkach
Marka Hoshizaki
Konfiguracja produktu Modular
Okres gwarancji 2 lata na części zamienne i robociznę
KRAJ POCHODZENIA Wielka Brytania (UK)
Tytuł Nugget Ice Maker, Modular
AKCESORIA W KOMPLECIE Mounting bracket
Zwróć uwagę This type of icemaker is on special order only. Please take longer lead times into consideration.
Odpowiadające filtry do wody Filtracja wody Triple 4HC-H, Filtr wymienny 4HC
Szerokość 1080 mm
Szerokość (w opakowaniu) 1191 mm
Głębokość 700 mm
Głębokość (w opakowaniu) 820 mm
Wysokość 780 mm
Wysokość (w opakowaniu) 947 mm
Objętość (w opakowaniu) 0.925 l
Zużycie energii 0.77 kW
Zużycie energii 0.77 kWh
Temperatura otoczenia (maksymalna) 40 u00b0C
Temperatura otoczenia (minimalna) 5 u00b0C
zakres napięcia Rated Voltage ±6%
Ciśnienie wody zasilającej (maksymalne) 0.8MPa (8bar)
Ciśnienie wody zasilającej (minimalne) 0.05MPa (0.5bar)
temperatura wody (maksymalna) 35 u00b0C
Temperatura wody (minimalna) 5 u00b0C
Zewnętrzny Stal nierdzewna AISI 441, stal ocynkowana (tył)
Waga brutto 155 kg
Waga netto 140 kg
Zasilanie 1/220 - 240V/50Hz
Objętość, brutto 0.925 l
System chłodzenia Remote Condenser
Rodzaj lodu Flake
Produkcja lodu 1590
Zużycie wody - Kostkarki do lodu chłodzoną powietrzem 1.6
Opcjonalne dodatki 4HC-H water filtration
OdpowiadajƒÖca bin(a) B-340SA
Ekwiwalent CO2 64.2 kg
Czynnik chłodniczy 0.03 kg
Rodzaj czynnika chłodniczego R452
Odpowiednie topkitz TK-48 do B-340SA (opcjonalne), TK-FM1800 do B-340SA
SKU F074-C207

Dokumentacja

Dokumentacja
DWG files Pobierz
Declaration of conformity Pobierz
l2f073204.pdf Pobierz
Instruction manual Pobierz

Akcesoria

Nazwa akcesorium Numer przedmiotu
9320-53 F074-C207
4 HC Replacement Cartridge F074-C207
