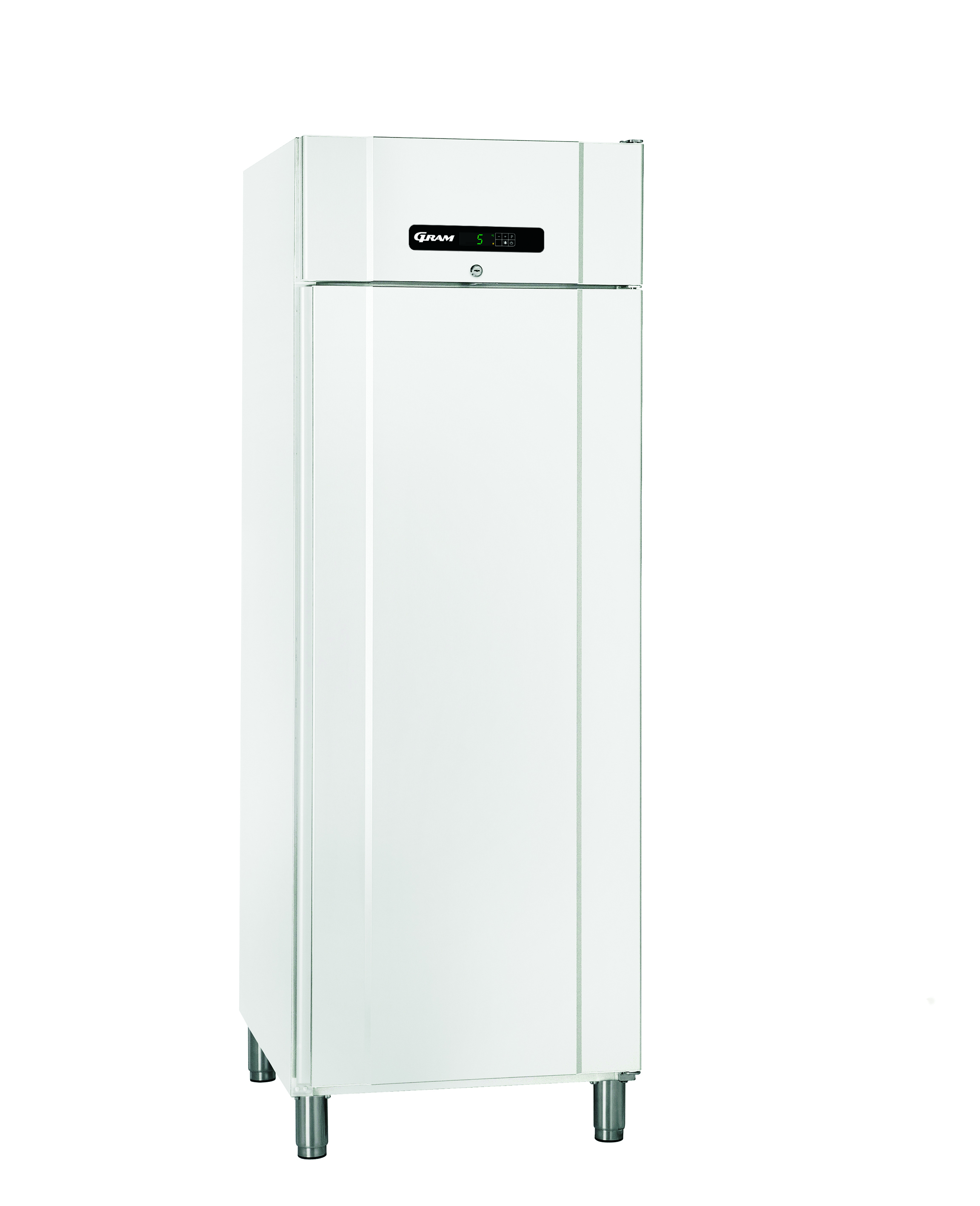

BAKER M 620 LG L2 10A REFRIGERATOR

Refrigerators
C

The GRAM BAKER M 620 LG L2 10A  is a with a net internal volume of  358 Ltr.



Generations of bakeries, confectioners, and patisseries are trusting GRAM BAKER storage and process cabinets to accommodate their bakery products. The GRAM air circulation system is key to maintain correct and uniform temperature and humidity levels inside the cabinet. The air is exhausted and refrigerated before being directed back into the cabinet, circulating around all food items. Thus, unwanted dehydration and skin forming of doughs can be avoided almost entirely.



Product niet beschikbaar
Offerte aanvraag Bekijk specificaties

Key features

Preserving Quality

Both storage and process cabinets come with built-in functionalities that preserve the quality of your bakery products at all times.



Low Running Costs

The energy-efficient refrigeration technology implemented in this wide line-up of storage cabinets can help saving running costs on a day-to-day basis.



Built-in Safety

All BAKER Cabinets come with a controller equipped with safety functions: Door alarm, alarms for high-temperature levels, or when the cleaning of the condenser filter is required to avoid overheating. A top panel perfectly protects the controller from water splashes.



Multi-Functional

The SF can be used as a quick chiller/freezer, storage freezer, storage refrigerator, or thawing cabinet. If required, the GA can be also used continuously as a freezer, as a refrigerator, or as a prover.



Designed for Bakers

The GRAM BAKER series strikes with features, specifically designed for the requirements of bakery businesses. The cabinet meets standard bakery tray sizes and the support rails can be individually positioned.



  • Right-hand hinged door with lock
  • Air circulation system
  • Dry cooling and controlled thawing (M versions)
  • Automatic defrost and reevaporation of water

Specifications

Specification Value
Artikelnummer 966230198
Modelnaam BAKER M 620 LG L2 10A
Merk Gram
Garantieperiode 5 jaar
Titel REFRIGERATOR

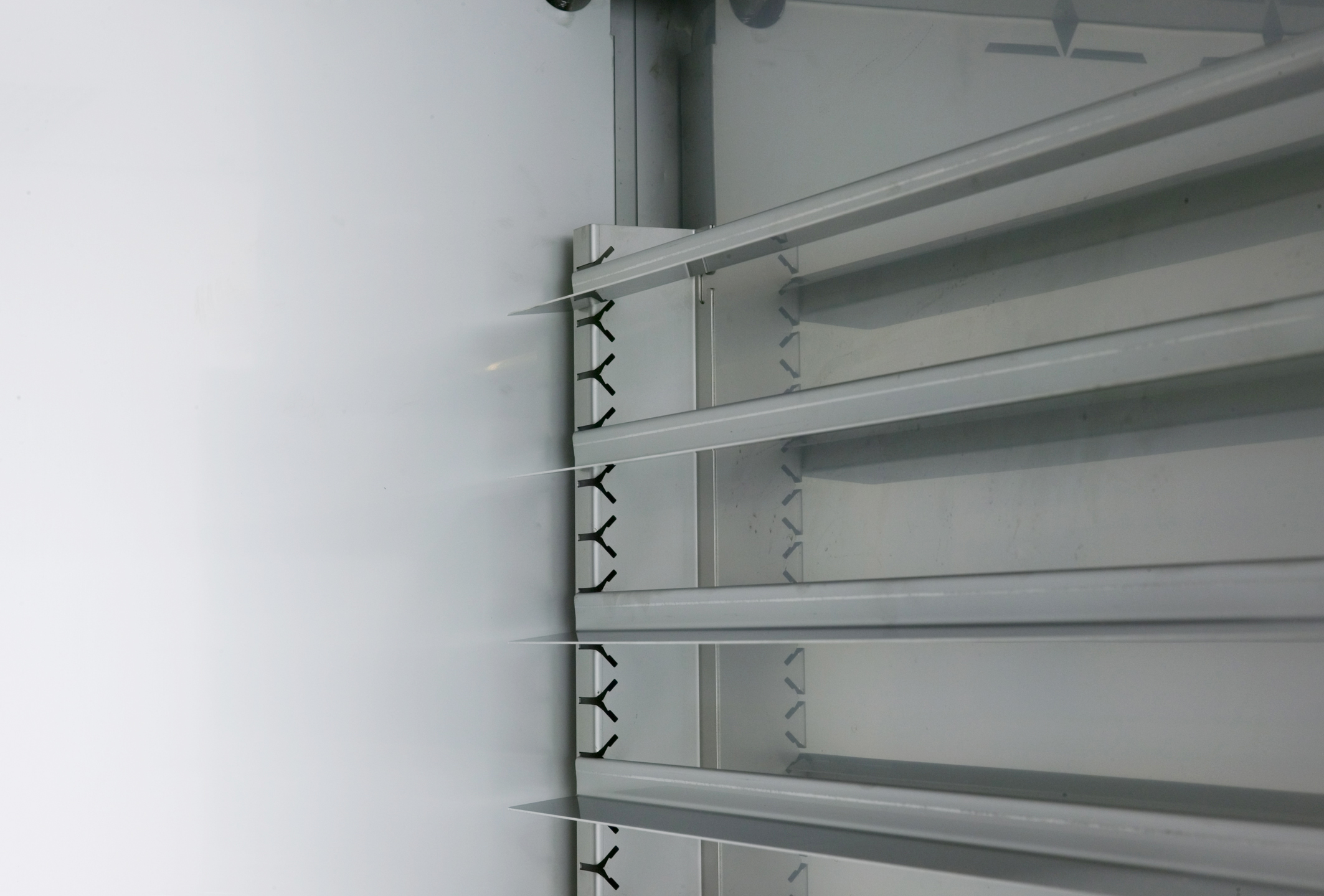

Voorzien van Right hand hinged reversible door with lock, castors, drycooling, rapid thaw, 10 pairs of adjustable supports (46x61 cm)
Breedte 695 mm
Diepte 874 mm
Hoogte inclusief benen (minimum) 2010 mm
Hoogte inclusief benen (maximum) 2075 mm
Energie verbruik 511 kWh
Energie-efficiëntieklasse C
Energie-efficiëntie-index (EEI) 42.67 EEI
Product availability -- Not available
Klasse van het klimaat 5
Verbindingstemperatuur 261 kW
Buiten Wit
Interieur ABS grijs
Bruto gewicht 102 kg
Isolatiedikte 60 mm
Isolatietype Cyclopentane

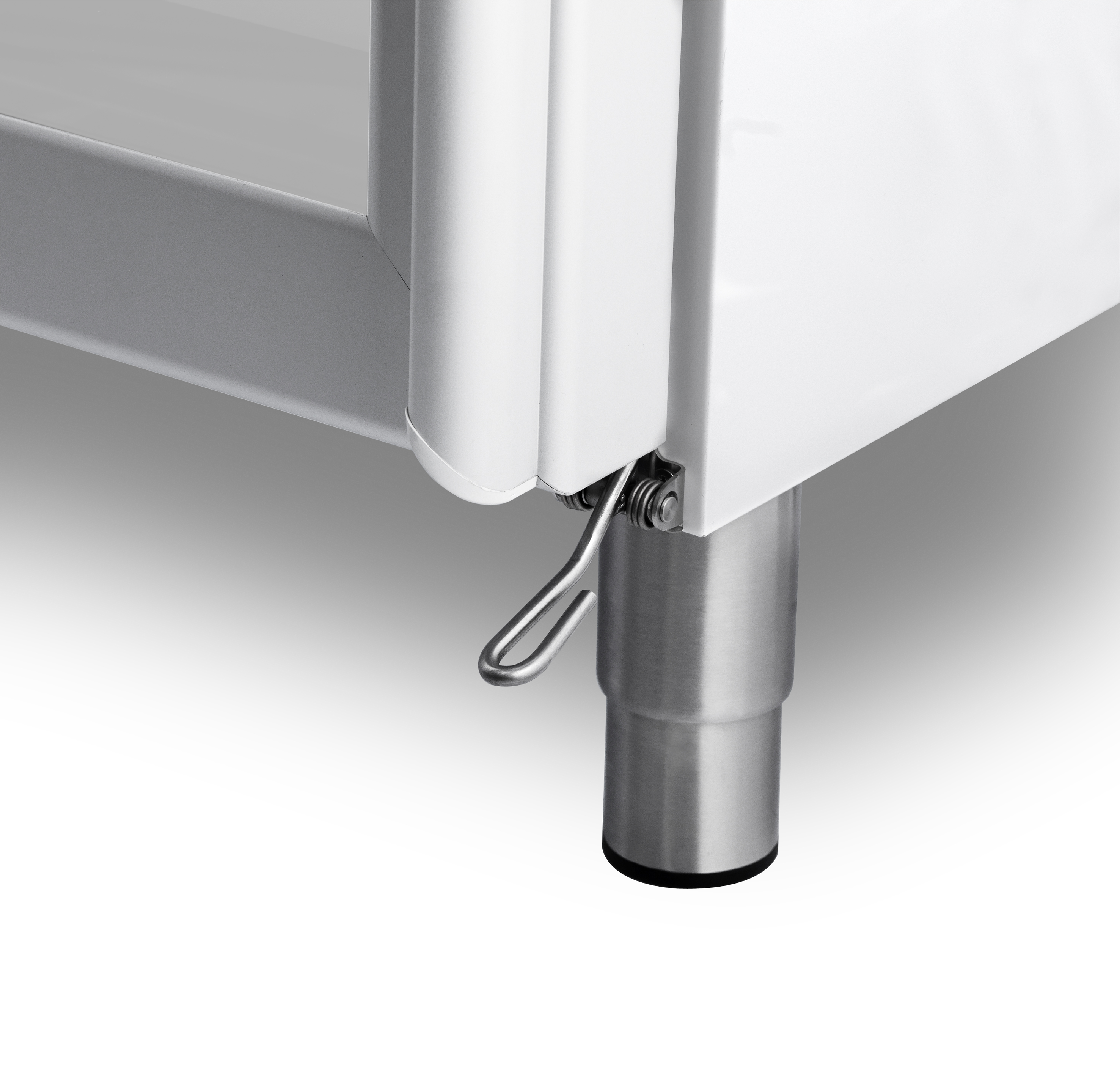

Potens / Wielen H = 135-200 mm (L)
Netto bruikbare volume 358 l
Netto gewicht 102 kg
Voeding 230V, 50Hz
Geluidniveau 45 dB
Temperatuurbereik -5/+12°C
Volume, bruto 580 l
Volume, netto 358 l
Deurtype Geïsoleerde deur
Koelcapaciteit 413
CO2-equivalent 0.186 kg
GWP 3 GWP
Koelmiddel 0.062 kg
Type koudemiddel R600a
SKU 966230198

Documentation

Documentation
DWG files Download
DWG files Download
Declaration of conformity Download
BAKER_M_620__A_.pdf Download
Instruction manual Download
765071984.pdf Download
