M113-D001

IM-65PE-25 Cuber, Self Contained

Ice
Get quote View spec sheet

Specifications

Specification Value
Item number M113-D001
Model name IM-65PE-25
Ice maker type Cube icemaker
Brand Hoshizaki
Product configuration Self Contained
Warranty period 3 Years on Parts & Labour
Country of origin UK
Accessories included Installation kit, legs, Scoop
Sub series IM Cube
Title Cuber, Self Contained
Corresponding water filters 4HC-H Single Water Filter, 4HC Replacement Cartridge
Extended spec sheets approved 1
Width (legs excluded) 633 mm
Width (packed) 735 mm
Depth (legs excluded) 509 mm
Depth (packed) 570 mm
Height (legs excluded) 840 mm
Height (packed) 1012 mm
Volume (packed) 0.424 l
Dimensions legs for legs add 90-125 mm
Electric Consumption 0.305 kW
Ambient temperature (maximum) 40 u00b0C
Ambient temperature (minimum) 1 u00b0C
Voltage range Rated Voltage ±6%
Water supply pressure (maximum) 0.8MPa (8bar)
Water supply pressure (minimum) 0.07MPa (0.7bar)
Water supply temperature (maximum) 35 u00b0C
Water supply temperature (minimum) 5 u00b0C
Functions Automated
Electrical circuit breaker protection 5 A
Exterior Stainless steel AISI 441, Galvanized steel (Rear)
Gross weight 58 kg
Heat Rejection (AT 32°C, WT 21°C) 0.83 kW
Net weight 48 kg
Power supply 1/220 - 240V/50Hz
Storage bin capacity 26 kg
Cooling system Air Cooled

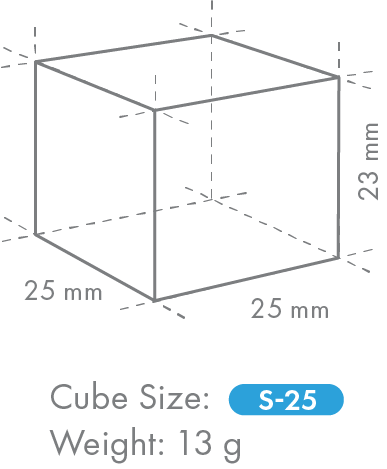

Ice type Small cubes - 25
Ice production 56
Water consumption - Air cooled ice makers 0.22
Optional Extras 4HC-H water filtration, scoop holder kit, UV-C sanitization kit, internal drain pump (Pump motor kit and bracket)
CO2 equivalent 0.33 kg
Refrigerant 0.11 kg
Refrigerant type R290
SKU M113-D001

Documentation

Documentation
Declaration of conformity Download
IM_65PE_D38041_0.pdf Download
Instruction manual Download

Accessories

Accessory name Item number
4HC-H Single M113-D001
4 HC Replacement Cartridge M113-D001
External drain pump M113-D001
