Products overviewStandard PLUS F 69 SSG C1 3S

Standard PLUS F 69 SSG C1 3S

Armadi congelatori

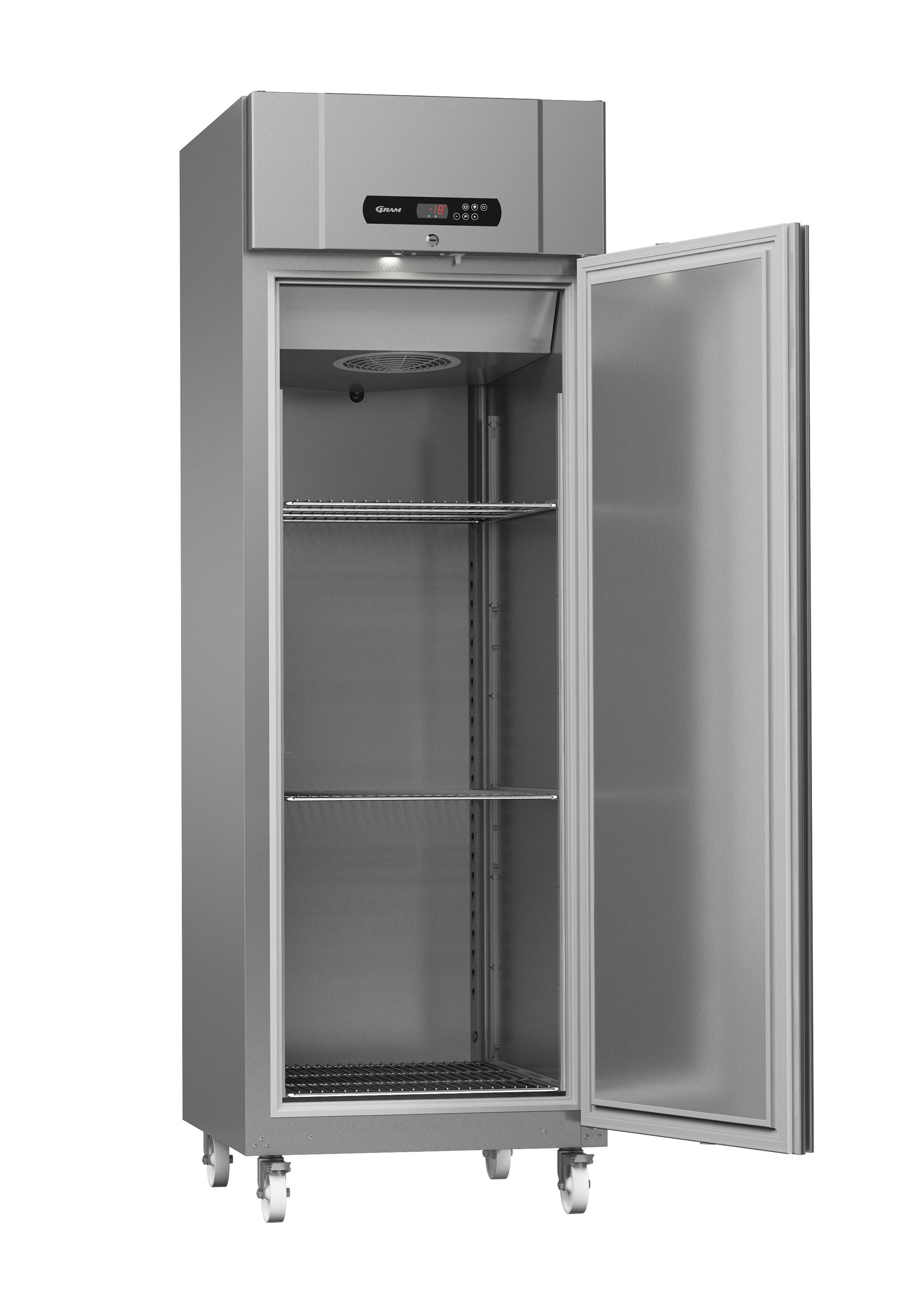

Standard PLUS F 69 SSG has a stainless interior and exterior, EN1.4301 / AISI 304. The cabinet is on castors, total height including legs is 2100 mm. Pedal door opener is available as optional extra and will be supplied with the cabinet (not factory fitted). Likewise the cabinet can be fitted with additional shelves. Standard PLUS offers the following HACCP functionalities and features: - Open door alarm - High temperature alarm - Duration of alarm period - Highest critical temperature - Reset alarm & period - RS485 modul, optional extra - Easy to clean surfaces and handle. Inside base shaped as a dished pan to catch fluids Standard PLUS is suitable for the deep 2/1 GN system where 2 pcs. 1/1 GN pans can be placed after each other directly on the support rails.

Richiedi un preventivo Visualizza la scheda tecnica

Caratteristiche principali Specifiche Documentazione

Caratteristiche principali

Comfortable Work Environment

The STANDARD PLUS range contributes to a healthier work environment with low noise levels of approximately 44,4 for the refrigerator and 44,5 dB(A) for the freezer. Short compressor running times ensure low heat emission.

Food Safety

The efficient air circulation system helps to maintain perfect storage temperatures. Designed to recover the inside temperature rapidly after each door opening. Temperatures are for optimal food safety and enhanced shelf-life.

Easy Monitoring & Control

All STANDARD PLUS cabinets come with extended HACCP functionalities for easy monitoring and control. HACCP data can be accessed from the controller and downloaded via RS485 interface (optional extra) for review on your PC.

Hygiene & Ergonomic Design

Just like all GRAM units, the STANDARD PLUS series features several design extras, implemented to simplify daily cleaning routines. One of the features for optimized operator safety is the full-height integrated handles.

Specifiche

Specifiche	Value
Codice articolo	960690214
Modello	Standard PLUS F 69 SSG C1 3S
Marchio	Gram
Equipaggiato con	Right hand hinged reversible door, automatic door closing, 3 stainless shelves, LED lighting
Larghezza	700 mm
Profonditá	895 mm
Altezza	2100 mm
Classe di efficienza energetica	D
Indice di Efficienza Energetica (IEE)	52.2 EEI
Dimensioni ripiano	2/1 GN prof.
Product availability	-- Non disponibile
Rivestimento esterno	Acciaio Inox
Rivestimento interno	Acciaio Inox
Peso lordo	136 kg
Spessore isolamento	70 mm
Tipologia isolamento	Cyclopentane
Volume netto	454 l
Peso netto	136 kg
Opzioni	Remote Compressor Version
Alimentazione	230V, 50Hz
Livello rumorositá	44.5 dB
Intervallo di temperatura	-25/-5°C
Volume lordo	610 l
Tipologia porta	Solid Door
Capacitá di refrigerazione	339
Equivalente CO2	0.21 kg
GWP	3 GWP
Refrigerante	0.07 kg
Tipologia refrigerante	R290
SKU	960690214
