SCR-225DG-LLRR-RRC-L1 4-Section Refrigerated Counter, HC

Refrigerated counters

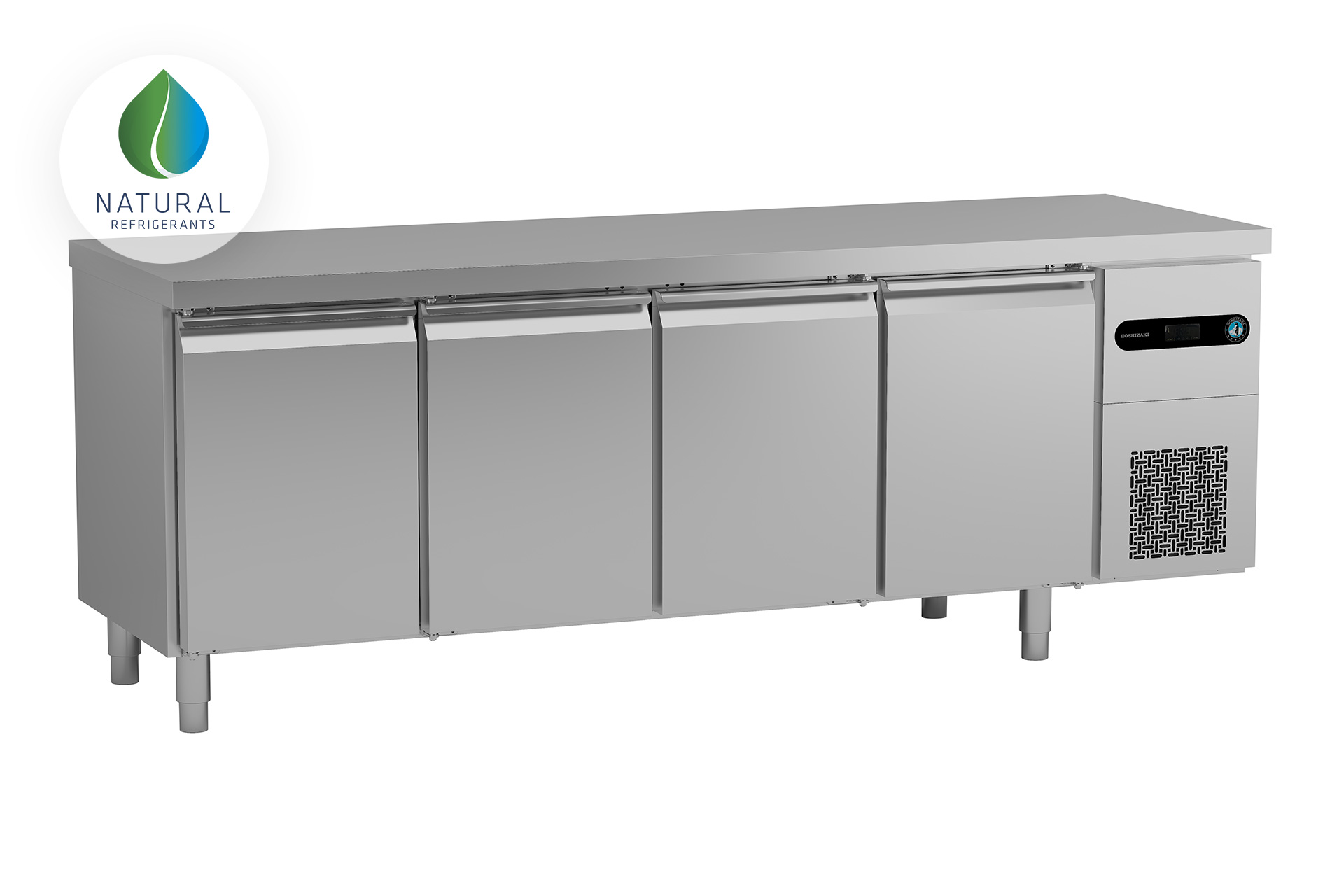

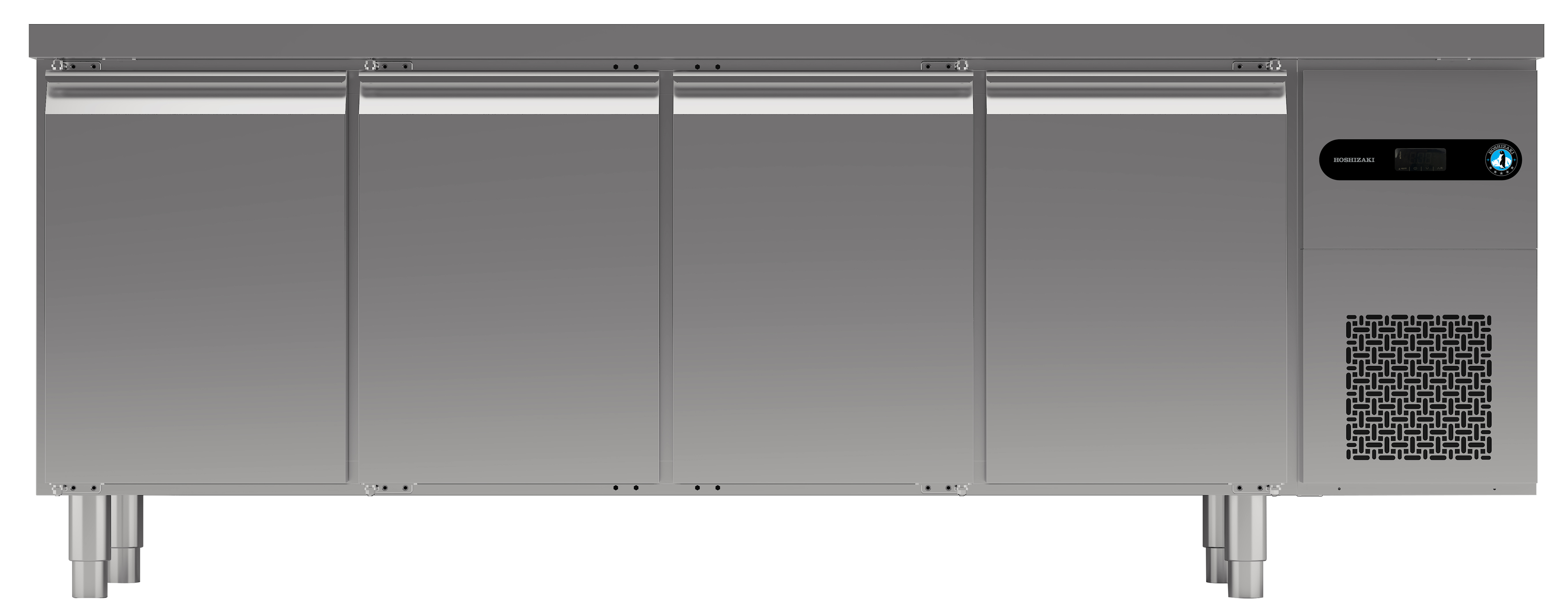

The Hoshizaki SCR-225DG-LLRR-RRC-L1 is a 4-Section Refrigerated Counter, HC with a net internal volume of 0 Ltr.

The Snowflake GII series is brought to you by Japanese and Danish engineering excellence, dedicated to simplifying the day-to-day work routines of kitchen staff all around the world.

The technology behind the performance boost of Snowflake GII is the tropicalized cooling system enduring up to +40°C. Additionally, the cooling agent of the new generation of Snowflake is the eco-friendly refrigerant R290, a natural gas (HC) that enhances performance and cuts down energy consumption significantly.

Both interior and exterior are built of anti-corrosion stainless steel, which is among the best choices for hygienic and food-safe cooking environments.

Prodotto non disponibile

Richiedi un preventivo Visualizza la scheda tecnica

Caratteristiche principali Specifiche Documentazione Accessori

Caratteristiche principali

As a product that is designed and built to last, this refrigerated counter combines an innovative design concept, premium materials, and clever extras:

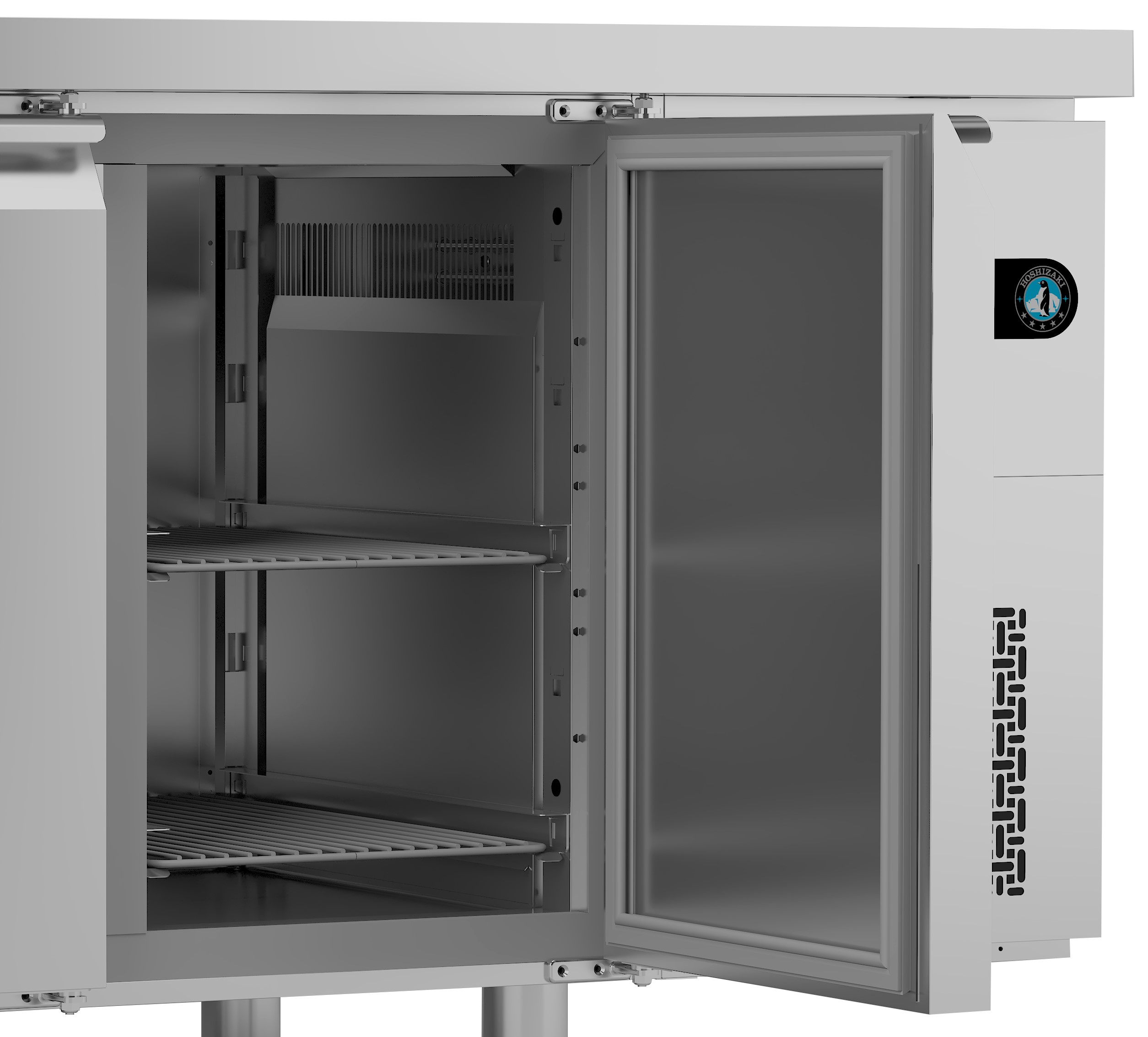

Minimum cool air lost: double insulated and extra wide door gaskets help to keep the cold air into the cabinet
Both interior and exterior are built of stainless steel which is among the best choices for hygienic and food-safe cooking environments

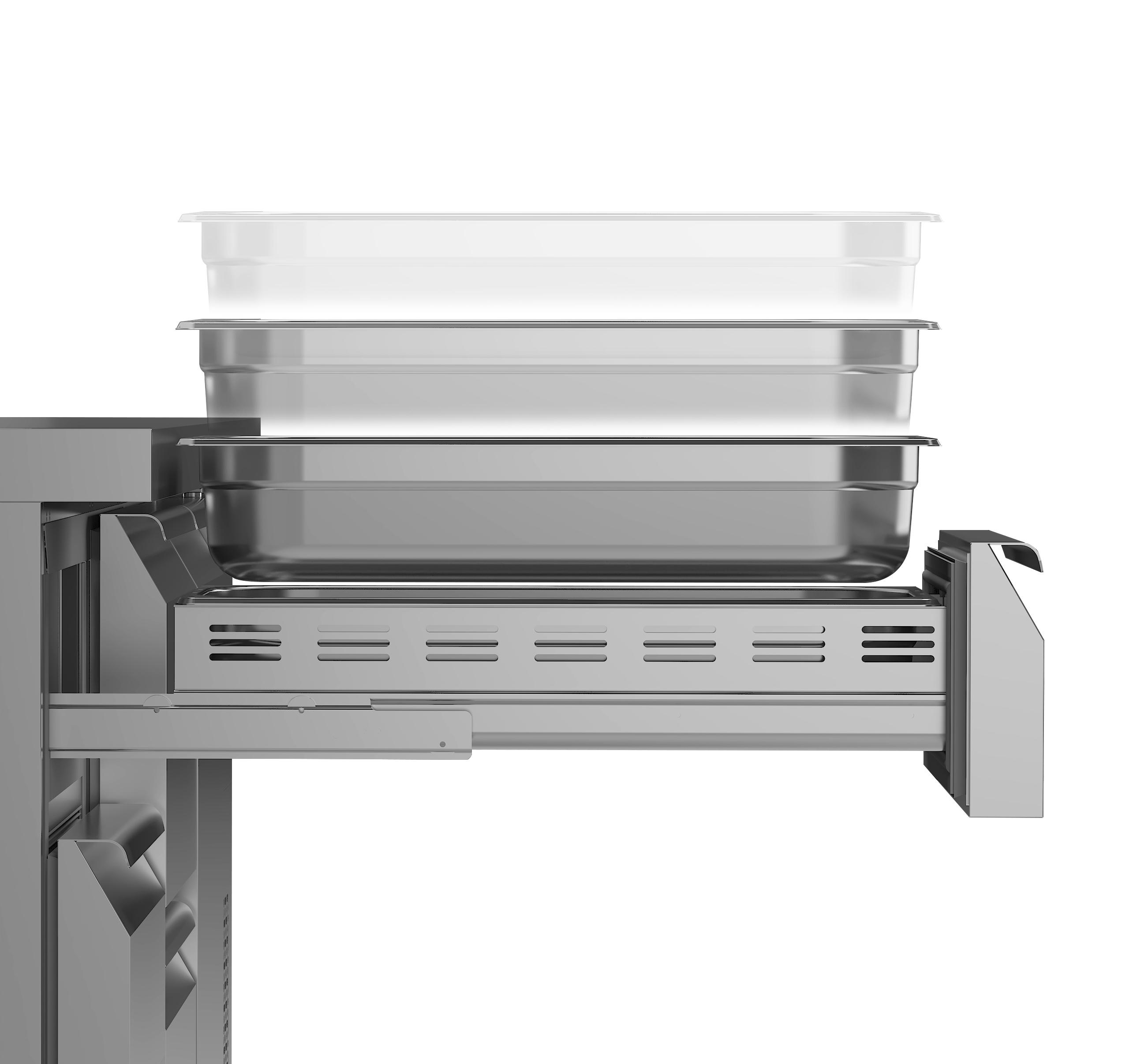

Anti-tilt mechanism: extra-long drawers with u-shaped, telescopic rails

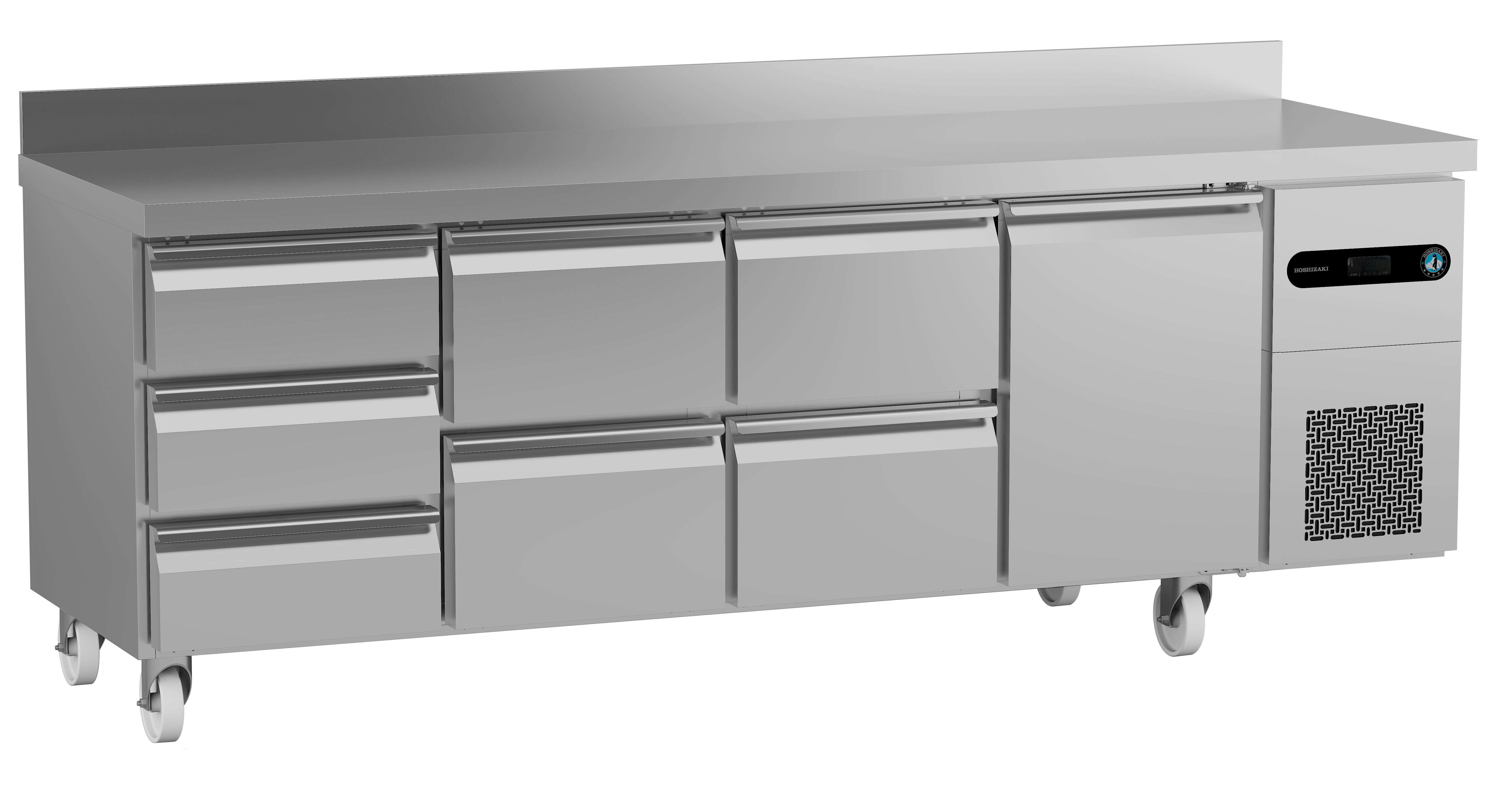

Multiple door-drawer combinations possible
Removable gaskets make sure you can clean the device thoroughly

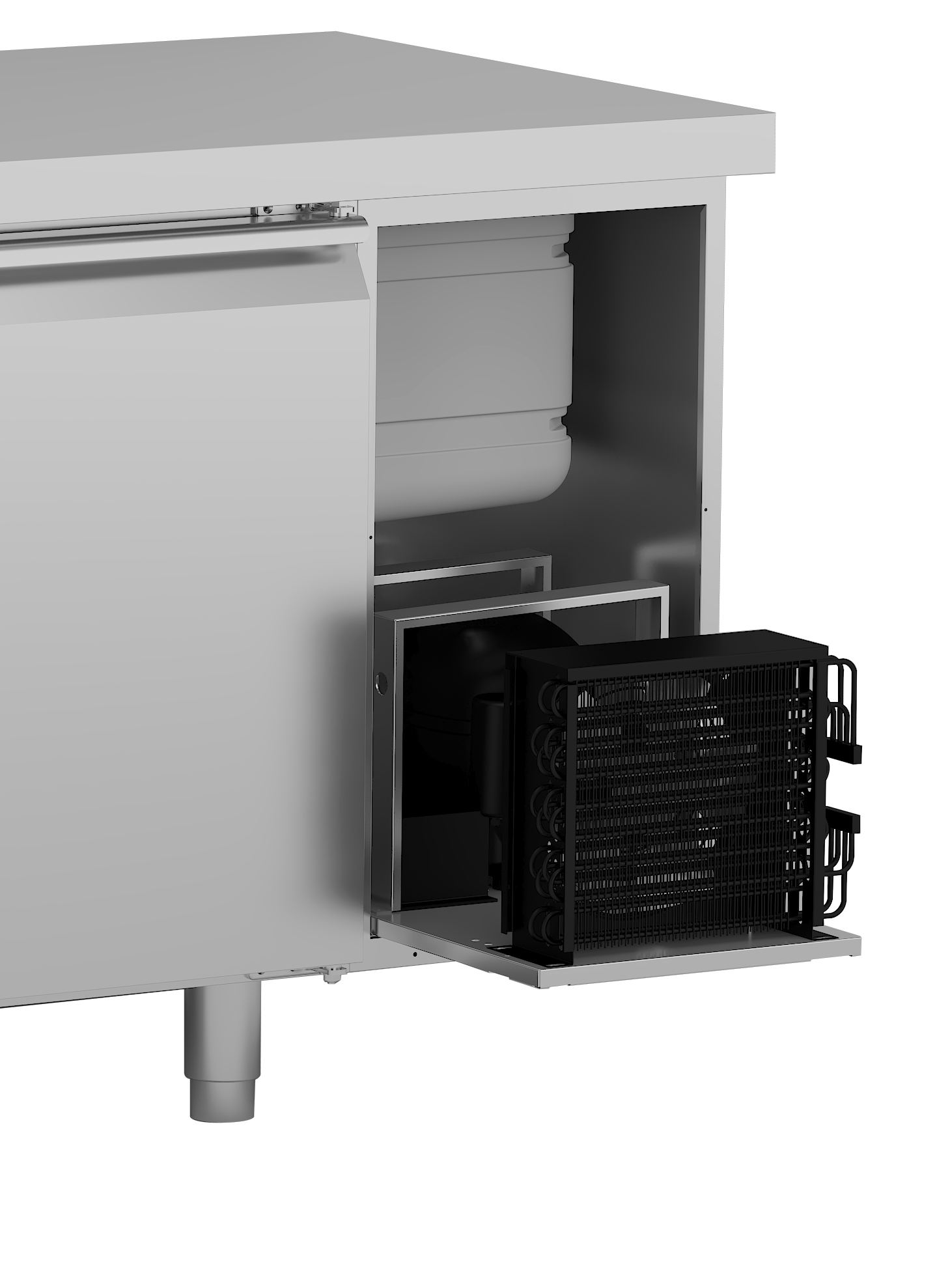

This and other thoughtful extras, such as the cleaning-free condenser, are designed to reduce kitchen cleaning times whilst storing foods protectively in the best possible way

The refrigerant used in all Snowflake GII HC models is R290.

This agent is a natural gas that enhances the performance of the refrigerated counter and has, compared to other refrigerants, a minimal ozone depletion potential. R290 is one of the view refrigerants compliant with the called F-Gas Regulation, issued by the European Commission. This regulation aims to phase out HFCs (Hydrofluorocarbons) as of 2020 to make space for eco-friendlier alternatives and substances, such as HCs (Hydrocarbon), and find more information about the F-Gas regulation here.

Specifiche

Specifiche	Value
Codice articolo	879040840
Modello	SCR-225DG-LLRR-RRC-L1
Marchio	Hoshizaki
Titolo	4-Section Refrigerated Counter, HC
Larghezza	2246 mm
Profonditá	700 mm
Altezza inclusa le gambe (minimo)	830 mm
Altezza inclusi le gambe (massimo)	900 mm
Consumo elettrico	1161 kWh
Classe di efficienza energetica	C
Numero ripiani	8
Dimensioni ripiano	1/1 GN prof.
Product availability	Replaced
Classe climatica	5
Valori di allacciamento	0.24 kW
Rivestimento esterno	Acciao Inox
Rivestimento interno	Stainless steel
Peso lordo	174 kg
Piedini / Rotelle	H = 130-180 mm (L)
Volume netto	343 l
Peso netto	174 kg
Alimentazione	230V, 50Hz
Intervallo di temperatura	-2/+8°C
Volume lordo	625 l
Tipologia porta	Solid Door
Capacitá di refrigerazione	316
Equivalente CO2	0.285 kg
Refrigerante	0.095 kg
Tipologia refrigerante	R290
SKU	879040840

Documentazione

Documentazione
Declaration of conformity	Download
SNOWFLAKE_GII_SCR_225DG_LLRR.pdf	Download
Instruction manual	Download

Accessori

Nome accessorio	Codice articolo
Shelf (grey) with back guard for GN 2/1 cabinets excl. shelf support	760660009
Shelf stainless, 325 x 530 mm	760660010
Set of castors 150 mm (2 x braked and 2 x unbreaked)	760660011
Set of castors 200 mm (2 x braked and 2 x unbreaked)	760660012
Shelf (stainless steel) with back guard for GN 2/1 cabinets	760660013
Set of legs 130-180 mm	760660118
Set of legs 135-200 mm	760660119
