188801031

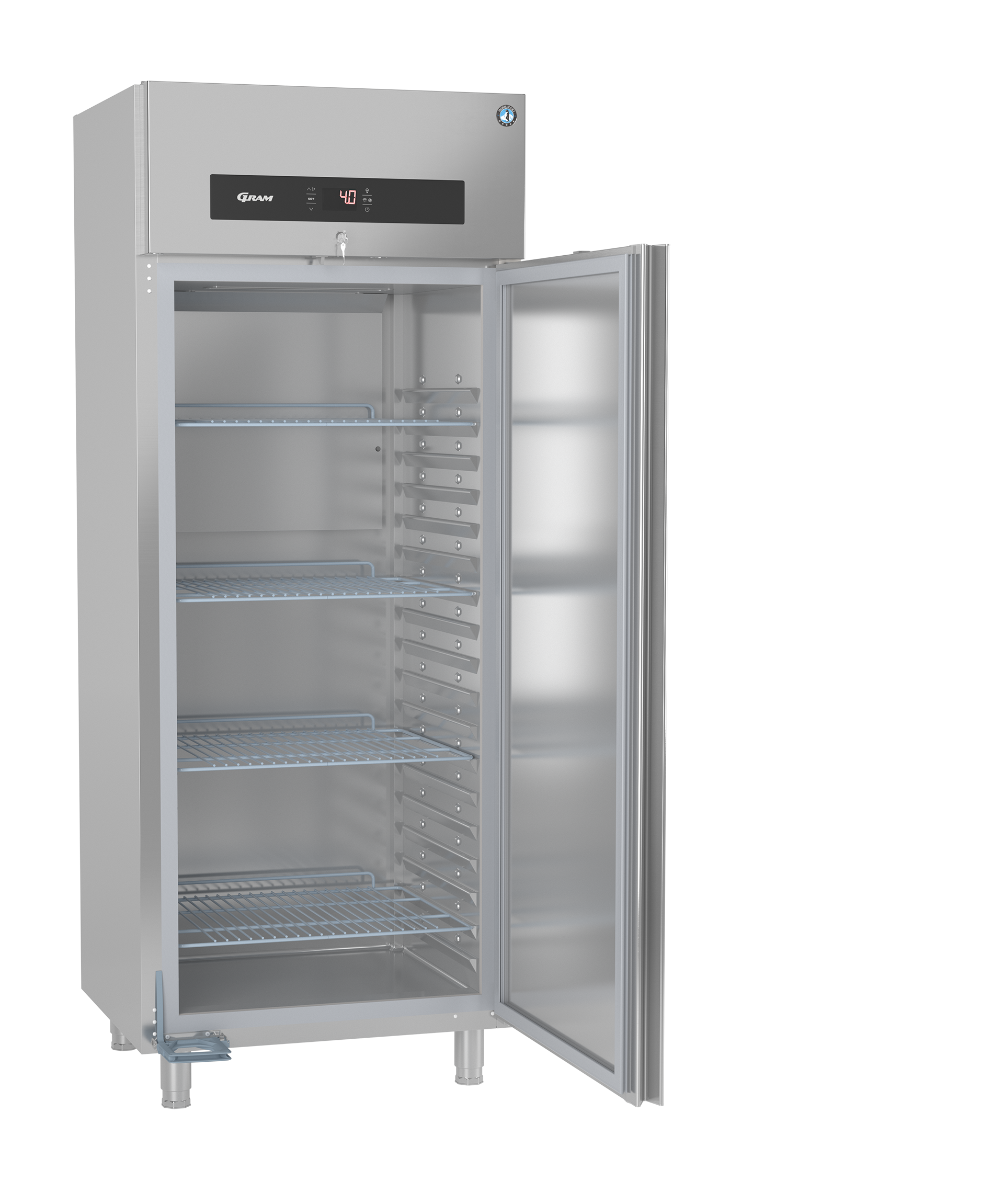

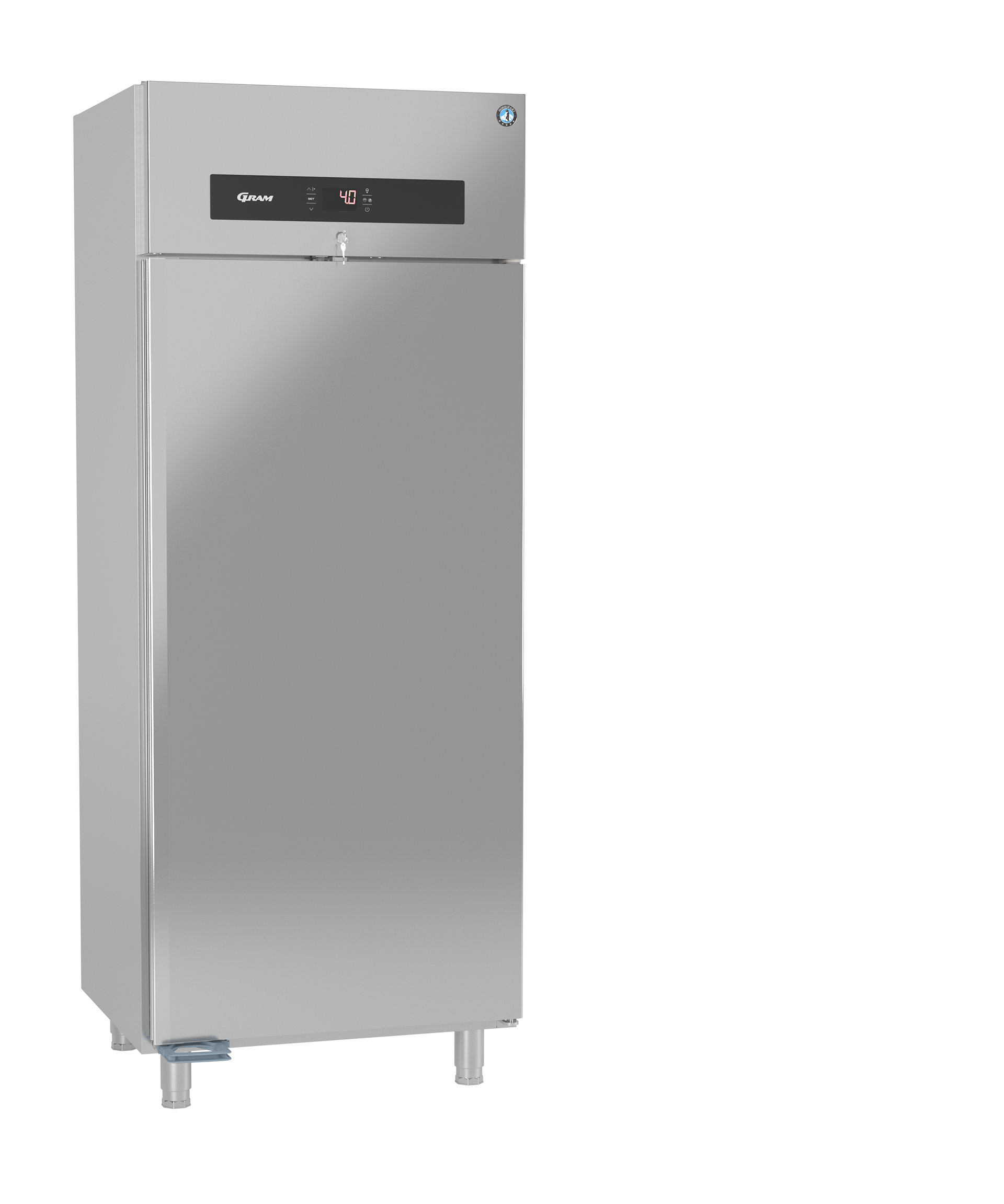

Premier U 80 DR U Ru1 Refrigerator/Freezer ‘U’ type with RU1 valve for remote cooling system

Armadi congelatori

The Hoshizaki PREMIER is a series of heavy-duty cabinets for energy-efficient refrigeration (Climate Class 5 (max. ambient 40°C w/ 40% RH)), catering to the needs of gastronomic perfectionists. The durable design with solid door hinges, stabile stainless steel, and flawless finish is built to withstand the most demanding kitchen operations. The low-height PREMIER cabinets are customizable with castors instead of legs to easily fit into low-ceiling environments, yet convince with a surprisingly high internal volume. The Premier U 80 DR U Ru1 is a Refrigerator/Freezer 'U' type with RU1 valve for remote cooling system with a net internal volume of . The dimensions are 810 x 728 x 2080-2130 mm.

Prodotto non disponibile
Richiedi un preventivo Visualizza la scheda tecnica

Caratteristiche principali

“FOOD SAFETY & TEMPERATURE STABILITY

The efficient air circulation system helps to maintain perfect storage temperatures and to recover the inside temperature rapidly after each door opening and defrosting. Additionally, the automatic defrost function ensures stable temperatures at all times. The wide, magnetic gaskets provide an effective seal and reduce escaping of cold air.



COMPARTMENTALIZED DESIGN The PREMIER’s condenser is positioned on top of the cabinet, which brings multiple advantages. The cabinets can be hosed down in one run, without risking electric shortcuts. As the evaporator is positioned on top of the cabinet, valuable space inside the cabinet can be used for storage. Additionally, it can easily be serviced via the front flap on top of the cabinet.



LOW RUNNING COSTS & SUSTAINABILITY

The energy-efficient refrigeration technology implemented in this broad line-up of storage cabinets can help save running costs on an everyday basis. The Premier U 80 DR U Ru1 runs on natural refrigerant and has [5].



ERGONOMIC & EASY TO USE

Extras, like the practical pedal-foot door opener, allow hands-free opening, contribute to a healthier work environment, and are a real-time-saver for hectic kitchen operations. The functional and intuitive display is easy to understand and use.



HYGIENE & WASTE REDUCTION

Thanks to the rounded corners, smooth surfaces, and molded rails, frequented cleaning routines become a quick and simple task. The practical anti-tilting function prevents spillage. The Interior and exterior are made of AISI 304 stainless steel and are perfectly suitable for humid locations.



EASY CUSTOMIZATION & FLEXIBILITY PREMIER

cabinets can easily be adjusted to your requirements, for example, the length of the legs, the position of the door, and the foot pedal. They also can accommodate shelves up to 18-22 levels (4 shelves included) offering you high flexibility to accommodate different types of produce. “

Specifiche

Specifiche Value
Codice articolo 188801031
Modello Premier U 80 DR U Ru1
Marchio Hoshizaki
Periodo di garanzia 6 anni di garanzia su parti di ricambio & manodopera
Paese di origine Turchia
Accessori inclusi Pedal door opener with overload protection
Titolo Refrigerator/Freezer 'U' type with RU1 valve for remote cooling system
Equipaggiato con Right hand hinged reversible door with lock, automatic door closing, pedal door opener, 4 grey shelves, LED lighting
Prestare attenzione This cabinet for connection to remote cooling system is on special order only. Please take longer lead times into consideration
Larghezza 810 mm
Larghezza (con imballo) 870 mm
Profonditá 728 mm
Profonditá (con imballo) 885 mm
Altezza inclusa le gambe (minimo) 2080 mm
Altezza inclusi le gambe (massimo) 2130 mm
Altezza (con imballo) 2250 mm
Volume (con imballo) 1.73 l
Numero ripiani 4
Numero massimo ripiani 22
Dimensioni ripiano 2/1 GN largh.
Min. cooling capacity 300 W
Temperature Range Span -25/+12°C
Classe climatica 5
Rivestimento esterno Acciaio Inox AISI 304
Rivestimento interno Acciaio inossidabile AISI 304
Peso lordo 115 kg
Spessore isolamento 78 mm
Tipologia isolamento Polyurethane
Piedini / Rotelle H = 130-180 mm (L)
Peso netto 105 kg
Alimentazione 230V, 50Hz
Volume lordo 700 l
Sistema di raffreddamento For remote cooling system
Tipologia porta Solid Door
Tipologia prodotto Armadi
Accessori opzionali Grey shelf with back guard Grey bottom shelf with back guard Stainless shelf with back guard Stainless bottom shelf with back guard Set of 4 stainless shelves with back guard Master key
Compatibilitá del refrigerante R448A, R449A, R452A
Pricelist notification (short) Models with RU1 valve prepared for external cooling system are compatible with the following refrigerants: R448A, R449A, R452A. In addition the CO2 models prepared for external cooling system are compatible with refrigerant R744 (CO2). Lead time approx. 8 weeks.
SKU 188801031

Documentazione

Documentazione
Declaration of conformity Download
PREMIER_U_80_Remote_Model.pdf Download
Instruction manual Download
Cooling_Diagram_RU1_PREMIER_UPRIGHT___UC___BAKER_U_GA_950_MODEL.pdf Download
Electric_Wiring_Diagram_RU1_PREMIER_UPRIGHT___UC___BAKER_U_950_MODEL__1_.pdf Download

Accessori

Nome accessorio Codice articolo
Set of castors 125 mm (2 x braked and 2 x unbreaked) 760660022
Set of legs 130-180 mm                   760660118
Master key 760660430
Shelf (grey) with back guard for GN 2/1 wide cabinets excl. shelf support 760660433
Shelf (stainless steel) with back guard for GN 2/1 wide cabinet 760660438
Shelf (stainless steel) with back guard for GN 2/1 wide cabinet (bottom) 760660439
Shelf (grey) with back guard for GN 2/1 wide cabinets excl. shelf support (bottom) 760660443
Set of stainless steel shelves (3 top & 1 bottom) with back guard for GN 2/1 wide cabinets excl. shelf support 760660447
