960650301

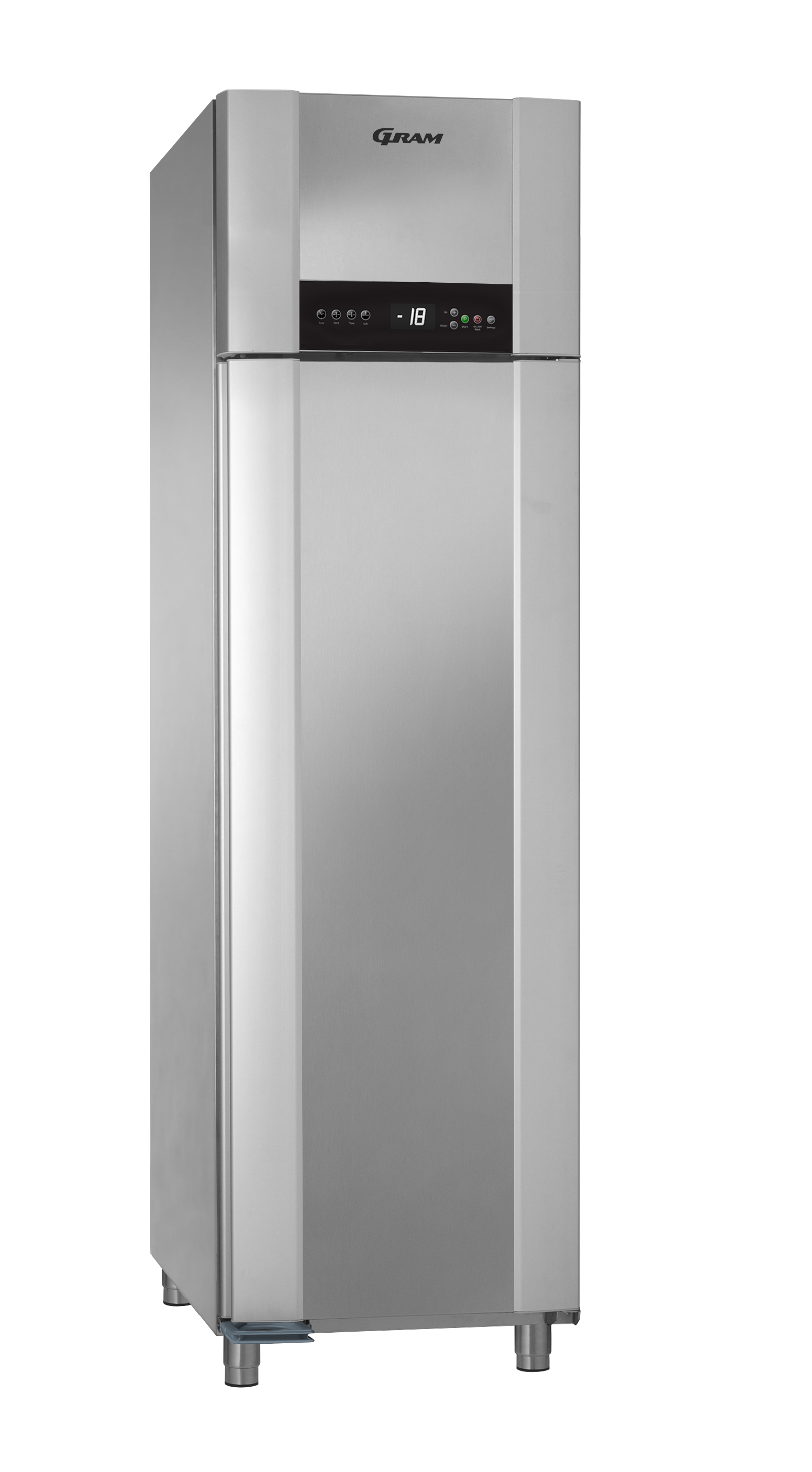

KP 60 CCG L2 5S Quick Chiller

The GRAM KP 60 CCG L2 5S is a Quick Chiller.

GRAM  Quick Chillers are multifunctional cabinets offering six operation modes. They should not be used for processes that require blast chilling or freezing.

Prodotto non disponibile
Richiedi un preventivo Visualizza la scheda tecnica

Caratteristiche principali

Multifunctional

Six operation modes.

1. Storage, refrigeration

2. Storage, freezing

3. Quick Chill

4. Quick Freeze

5. Controller thawing (Temperature does not exceed 8◦C)

6. Dry cooling.

Preset programs
‘Soft Chill’ for gradual chilling or ‘Hard Chill’ for fast rapid freezing.
Time or temperature-controlled chilling/freezing processes.

Exterior equipment
Right hand hinged reversible and self-closing door with lock
Removable door gasket
Full height integrated door handle
Pedal door opener
Halogen lamps
Legs 135/200mm

Interior equipment
Air circulation system
5 stainless shelves
Shelf supports with tilt prevention

Specifiche

Specifiche Value
Codice articolo 960650301
Modello KP 60 CCG L2 5S
Titolo Quick Chiller
Larghezza 600 mm
Profonditá 855 mm
Altezza 2125 mm
Product availability -- Non disponibile
Valori di allacciamento 1025 kW
Rivestimento esterno Acciao Inox
Rivestimento interno Stainless steel
Peso lordo 122 kg
Spessore isolamento 70 mm
Tipologia isolamento Cyclopentane
Alimentazione 230V, 50Hz
Intervallo di temperatura -30/+10°C
Volume lordo 465 l
Capacitá di raffreddamento 36
Capacitá di refrigerazione 1705
Equivalente CO2 0.45 kg
GWP 3 GWP
Refrigerante 0.15 kg
Tipologia refrigerante R290
SKU 960650301

Documentazione

Documentazione
Declaration of conformity Download
Instruction manual Download
7464416.pdf Download

Accessori

Nome accessorio Codice articolo
Condenser filters (set of 5) 818779800
Stainless shelf (650 x 530mm) excluding supports 818799967
Shelf supports (491mm) (2 of), for GN, L-shaped 818885003
Shelf supports (491mm) (2 of), for GN, U-shaped 818885004
Shelf supports (561mm) (2 of), for GN, L-shaped 818885005
Shelf supports (561mm) (2 of), for GN, U-shaped 818885006
Castors (4 of) H=125 mm (C2) 818899905
Legs, stainless (4 of), H=135/200 mm (L2) 818899926
Legs stainless (4 of), H=100/130mm (L1) 818899928
Castors (4 of) H=110 mm (C1) 818899933
Stainless shelf (400 x 600mm) excluding supports 818979907
