KM-1301SAJ-E

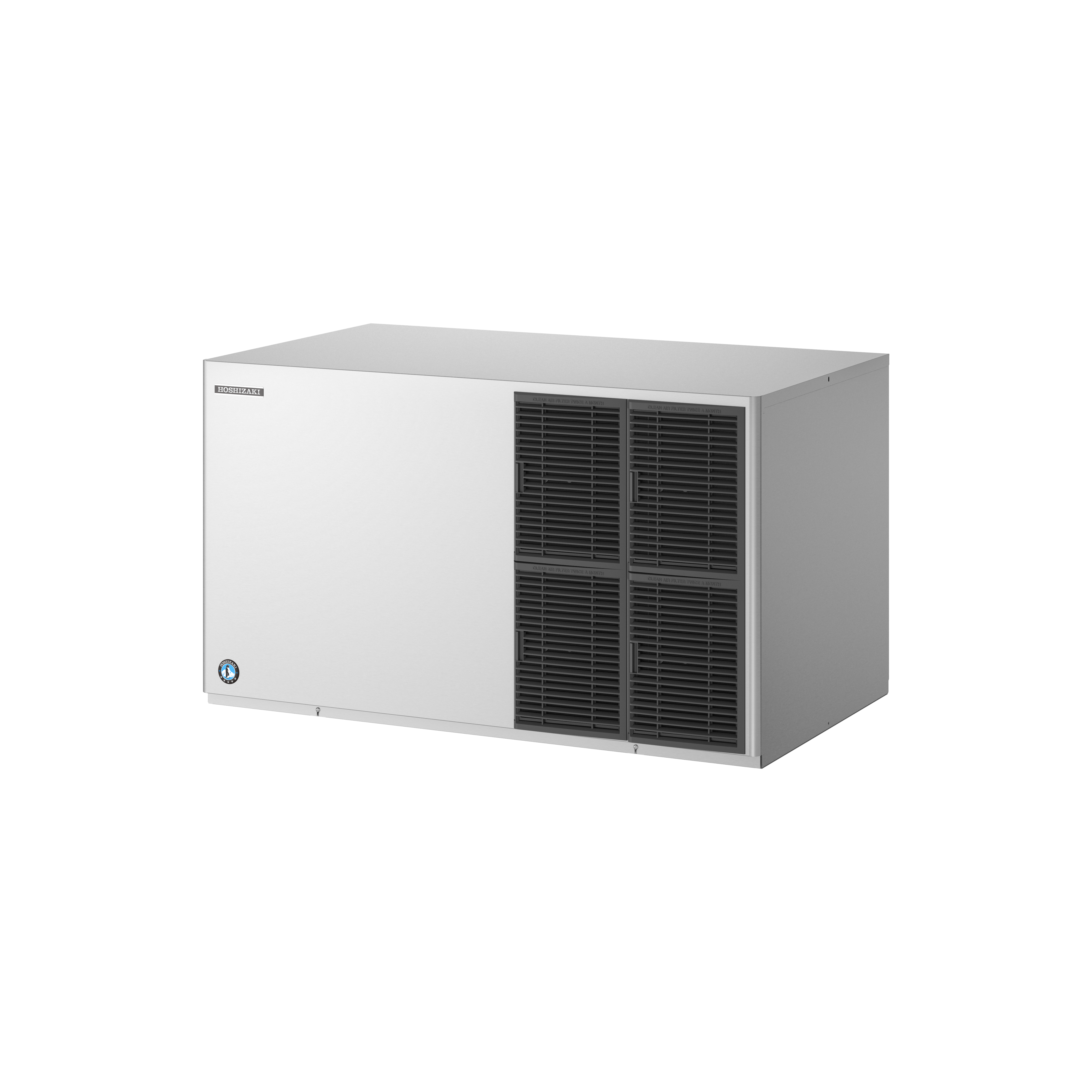

KM-1301SAJ-E Crescent Ice Maker, Modular

Fabbricatori ghiaccio

This Hoshizaki KM-1301SAJ-E is a modular Crescent Edge ice maker producing up to 624 kg of high-quality Crescent Edge Ice per 24 hours, meeting even the strictest hygiene requirements and suitable for all operational requirements and kitchen measurements.

The KM Edge range has an enlarged, bonded evaporator surface. Accelerating harvest cycles, the technology behind the KM Edge range  will help you to increase your serving capacity instantly. More ice in less amount of time.

Richiedi un preventivo Visualizza la scheda tecnica

Caratteristiche principali

The KM-1301SAJ-E uses refrigerant R404A.



Unique Technology

The double-sided evaporator in all KM machines is made of stainless steel – the best material for improved longevity, food safety, and cleaning without damaging to the machine. The external material is made of . Thanks to its rounded, yet edgy form, the Hoshizaki Crescent Ice will not cluster inside the ice chest. That is why it is considered the perfect ice shape for bottle coolers, allowing you to place bottles inside the ice effortlessly. The ice can be used for chilling drinks, fresh produce display, and bottle cooling as well as cooking.



Convenience

Always focusing on operating convenience and food safety, the air filters are easily accessible from the front for routine cleaning. With intake and outflow positioned at the front, the KM is ideal for built-in installation opportunities. “



Smart Design

Like all Hoshizaki ice makers, the KM-1301SAJ-E is designed to last and comes with smart design extras such as the double-sided, stainless steel evaporator, unique in the industry, produces more ice per cycle with lower energy consumption and resistance to descaling acids.



Flexibility

Need to amp up your production capacity? The variable setups with modular bins and bases allow the user to mix and match depending on individual requirements and conditions. The dimensions of the KM-1301SAJ-E are 1219 x 695 x 695 mm.



Plug&Play

The smart plug-and-play design guarantees an easy and quick set-up.



Specifiche

Specifiche Value
Codice articolo KM-1301SAJ-E
Modello KM-1301SAJ-E
Tipo di fabbricatore Crescent ice maker
Marchio Hoshizaki
Configurazione del prodotto Modular
Titolo Crescent Ice Maker, Modular
Larghezza (piedini esclusi) 1219 mm
Profonditá (piedini esclusi) 695 mm
Altezza (piedini esclusi) 695 mm
Consumo elettrico 1.9 kW
Consumo elettrico 1.9 kWh
Product availability -- Non disponibile
Rivestimento esterno Acciao Inox
Peso lordo 154 kg
Peso netto 136 kg
Alimentazione 220-240V/50Hz/1ph
Sistema di raffreddamento Raffreddamento ad Aria
Tipologia ghiaccio Crescent
Produzione di ghiaccio 624
Equivalente CO2 7452 kg
Tipologia refrigerante R404A
SKU KM-1301SAJ-E

Documentazione

Documentazione
KM_1301S_J_E_installation.pdf Download
Instruction manual Download
Spec sheet Download
