M036-D003

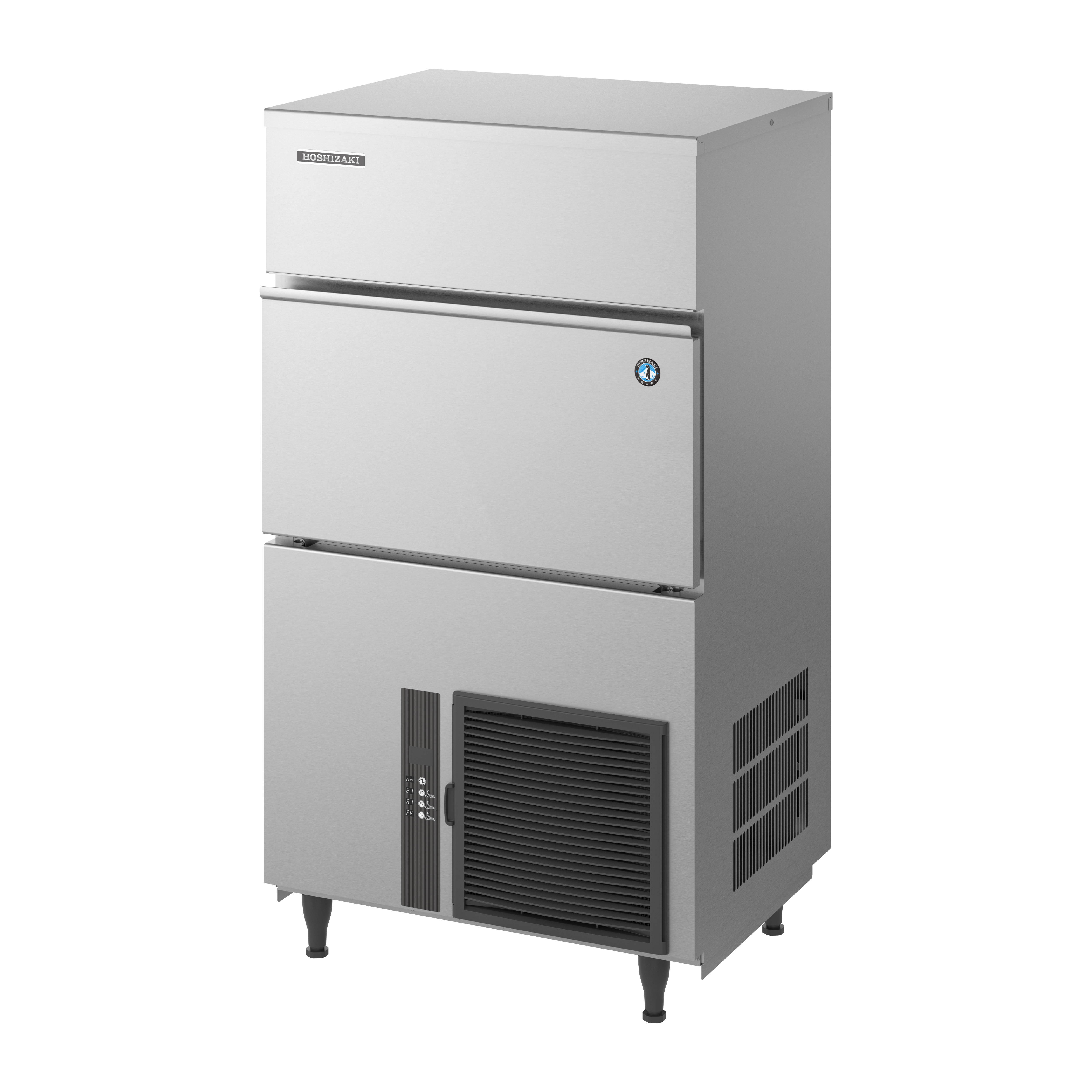

IM-100NE-HC-21 Fabbricatore di ghiaccio a cubetti, con contenitore incorporato

Fabbricatori ghiaccio

This Hoshizaki IM-100NE-HC-21 is a self-contained cube ice maker producing up to 90 kg of high-quality cube ice per 24 hours. Meeting even the strictest hygiene requirements, this true allrounder offers many application possibilities in segments including the foodservice and medical sector.



All Cubers are equipped with an electronic control system. This ensures an optimized ice-making process, even under varying circumstances. Without additional manual assistance or adjustments required, our Cubers produce generous amounts of ice cubes, at a consistently high quality.

Richiedi un preventivo Visualizza la scheda tecnica

Caratteristiche principali

Sustainable

The IM-100NE-HC-21 uses refrigerant R290.

This natural refrigerant is not only climate-friendly, but also boosts the machine, when it comes to performance and production capacity.



Material

The exterior is made of stainless steel. The closed water circuit provides maximum protection against any type of contamination during the entire cubing process. All Hoshizaki machines are easy to use, clean, and maintain.



Unique Technology

A dedicated jet of fresh water is injected into each of the closed cells. Excess water leaves the closed cell through a set of outlets. The cell walls block the freezing water’s expansion from all sides while reaching down to -30°C during the cubing process.  Thanks to the automatic rinse cycles, impurities such as minerals, are eliminated from the water resulting in the purest ice possible while your machine is protected from calcification and mineral build-up.



Smart Design

Like all Hoshizaki Ice makers, the IM-100NE-HC-21 is designed to last and comes with smart design extras such as a magnetic water pump without direct coupling. This element prevents leakage from the water circuit and improves the life expectancy of the machine.



Perfect Fit

With outside dimensions W x D x H of 704 x 506 x 1200 mm,  the IM-100NE-HC-21 is compact and is a perfect fit for small spaces.



Plug&Play

The smart plug-and-play design guarantees an easy and quick set-up.



Specifiche

Specifiche Value
Codice articolo M036-D003
Modello IM-100NE-HC-21
Marchio Hoshizaki
Configurazione del prodotto Self Contained
Periodo di garanzia 2 anni di garanzia su parti di ricambio & manodopera
Paese di origine United Kingdom (UK)
Accessori inclusi Kit d'installazione, Paletta per il ghiaccio
Titolo Fabbricatore di ghiaccio a cubetti, con contenitore incorporato
Prestare attenzione Questo tipo di fabbricatore di ghiaccio è disponibile solo su ordinazione speciale. Si prega di prendere in considerazione tempi di consegna più lunghi.
Filtri acqua corrispondenti 4HC-H Filtro Acqua Singolo, 4HC Cartuccia di sostituzione
Schede tecniche estese 1
Larghezza (piedini esclusi) 704 mm
Larghezza (con imballo) 805 mm
Profonditá (piedini esclusi) 506 mm
Profonditá (con imballo) 580 mm
Altezza (piedini esclusi) 1200 mm
Altezza (con imballo) 1375 mm
Volume (con imballo) 0.64 l
Altezza piedini Per i piedi aggiungere 70-110 mm
Consumo elettrico 0.55 kW
Consumo elettrico 0.55 kWh
Temperatura ambiente (massima) 40 u00b0C
Temperatura ambiente (minima) 1 u00b0C
Voltaggio Rated Voltage ±6%
Pressione acqua (massima) 0.8MPa (8bar)
Pressione acqua (minima) 0.07MPa (0.7bar)
Temperatura acqua (massima) 35 u00b0C
Temperatura acqua (minima) 5 u00b0C
Product availability -- Non disponibile
Protezione del circuito elettrico 5 A
Rivestimento esterno Acciao Inox AISI 441, Acciaio Galvanizzato (Posteriore)
Peso lordo 84 kg
Emissione calore (AT 32°C, WT 21°C) 1.18 kW
Peso netto 76 kg
Alimentazione 220-240V/50Hz/1ph
Capacitá contenitore 50 kg
Volume lordo 0.64 l
Sistema di raffreddamento Raffreddamento ad Aria

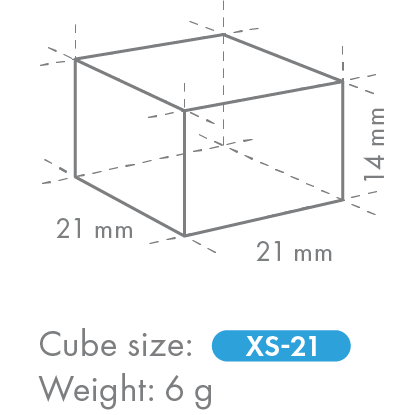

Tipologia ghiaccio Cubetto XS - 21
Produzione di ghiaccio 90
Consumo acqua - Fabbricatori di ghiaccio raffreddati ad aria 0.59
Accessori opzionali 4HC-H Sistema di filtraggio dell'acqua
Equivalente CO2 0.42 kg
Refrigerante 0.14 kg
Tipologia refrigerante R290
SKU M036-D003

Documentazione

Documentazione
Declaration of conformity Download
IM_100NE_HC.pdf Download
Instruction manual Download

Accessori

Nome accessorio Codice articolo
4HC-H Single 9320-51
4 HC Replacement Cartridge 9655-11
