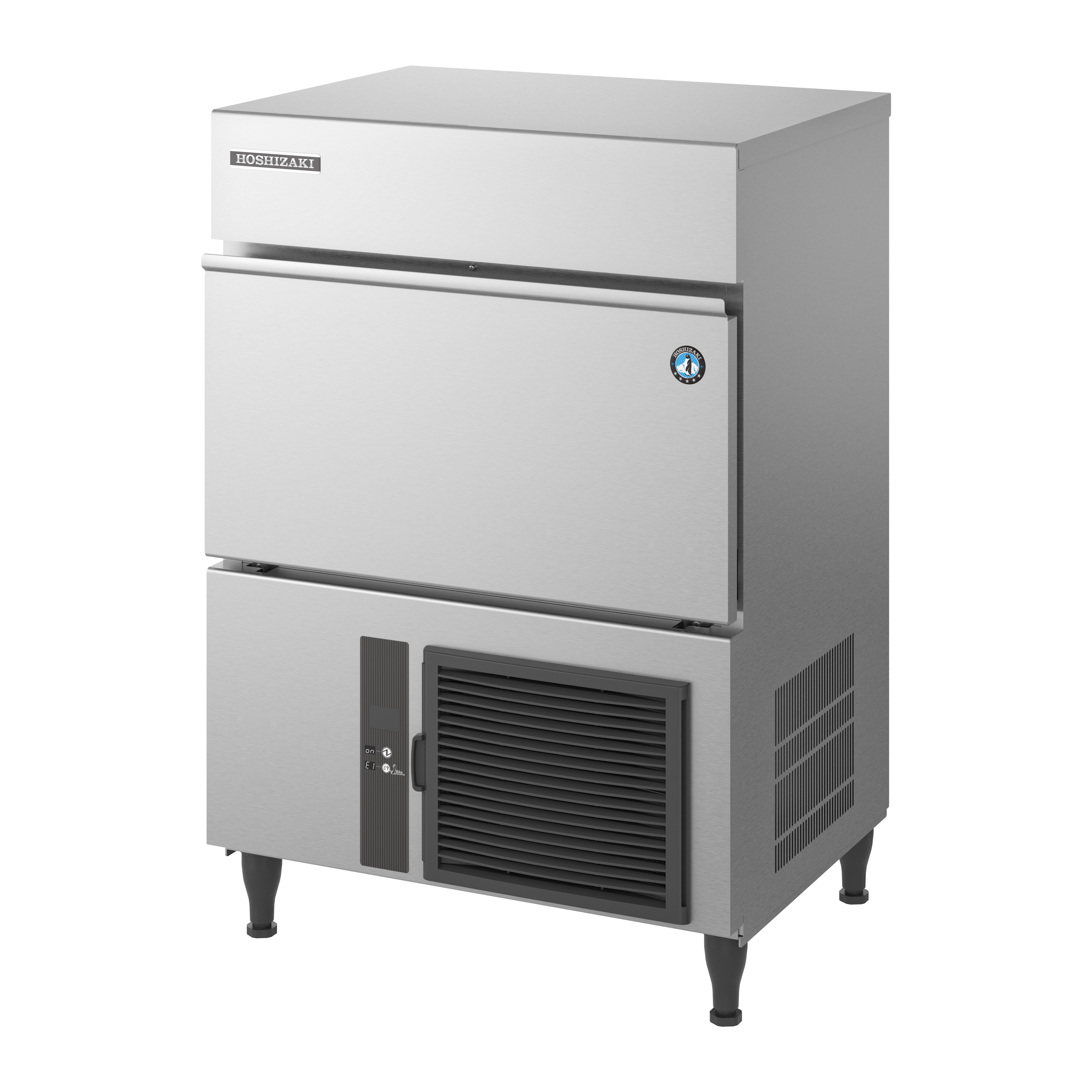

IM-65NE-Q(SA) Ball Ice Maker, Self Contained

Ijsmachines

This Hoshizaki IM-65NE-Q(SA) is a self-contained special ice maker producing up to 28 kg of high-quality Ball Ice per 24 hours.

Expand your creative horizon and your craft’s aesthetic possibilities with the help of our special ice makers that produce different, extraordinary shapes of ice. Specially tailored for cocktail bars that like to differentiate themselves from others, whilst never compromising on taste and quality of their drinks. With perfect ice characteristics still in focus, you can now add a decorative highlight to your cocktails and long drinks.

All special ice makers are equipped with an electronic control system. This ensures an optimized ice-making process, even under varying circumstances. Without additional manual assistance or adjustments required, our Special Ice Makers produce generous amounts of ice cubes, at a consistently high quality.

Get quote View spec sheet

Key features Specifications Documentation Accessories

Key features

The IM-65NE-Q(SA) uses refrigerant R134a.

Material

The exterior is made of stainless steel. The closed water circuit provides maximum protection against any type of contamination during the entire cubing process. All Hoshizaki machines are easy to use, clean, and maintain.

Unique Technology

A dedicated jet of fresh water is injected into each of the closed cells. Excess water leaves the closed cell through a set of outlets. The cell walls block the freezing water’s expansion from all sides while reaching down to -30°C during the cubing process. Thanks to the automatic rinse cycles, impurities such as minerals, are eliminated from the water resulting in the purest ice possible while your machine is protected from calcification and mineral build-up.

Smart Design

Like all Hoshizaki Ice makers, the IM-65NE-Q(SA) is designed to last and comes with smart design extras such as a magnetic water pump without direct coupling. This element prevents leakage from the water circuit and improves the life expectancy of the machine.

Perfect Fit

With outside dimensions W x D x H of 633 x 506 x 860 mm, the IM-65NE-Q(SA) is compact and makes a perfect fit for small spaces.

Plug&Play

The smart plug-and-play design guarantees an easy and quick set-up.

Specifications

Specification	Value
Artikelnummer	E1FD-D826
Modelnaam	IM-65NE-Q(SA)
Merk	Hoshizaki
Productconfiguratie	Ingebouwde bunker
Garantieperiode	2 jaar
Land van oorsprong	Groot Brittanië
Titel	Ball Ice Maker, Self Contained
Houdt rekening met	Dit type ijsmachine wordt alleen op bestelling geproduceerd. Houd a.u.b. rekening met een langere levertijd.
Breedte (poten uitgesloten)	633 mm
Breedte (verpakt)	735 mm
Diepte (poten uitgesloten)	506 mm
Diepte (gepakt)	570 mm
Hoogte (exclusief poten)	860 mm
Hoogte (verpakt)	1012 mm
Volume (verpakt)	0.424 l
Afmetingen van de poten	Voor poten voeg toe: 90-125mm
Elektrisch verbruik	0.37 kW
Energie verbruik	0.37 kWh
Luchttemperatuur (maximum)	40 u00b0C
Omgevingstemperatuur (minimum)	1 u00b0C
Spanningsbereik	Rated Voltage ±10%
Watervoorziening druk (maximaal)	0.8MPa (8bar)
Watervoorzieningsdruk (minimum)	0.07MPa (0.7bar)
Watervoorzieningstemperatuur (maximum)	35 u00b0C
Watertoevoer temperatuur (minimum)	5 u00b0C
Product availability	-- Not available
Beveiliging van de elektrische circuitonderbreker	5 A
Buiten	RVS AISI 441, Gegalvaniseerd staal (achterzijde)
Bruto gewicht	66 kg
Warmteafvoer (AT 32°C, WT 21°C)	0.815 kW
Netto gewicht	53 kg
Voeding	1/220 - 230V/60Hz
Opslagbin capaciteit	17 kg
Volume, bruto	0.42 l
Koelsysteem	Luchtgekoeld

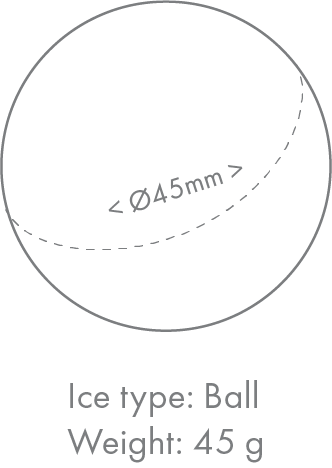

IJs type	Bal
IJsproductie	28
Waterverbruik - Luchtgekoelde ijsmakers	1.08
CO2-equivalent	314.6 kg
Koelmiddel	0.22 kg
Type koudemiddel	R134a
SKU	E1FD-D826
