GASTRO-M-2207-CSF-CO2-A-DL/DL/DL/DR-L2-29x71

GASTRO M 2207 CSF CO2 A DL/DL/DL/DR L2 29×71

Freezer counters
Categorie nog niet gereguleerd

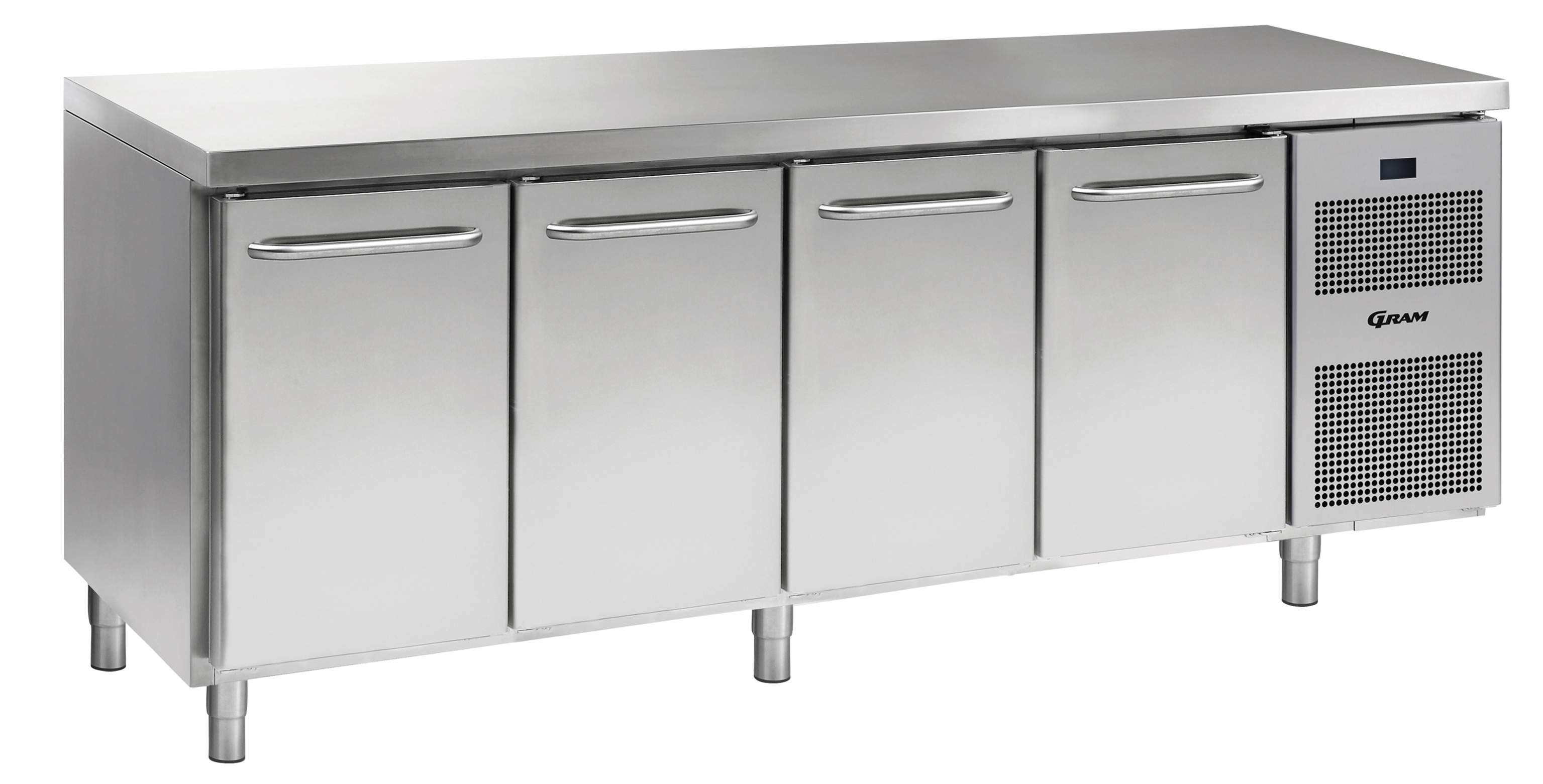

Gekoelde werkbank. Vlak gesloten RvS werkblad, 4 deursecties, 8 RvS roosters incl. dragers, met compressor. Hoogte: 885/950 mm Inhoud bruto: 668 ltr. Uitwendig/inwendig: RvS/RvS GASTRO 07 net zo uniek als u. Indien u kiest voor een GASTRO 07 werkbank kiest u voor een goede hygiëne, een gebruiksvriendelijke werkplek en de modernste techniek en design. De 07 werkbanken biedt u ook de optie van een elektrisch hefsysteem.

Product not available
Get quote View spec sheet

Key features

Temperature Control

Thanks to the Gram air distribution system, temperatures inside the counters always maintain a uniform and correct level.

This includes rapid temperature recovery after every door opening.



Modularity & Scalability

With GRAM GASTRO 07 counters you can put together your individual workplace. Choose your combination of worktop, doors, and drawers, legs /castors/electric elevation, temperature ranges and accessories.



Easy Maintenance

A compact slide-out refrigeration unit for easy maintenance and service access. Removable and easy to clean condenser filters and gaskets.



High Standard in Hygiene

  • The counter almost entirely consists of smooth surfaces – the perfect design for easy, quick and thorough cleaning.

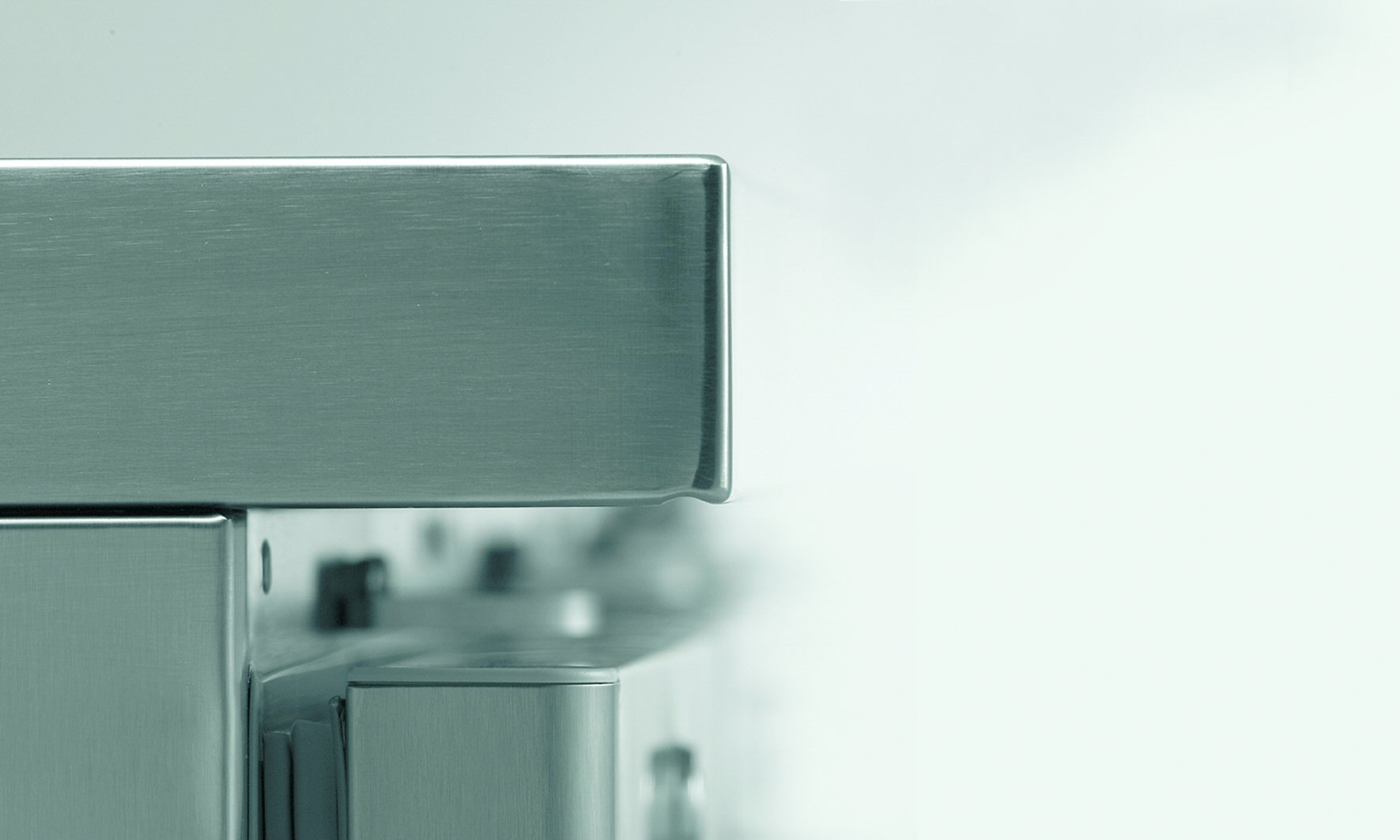

  • ‘Drip Nose’ edges on worktops to prevent the ingress of water.
  • Worktops with splashbacks to protect your counter from spillage.

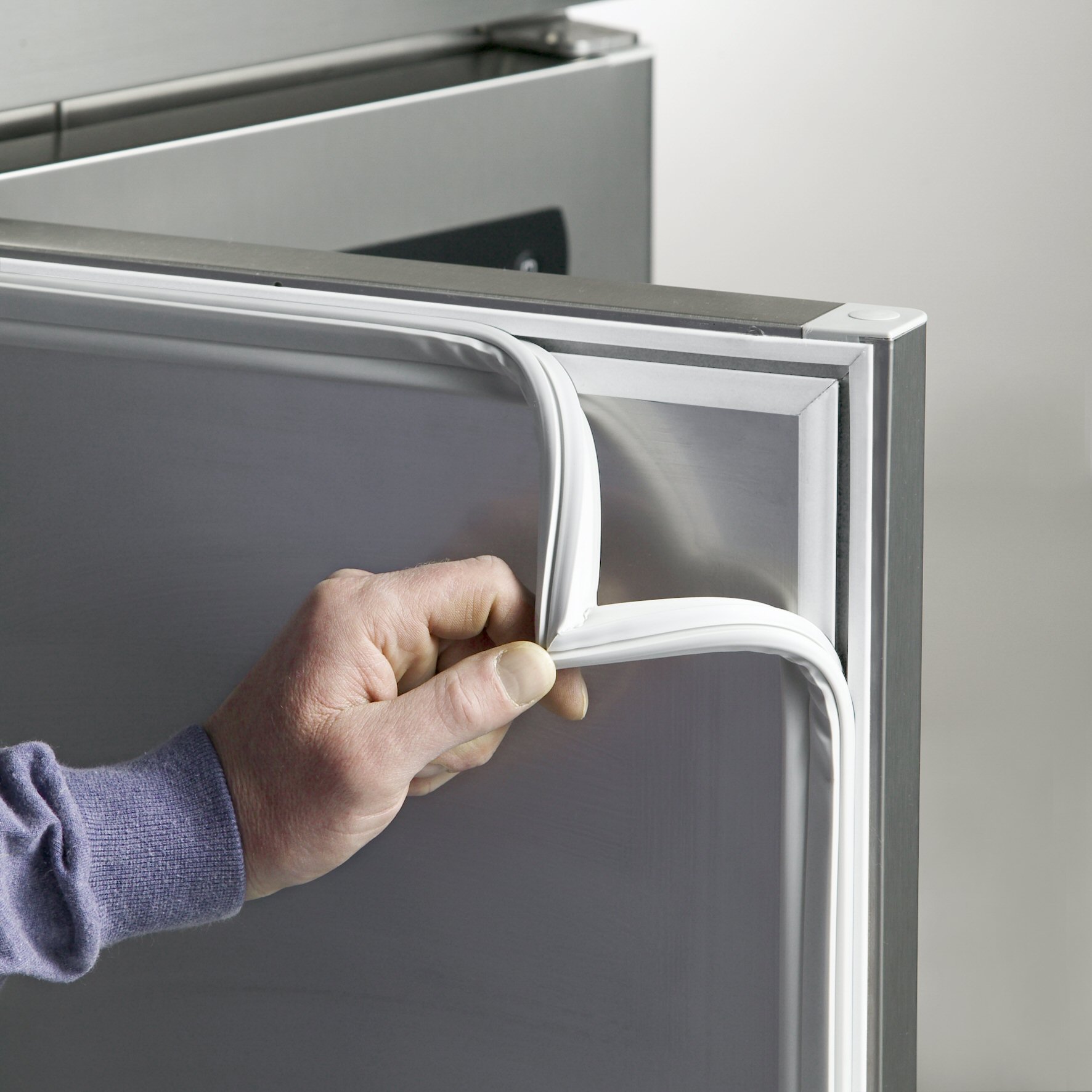

  • Removable drawer and door gaskets for easy cleaning.

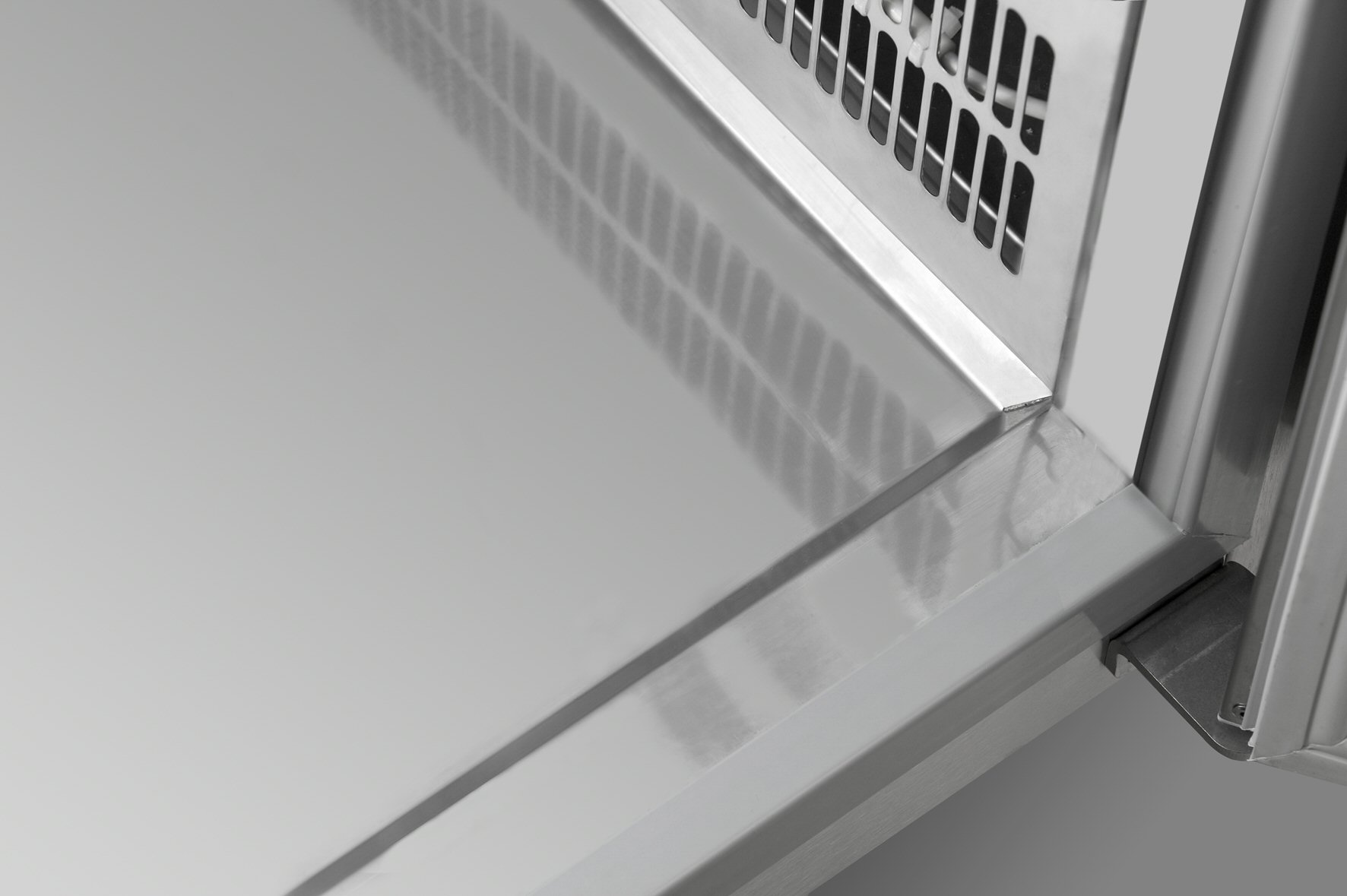

  • Pan-shaped inside base with rounded corners to catches fluid.



Allergy-Proof

Counters are made from nickel-free stainless steel.



Ergonomic and practical design

  • Anti-tilt shelves and drawers with pull-out stop.
  • Extra-long telescopic rails on drawers – GN trays can be lifted in and out without tilting.



Specifications

Specification Value
Artikelnummer GASTRO-M-2207-CSF-CO2-A-DL/DL/DL/DR-L2-29x71
Modelnaam GASTRO M 2207 CSF CO2 A DL/DL/DL/DR L2 29x71
Merk Gram
Voorzien van Stainless steel solid top, 4 door sections each with 2 stainless shelves
Breedte 2163 mm
Diepte 700 mm
Hoogte inclusief benen (minimum) 885 mm
Hoogte inclusief benen (maximum) 950 mm
Energie-efficiëntieklasse Categorie nog niet gereguleerd
Plankgrootte 1/1 GN diep
Product availability -- Not available
Verbindingstemperatuur 132 kW
Buiten RVS
Interieur RvS
Bruto gewicht 189 kg
Isolatiedikte 50 mm
Isolatietype Cyclopentane
Potens / Wielen H = 135-200 mm (L)
Netto bruikbare volume 384 l
Netto gewicht 189 kg
Voeding 230V, 50Hz
Temperatuurbereik -5/+12°C
Volume, bruto 668 l
Volume, netto 384 l
Deurtype Geïsoleerde deur
Koelcapaciteit 250
GWP 1 GWP
Type koudemiddel attOpt_remote_co2_r744
SKU GASTRO-M-2207-CSF-CO2-A-DL/DL/DL/DR-L2-29x71

Documentation

Documentation
Declaration of conformity Download
K_2207_G_DL_DL_DL_DR.pdf Download
Instruction manual Download
7460633.pdf Download
7460632.pdf Download
