961401012

BAKER M 140 CCG L2 50A

Refrigerators
B

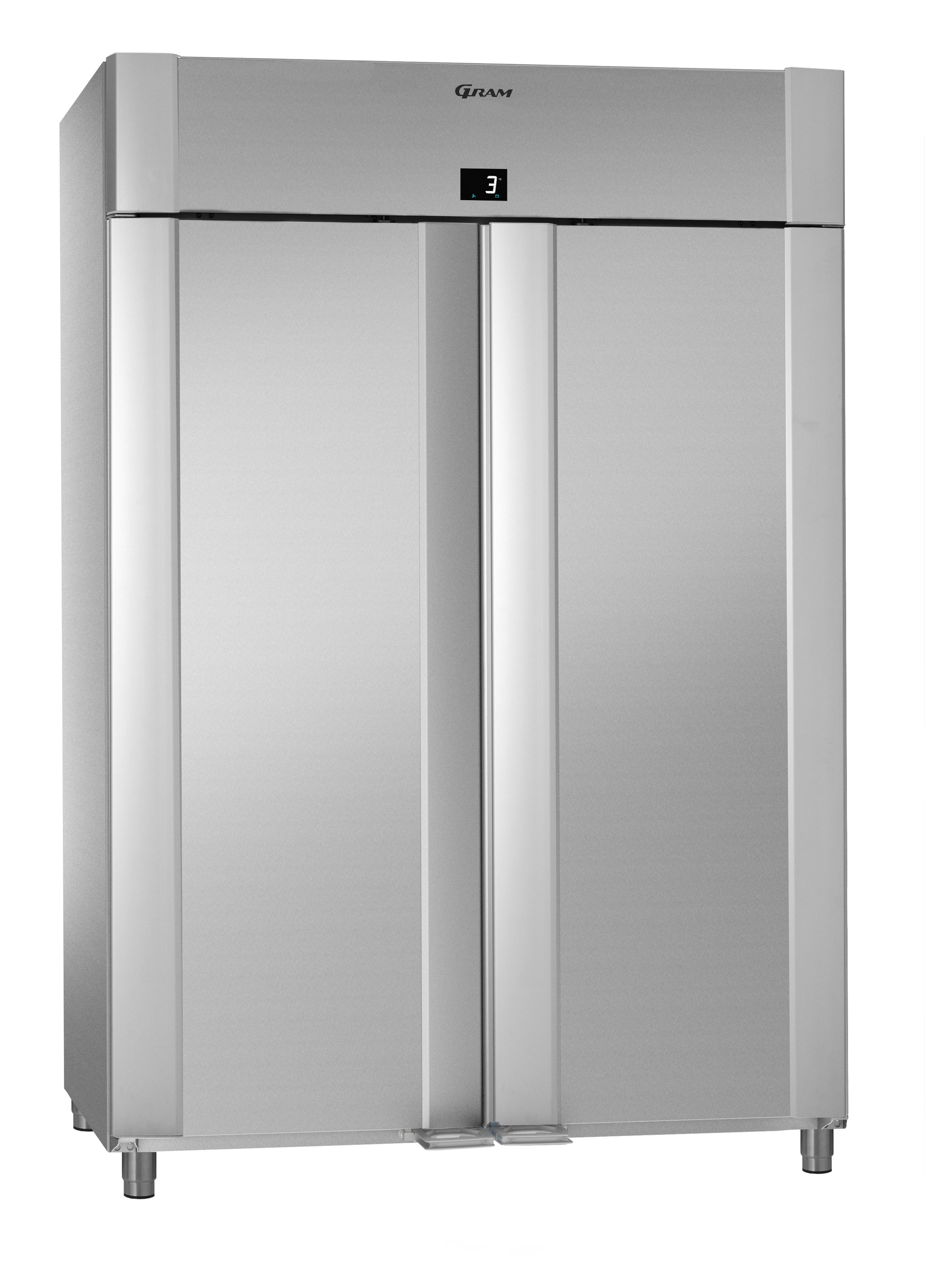

The GRAM BAKER M 140 CCG L2 50A  is a with a net internal volume of  801 Ltr.



Generations of bakeries, confectioners, and patisseries are trusting GRAM BAKER storage and process cabinets to accommodate their bakery products. The GRAM air circulation system is key to maintain correct and uniform temperature and humidity levels inside the cabinet. The air is exhausted and refrigerated before being directed back into the cabinet, circulating around all food items. Thus, unwanted dehydration and skin forming of doughs can be avoided almost entirely.

Get quote View spec sheet

Key features

Preserving Quality

Both storage and process cabinets come with built-in functionalities that preserve the quality of your bakery products at all times.



Low Running Costs

The energy-efficient refrigeration technology implemented in this wide line-up of storage cabinets can help saving running costs on a day-to-day basis.



Built-in Safety

All BAKER Cabinets come with a controller equipped with safety functions: Door alarm, alarms for high-temperature levels, or when the cleaning of the condenser filter is required to avoid overheating. A top panel perfectly protects the controller from water splashes.



Multi-Functional

The SF can be used as a quick chiller/freezer, storage freezer, storage refrigerator, or thawing cabinet. If required, the GA can be also used continuously as a freezer, as a refrigerator, or as a prover.



Designed for Bakers

The GRAM BAKER series strikes with features, specifically designed for the requirements of bakery businesses. The cabinet meets standard bakery tray sizes and the support rails can be individually positioned.



The BAKER M 140 CCG L2 50A comes with the following extras:

  • Right-hand hinged door with lock
  • Air circulation system
  • Dry cooling and controlled thawing (M versions)
  • Automatic defrost and reevaporation of water



Specifications

Specification Value
Artikelnummer 961401012
Modelnaam BAKER M 140 CCG L2 50A
Garantieperiode 5 jaar
Voorzien van Equipped with right and left hand hinged door with lock, self closing doors and pedal door openers, LED light, drycooling and controlled rapid thaw, 50 pairs of adjustable trayslides, legs.
Breedte 1400 mm
Diepte 905 mm
Hoogte 2125 mm
Energie verbruik 562 kWh
Energie-efficiëntieklasse B
Product availability -- Not available
Klasse van het klimaat 5
Verbindingstemperatuur 248 kW
Buiten RVS
Interieur RvS
Bruto gewicht 220 kg
Isolatiedikte 70 mm
Isolatietype Cyclopentane
Potens / Wielen H = 135-200 mm (L)
Netto bruikbare volume 801 l
Netto gewicht 220 kg
Voeding 230V, 50Hz
Geluidniveau 42.8 dB
Temperatuurbereik -5/+12°C
Volume, bruto 1359 l
Volume, netto 801 l
Deurtype Dubbele deuren
Koelcapaciteit 560
CO2-equivalent 0.45 kg
GWP 3 GWP
Koelmiddel 0.149 kg
Type koudemiddel R290
SKU 961401012

Documentation

Documentation
Declaration of conformity Download
BAKER_PLUS_M_140_G__A__460x650_.pdf Download
Instruction manual Download
Wiring_diagram_ECO_and_BAKER_Plus_M_140.pdf Download
