860120030

KPS 120 SF LS B BLAST CHILLER/FREEZER – REMOTE

Blast chillers / freezers

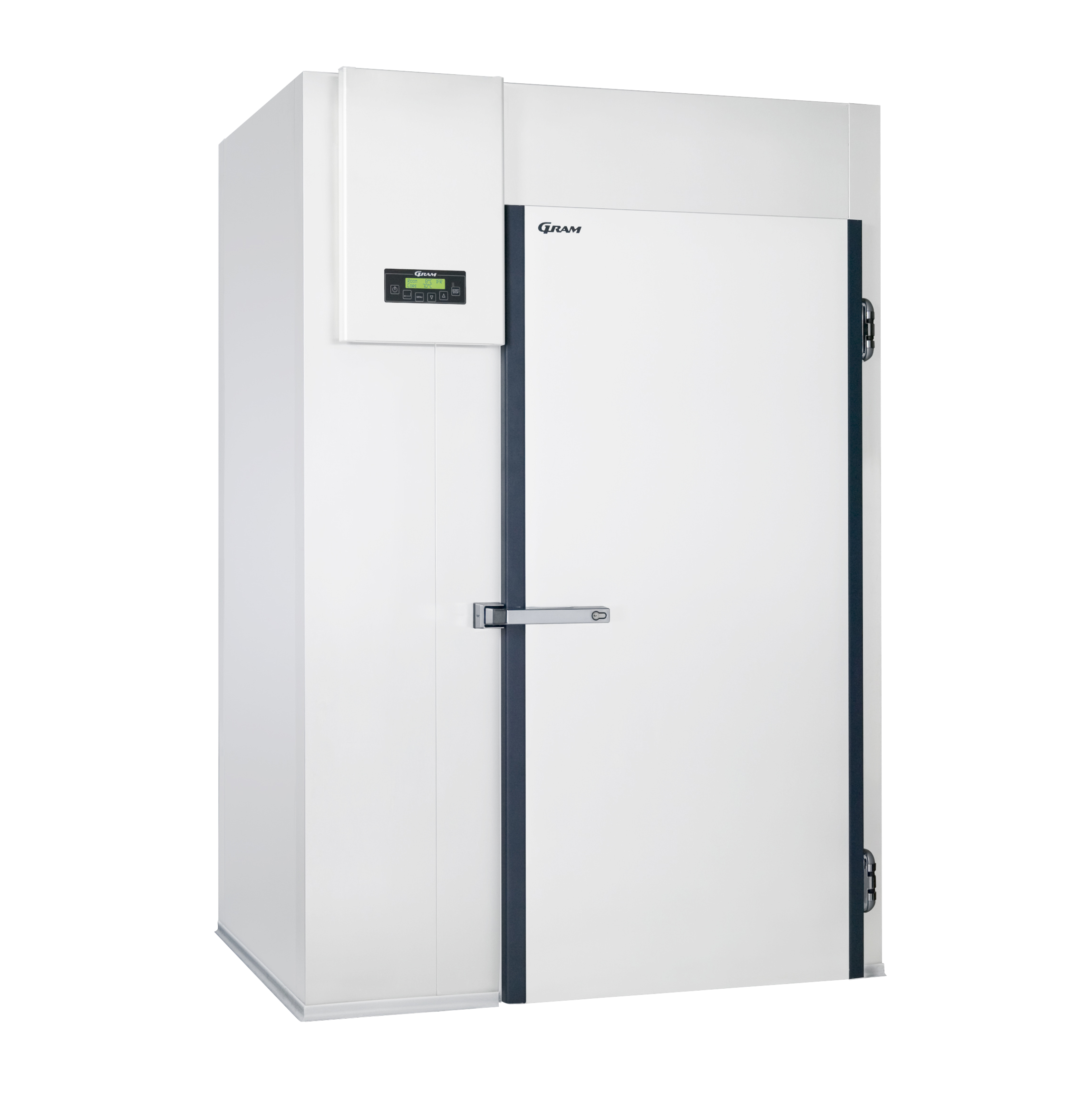

Blast chiller / freezer - Remote The KPS 120 is one of the largest blast chiller and freezer in the KPS Series. They are available asroll-in or roll through units with one or two doors. With two door models the food can be rolled from the kitchen directly into the blast chiller and through for storage in refrigerated cold rooms. Chilling capacity: 120kg from +70°c to +3°c in 90 minutes Freezing Capacity: 120kg from +70°c to -18°c in 4 hours It is necessary to connect this unit to an exteral drain

Product not available
Get quote View spec sheet

Key features

Food Safe

Food items are handled in full compliance with the HACCP guidelines. HACCP alarms and an automatic shift to ‘storage mode’ are useful extras to help you to ensure the highest food safety at all times.



High Food Quality

Taste, texture, appearance as well as vitamins and nutrient content are preserved. The use of IFR function also protects against surface freeze damage.



Versatility

Offers different operational modes: IFR operation, time or temperature controlled chill cycle. Up to 20 customized cycles can be stored.



Modularity and Scalability

Available as reach-in, roll-in or roll-through models for small or big scale operations. Part delivery or turn key.

Specifications

Specification Value
Item number 860120030
Model name KPS 120 SF LS B
Brand Gram
Title BLAST CHILLER/FREEZER - REMOTE
Please observe It is necessary to connect this unit to an external drain. The product is delivered unassembled, in parts on two pallets.
Width (packed) 1500 mm
Width inside 741 mm
Depth (packed) 1326 mm
Depth inside 1000 mm
Height (packed) 2235 mm
Height inside 1900 mm
Energy consumption - Chilling (kWh/kg) 0.12 kWh/kg
Energy Consumption - Freezing (kWh/kg) 0.3 kWh/kg
Product availability -- Not available
Connection load 1873 kW
Exterior White Finish
Interior Stainless
Gross weight 260 kg
Insulation thickness 100 mm
Insulation type Cyclopentane
Power supply 230V, 50Hz
Temperature range -25/+10°C
Chilling capacity 120
Freezing capacity 120
Refrigeration capacity 9000
Refrigerant type Standard remote model prepared for R404A. Optionally can be prepared for R407A/R407F/R448A/R449A/R452A/R455A
SKU 860120030

Documentation

Documentation
Declaration of conformity Download
765041176_001.pdf Download
Instruction manual Download
6686222.pdf Download
765072825_Wiring_Diagram_KPS_120_180_SF.pdf Download
