15FE-C141

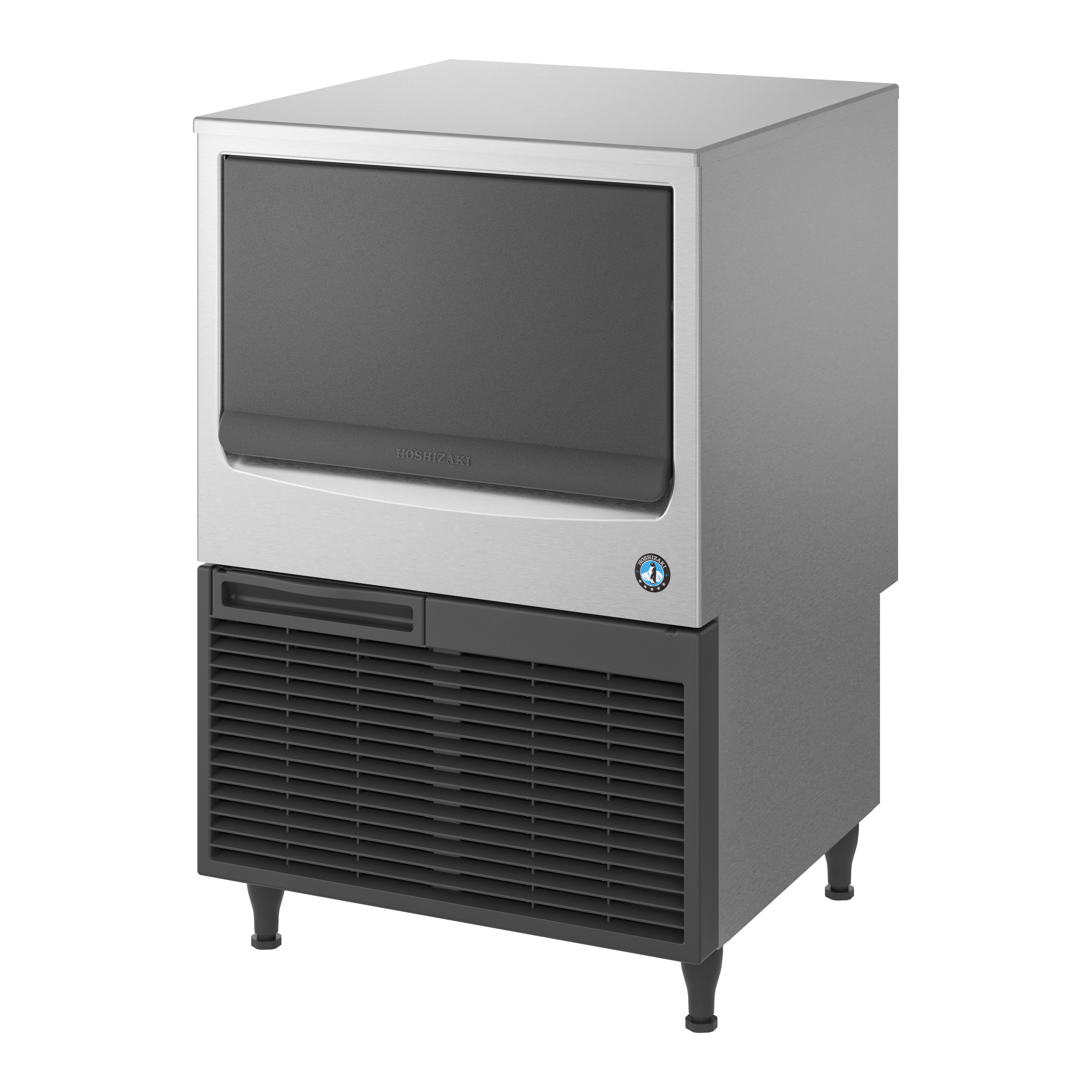

KM-50A Crescent Ice Maker, Self Contained

Ice makers

This Hoshizaki KM-50A is a self-contained Crescent Edge ice maker producing up to 52 kg of high-quality Crescent Edge Ice per 24 hours, meeting even the strictest hygiene requirements and suitable for all operational requirements and kitchen measurements.

The KM Edge range has an enlarged, bonded evaporator surface. Accelerating harvest cycles, the technology behind the KM Edge range  will help you to increase your serving capacity instantly. More ice in less amount of time.

Get quote View spec sheet

Key features

The KM-50A uses refrigerant R134a.



Unique Technology

The double-sided evaporator in all KM machines is made of stainless steel – the best material for improved longevity, food safety, and cleaning without damaging to the machine. The external material is made of . Thanks to its rounded, yet edgy form, the Hoshizaki Crescent Ice will not cluster inside the ice chest. That is why it is considered the perfect ice shape for bottle coolers, allowing you to place bottles inside the ice effortlessly. The ice can be used for chilling drinks, fresh produce display, and bottle cooling as well as cooking.



Convenience

Always focusing on operating convenience and food safety, the air filters are easily accessible from the front for routine cleaning. With intake and outflow positioned at the front, the KM is ideal for built-in installation opportunities. “



Smart Design

Like all Hoshizaki ice makers, the KM-50A is designed to last and comes with smart design extras such as the double-sided, stainless steel evaporator, unique in the industry, produces more ice per cycle with lower energy consumption and resistance to descaling acids.



Flexibility

With outside dimensions W x D x H of 605 x 617 x 842 mm,  the KM-50A is compact and makes a perfect fit for small spaces.



Plug&Play

The smart plug-and-play design guarantees an easy and quick set-up.



Specifications

Specification Value
Item number 15FE-C141
Model name KM-50A
Ice maker type Crescent ice maker
Brand Hoshizaki
Product configuration Self Contained
Title Crescent Ice Maker, Self Contained
Width (legs excluded) 605 mm
Depth (legs excluded) 617 mm
Height (legs excluded) 842 mm
Electric Consumption 0.303 kW
Energy consumption 0.303 kWh
Product availability -- Not available
Exterior Stainless Steel
Gross weight 58 kg
Net weight 46 kg
Power supply 1/220 - 240V/50Hz
Storage bin capacity 23 kg
Cooling system Air Cooled
Ice type Crescent Edge
Ice production 52
CO2 equivalent 315 kg
Refrigerant type R134a
SKU 15FE-C141

Documentation

Documentation
Instruction manual Download
Spec sheet Download
