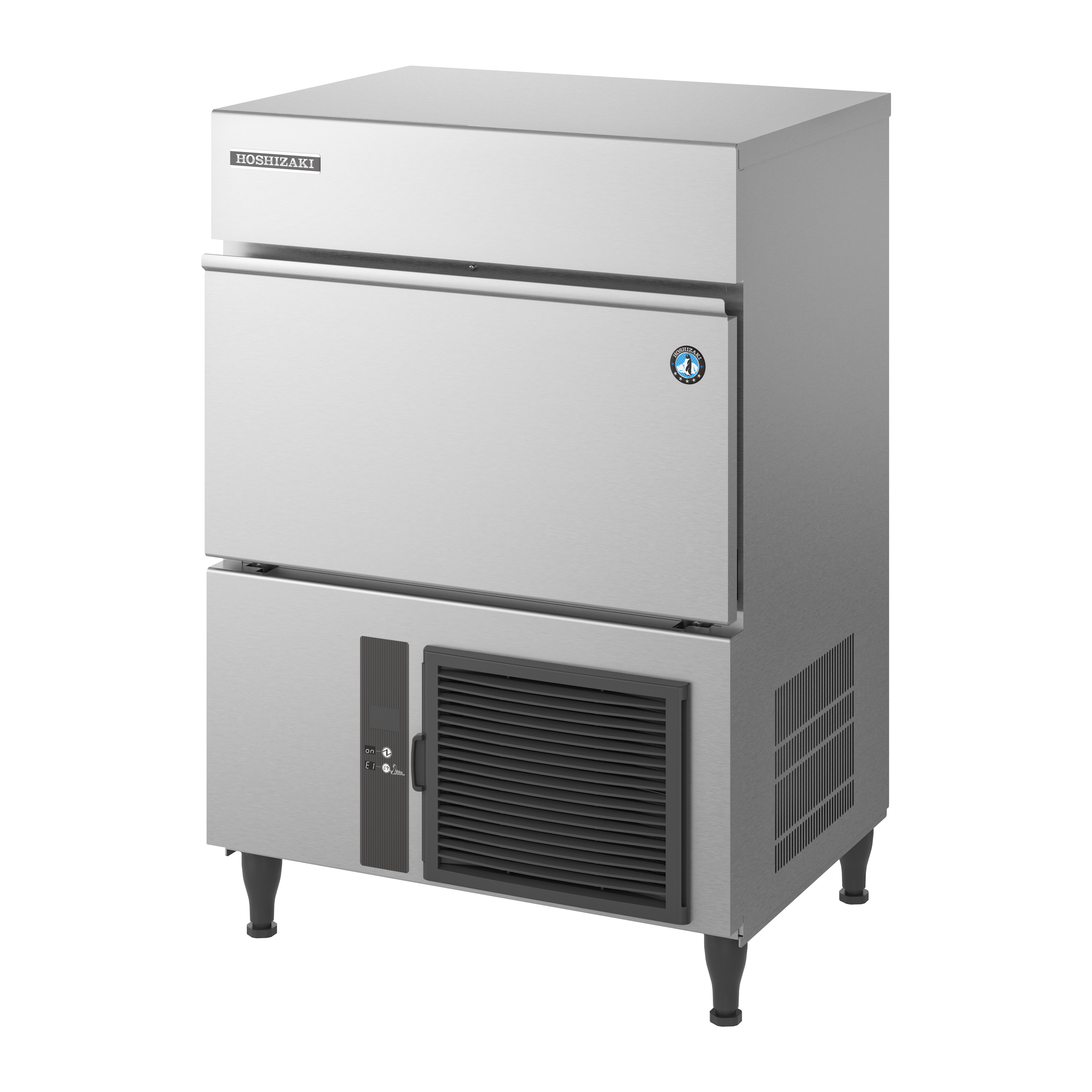

IM-65NE-Q(G60) Ball Ice Maker, Self Contained

Ice makers

This Hoshizaki IM-65NE-Q(G60) is a self-contained special ice maker producing up to 28 kg of high-quality Ball Ice per 24 hours.

Expand your creative horizon and your craft’s aesthetic possibilities with the help of our special ice makers that produce different, extraordinary shapes of ice. Specially tailored for cocktail bars that like to differentiate themselves from others, whilst never compromising on taste and quality of their drinks. With perfect ice characteristics still in focus, you can now add a decorative highlight to your cocktails and long drinks.

All special ice makers are equipped with an electronic control system. This ensures an optimized ice-making process, even under varying circumstances. Without additional manual assistance or adjustments required, our Special Ice Makers produce generous amounts of ice cubes, at a consistently high quality.

Get quote View spec sheet

Specifications Documentation Accessories

Specifications

Specification	Value
Item number	E1FD-D026
Model name	IM-65NE-Q(G60)
Brand	Hoshizaki
Product configuration	Self Contained
Warranty period	2 Years on Parts & Labour
Country of origin	UK
Title	Ball Ice Maker, Self Contained
Please observe	This type of icemaker is on special order only. Please take longer lead times into consideration.
Width (legs excluded)	633 mm
Width (packed)	735 mm
Depth (legs excluded)	506 mm
Depth (packed)	570 mm
Height (legs excluded)	860 mm
Height (packed)	1012 mm
Volume (packed)	0.42 l
Dimensions legs	for legs add 90-125 mm
Electric Consumption	0.37 kW
Energy consumption	0.37 kWh
Ambient temperature (maximum)	40 u00b0C
Ambient temperature (minimum)	1 u00b0C
Voltage range	Rated Voltage ±10%
Water supply pressure (maximum)	0.8MPa (8bar)
Water supply pressure (minimum)	0.07MPa (0.7bar)
Water supply temperature (maximum)	35 u00b0C
Water supply temperature (minimum)	5 u00b0C
Product availability	-- Not available
Electrical circuit breaker protection	5 A
Exterior	Stainless steel AISI 441, Galvanized steel (Rear)
Gross weight	66 kg
Heat Rejection (AT 32ºC, WT 21ºC)	0.815 kW
Net weight	53 kg
Power supply	1/220 - 230V/60Hz
Storage bin capacity	17 kg
Volume, gross	0.42 l
Cooling system	Air Cooled
Ice type	Ball
Ice production	28
Water consumption - Air cooled ice makers	1.08
CO2 equivalent	314.6 kg
Refrigerant	0.22 kg
Refrigerant type	R134a
SKU	E1FD-D026
