861800549

GASTRO K 1807 CSG A DL/DL/3D L2

Gastronomy counters
D

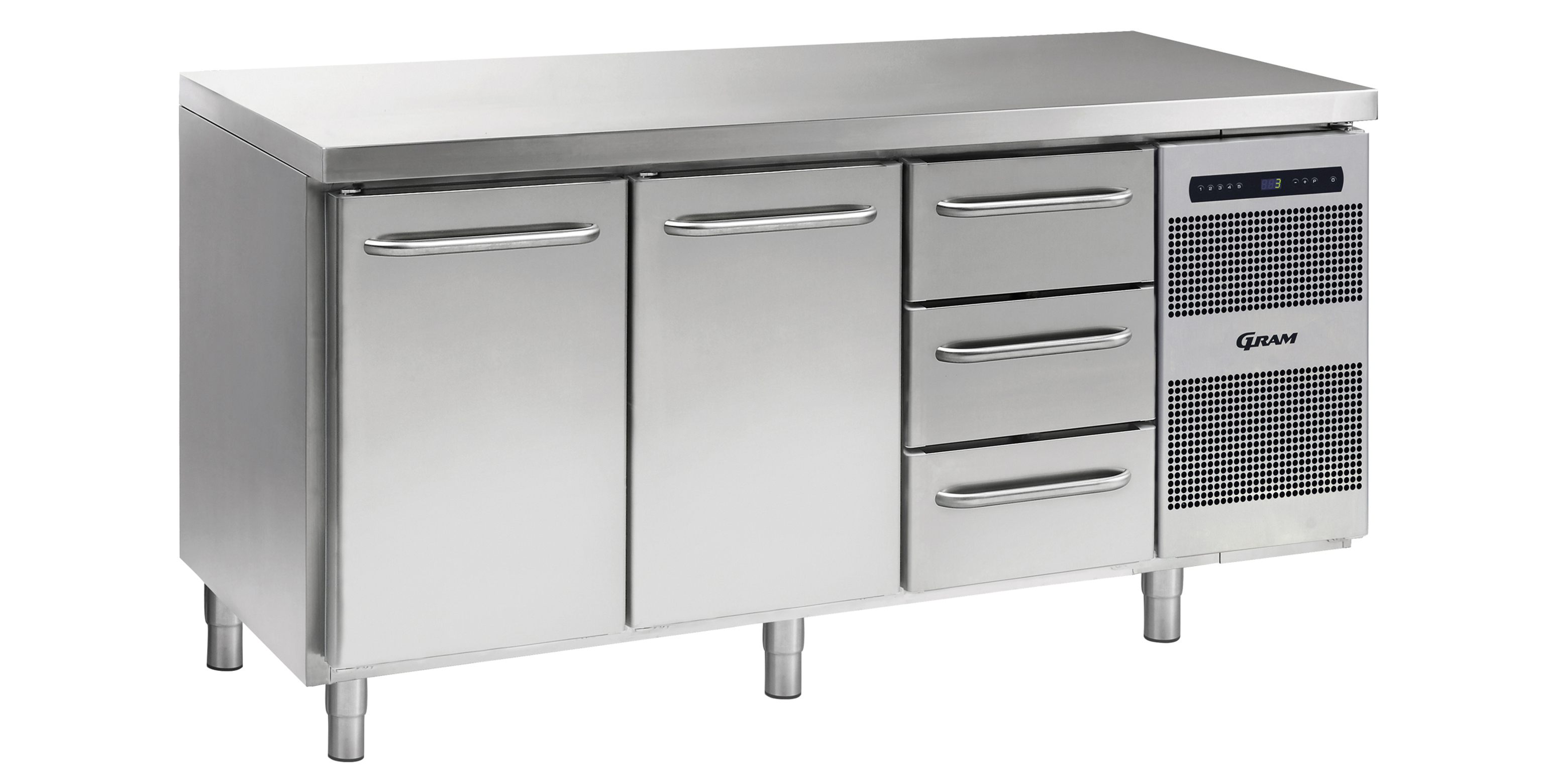

The GRAM GASTRO K 1807 CSG A DL/DL/3D L2  is a with a net internal volume of  263 Ltr.



GRAM Gastro 07 is a series of 1/1 GN workstations, equipped with customizable sections. Furthermore, the highly modular refrigerated counter offers an abundance of practical configuration possibilities.



Discontinued
Get quote View spec sheet

Key features

Temperature Control

Thanks to the Gram air distribution system, temperatures inside the counters always maintain a uniform and correct level.

This includes rapid temperature recovery after every door opening.



Modularity & Scalability

With GRAM GASTRO 07 counters you can put together your individual workplace. Choose your combination of worktop, doors, and drawers, legs /castors/electric elevation, temperature ranges and accessories.



Easy Maintenance

A compact slide-out refrigeration unit for easy maintenance and service access. Removable and easy to clean condenser filters and gaskets.



High Standard in Hygiene

  • The counter almost entirely consists of smooth surfaces – the perfect design for easy, quick and thorough cleaning.
  • ‘Drip Nose’ edges on worktops to prevent the ingress of water.
  • Worktops with splashbacks to protect your counter from spillage.
  • Removable drawer and door gaskets for easy cleaning.

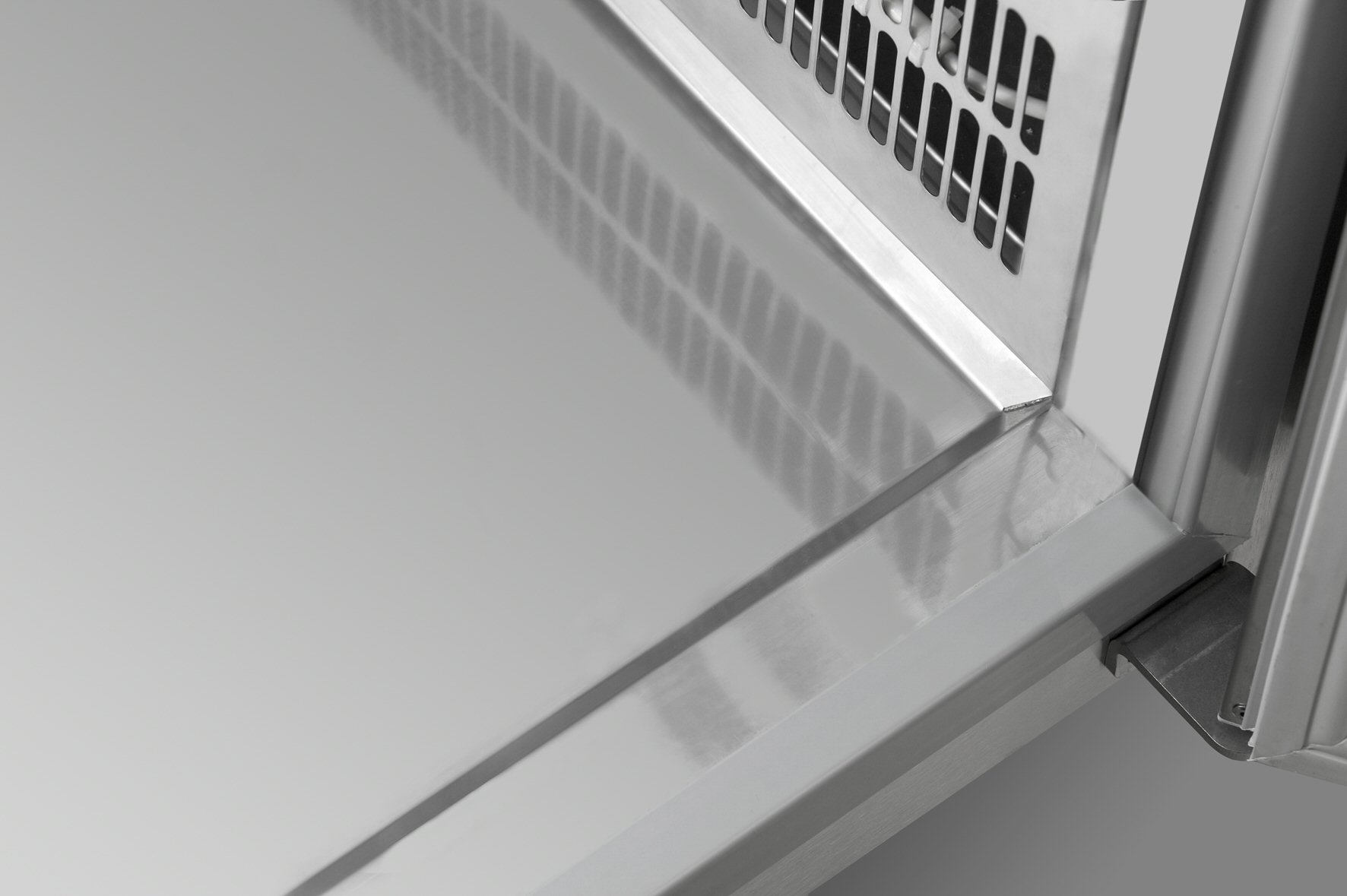

  • Pan-shaped inside base with rounded corners to catches fluid.



Allergy-Proof

Counters are made from nickel-free stainless steel.



Ergonomic and practical design

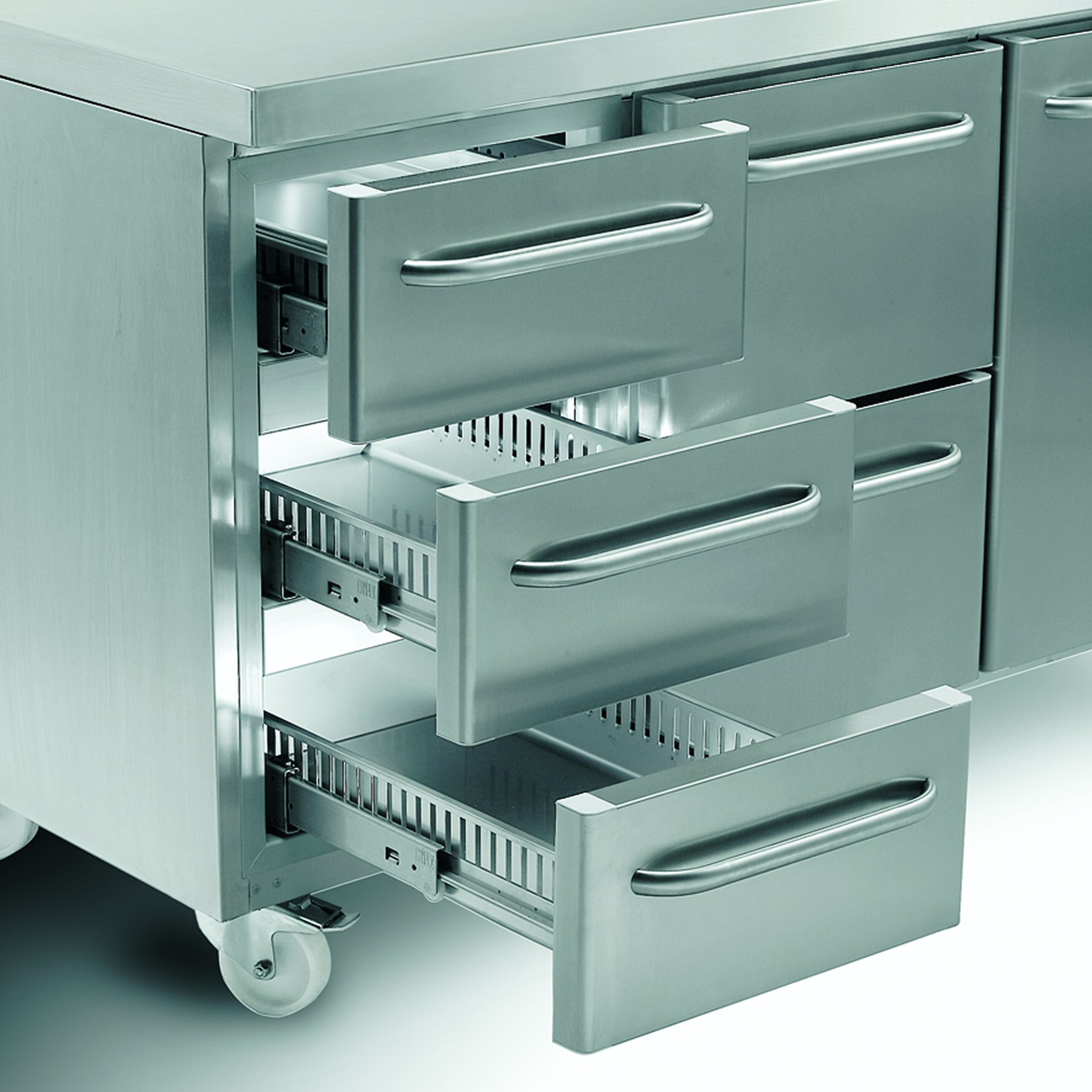

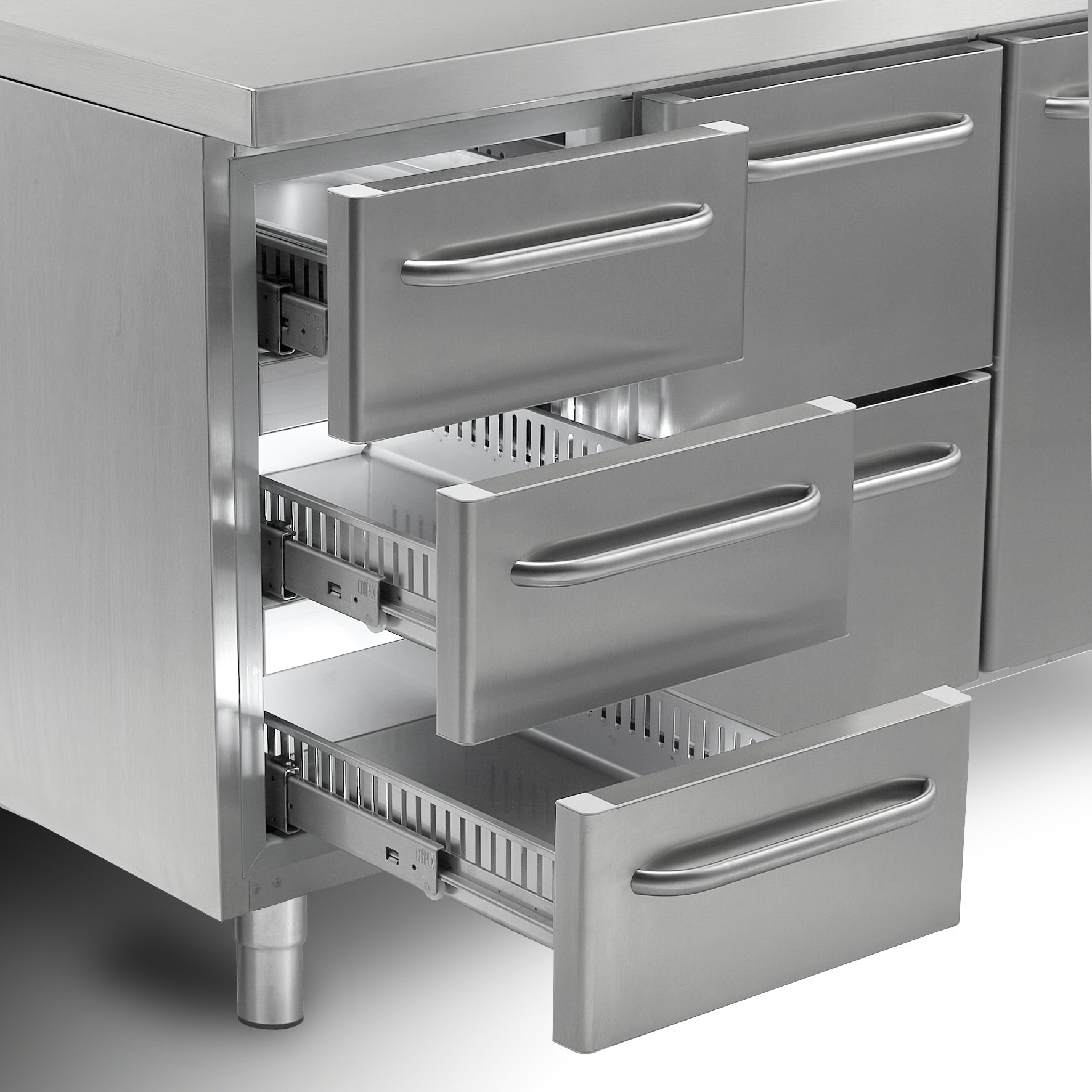

  • Anti-tilt shelves and drawers with pull-out stop.

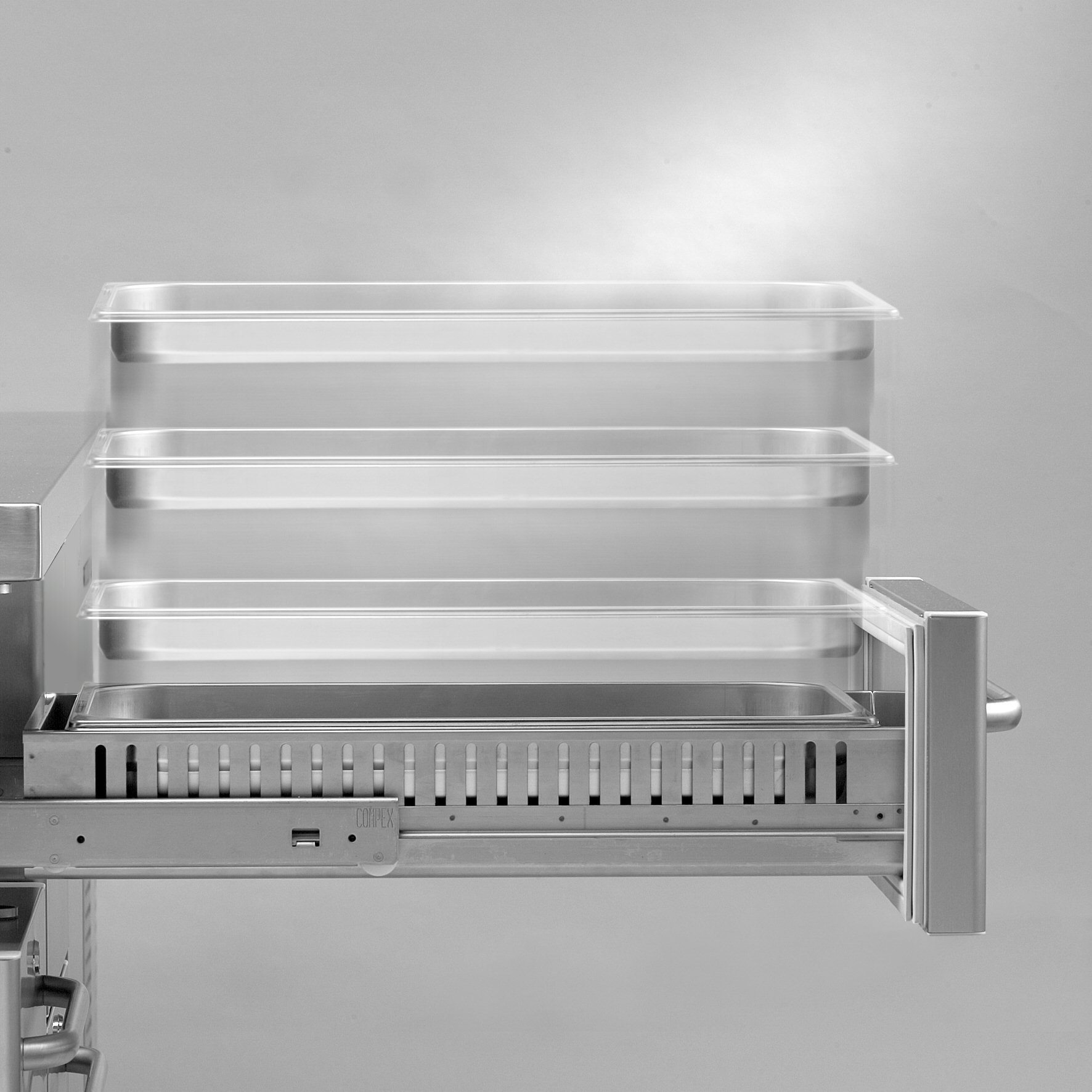

  • Extra-long telescopic rails on drawers – GN trays can be lifted in and out without tilting.



Specifications

Specification Value
Item number 861800549
Model name GASTRO K 1807 CSG A DL/DL/3D L2
Brand Gram
Equipped with Stainless steel solid top, 2 door sections each with 2 stainless drawers and 1 drawer section with 3 x 1/3 drawers
Extended spec sheets approved 1
Width 1726 mm
Depth 700 mm
Height including legs (minimum) 885 mm
Height including legs (maximum) 950 mm
Energy efficiency class D
Shelf size 1/1 GN
Product availability -- Not available
Exterior Stainless Steel
Interior Stainless
Gross weight 158 kg
Insulation thickness 50 mm
Insulation type Cyclopentane
Legs / Castors H = 125-200 mm (L)
Net usable volume 263 l
Net weight 158 kg
Power supply 230V, 50Hz
Temperature range +2/+12°C
Volume, gross 506 l
Volume, net 263 l
Door Type Solid Door
Refrigeration capacity 386
CO2 equivalent 0.23 kg
GWP 3 GWP
Refrigerant 0.07 kg
Refrigerant type R290
SKU 861800549

Documentation

Documentation
Declaration of conformity Download
K_1807_G_DL_DL_3D.pdf Download
Instruction manual Download
7460614.pdf Download
7460613.pdf Download
