966200045

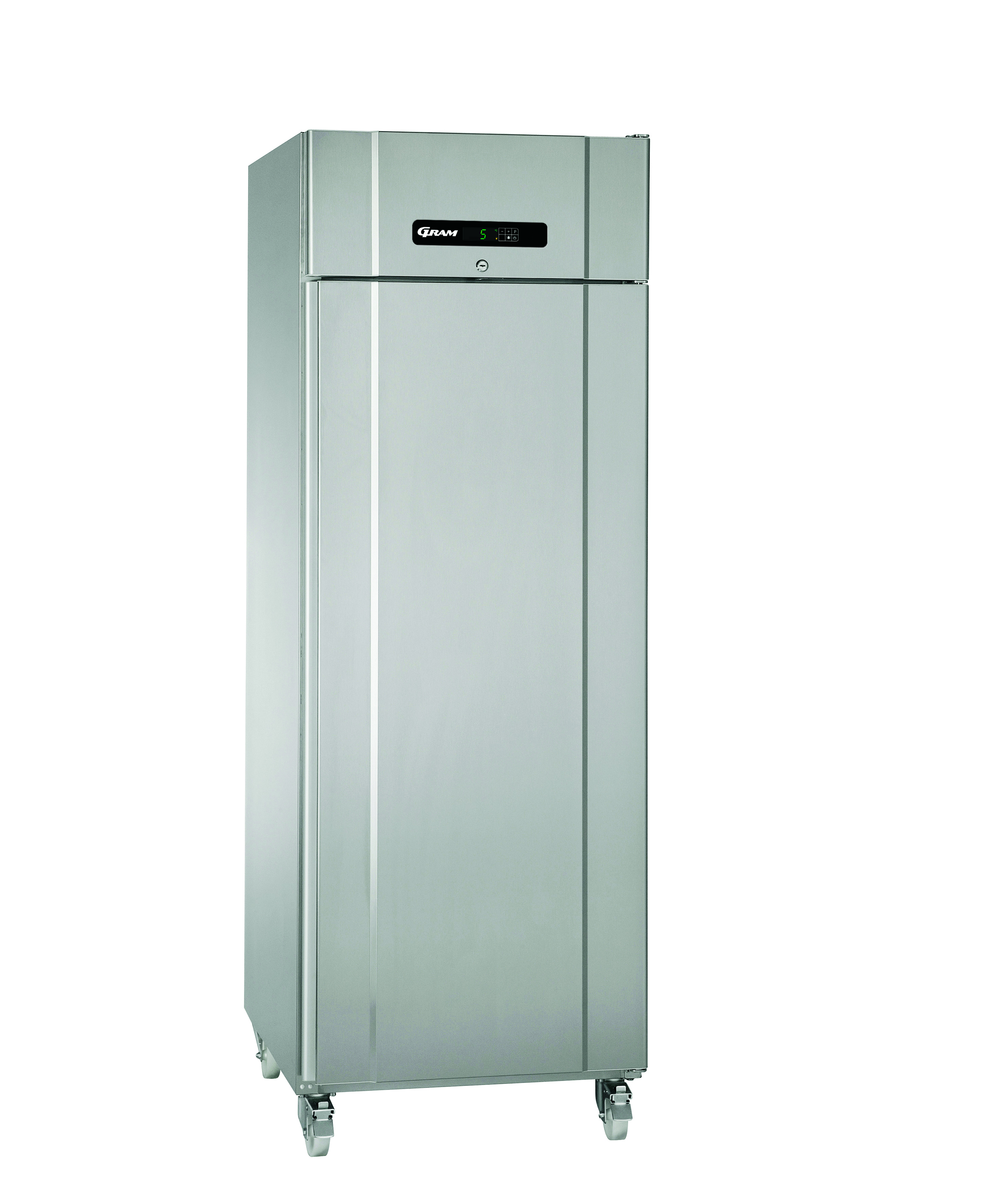

COMPACT K 620 RG C2 4N REFRIGERATOR

Refrigerators
C

The GRAM COMPACT K 620 RG C2 4N  is a REFRIGERATOR with a net internal volume of  421 Ltr.



The GRAM COMPACT series offers a rare combination: These cabinets are food safe, space-saving, and come with excellent energy ratings for its class.  With a footprint of only 59,5 x, 64 cm these small space storage cabinets are easy to fit in,  especially when space is limited. These specifications make the series such a popular choice of those operators who do not require heavy-duty Gastronorm equipment.

Discontinued
Get quote View spec sheet

Key features

Food Safety

Thanks to the Gram air distribution system, temperatures are correct and uniform throughout the entire cold room, ensuring perfectly food-safe temperatures at all times



Low-Running Energy Costs

The Energy Efficiency Class of the COMPACT K 620 RG C2 4N is C. The COMPACT series offers a range of extremely energy-efficient refrigeration units for small spaces.



Comfortable Work Environment

Contributes to a healthier work environment with low noise levels  45.4000 dB(A), when the compressor is running. Low heat emission due to short compressor running times.



Hygiene & Ergonomic Design

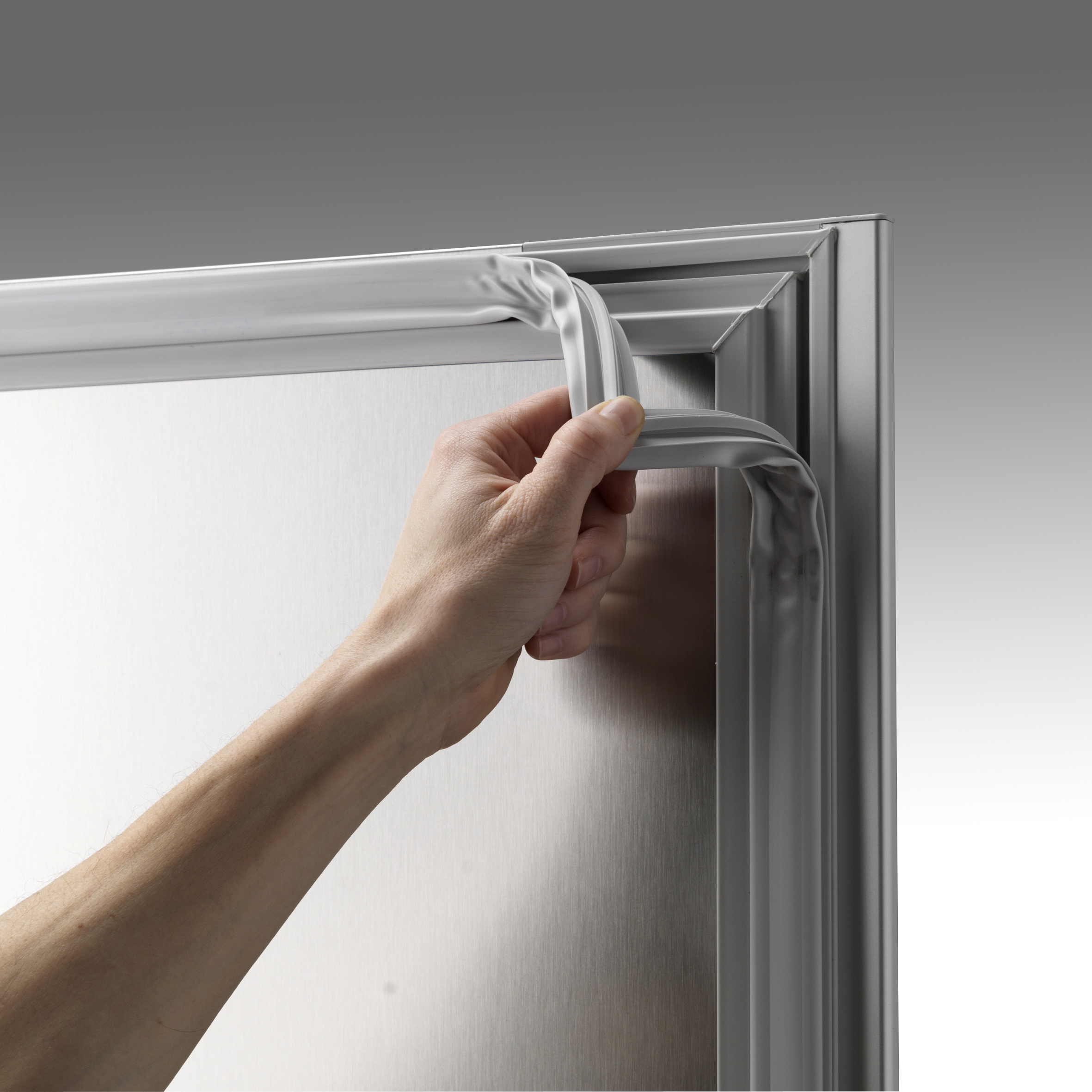

Just like all GRAM units, the COMPACT series features several design extras, implemented to simplify daily cleaning routines. One of the features for optimized operator safety is the full-height integrated handles.



Modularity & Scalability

The COMPACT K 620 RG C2 4N  strikes with its versatility, as the units can be stacked, paired, or even combined with other kitchen devices. Configuration possibilities include column combinations, side-by-side combinations, wall-mounted solutions, and the combinations with microwave ovens on top.



The COMPACT K 620 RG C2 4N comes with the following extras:

  • Refrigerant: The REFRIGERATOR uses HC refrigerant R600a
  • Air circulation system
  • Right-hand hinged door

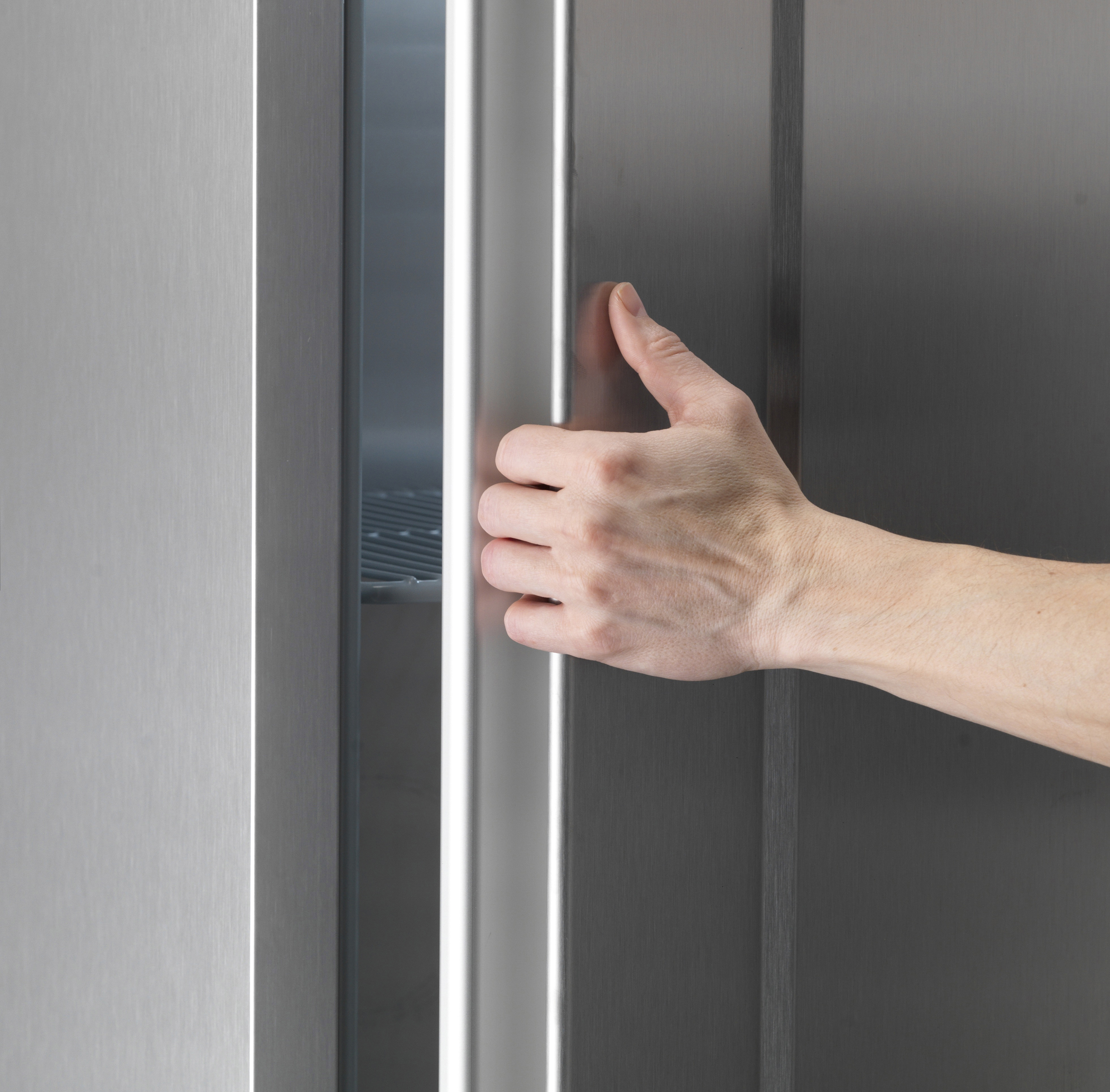

  • Integrated full height door handle
  • Internal LED light

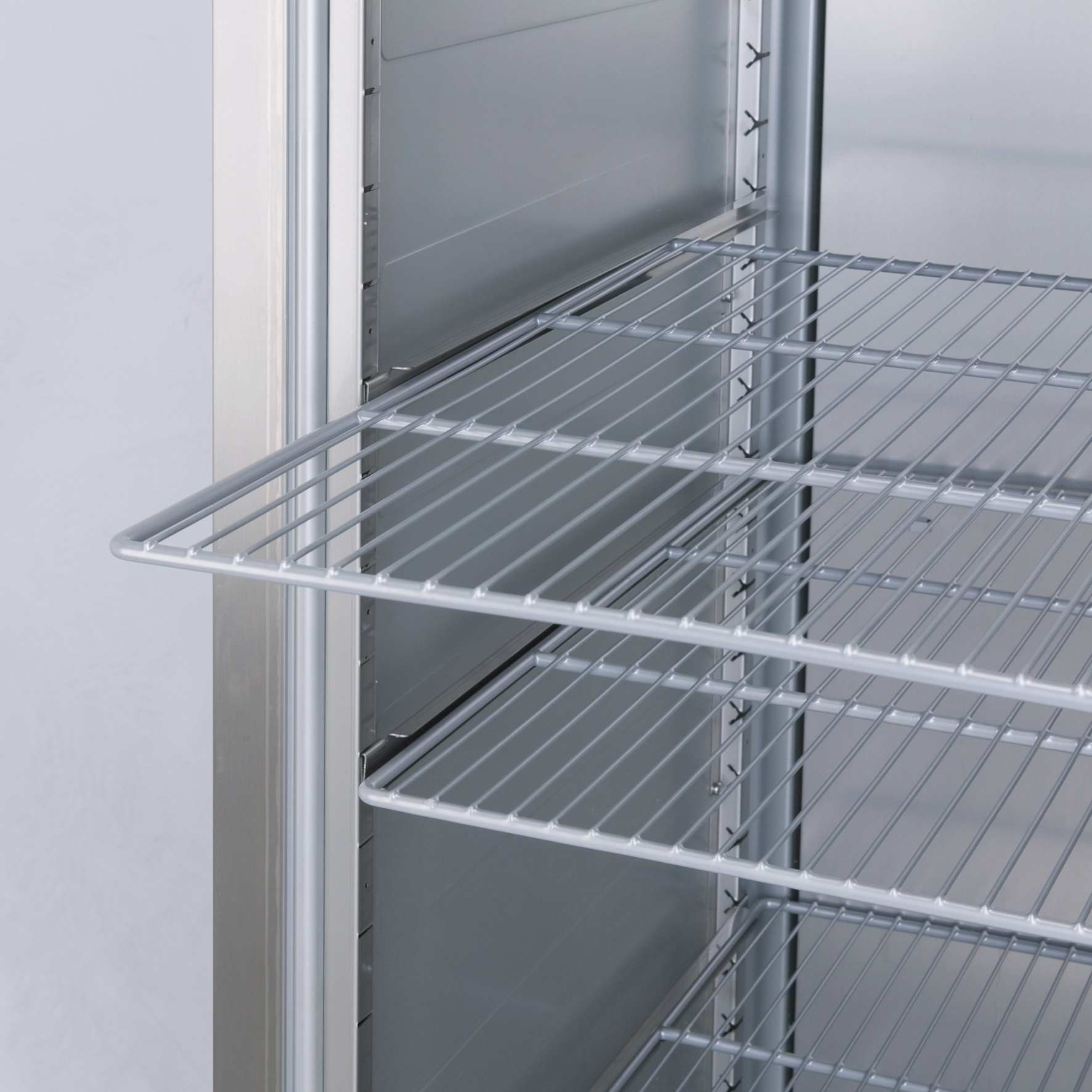

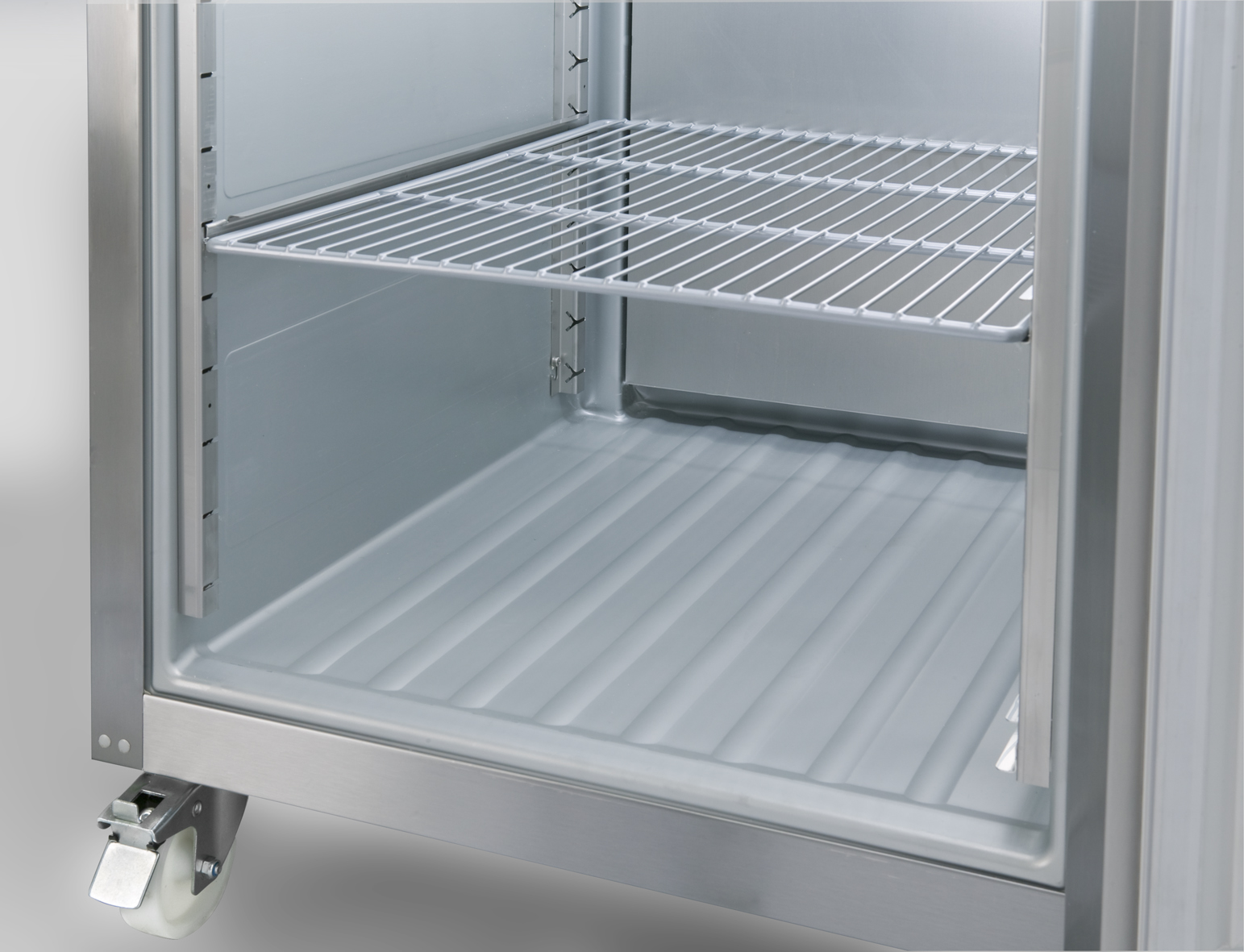

  • Anti-tilt shelves
  • Door lock for extra security
  • Pedal door opener for handsfree operation (optional accessory
  • Automatic defrost with re-evaporation of defrost water
  • 10 years spare parts warranty guaranteed

Specifications

Specification Value
Item number 966200045
Model name COMPACT K 620 RG C2 4N
Brand Gram
Warranty period 5 Years on Parts & Labour - based on country agreement
Title REFRIGERATOR
Equipped with Right hand hinged reversible door with lock, 4 grey shelves. Exterior: Stainless. Interior: ABS lining in grey
Extended spec sheets approved 1
Width 695 mm
Depth 874 mm
Height 2000 mm
Energy efficiency class C
Energy Efficiency Index (EEI) 40.17 EEI
Number of shelves 4
Maximum number of shelves 24
Shelf size 2/1 GN deep
Product availability -- Not available
Climate class 5 (max. ambient 40°C w/ 40% RH)
Exterior Stainless Steel
Interior ABS Lining Grey
Gross weight 102 kg
Insulation thickness 60 mm
Insulation type Cyclopentane

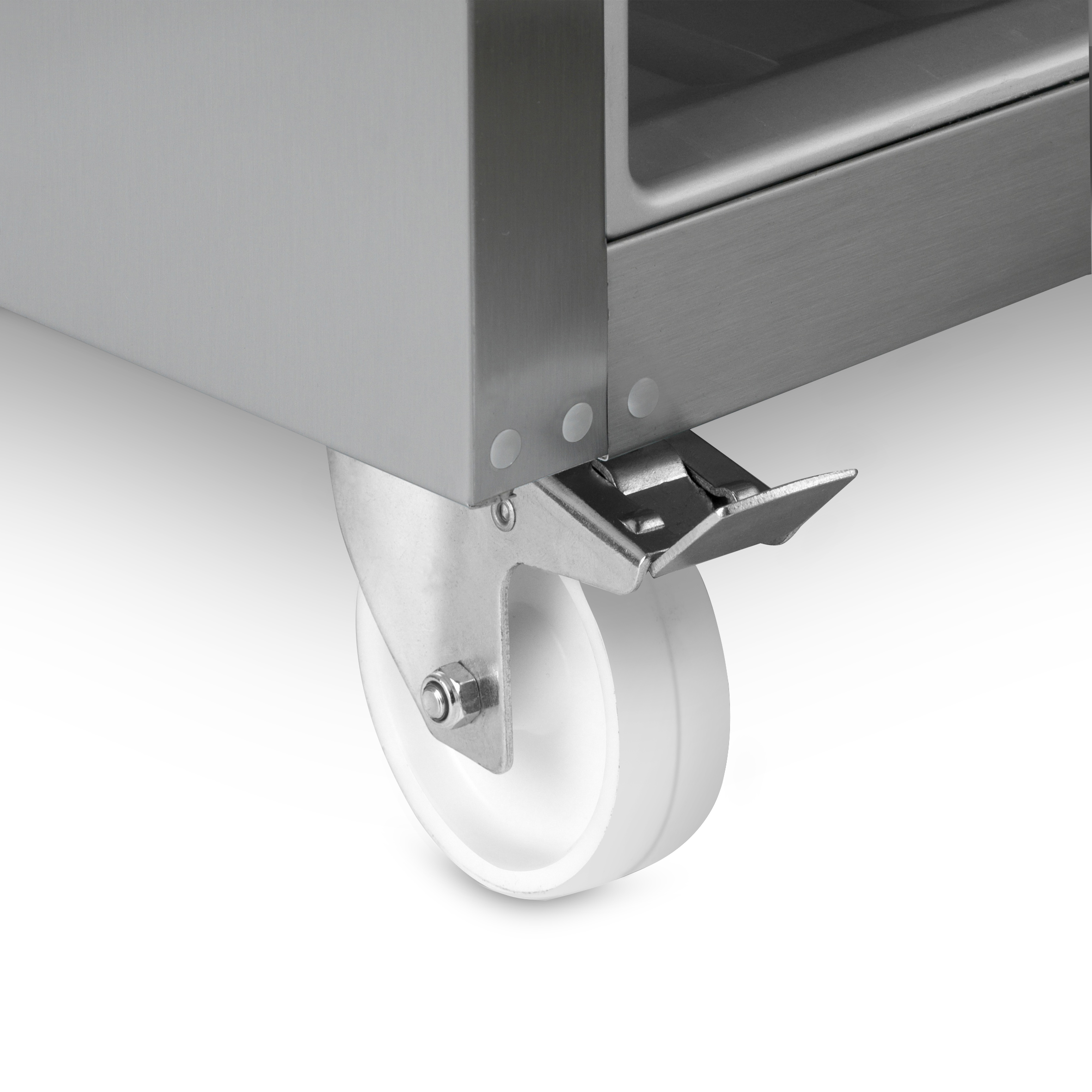

Legs / Castors H = 125 mm (C)
Net usable volume 421 l
Net weight 102 kg
Power supply 230V, 50Hz
Sound level 45.4 dB
Temperature range +2/+12°C
Volume, gross 580 l
Volume, net 421 l
Door Type Solid Door
Refrigeration capacity 413
CO2 equivalent 0.174 kg
GWP 3 GWP
Refrigerant 0.058 kg
Refrigerant type R600a
SKU 966200045

Documentation

Documentation
Declaration of conformity Download
COMPACT_K_620_G.pdf Download
Instruction manual Download
6762294.pdf Download
6762293.pdf Download
