962840213

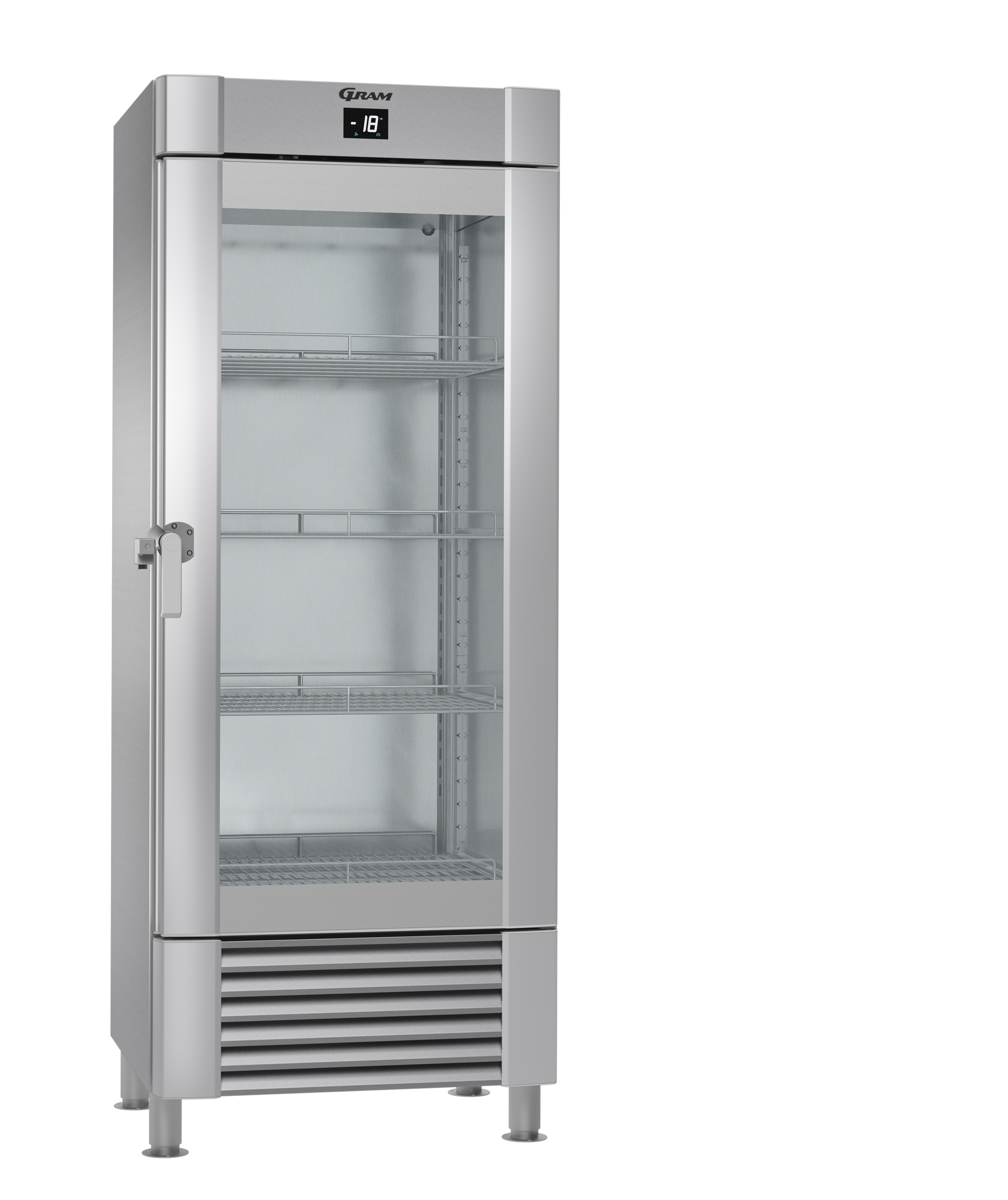

MARINE MIDI FG 82 CCH 4M

Freezers
Category not yet regulated

The Gram marine range is designed for the demanding conditions of marine kitchens. Marine features, such as sturdy adjustable fixed feet, stainless steel marine shelves and a dedicated positive locking handle are all designed for your demanding marine environment.


ECO MIDI 82 is suitable for the 2/1 GN wide GN system where two 1/1 GN pans can be placed side by side on each shelf.

  • The controls are concealed behind the top panel, protected against splashing water.
  • The modular rails can go directly in the dishwasher.
  • Design principle of "no broken surfaces" makes the cabinets easy to clean.
  • The distinctive aluminum profiles stretching from top to bottom on both sides of the cabinet impart strength and enhance appearance.
  • Security in heavy seas: All shelves are fitted with two guide pins on the underside. The shelves are then fixed to the shelf supports to ensure no movement during heavy seas. In calm seas the shelf can be turned easily allowing the shelves to be pulled out.
  • Sturdy marine shelves with 50 mm high front and rear edge.
  • Marine legs are adjustable from 130 to 200 mm. They can also be fixed to the floor for enhanced stability.
  • Dedicated positive locking handle.
  • Built-in or remote compressor. The units are also available as remote versions.

Discontinued
Get quote View spec sheet

Specifications

Specification Value
Item number 962840213
Model name MARINE MIDI FG 82 CCH 4M
Brand Gram
Equipped with Right hand hinged door with lock and dedicated positive locking handle (Marine handle), LED lighting, marine legs, 4 stainless marine shelves.
Width 855 mm
Depth 780 mm
Height 2115 mm
Energy efficiency class Category not yet regulated
Shelf size 2/1 GN wide
Product availability -- Not available
Exterior Stainless Steel
Interior Stainless
Gross weight 138 kg
Insulation thickness 70 mm
Insulation type Cyclopentane
Net weight 138 kg
Power supply 230V, 60Hz
Temperature range -25/-5°C
Volume, gross 603 l
Door Type Glass door
Refrigeration capacity 802
CO2 equivalent 706.2 kg
GWP 2141 GWP
Refrigerant 0.33 kg
Refrigerant type attOpt_R452a
SKU 962840213

Documentation

Documentation
Instruction manual Download
