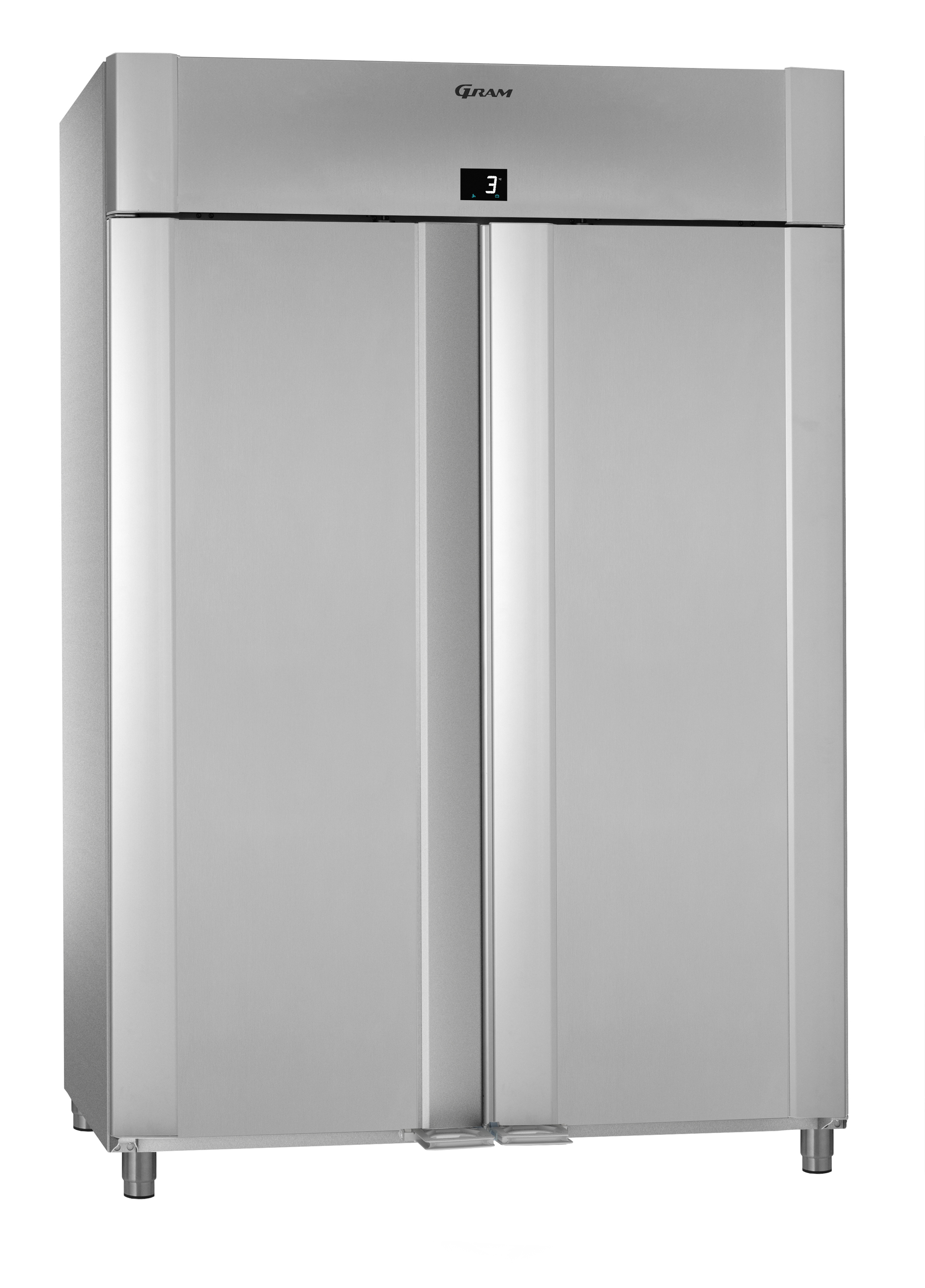

ECO PLUS M 140 RCG L2 8N 4CS DOUBLE DOOR REFRIGERATOR

Fresh meat refrigerators
A

Please be informed that the ECO PLUS M 140 RCG L2 8N 4CS  reach-in cabinets is phased out.

For enquiries about the availability of the remaining products, please contact your branch office.



Our new Premier 140 will be available instead. You can read more about the Premier https://hoshizaki-europe.com/premier/ or get in contact with your local branch to receive the latest information.

Discontinued
Get quote View spec sheet

Specifications

Specification Value
Item number 961400131
Model name ECO PLUS M 140 RCG L2 8N 4CS
Brand Gram
Title DOUBLE DOOR REFRIGERATOR
Equipped with 1 right hand and 1 left hand hinged door each with lock, self closing doors and pedal door openers, 8 grey shelves and 4 stainless steel center shelves, LED lighting, dry cooling and controlled rapid thawing, legs.
Width 1400 mm
Depth 905 mm
Height 2125 mm
Energy efficiency class A
Shelf size 2/1 GN deep
Product availability -- Not available
Climate class 5 (max. ambient 40°C w/ 40% RH)
Interior Stainless
Gross weight 220 kg
Insulation thickness 70 mm
Insulation type Cyclopentane
Legs / Castors H = 125-200 mm (L)
Net usable volume 1050 l
Net weight 220 kg
Power supply 230V, 50Hz
Sound level 42.8 dB
Temperature range -5/+12°C
Volume, gross 1359 l
Volume, net 1050 l
Door Type Double Door
Refrigeration capacity 560
CO2 equivalent 0.447 kg
GWP 3 GWP
Refrigerant 0.149 kg
Refrigerant type R290
SKU 961400131

Documentation

Documentation
Declaration of conformity Download
ECO_PLUS_M_140_G.pdf Download
Instruction manual Download
Wiring_diagram_Eco_Plus_K_and_M_140.pdf Download
