960700214

ECO PLUS F 70 CCG C1 4N

Freezers
C

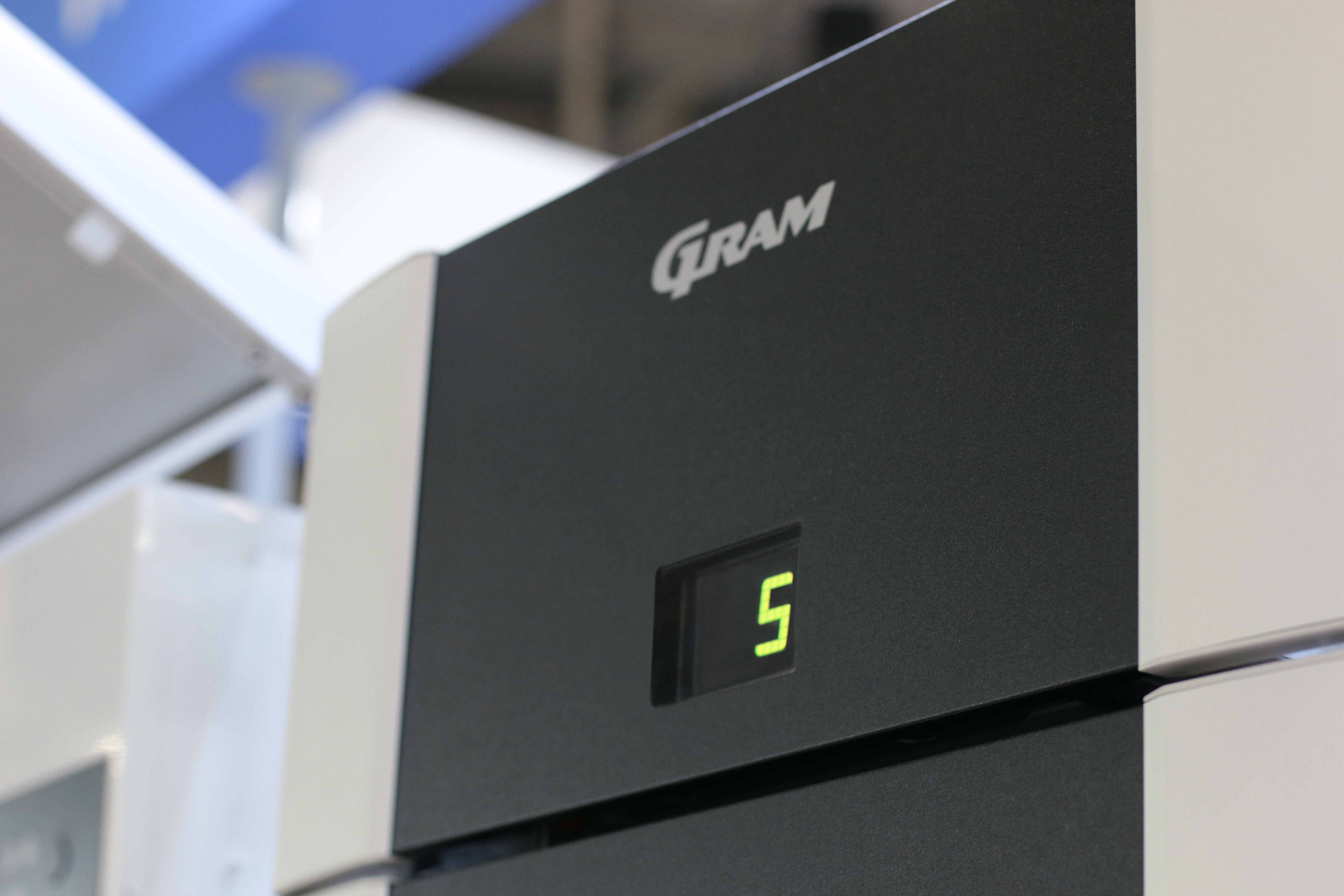

ECO PLUS 70 is the name of one of the new series in the PLUS range. These new cabinets combine stylish design with high functionality and low energy consumption. • The controls are concealed behind the top panel, protected against splashing water. • Design principle of "no broken surfaces" makes the cabinets easy to clean. • The distinctive aluminum profiles stretching from top to bottom on both sides of the cabinet impart strength and enhance appearance. • The modular rails can go directly in the dishwasher. • Pedal opener with finesse - read more in the brochure. ECO PLUS is suitable for the deep 2/1 GN system where 2 pcs. 1/1 GN pans can be placed after each other directly on the support rails.

Discontinued
Get quote View spec sheet

Key features

Food Safety

The efficient air circulation system helps to maintain perfect storage temperatures. Designed to recover the inside temperature rapidly after each door opening. Temperatures for optimal food safety and enhanced shelf-life are maintained for climate class 5.



Low Running Costs

Tracking and controlling the lifetime costs of equipment is key to any successful professional kitchen. All ECO cabinets strike with excellent energy ratings and help you save running costs on a daily level.

The Energy Efficiency Class of the ECO PLUS F 70 CCG C1 4N is C.



Comfortable Work Environment

The ECO range contributes to a healthier work environment with low noise levels of approximately 45 dB(A) when the compressor is running.



Hygiene & Ergonomic Design

Thanks to the rounded corners and smooth surface, frequented cleaning routines become a quick and simple task. All Cabinets have self-closing doors with full-height handles providing easy access for cleaning. The patented pedal door opener can be placed on the left or right side.



Smart Design

The ECO series strikes with its energy efficiency, food-safe design, and smart extras such as the patented pedal door opener. This helpful feature can be placed on the left or right side. While carrying goods, the cabinet door can be opened with a quick foot tap.

Specifications

Specification Value
Item number 960700214
Model name ECO PLUS F 70 CCG C1 4N
Brand Gram
Equipped with Right hand hinged reversible door, automatic door closing, pedal door opener, 4 grey shelves, LED lighting, castors
Width 700 mm
Depth 905 mm
Height 2100 mm
Energy efficiency class C
Energy Efficiency Index (EEI) 40.8 EEI
Shelf size 2/1 GN deep
Product availability -- Not available
Exterior Stainless Steel
Interior Stainless
Gross weight 136 kg
Insulation thickness 70 mm
Insulation type Cyclopentane
Net usable volume 451 l
Net weight 136 kg
Power supply 230V, 50Hz
Sound level 47.3 dB
Temperature range -25/-5°C
Volume, gross 610 l
Volume, net 451 l
Door Type Solid Door
Refrigeration capacity 490
CO2 equivalent 0.27 kg
GWP 3 GWP
Refrigerant 0.08 kg
Refrigerant type R290
SKU 960700214

Documentation

Documentation
Declaration of conformity Download
ECO_PLUS_F_70_G.pdf Download
Instruction manual Download
7460181.pdf Download
