961400214

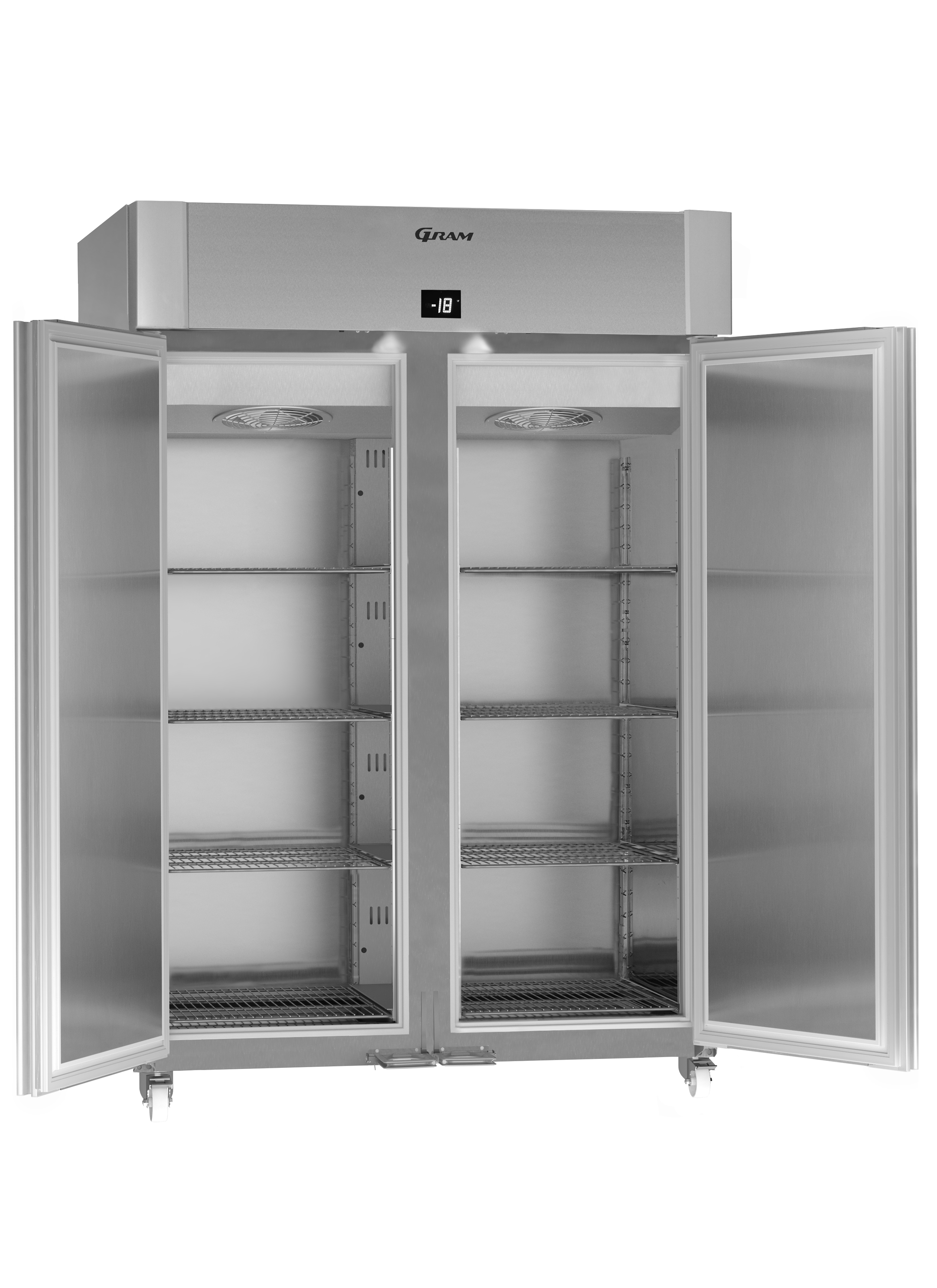

ECO PLUS F 140 CCG C1 8N 4CS

Freezers
C

Please be informed that the ECO PLUS F 140 CCG C1 8N 4CS  reach-in cabinets is phased out.

For enquiries about the availability of the remaining products, please contact your branch office.



Our new Premier 140 will be available instead. You can read more about the Premier https://hoshizaki-europe.com/premier/ or get in contact with your local branch to receive the latest information.

Discontinued
Get quote View spec sheet

Specifications

Specification Value
Item number 961400214
Model name ECO PLUS F 140 CCG C1 8N 4CS
Brand Gram
Equipped with 1 right hand and 1 left hand hinged door each with lock, self closing doors and pedal door openers, 8 grey shelves and 4 stainless steel center shelves, LED lighting, castors.
Width 1400 mm
Depth 905 mm
Height 2100 mm
Energy efficiency class C
Energy Efficiency Index (EEI) 42.1 EEI
Shelf size 2/1 GN deep
Product availability -- Not available
Climate class 5 (max. ambient 40°C w/ 40% RH)
Exterior Stainless Steel
Interior Stainless
Gross weight 220 kg
Insulation thickness 70 mm
Insulation type Cyclopentane
Net usable volume 1050 l
Net weight 220 kg
Power supply 230V, 50Hz
Sound level 45.6 dB
Temperature range -25/-5°C
Volume, gross 1359 l
Volume, net 1050 l
Door Type Double Door
CO2 equivalent 0.447 kg
GWP 3 GWP
Refrigerant 0.149 kg
Refrigerant type R290
SKU 961400214

Documentation

Documentation
Declaration of conformity Download
ECO_PLUS_F_140_G.pdf Download
Instruction manual Download
Wiring_diagram_Eco_Plus_F_140.pdf Download
