866100145

COMPACT M 610 RG C 4N

Freezers
C

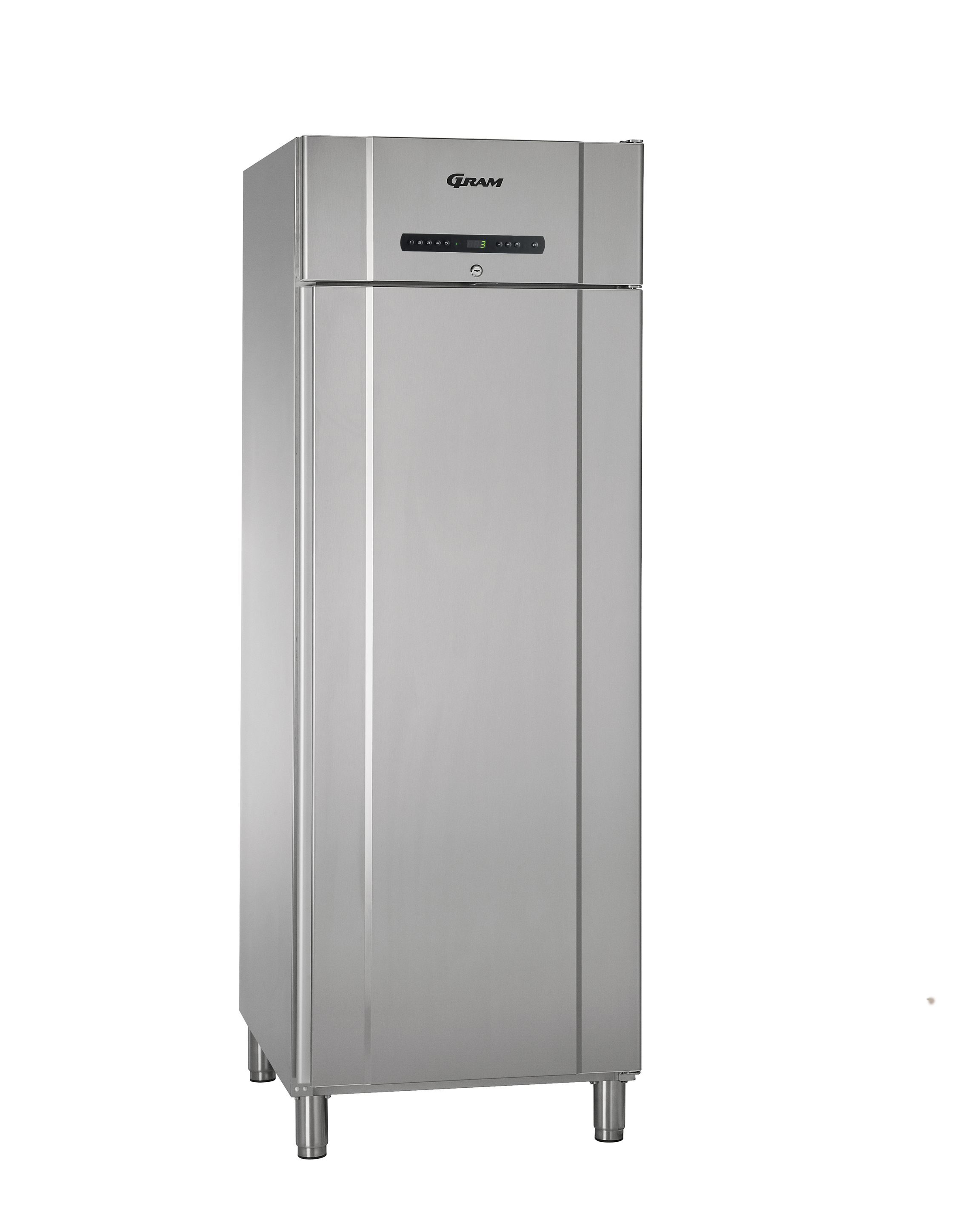

The GRAM COMPACT M 610 RG C 4N  is a with a net internal volume of  421 Ltr.



The GRAM COMPACT series offers a rare combination: These cabinets are food safe, space-saving, and come with excellent energy ratings for its class.  With a footprint of only 59,5 x, 64 cm these small space storage cabinets are easy to fit in,  especially when space is limited. These specifications make the series such a popular choice of those operators who do not require heavy-duty Gastronorm equipment.

Get quote View spec sheet

Specifications

Specification Value
Item number 866100145
Model name COMPACT M 610 RG C 4N
Brand Gram
Warranty period 5 Years on Parts & Labour
Equipped with Right hand hinged reversible door with lock, 4 grey shelves
Width 695 mm
Depth 875 mm
Height 2017 mm
Energy efficiency class C
Energy Efficiency Index (EEI) 44.4 EEI
Shelf size 2/1 GN deep
Product availability -- Not available
Climate class 5 (max. ambient 40°C w/ 40% RH)
Exterior Stainless Steel
Interior ABS Lining Grey
Gross weight 111 kg
Insulation thickness 60 mm
Insulation type Cyclopentane
Legs / Castors H = 125-200 mm (L)
Net usable volume 421 l
Net weight 111 kg
Power supply 230V, 50Hz
Sound level 44.2 dB
Temperature range -5/+12°C
Volume, gross 583 l
Volume, net 421 l
Door Type Solid Door
Refrigeration capacity 354
CO2 equivalent 0.31 kg
GWP 3 GWP
Refrigerant 0.1 kg
Refrigerant type R600a
SKU 866100145

Documentation

Documentation
Declaration of conformity Download
EU_Combined_M_610.pdf Download
Instruction manual Download
6762295.pdf Download
