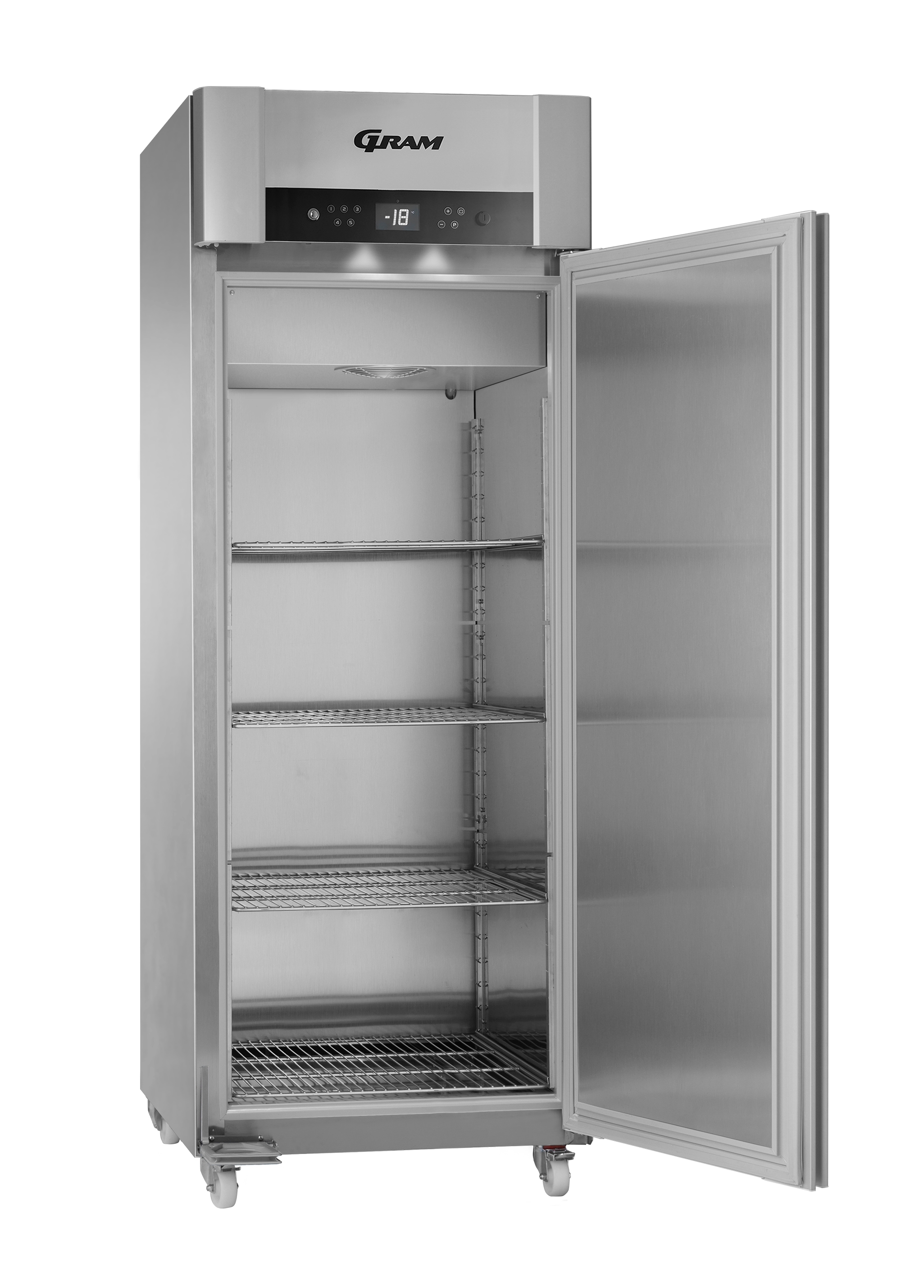

SUPERIOR TWIN F 84 CCG C1 4S

Armadi congelatori

With an energy consumption of 1502 kWh/year (Energy test Ecodesign) the SUPERIOR TWIN F 84 ranks in energy class C according to new EU legislation that will be introduced 1st July 2016. The Ecodesign test method records the 24 hour energy consumption and multiplies it by 365 to get the annual energy consumption (AEC). The 24 hour consumption is calculated from 2 test periods of 12 hours each. The first period has sequences of door openings while the second is a stabilization period with closed door. These new cabinets combine stylish design with high functionality and outstanding low energy consumption. • The controls are concealed behind the top panel, protected against splashing water. • Design principle of "no broken surfaces" makes the cabinets easy to clean. • The distinctive aluminum profiles stretching from top to bottom on both sides of the cabinet impart strength and enhance appearance. • The modular rails can go directly in the dishwasher. • Pedal opener with finesse - read more in the brochure. SUPERIOR TWIN is suitable for the wide 2/1 GN system where 2 pcs. 1/1 GN pans can be placed side by side on the shelves.

Prodotto non disponibile

Richiedi un preventivo Visualizza la scheda tecnica

Caratteristiche principali Specifiche Documentazione

Caratteristiche principali

Food Safety

The efficient air circulation system helps to maintain perfect storage temperatures. Designed to recover the inside temperature rapidly after each door opening. Temperatures for optimal food safety and enhanced shelf-life are maintained for climate class 5.

Low Running Costs

Tracking and controlling the lifetime costs of equipment is key to any successful professional kitchen. All SUPERIOR cabinets strike with excellent energy ratings and help you save running costs on a daily level. The Energy Efficiency Class of the SUPERIOR TWIN F 84 CCG C1 4S is C.

Comfortable Work Environment

The SUPERIOR range contributes to a healthier work environment with low noise levels of approximately 45 dB(A) when the compressor is running.

Hygiene & Ergonomic Design

Thanks to the rounded corners and smooth surface, frequented cleaning routines become a quick and simple task. All Cabinets have self-closing doors with full-height handles providing easy access for cleaning. The patented pedal door opener can be placed on the left or right side.

Smart Design

The SUPERIOR series strikes with its energy efficiency, food-safe design, and smart extras such as the patented pedal door opener. This helpful feature can be placed on the left or right side. While carrying goods, the cabinet door can be opened with a quick foot tap.

Specifiche

Specifiche	Value
Codice articolo	960840214
Modello	SUPERIOR TWIN F 84 CCG C1 4S
Marchio	Gram
Equipaggiato con	Right hand hinged reversible door, automatic door closing, pedal door opener, 4 stainless shelves, LED lighting, castors
Larghezza	840 mm
Profonditá	785 mm
Altezza	2100 mm
Consumo elettrico	1502 kWh
Classe di efficienza energetica	C
Dimensioni ripiano	2/1 GN largh.
Product availability	-- Non disponibile
Classe climatica	5
Valori di allacciamento	379 kW
Rivestimento esterno	Acciao Inox
Rivestimento interno	Stainless steel
Peso lordo	136 kg
Spessore isolamento	80 mm
Tipologia isolamento	Cyclopentane
Volume netto	451 l
Peso netto	136 kg
Alimentazione	230V, 50Hz
Livello rumorositá	49.4 dB
Intervallo di temperatura	-25/-5°C
Volume lordo	614 l
Tipologia porta	Solid Door
Capacitá di refrigerazione	490
Equivalente CO2	0.246 kg
GWP	3 GWP
Refrigerante	0.082 kg
Tipologia refrigerante	R290
SKU	960840214
