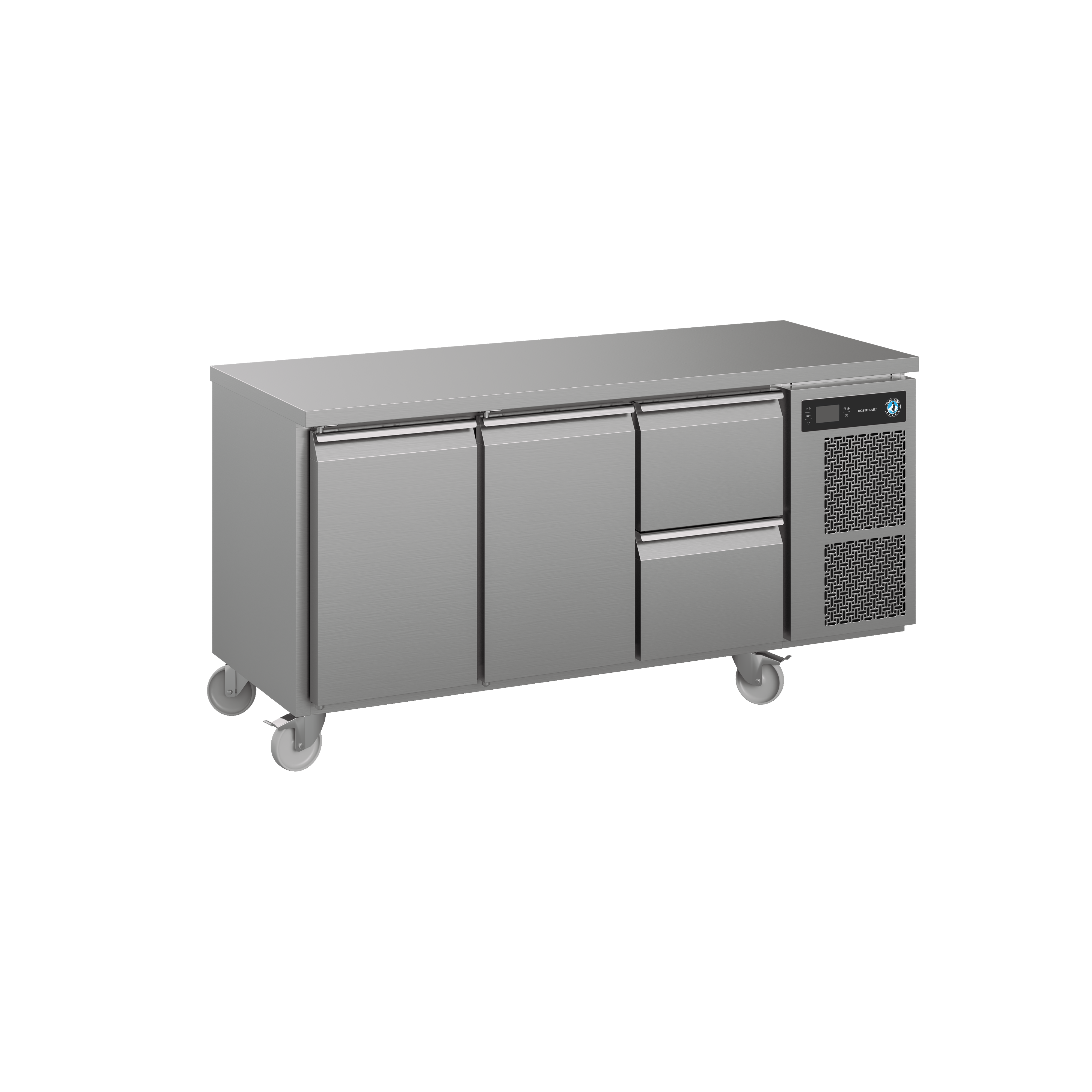

Premier K 3 A DL DL 2D C U 3-Section Refrigerated Counter

Refrigerated counters

Equipped with stainless steel solid top, 2 door sections each with 2 stainless shelves. Height: 885/950 mm Worktop depth: 700 mm Volume, gross: 345 ltr. Exterior/Interior: Stainless/Stainless GASTRO 07 range comprises of 1/1 GN counters, available with two, three or four sections. Flat worktop or saladette worktop, Doors or drawers, with or without lock. Available with electronic elevation and prepared for remote compressor.

Richiedi un preventivo Visualizza la scheda tecnica

Caratteristiche principali Specifiche Documentazione Accessori

Caratteristiche principali

PREMIER counters and cabinets are designed to recover the inside temperature rapidly after each door opening and defrosting.

SEAMLESS KITCHEN DESIGN

Thanks to the smart front venting design, no air flow is required to the underneath, sides, or back of the unit. This allows seamless integration into your kitchen design

EASY MAINTENANCE

The compartmentalized cooling unit is extractable for easy maintenance.

HYGIENE & COOLING EFFICIENCY

The wide magnetic gaskets are removable for easy cleaning. The triple insulation area provides an effective seal, reducing escaping cold air for maximum efficiency.

ERGONOMIC DESIGN

PREMIER counters strike with ergonomic design features, such as anti-tilt shelves, drawers with pull-out stops, extra-long drawer telescopic rails, and full-length handles.

VAST VARIETY

With PREMIER counters you can choose the workplace that fits into your individual kitchen routine. Select from a wide counter portfolio with different combinations of worktops, doors, drawers, legs /castors, temperature ranges, and accessories.

MORE FEATURES:

Soft Closing Drawer (optional)

Different worktop options & insulation board

Increased body height of 750mm

Possibility to extend the height of castors by 50 mm with Castor Extension Kit (optional accessory)

Specifiche

Specifiche	Value
Codice articolo	311000113210
Modello	12
Marchio	Hoshizaki
Periodo di garanzia	6 anni di garanzia su parti di ricambio & manodopera
Paese di origine	Turchia
Accessori inclusi	3 grey shelves per section
Titolo	3-Section Refrigerated Counter
Equipaggiato con	Stainless steel worktop, 2 door sections each with 2 grey shelves and a drawer section with 2 x 1/2 drawers
Larghezza	1755 mm
Larghezza (con imballo)	1783 mm
Profonditá	700 mm
Profonditá (con imballo)	730 mm
Altezza	904.2 mm
Altezza (con imballo)	1103 mm
Volume (con imballo)	1.44 l
Consumo elettrico	525 kWh
Classe di efficienza energetica	A
Classe di efficienza energetica standard	ISO 22041-2019
Indice di Efficienza Energetica (IEE)	20.95 EEI
Numero ripiani	4
Numero ripiani per sezione	2
Dimensioni ripiano	1/1 GN prof.
Classe climatica	5
Valori di allacciamento	125 kW
Rivestimento esterno	Acciao Inox AISI 304
Rivestimento interno	Acciaio inossidabile AISI 304
Peso lordo	151 kg
Spessore isolamento	60 mm
Tipologia isolamento	Polyurethane
Piedini / Rotelle	H = 150 mm (C)
Volume netto	280 l
Peso netto	138 kg
Numero sezioni	3 sections
Alimentazione	230V, 50Hz
Livello rumorositá	43 dB
Intervallo di temperatura	+2/+12°C
Volume lordo	463 l
Opzioni piano di lavoro	Flat worktop (A)
Sistema di raffreddamento	Built-in cooling system
Tipologia prodotto	Counters
Configurazione porta/cassetto	Sezione cassetti con 2 cassetti da 1/2, Con sezione con porta
Capacitá di refrigerazione	350
Accessori opzionali	Set of legs 125-200mm Set of legs 130-180mm Set of castors 125mm Set of castors 150mm Set of castors 200mm Mini Castors - 2 braked and 2 unbraked 88mm Stainless shelf, 325 x 530mm Grey shelf, 325 x 530mm Shelf supports, 2 of Door section Drawer section with 2 x 1/2 drawers Drawer section with 3 x 1/3 drawers Soft-close drawer Conversion Kit (for retrofit) Flat worktop Flat worktop with 50mm splashback Flat worktop with 100mm splashback
Equivalente CO2	0.195 kg
GWP	3 GWP
Refrigerante	0.065 kg
Tipologia refrigerante	R290
Riferimento tipologia counters - Listino prezzi	REFRIGERATOR WITH WORKTOP TYPE A, A1 OR A5
Pricelist notification (short)	Models with RU1 valve prepared for external cooling system are compatible with the following refrigerants: R448A, R449A. In addition the CO2 models prepared for external cooling system are compatible with refrigerant R744 (CO2). Lead time approx. 8 weeks.
Pricelist notification (long)	Remote models are available
SKU	311000113210

Documentazione

Documentazione
Declaration of conformity	Download
PREMIER_3_SEC._UC_DIMENSIONAL_DRAWING_1_SS.pdf	Download
2D_dimensions.pdf	Download
H_EL_PREMIER_K_3_A_DL_DL_2D___UK.pdf	Download
Instruction manual	Download
COOLING_CIRCUIT_DIAGRAM_FOR_CABINET_OF_PREMIER_UNDERCOUNTER.PDF	Download
PREMIER_UNDERCOUNTER__UC__REFRIGERATOR_WIRING_DIAGRAM.pdf	Download

Accessori

Nome accessorio	Codice articolo
Shelf stainless, 325 x 530 mm	760660010
Set of castors 150 mm (2 x braked and 2 x unbreaked)	760660011
Set of castors 200 mm (2 x braked and 2 x unbreaked)	760660012
Set of castors 125 mm (2 x braked and 2 x unbreaked)	760660022
Set of legs 130-180 mm	760660118
Set of legs 125-200 mm	760660119
Castor Extension Kit (extends height of castors by 50 mm)	760660453
Door section	760660482
Drawer section with 2 x 1/2 drawers	760660483
Drawer section with 3 x 1/3 drawers	760660484
Shelf supports x 2	760660545
Shelf grey 325 x 530 mm	760660546
Flat worktop PREMIER 370	760660581
Flat worktop with 50mm splashback PREMIER 370	760660585
Flat worktop with 100mm splashback PREMIER 370	760660586
Set of legs 100-150 mm	760660700
