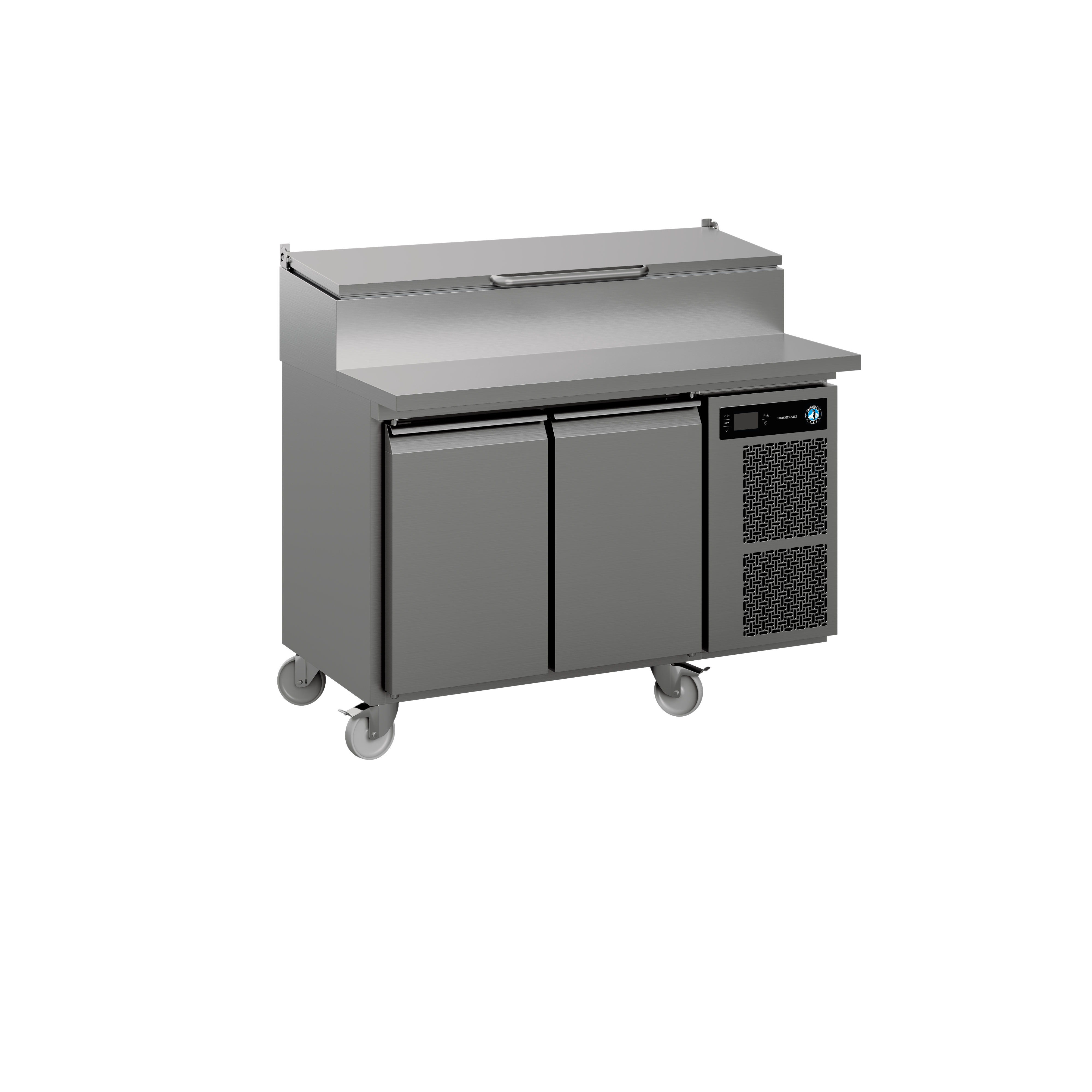

Premier K 2 PT DL DR C U 2-Section Refrigerated Counter with Prep top worktop

Refrigerated counters

Equipped with stainless steel solid top, 2 door sections each with 2 stainless shelves. Height: 885/950 mm Worktop depth: 700 mm Volume, gross: 345 ltr. Exterior/Interior: Stainless/Stainless GASTRO 07 range comprises of 1/1 GN counters, available with two, three or four sections. Flat worktop or saladette worktop, Doors or drawers, with or without lock. Available with electronic elevation and prepared for remote compressor.

Richiedi un preventivo Visualizza la scheda tecnica

Caratteristiche principali Specifiche Documentazione Accessori

Caratteristiche principali

PREMIER counters and cabinets are designed to recover the inside temperature rapidly after each door opening and defrosting.

SEAMLESS KITCHEN DESIGN

Thanks to the smart front venting design, no air flow is required to the underneath, sides, or back of the unit. This allows seamless integration into your kitchen design

EASY MAINTENANCE

The compartmentalized cooling unit is extractable for easy maintenance.

HYGIENE & COOLING EFFICIENCY

The wide magnetic gaskets are removable for easy cleaning. The triple insulation area provides an effective seal, reducing escaping cold air for maximum efficiency.

ERGONOMIC DESIGN

PREMIER counters strike with ergonomic design features, such as anti-tilt shelves, drawers with pull-out stops, extra-long drawer telescopic rails, and full-length handles.

VAST VARIETY

With PREMIER counters you can choose the workplace that fits into your individual kitchen routine. Select from a wide counter portfolio with different combinations of worktops, doors, drawers, legs /castors, temperature ranges, and accessories.

MORE FEATURES:

Soft Closing Drawer (optional)

Different worktop options & insulation board

Increased body height of 750mm

Possibility to extend the height of castors by 50 mm with Castor Extension Kit (optional accessory)

Specifiche

Specifiche	Value
Codice articolo	211070012210
Modello	1
Marchio	Hoshizaki
Periodo di garanzia	6 anni di garanzia su parti di ricambio & manodopera
Paese di origine	Turchia
Accessori inclusi	3 grey shelves per section
Titolo	2-Section Refrigerated Counter with Prep top worktop
Equipaggiato con	Prep top worktop with an insulated night lid, 2 door sections each with 2 grey shelves
Larghezza	1314 mm
Larghezza (con imballo)	1340 mm
Profonditá	800 mm
Profonditá (con imballo)	830 mm
Altezza	1210 mm
Altezza (con imballo)	1397 mm
Volume (con imballo)	1.54 l
Numero ripiani	4
Numero ripiani per sezione	2
Dimensioni ripiano	1/1 GN prof.
Classe climatica	5
Valori di allacciamento	233 kW
Rivestimento esterno	Acciao Inox AISI 304
Rivestimento interno	Acciaio inossidabile AISI 304
Peso lordo	162 kg
Spessore isolamento	60 mm
Tipologia isolamento	Polyurethane
Piedini / Rotelle	H = 150 mm (C)
Peso netto	150 kg
Numero sezioni	2 sections
Alimentazione	230V, 50Hz
Intervallo di temperatura	+2/+12°C
Volume lordo	301 l
Opzioni piano di lavoro	Prep Top worktop (PT)
Sistema di raffreddamento	Built-in cooling system
Tipologia prodotto	Counters
Configurazione porta/cassetto	Con sezione con porta
Capacitá di refrigerazione	633
Accessori opzionali	Set of legs 100-150mm Set of legs 125-200mm Set of legs 130-180mm Set of castors 125mm Set of castors 150mm Mini Castors - 2 braked and 2 unbraked 88mm Stainless shelf, 325 x 530mm Grey shelf, 325 x 530mm 2 x shelf supports Door section
Equivalente CO2	0.27 kg
GWP	3 GWP
Refrigerante	0.09 kg
Tipologia refrigerante	R290
Riferimento tipologia counters - Listino prezzi	REFRIGERATOR WITH PREP TOP WORKTOP
Pricelist notification (short)	Models with RU1 valve prepared for external cooling system are compatible with the following refrigerants: R448A, R449A. In addition the CO2 models prepared for external cooling system are compatible with refrigerant R744 (CO2). Lead time approx. 8 weeks.
Pricelist notification (long)	Remote models are available
SKU	211070012210

Documentazione

Documentazione
Declaration of conformity	Download
PREMIER__2D_UC_PREP_TABLE_v3.pdf	Download
Instruction manual	Download
COOLING_CIRCUIT_DIAGRAM_FOR_CABINET_OF_PREMIER_UNDERCOUNTER.PDF	Download
PREMIER_PREP_SALADETTE_WIRING_DIAGRAM.pdf	Download
