M070-D203

IM-240WNE-HC-SN Cuber, Self Contained

Fabbricatori ghiaccio

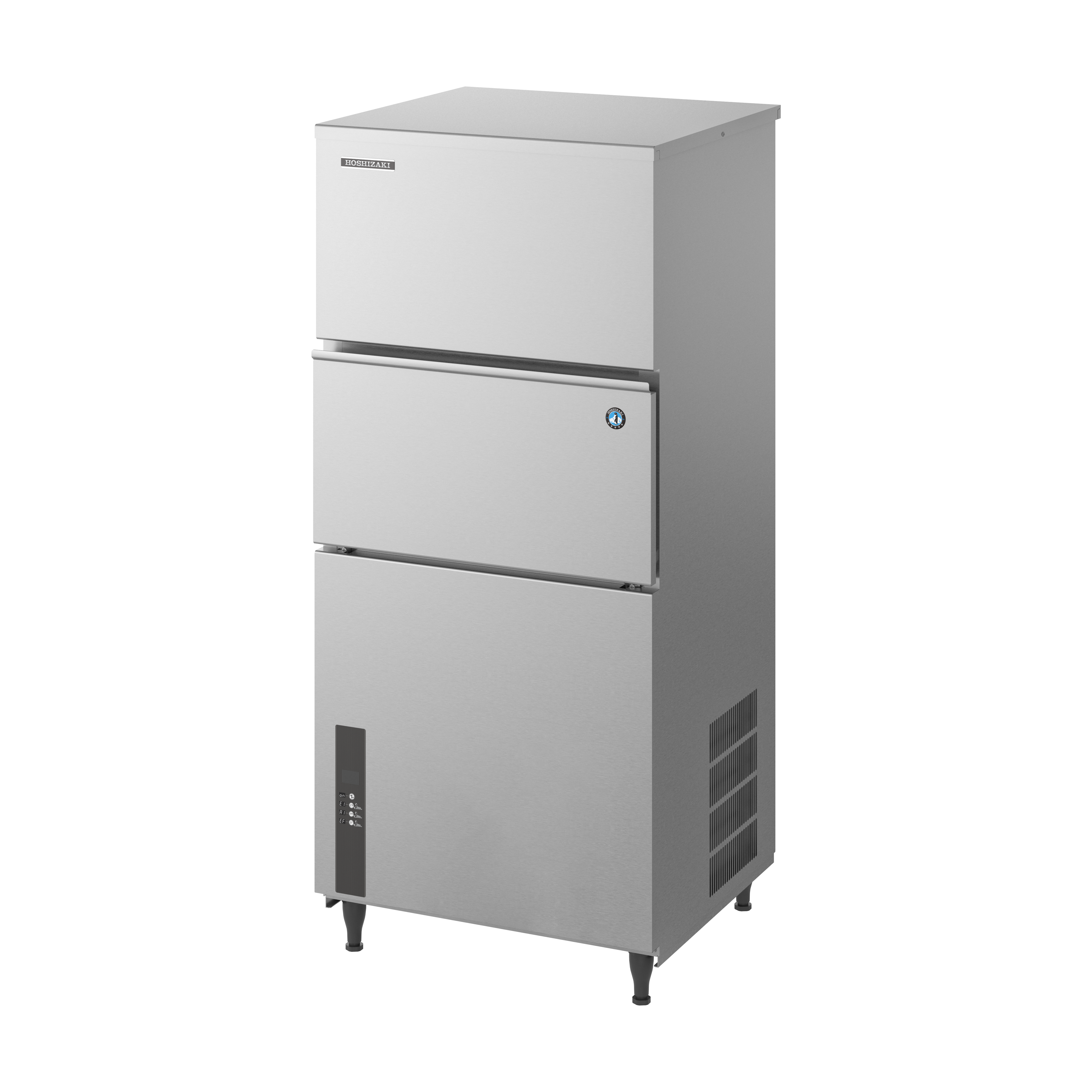

This Hoshizaki IM-240WNE-HC-SN is a self contained cube ice maker producing up to 207 kg of high-quality cube ice per 24 hours. Meeting even the strictest hygiene requirements, this true allrounder offers many application possibilities in segments including the foodservice and medical sector.



All Cubers are equipped with an electronic control system. This ensures an optimized ice-making process, even under varying circumstances. Without additional manual assistance or adjustments required, our Cubers produce generous amounts of ice cubes, at a consistently high quality.

Richiedi un preventivo Visualizza la scheda tecnica

Caratteristiche principali

Sustainable

The IM-240WNE-HC-SN uses refrigerant R290.  This natural refrigerant is not only climate-friendly but also boosts the machine, when it comes to performance and production capacity.

The exterior is made of stainless steel. The closed water circuit provides maximum protection against any type of contamination during the entire cubing process. All Hoshizaki machines are easy to use, clean, and maintain.



Unique Technology

A dedicated jet of fresh water is injected into each of the closed cells. Excess water leaves the closed cell through a set of outlets. The cell walls block the freezing water’s expansion from all sides while reaching down to -30°C during the cubing process. Thanks to the automatic rinse cycles, impurities such as minerals, are eliminated from the water resulting in the purest ice possible while your machine is protected from calcification and mineral build-up.



Smart Design

Like all Hoshizaki Ice makers, the IM-240WNE-HC-SN is designed to last and comes with smart design extras such as a magnetic water pump without direct coupling. This element prevents leakage from the water circuit and improves the life expectancy of the machine.



Perfect Fit

With outside dimensions W x D x H of 704 x 665 x 1510 mm,  the IM-240WNE-HC-SN is compact and is a perfect fit for small spaces.



Plug&Play

The smart plug-and-play design guarantees an easy and quick set-up.



Specifiche

Specifiche Value
Codice articolo M070-D203
Modello IM-240WNE-HC-SN
Marchio Hoshizaki
Configurazione del prodotto Self Contained
Titolo Cuber, Self Contained
Larghezza (piedini esclusi) 704 mm
Profonditá (piedini esclusi) 665 mm
Altezza (piedini esclusi) 1510 mm
Consumo elettrico 0.81 kW
Consumo elettrico 0.81 kWh
Product availability -- Non disponibile
Rivestimento esterno Acciao Inox
Peso lordo 118 kg
Peso netto 103 kg
Alimentazione 220-240V/50Hz/1ph
Capacitá contenitore 110 kg
Sistema di raffreddamento Raffreddamento ad Acqua
Tipologia ghiaccio Cubetto standard (L)
Produzione di ghiaccio 207
Contenitori corrispondenti B-140SA, B-210SA, B-340SA
Equivalente CO2 0.441 kg
Tipologia refrigerante R290
SKU M070-D203

Documentazione

Documentazione
Declaration of conformity Download
Instruction manual Download

Accessori

Nome accessorio Codice articolo
9320-52 9320-52
