GRAM GASTRO K 1807 CSG PT DL/DL/DR L2

Refrigerated counters
Category not yet regulated

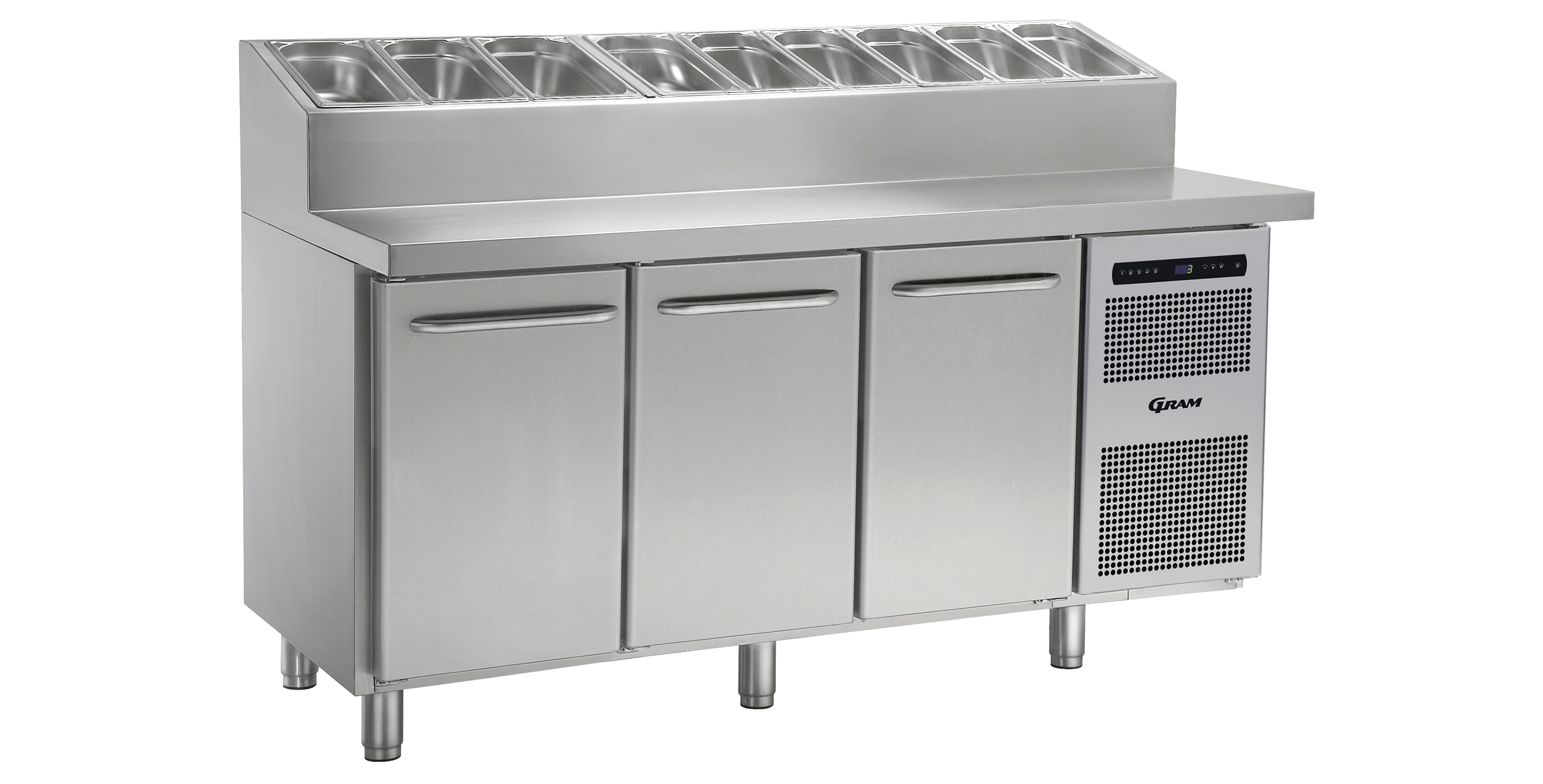

Equipped with stainless steel prep-top solid top with 9 GN-pans, 3 door sections each with 2 stainless shelves. Delivered with light lid. Height incl. prep-top worktop: 1131/1181 mm Worktop depth: 800 mm Volume, gross: 509 ltr. Exterior/Interior: Stainless/Stainless GASTRO 07 comprises of 1/1 GN counters, available with 2, 3 or 4 sections. Available with electronic elevation, door lock, wire baskets instead of wire shelves. Available prepared for remote compressor.

Prodotto non disponibile
Richiedi un preventivo Visualizza la scheda tecnica

Caratteristiche principali

Temperature Control

Thanks to the Gram air distribution system, temperatures inside the counters always maintain a uniform and correct level.

This includes rapid temperature recovery after every door opening.



Modularity & Scalability

With GRAM GASTRO 07 counters you can put together your individual workplace. Choose your combination of worktop, doors, and drawers, legs /castors/electric elevation, temperature ranges and accessories.



Easy Maintenance

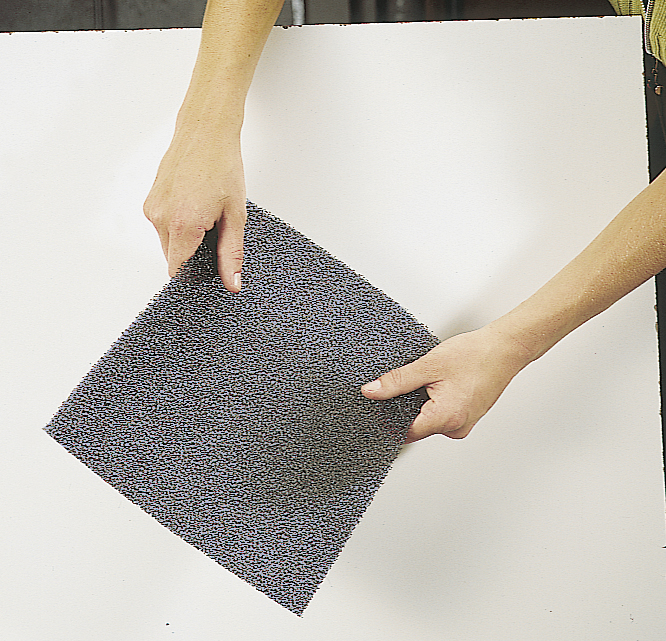

A compact slide-out refrigeration unit for easy maintenance and service access. Removable and easy to clean condenser filters and gaskets.



High Standard in Hygiene

  • The counter almost entirely consists of smooth surfaces – the perfect design for easy, quick and thorough cleaning.

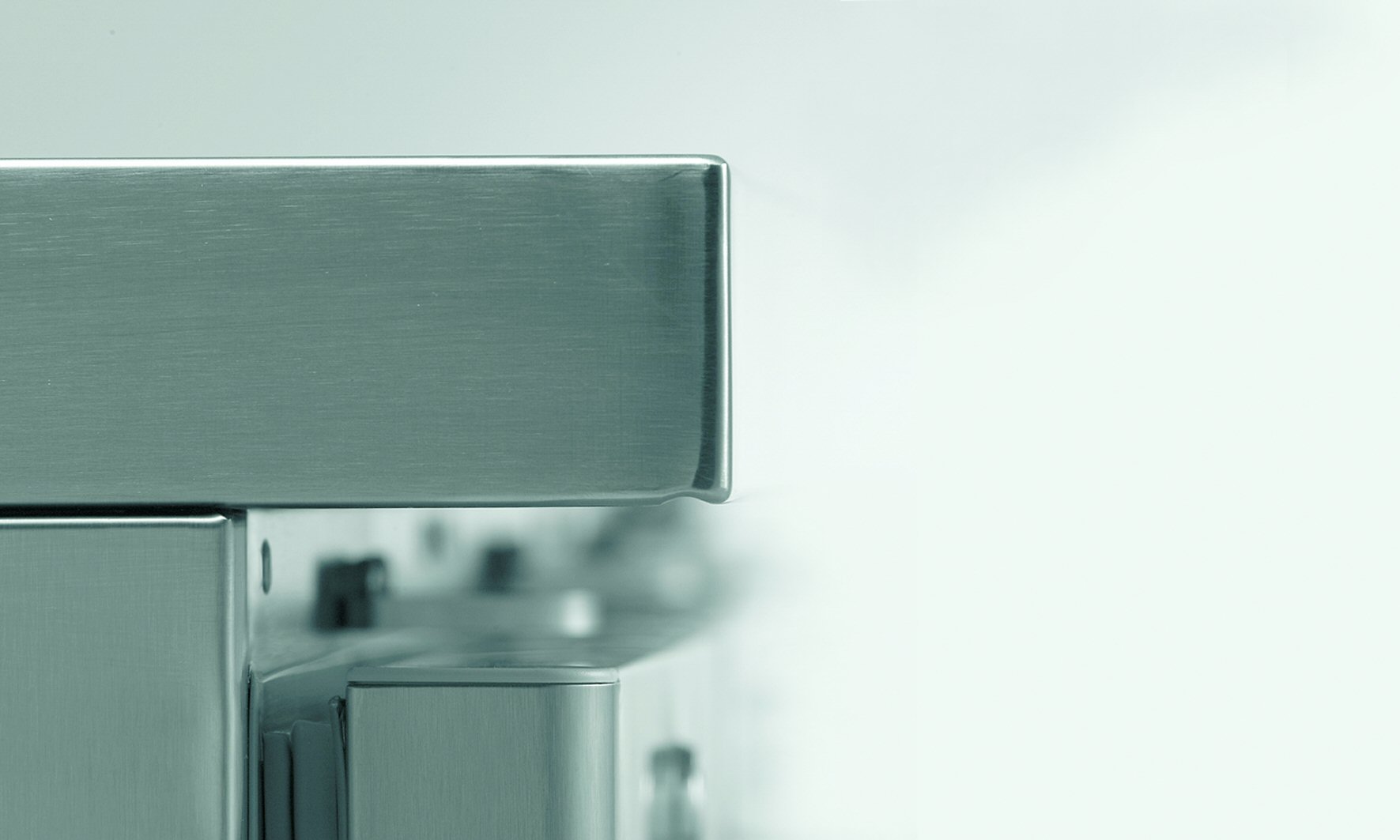

  • ‘Drip Nose’ edges on worktops to prevent the ingress of water.
  • Worktops with splashbacks to protect your counter from spillage.

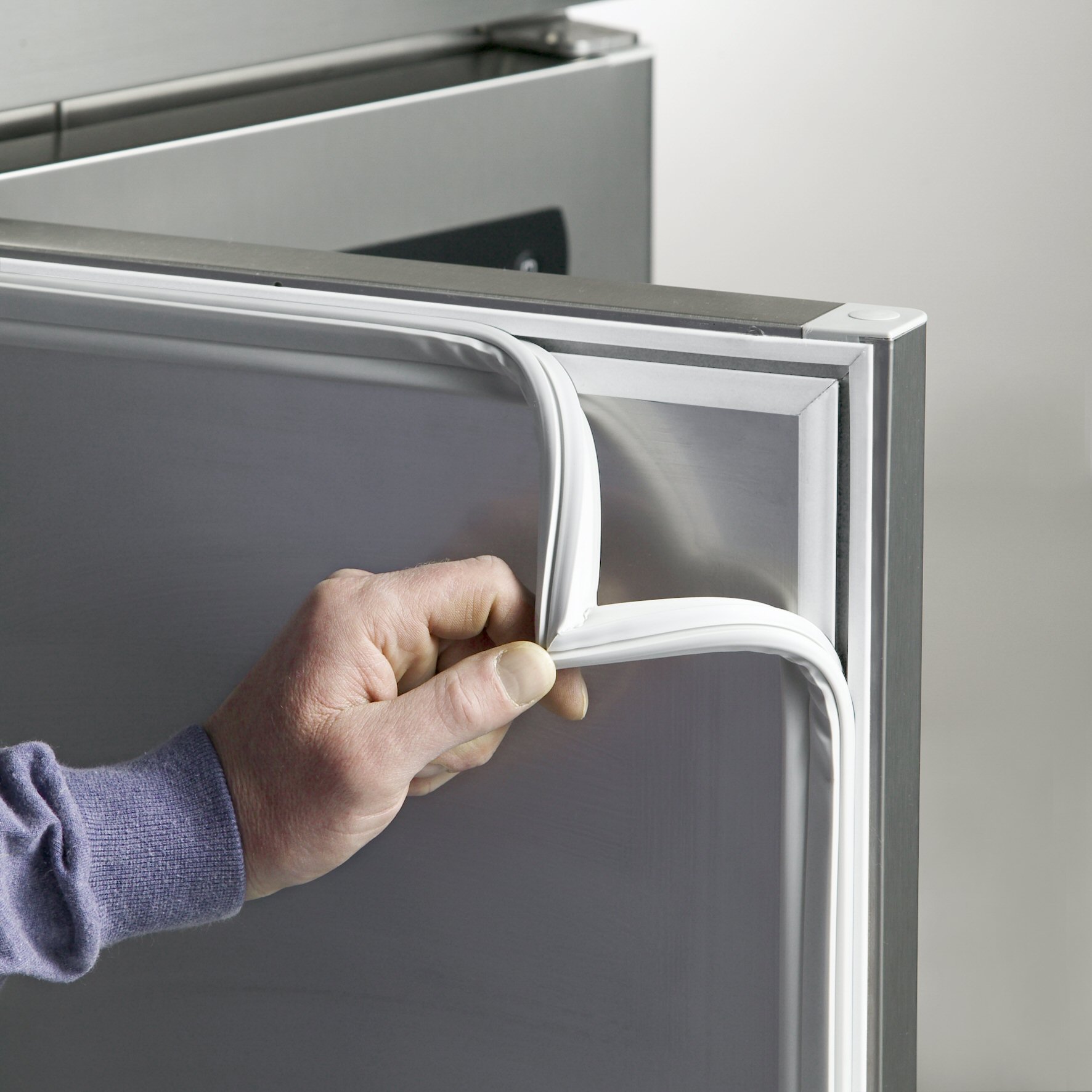

  • Removable drawer and door gaskets for easy cleaning.

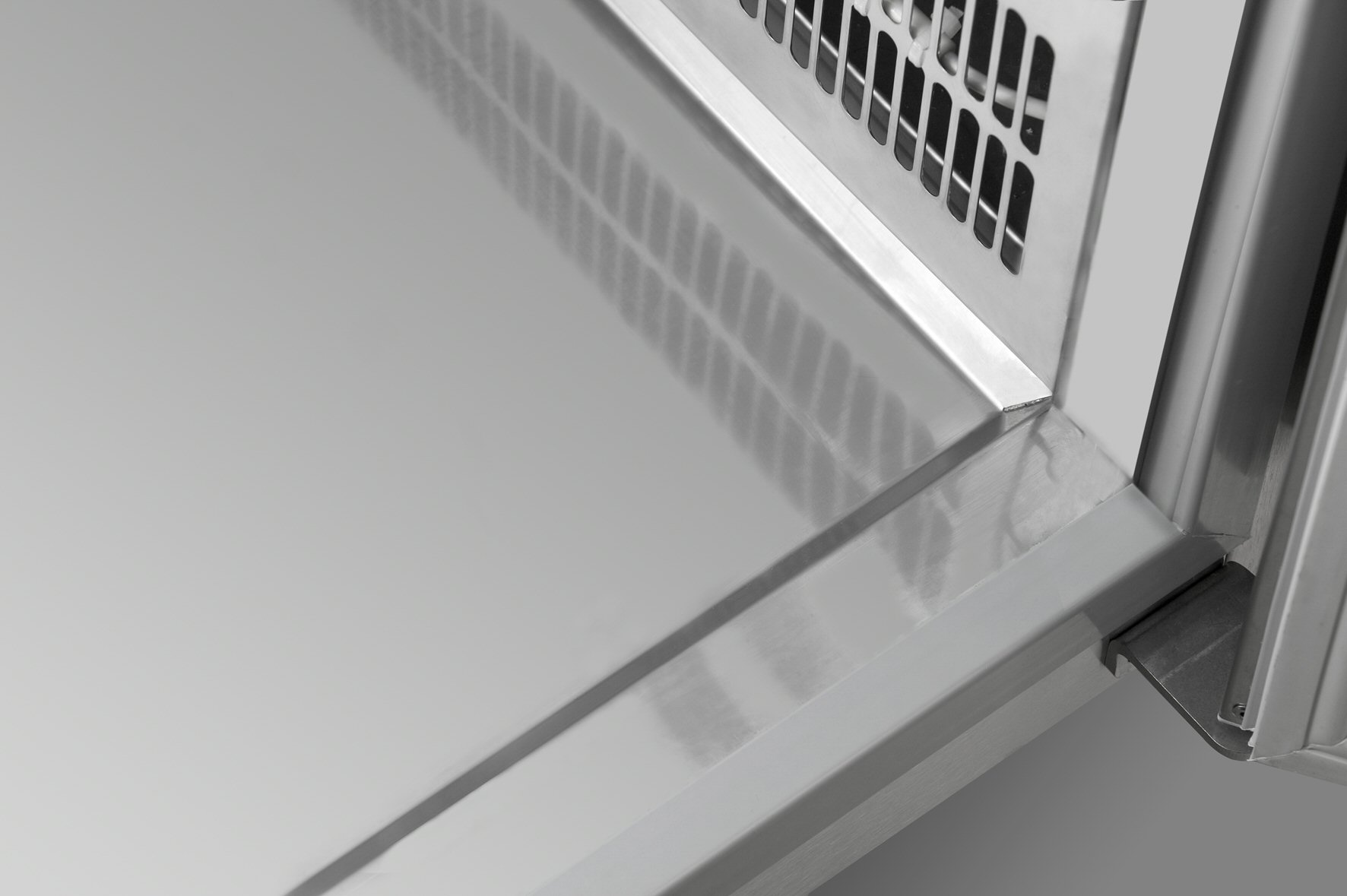

  • Pan-shaped inside base with rounded corners to catches fluid.



Allergy-Proof

Counters are made from nickel-free stainless steel.



Ergonomic and practical design

  • Anti-tilt shelves and drawers with pull-out stop.
  • Extra-long telescopic rails on drawers – GN trays can be lifted in and out without tilting.



Specifiche

Specifiche Value
Codice articolo 951800081
Modello GRAM GASTRO K 1807 CSG PT DL/DL/DR L2
Marchio Gram
Equipaggiato con Prep top worktop, 3 door sections each with 2 stainless steel shelves. Night lids included.
Larghezza 1726 mm
Profonditá 800 mm
Altezza inclusa le gambe (minimo) 1131 mm
Altezza inclusi le gambe (massimo) 1196 mm
Classe di efficienza energetica Category not yet regulated
Numero ripiani 6
Dimensioni ripiano 1/1 GN prof.
Product availability -- Non disponibile
Classe climatica 5
Valori di allacciamento 190 kW
Rivestimento esterno Acciao Inox
Rivestimento interno Stainless steel
Peso lordo 150 kg
Spessore isolamento 50 mm
Tipologia isolamento Cyclopentane
Piedini / Rotelle H = 135-200 mm (L)
Volume netto 288 l
Peso netto 150 kg
Alimentazione 230V, 50Hz
Intervallo di temperatura +2/+12°C
Volume lordo 506 l
Tipologia porta Solid Door
Capacitá di refrigerazione 406
Equivalente CO2 0.291 kg
GWP 3 GWP
Refrigerante 0.097 kg
Tipologia refrigerante R290
SKU 951800081
