ADVANCE ACF-225DG-LLRR-CRC-L2 Banco congelatore a quattro sezioni
899040822
Leggi di piú

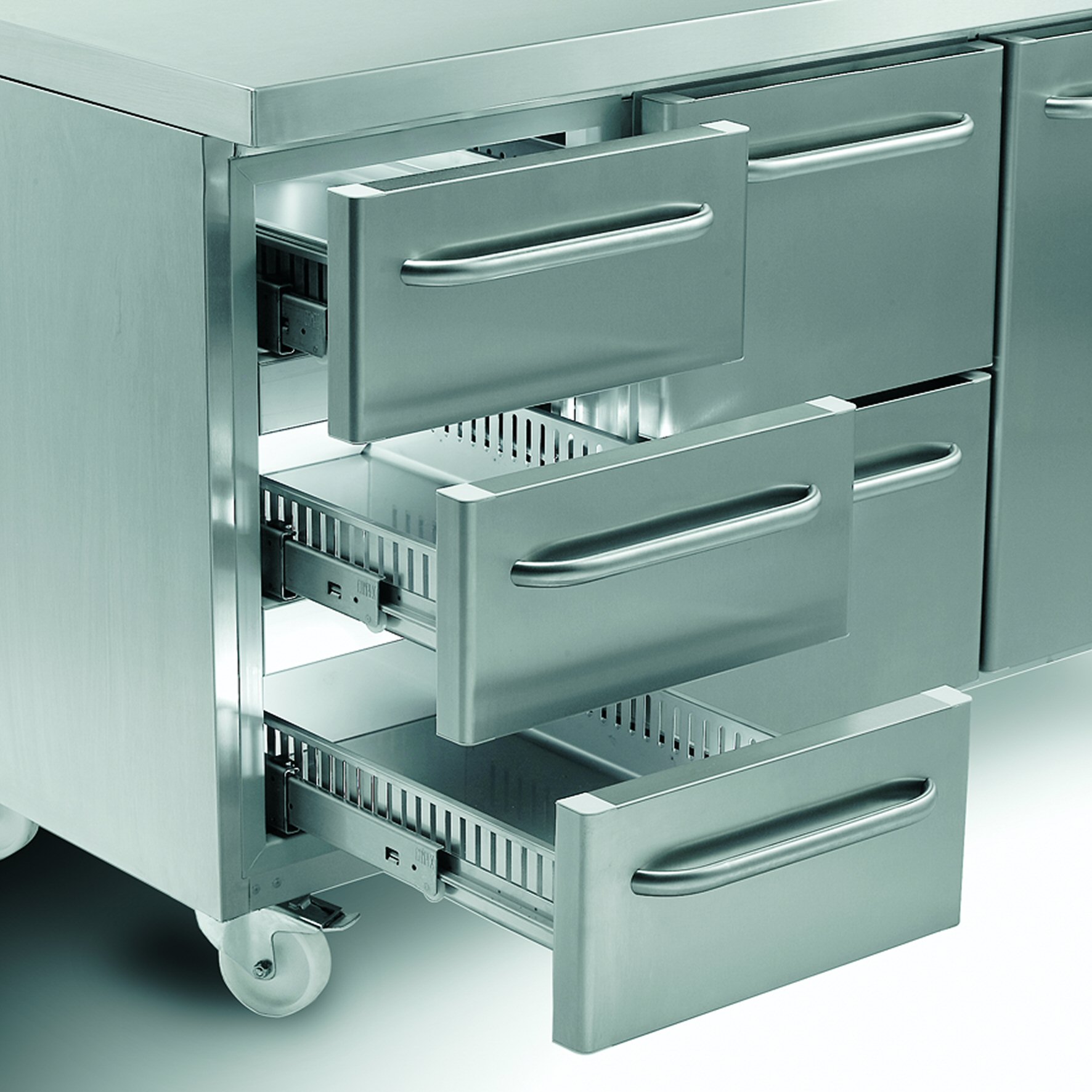

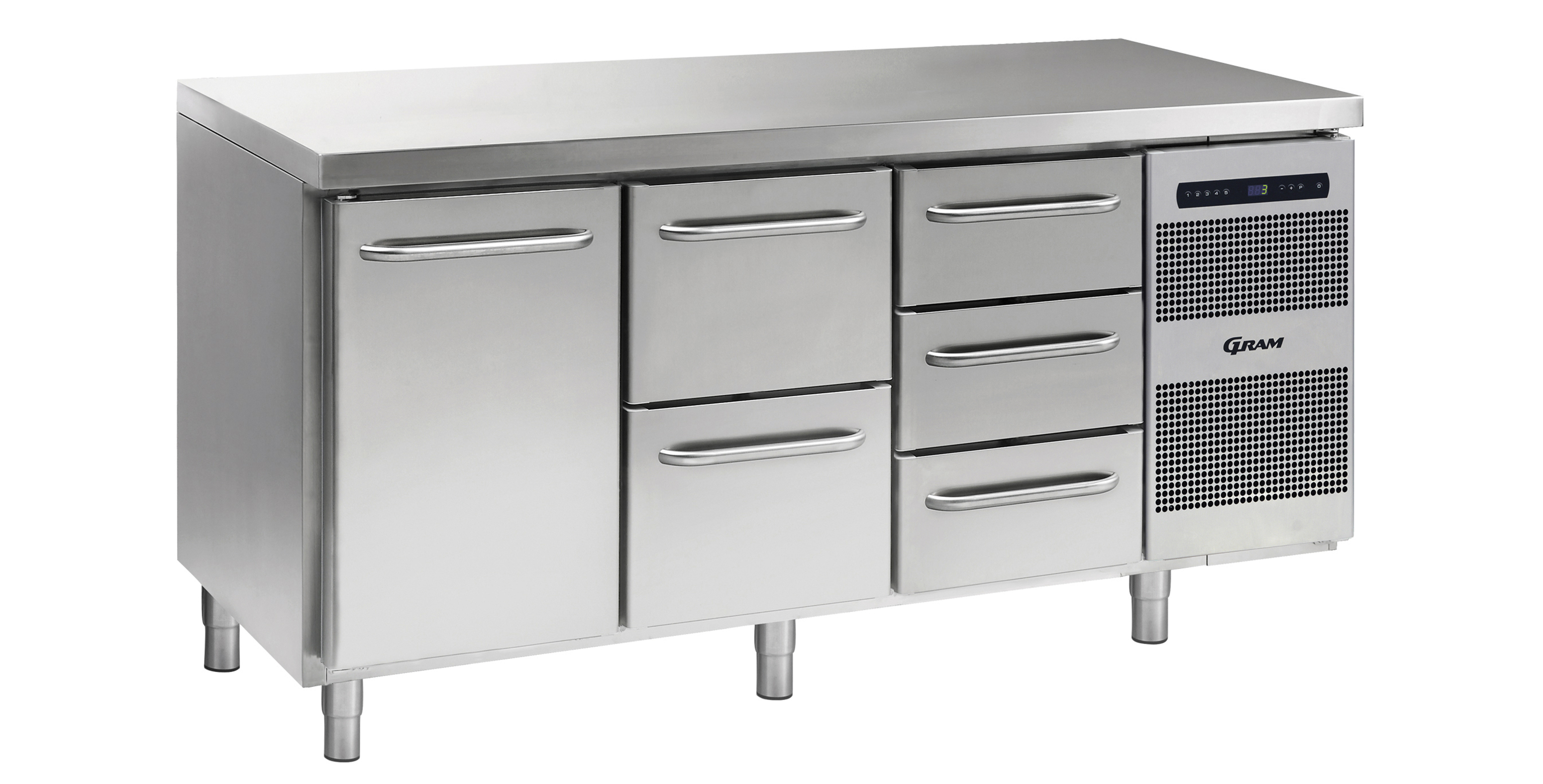

With an energy consumption of 949 kWh/year (Energy test Ecodesign) the GASTRO K 1807 counter ranks in energy class C according to new EU legislation that will be introduced 1st July 2016. The Ecodesign test method records the 24 hour energy consumption and multiplies it by 365 to get the annual energy consumption (AEC). The 24 hour consumption is calculated from 2 test periods of 12 hours each. The first period has sequences of door openings while the second is a stabilization period with closed door. Equipped with stainless steel solidtop, 1 door section with 2 stainless wire drawers and 2 drawer sections, one with 2 x 1/2 drawers and one with 3 x 1/3 drawers. GASTRO 07 range comprises of 1/1 GN, available with 2, 3 or 4 sections. Flat worktop or saladette worktop. Doors or drawers, with or without lock. Standard refrigeration (+2/+12°C), extended refrigeration (-5/+12°C) or freezing (-25/-5°C). Available with electronic elevation and prepared for remote compressor.
Richiedi un preventivo Visualizza la scheda tecnicaTemperature Control
Thanks to the Gram air distribution system, temperatures inside the counters always maintain a uniform and correct level.
This includes rapid temperature recovery after every door opening.
Modularity & Scalability
With GRAM GASTRO 07 counters you can put together your individual workplace. Choose your combination of worktop, doors, and drawers, legs /castors/electric elevation, temperature ranges and accessories.
Easy Maintenance
A compact slide-out refrigeration unit for easy maintenance and service access. Removable and easy to clean condenser filters and gaskets.
High Standard in Hygiene
Allergy-Proof
Counters are made from nickel-free stainless steel.
Ergonomic and practical design
| Specifiche | Value |
| Codice articolo | 951800503 |
| Modello | GRAM GASTRO K 1807 CSG A DL/2D/3D L2 |
| Marchio | Gram |
| Equipaggiato con | Stainless steel solid top, 1 door section with 2 stainlesss shelves and 2 drawer sections with 2 x 1/2 drawers and 3 x 1/3 drawers |
| Larghezza | 1726 mm |
| Profonditá | 700 mm |
| Altezza inclusa le gambe (minimo) | 885 mm |
| Altezza inclusi le gambe (massimo) | 950 mm |
| Classe di efficienza energetica | A |
| Indice di Efficienza Energetica (IEE) | 23.84 EEI |
| Numero ripiani | 2 |
| Dimensioni ripiano | 1/1 GN prof. |
| Product availability | -- Non disponibile |
| Classe climatica | 5 |
| Rivestimento esterno | Acciaio Inox |
| Rivestimento interno | Acciaio Inox |
| Peso lordo | 150 kg |
| Spessore isolamento | 50 mm |
| Tipologia isolamento | Cyclopentane |
| Piedini / Rotelle | H = 125-200 mm (L) |
| Volume netto | 250 l |
| Peso netto | 150 kg |
| Alimentazione | 230V, 50Hz |
| Intervallo di temperatura | +2/+12°C |
| Volume lordo | 506 l |
| Tipologia porta | Solid Door |
| Capacitá di refrigerazione | 406 |
| Equivalente CO2 | 0.291 kg |
| GWP | 3 GWP |
| Refrigerante | 0.097 kg |
| Tipologia refrigerante | R290 |
| SKU | 951800503 |
