GASTRO K 2408 D CSG S OPL DL DL DR C2 U

Refrigerated counters

Category not yet regulated

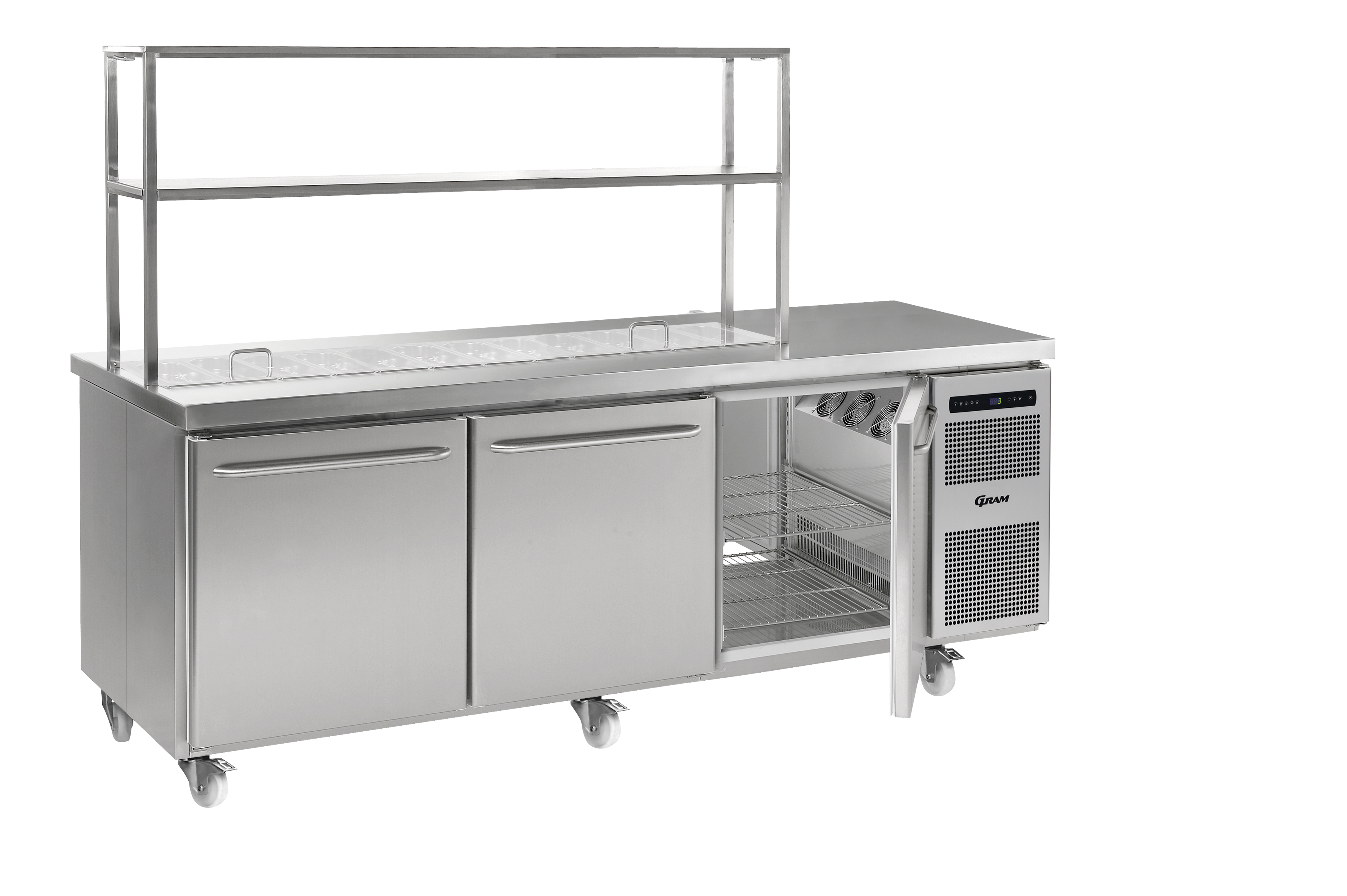

This K2408 D pass through refrigerated counter is equipped with a stainless steel solid top with cut out for GN pans, perspex lid and gantry, 3 door sections each with 2 stainless shelves The GRAM GASTRO 08 series is 2/1 GN refrigerated and freezer counters that can be used as an island suite, possibly with pass through (only refrigeration), or be placed against a wall or, if necessary, under an existing worktop. The series is available with 2 or 3 refrigerated sections. The range includes flat worktops with or without splashback and saladette worktops with insulated or acrylic lids. The cabinet is also available with insulation board only, i.e. without a worktop. Gantry is an optional extra. Each of the refrigerated sections is available with door sets, with or without locks. Also each section is offered with 9 bakery support sets, instead of shelves. Internal and external surfaces are made of stainless steel. The height of the cabinet is 750 mm + the chosen legs/castors. The depth of the worktop is 800 mm. Counters with internal compressor are also available with electric elevation for flexible working height from 850 to 1050 mm. Choose between refrigeration +2/+12 ºC, extended refrigeration -5/+12 ºC or freezing -25/-5 ºC.

Richiedi un preventivo Visualizza la scheda tecnica

Caratteristiche principali Specifiche Documentazione

Caratteristiche principali

Temperature Control

Thanks to the Gram air distribution system, temperatures inside the counters always maintain a uniform and correct level.

This includes rapid temperature recovery after every door opening.

Modularity & Scalability

With GRAM GASTRO 08 counters you can put together your individual workplace. Choose your combination of worktop, doors, and drawers, legs /castors/electric elevation, temperature ranges, and accessories.

Easy Maintenance

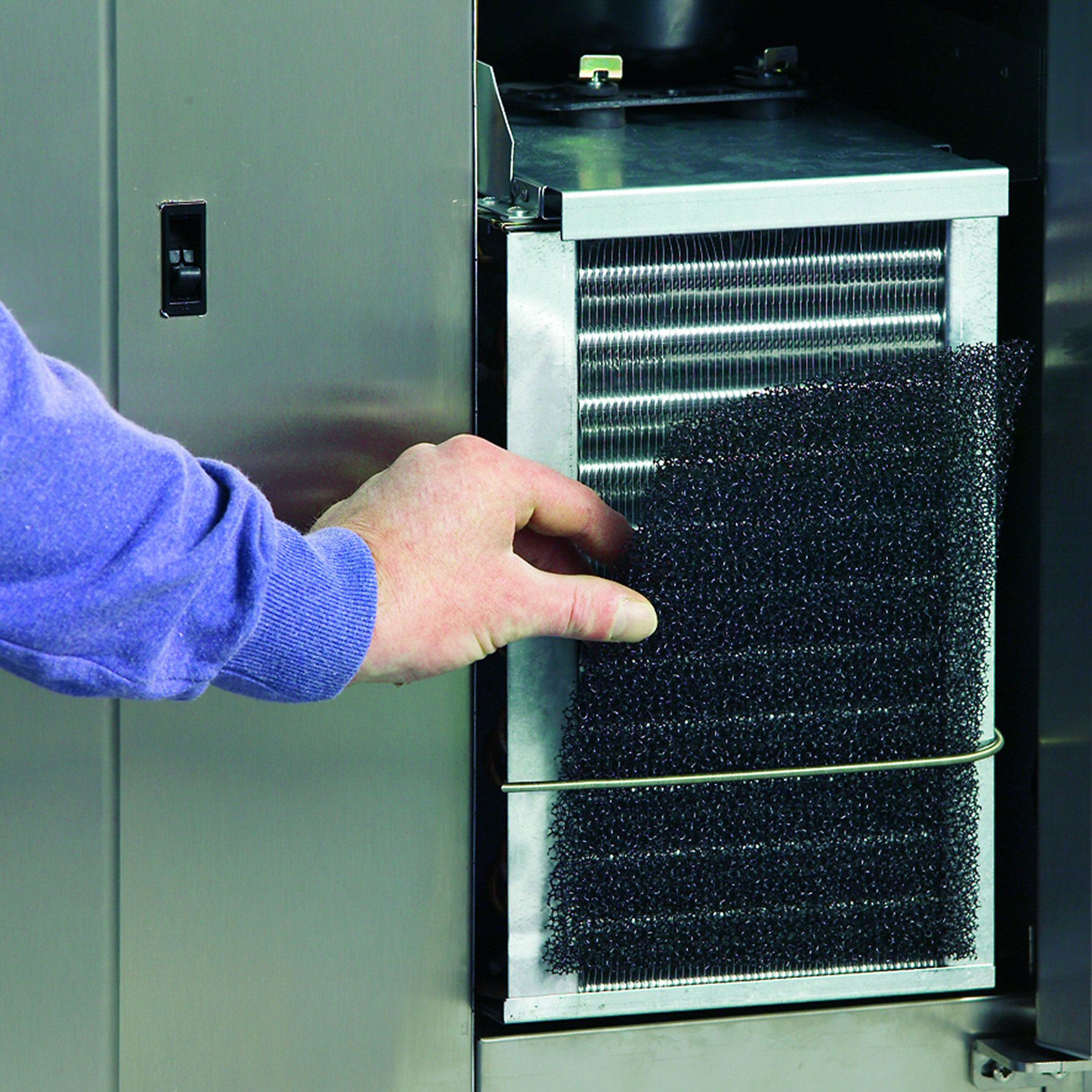

A compact slide-out refrigeration unit for easy maintenance and service access. Removable and easy to clean condenser filters and gaskets.

High Standard in Hygiene

The counter almost entirely consists of smooth surfaces – the perfect design for easy, quick, and thorough cleaning.
‘Drip Nose’ edges on worktops to prevent the ingress of water.
Worktops with splashbacks to protect your counter from spillage.

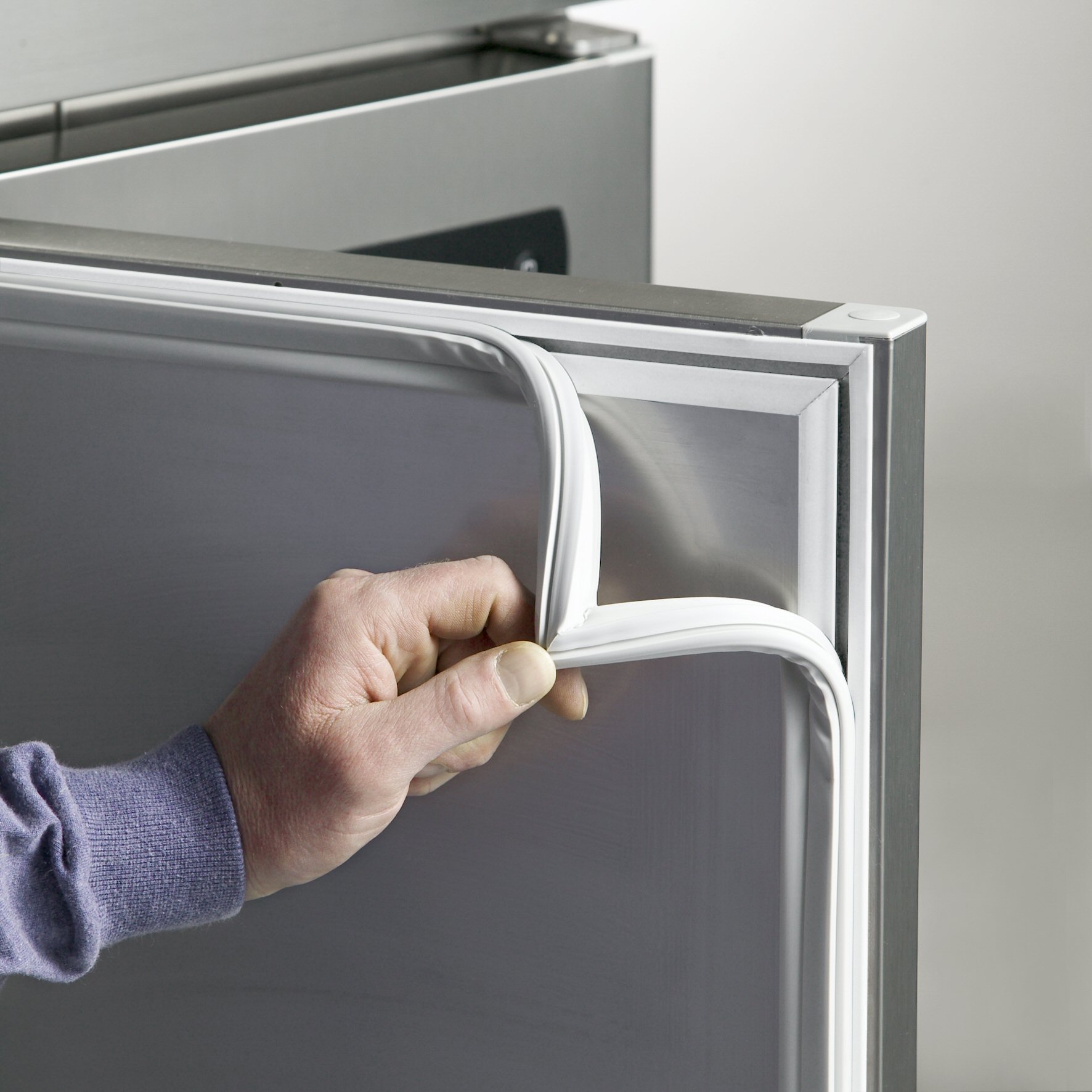

Removable drawer and door gaskets for easy cleaning.
Pan-shaped inside base with rounded corners to catches fluid.

Allergy-Proof

Counters are made from nickel-free stainless steel.

Ergonomic and practical design

Anti-tilt shelves and drawers with pull-out stop.
Extra-long telescopic rails on drawers – GN trays can be lifted in and out without

Specifiche

Specifiche	Value
Codice articolo	862421555
Modello	GASTRO K 2408 D CSG S OPL DL DL DR C2 U
Marchio	Gram
Equipaggiato con	Stainless steel solid top with cut out for GN pans, perspex lid and gantry, 3 door sections each with 2 stainless shelves
Larghezza	2340 mm
Profonditá	870 mm
Altezza	905 mm
Classe di efficienza energetica	Category not yet regulated
Dimensioni ripiano	2/1 GN prof.
Product availability	-- Non disponibile
Rivestimento esterno	Acciaio Inox
Rivestimento interno	Acciaio Inox
Peso lordo	242 kg
Spessore isolamento	50 mm
Tipologia isolamento	Cyclopentane
Piedini / Rotelle	H = 125 mm (C)
Peso netto	242 kg
Alimentazione	230V, 50Hz
Intervallo di temperatura	+2/+12°C
Volume lordo	865 l
Tipologia porta	Solid Door
Capacitá di refrigerazione	345
Equivalente CO2	0.23 kg
GWP	3 GWP
Refrigerante	0.07 kg
Tipologia refrigerante	R290
SKU	862421555
