GASTRO K 1807 CSG A DL/2D/2D L2

Refrigerated counters
D

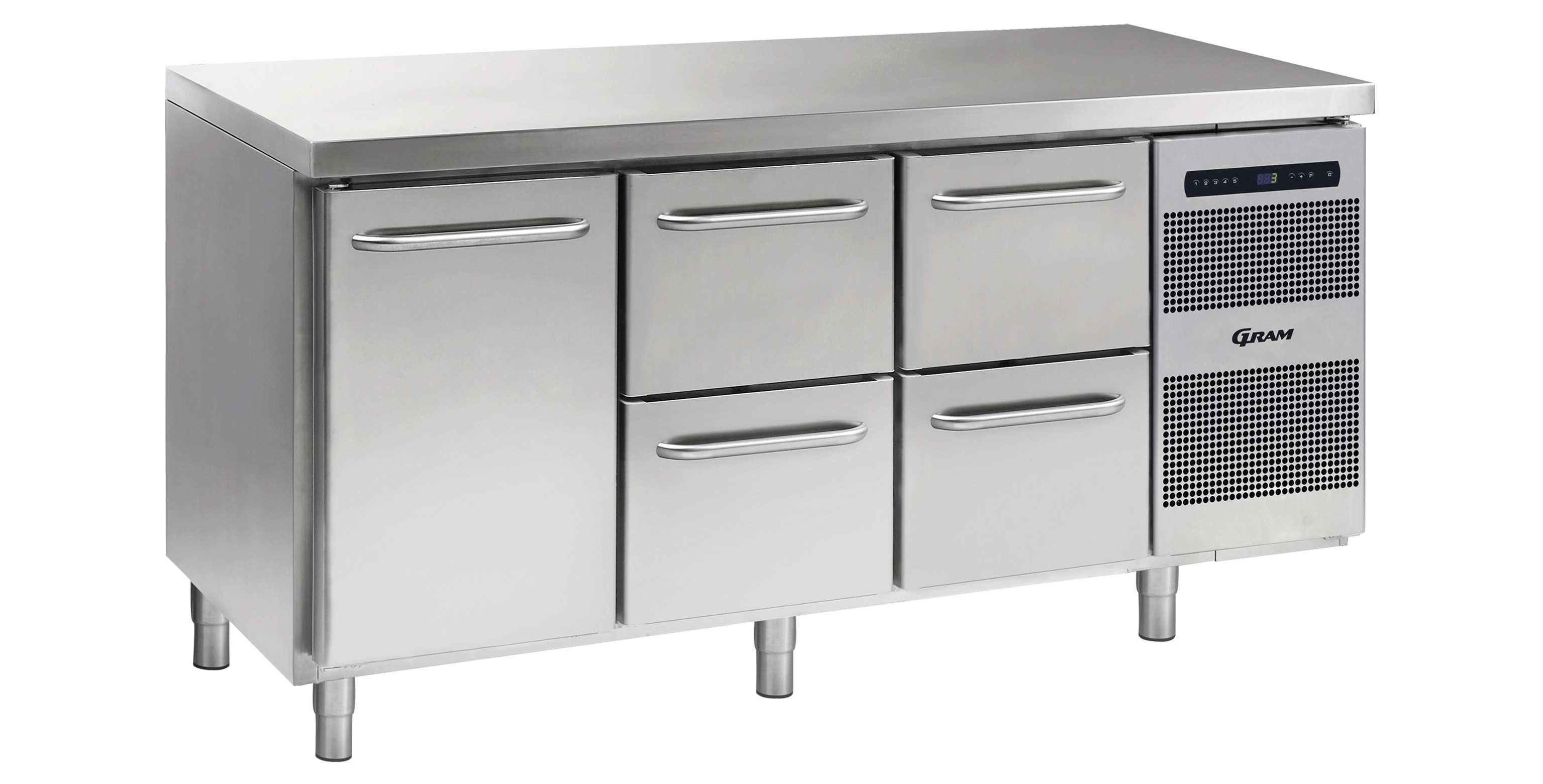

Equipped with stainless steel solid top. 1 door section with 2 stainless shelves and 2 door sections each with 2 x 1/2 drawers. Height: 885/950 mm Worktop depth: 700 mm Volume gross: 506 ltr. Exterior/Interior: Stainless/Stainless GASTRO 07 range comprises of 1/1 GN counters, available with 2, 3 or 4 sections. Flat worktop or saladette worktop, doors or drawers, with or without lock. Standard refrigeration (+2/+12°C), extended refrigeration (-5/+12°C) or freezing (-25/-5°C). Available with electronic elevation and prepared for remote compressor.

Prodotto non disponibile
Richiedi un preventivo Visualizza la scheda tecnica

Caratteristiche principali

Temperature Control

Thanks to the Gram air distribution system, temperatures inside the counters always maintain a uniform and correct level.

This includes rapid temperature recovery after every door opening.



Modularity & Scalability

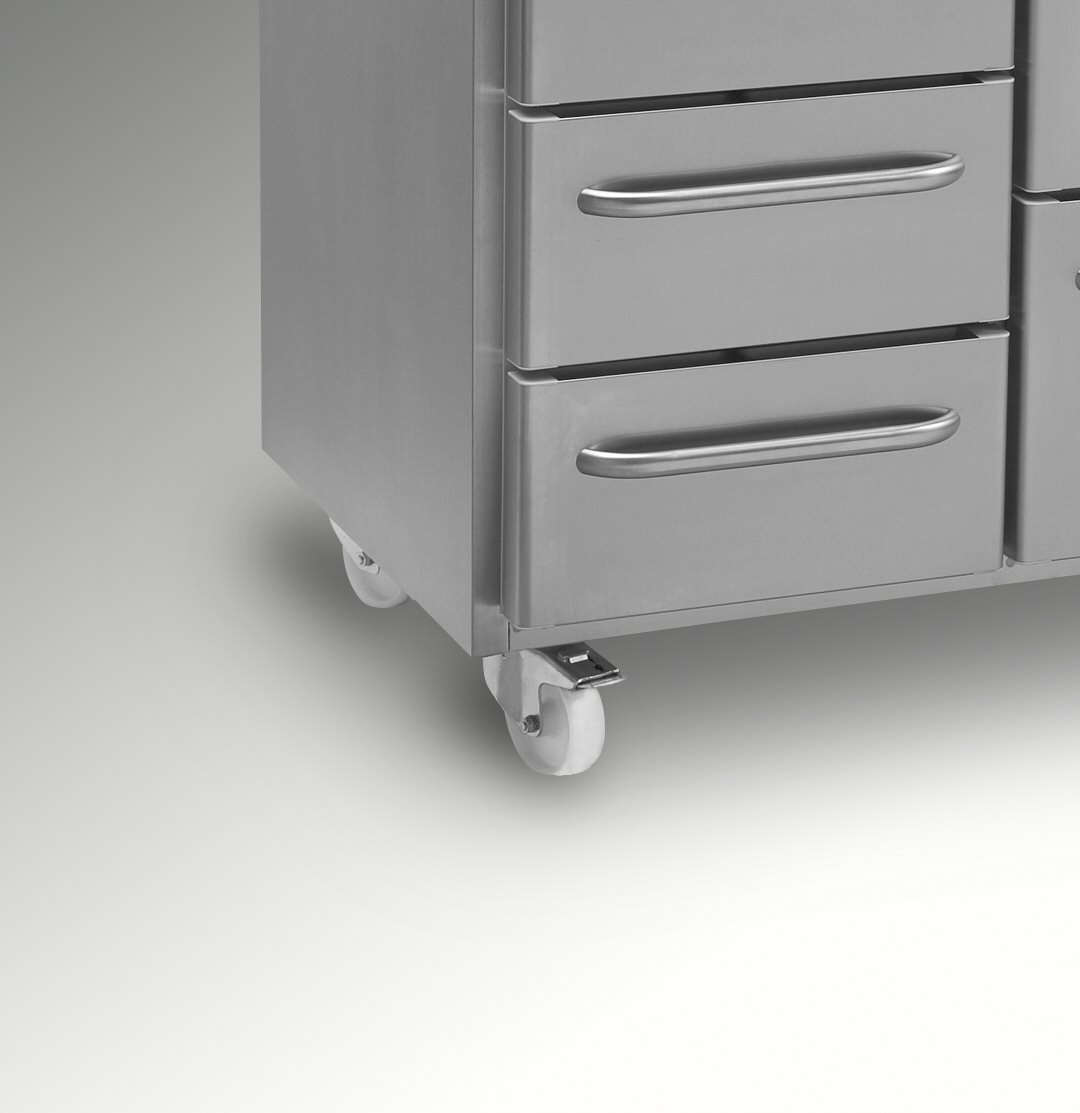

With GRAM GASTRO 07 counters you can put together your individual workplace. Choose your combination of worktop, doors, and drawers, legs /castors/electric elevation, temperature ranges and accessories.



Easy Maintenance

A compact slide-out refrigeration unit for easy maintenance and service access. Removable and easy to clean condenser filters and gaskets.



High Standard in Hygiene

  • The counter almost entirely consists of smooth surfaces – the perfect design for easy, quick and thorough cleaning.
  • ‘Drip Nose’ edges on worktops to prevent the ingress of water.
  • Worktops with splashbacks to protect your counter from spillage.
  • Removable drawer and door gaskets for easy cleaning.

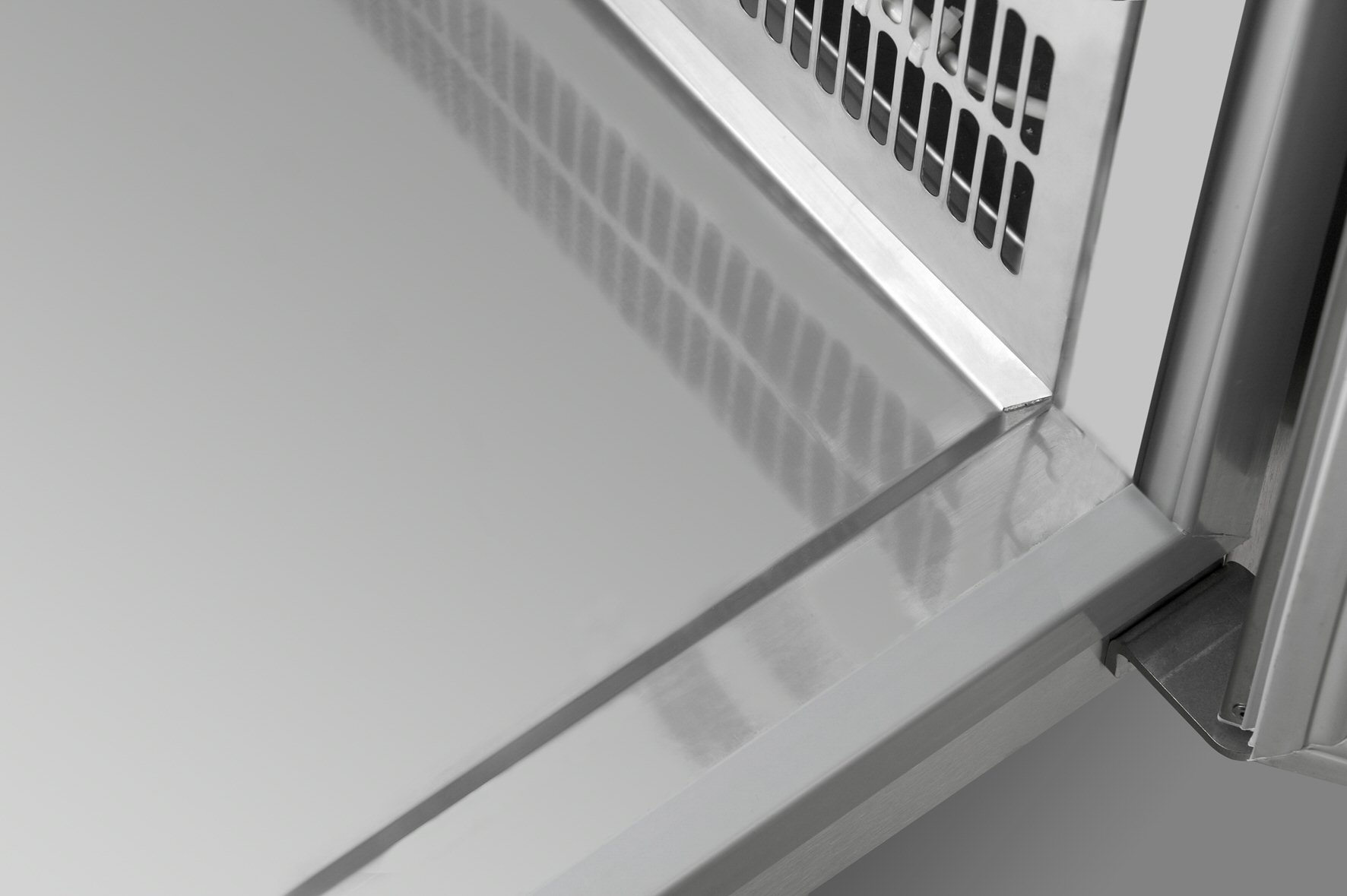

  • Pan-shaped inside base with rounded corners to catches fluid.



Allergy-Proof

Counters are made from nickel-free stainless steel.



Ergonomic and practical design

  • Anti-tilt shelves and drawers with pull-out stop.

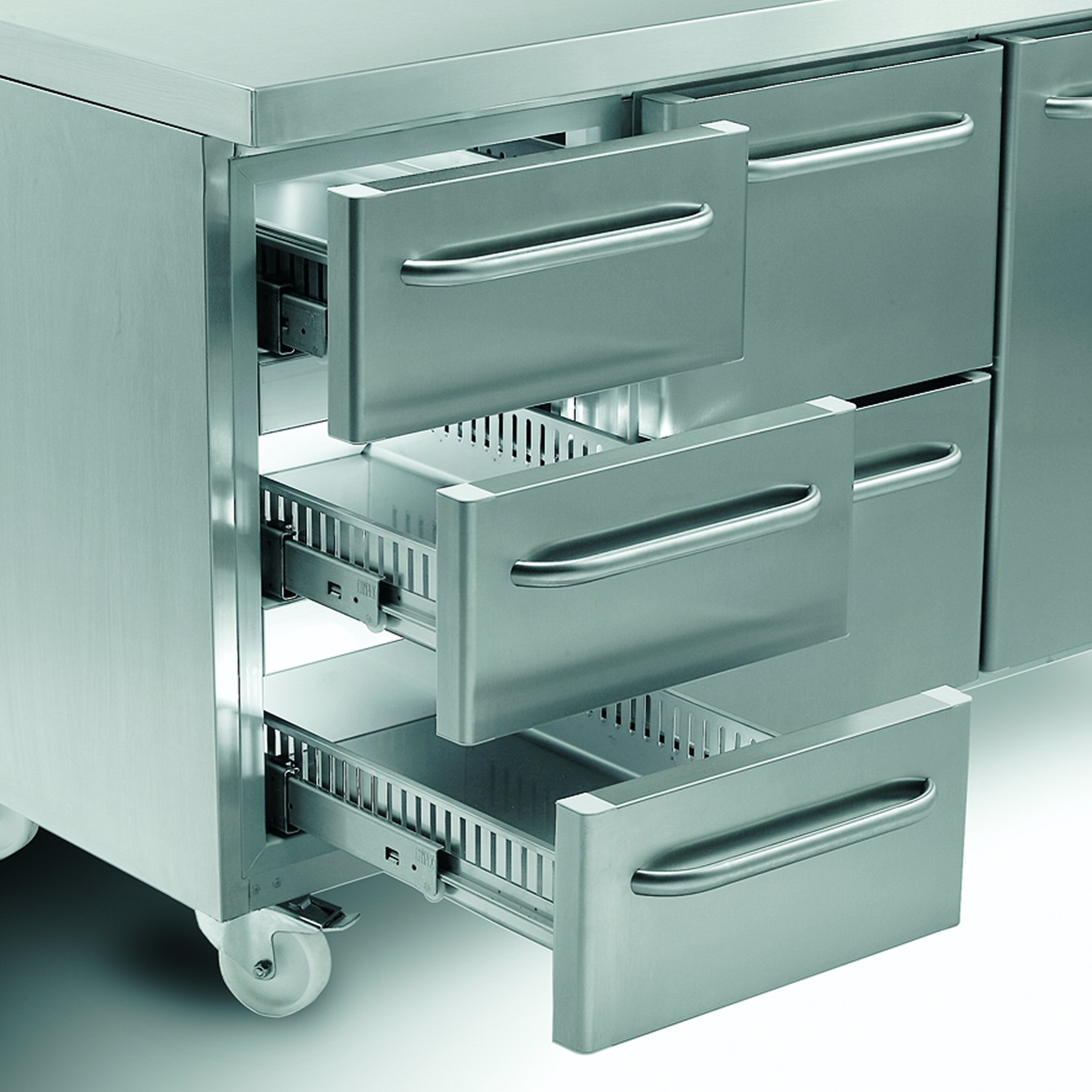

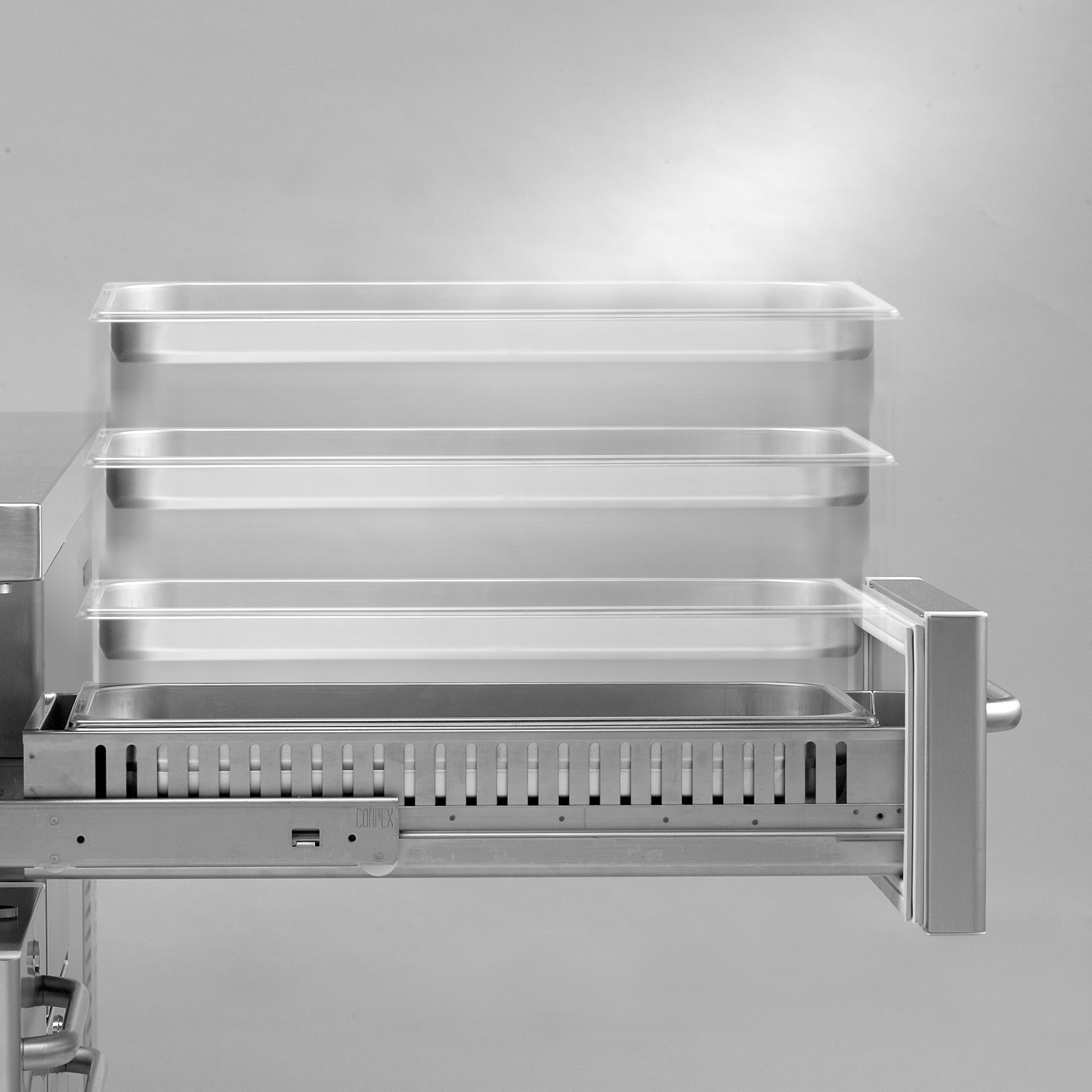

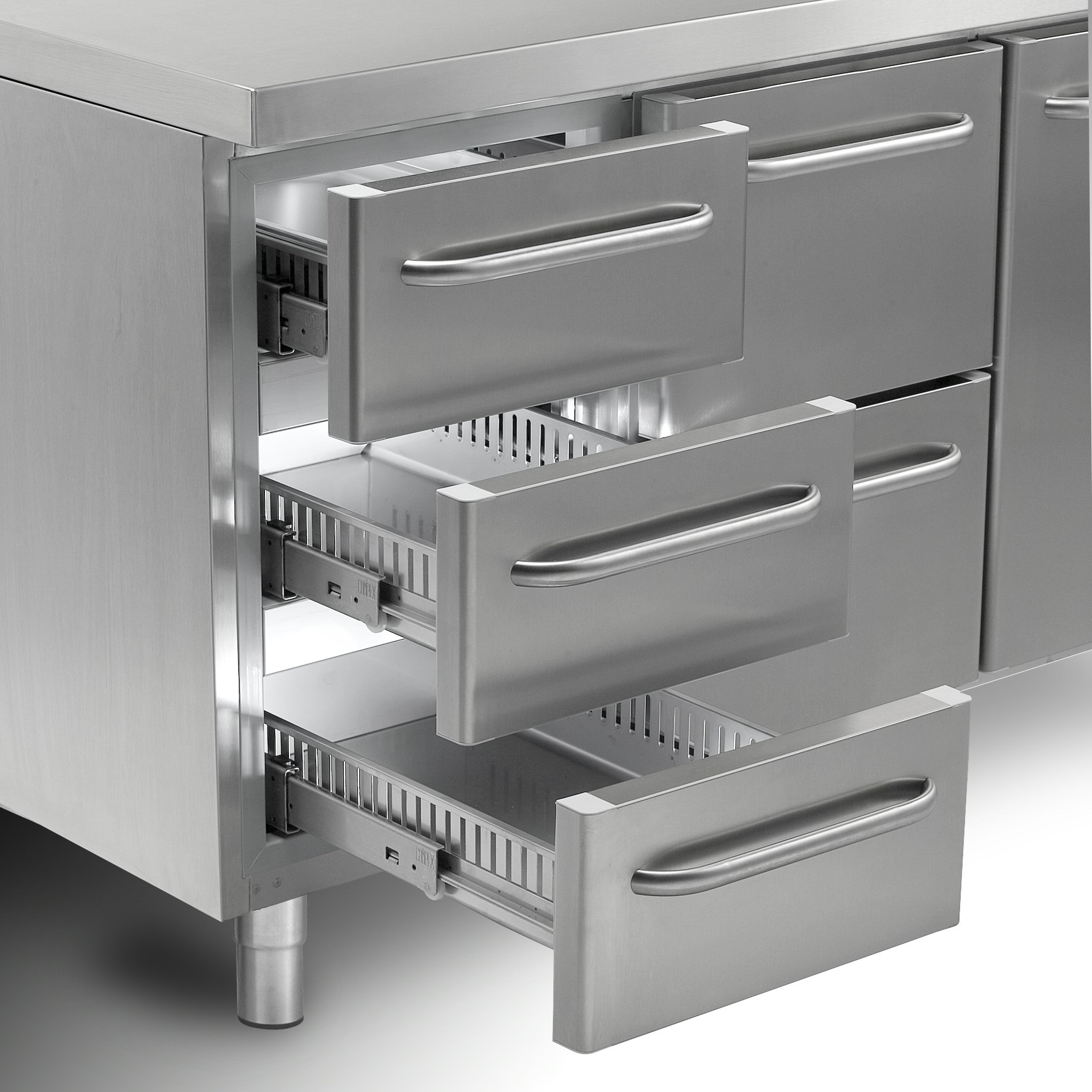

  • Extra-long telescopic rails on drawers – GN trays can be lifted in and out without tilting.



Specifiche

Specifiche Value
Codice articolo 861800511
Modello GASTRO K 1807 CSG A DL/2D/2D L2
Marchio Gram
Equipaggiato con Stainless steel solid top, 1 door section with 2 stainless wire shelves and 2 drawer sections each with 2 x 1/2 drawers
Larghezza 1726 mm
Profonditá 700 mm
Altezza inclusa le gambe (minimo) 885 mm
Altezza inclusi le gambe (massimo) 950 mm
Consumo elettrico 1455 kWh
Classe di efficienza energetica D
Dimensioni ripiano 1/1 GN prof.
Product availability -- Non disponibile
Valori di allacciamento 235 kW
Rivestimento esterno Acciao Inox
Rivestimento interno Stainless steel
Peso lordo 158 kg
Spessore isolamento 50 mm
Tipologia isolamento Cyclopentane
Piedini / Rotelle H = 135-200 mm (L)
Volume netto 261 l
Peso netto 158 kg
Alimentazione 230V, 50Hz
Intervallo di temperatura +2/+12°C
Volume lordo 506 l
Tipologia porta Solid Door
Capacitá di refrigerazione 386
Equivalente CO2 0.23 kg
GWP 3 GWP
Refrigerante 0.07 kg
Tipologia refrigerante R290
SKU 861800511

Documentazione

Documentazione
Declaration of conformity Download
K_1807_G_DL_2D_2D.pdf Download
Instruction manual Download
7460614.pdf Download
7460613.pdf Download
