861402104

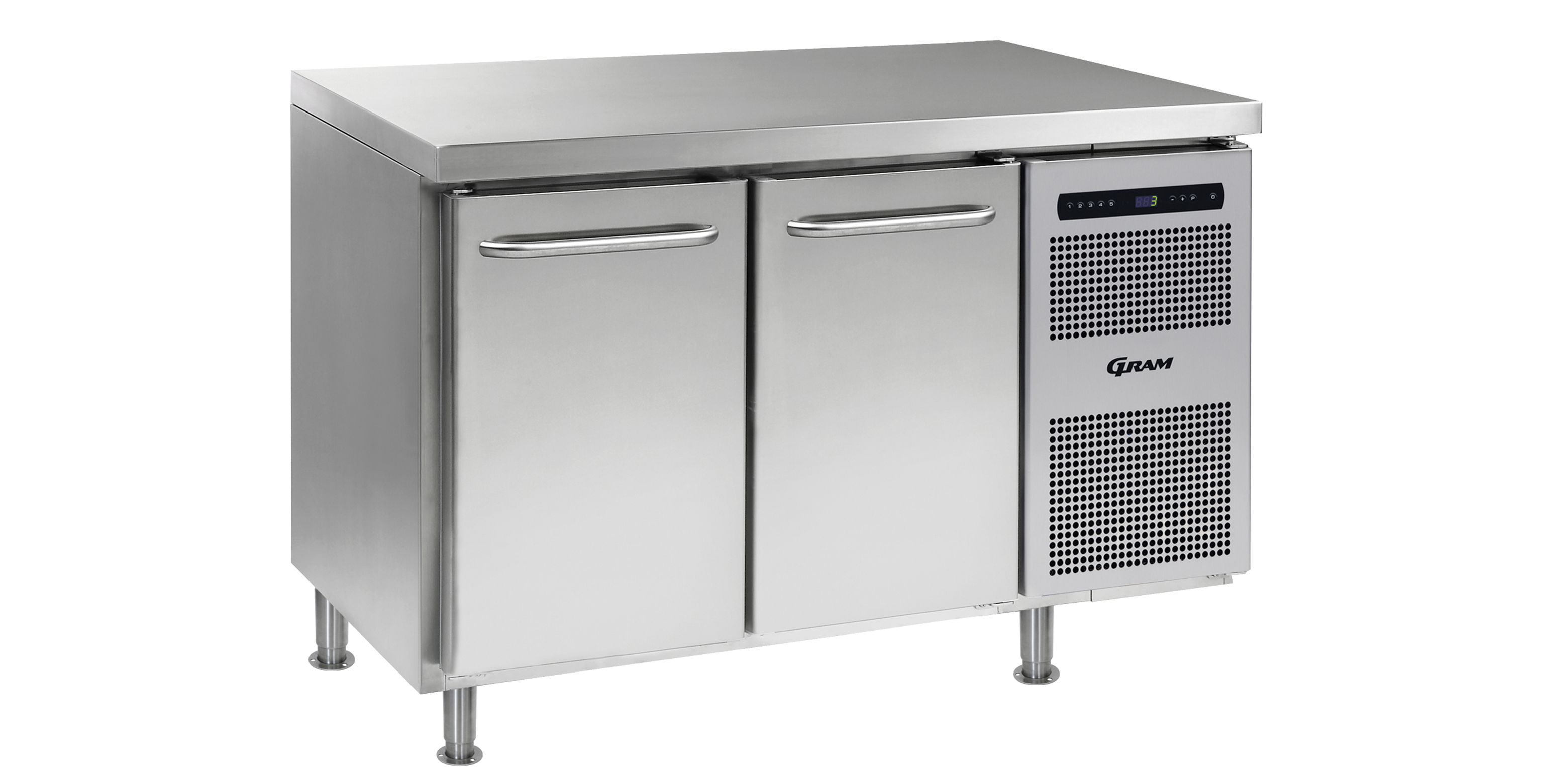

GASTRO K 1407 CMH A DL/DR LM

Refrigerated counters

Can be used as an island suite or be placed against a wall - and if necessary under an existing worktop. Available in 2, 3 or 4 refrigerated sections doors or draws equipped with snap locks on draws. All counter tops come with a "drip nose edge" preventing spillage behind the counter. Inside and outside surfaces made of stainless steel with sturdy adjustable fixed feet. Equipped with stainless seel solid top, 2 door sections each with 2 stainless shelves, marine legs. Width: 1289mm Height: 905mm

Prodotto non disponibile
Richiedi un preventivo Visualizza la scheda tecnica

Caratteristiche principali

Temperature Control

Thanks to the Gram air distribution system, temperatures inside the counters always maintain a uniform and correct level.

This includes rapid temperature recovery after every door opening.



Modularity & Scalability

With GRAM GASTRO 07 counters you can put together your individual workplace. Choose your combination of worktop, doors, and drawers, legs /castors/electric elevation, temperature ranges and accessories.



Easy Maintenance

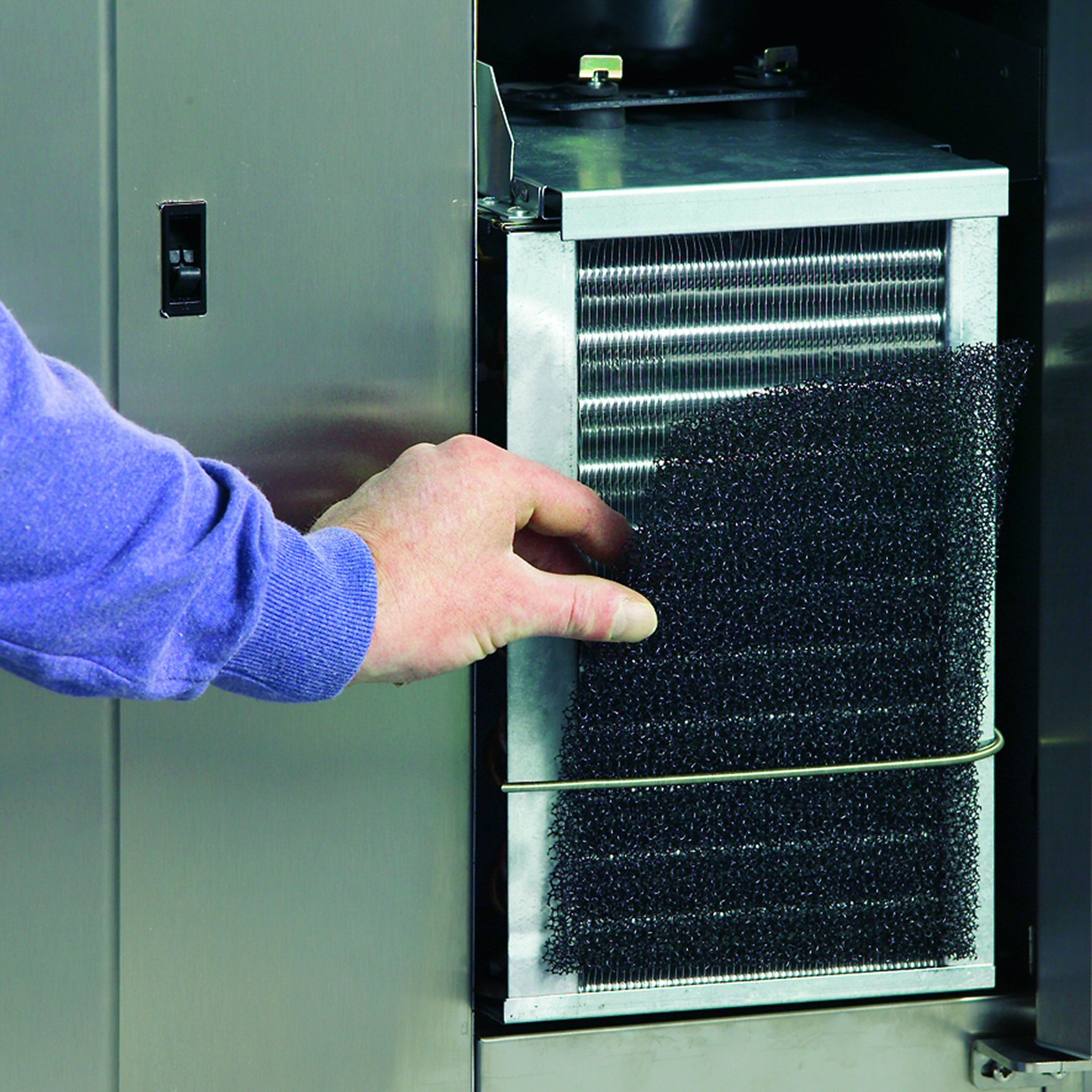

A compact slide-out refrigeration unit for easy maintenance and service access. Removable and easy to clean condenser filters and gaskets.



High Standard in Hygiene

  • The counter almost entirely consists of smooth surfaces – the perfect design for easy, quick and thorough cleaning.

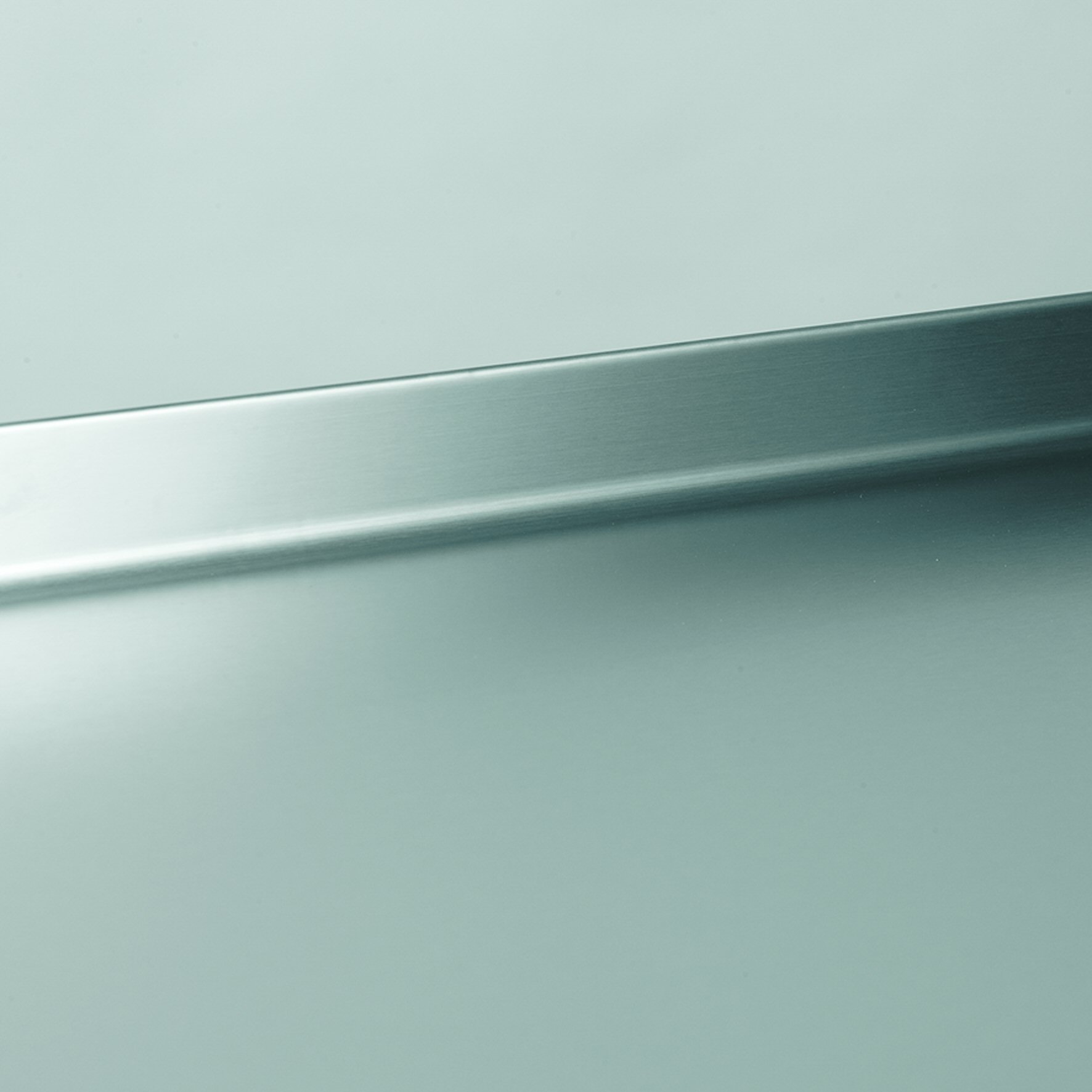

  • ‘Drip Nose’ edges on worktops to prevent the ingress of water.
  • Worktops with splashbacks to protect your counter from spillage.

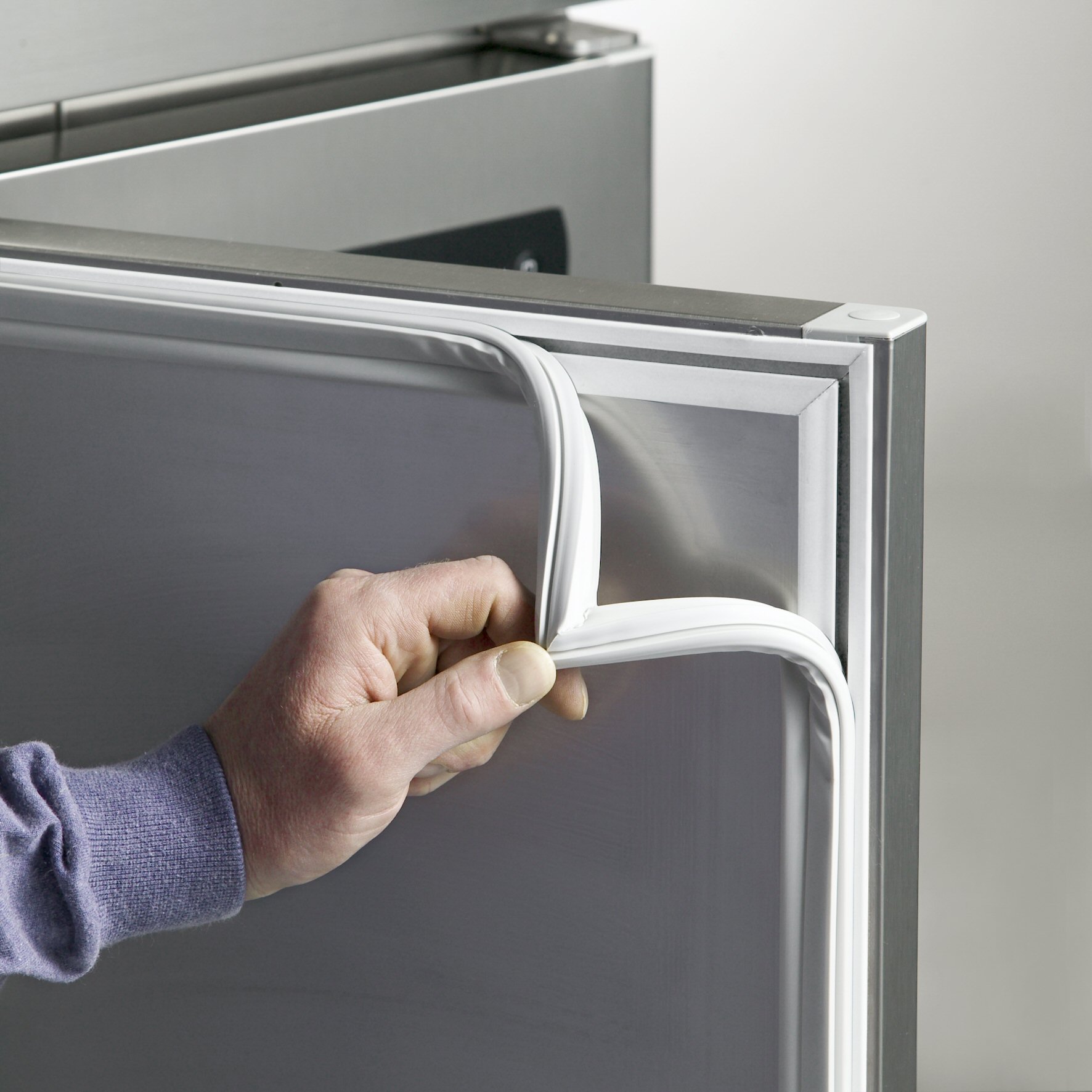

  • Removable drawer and door gaskets for easy cleaning.

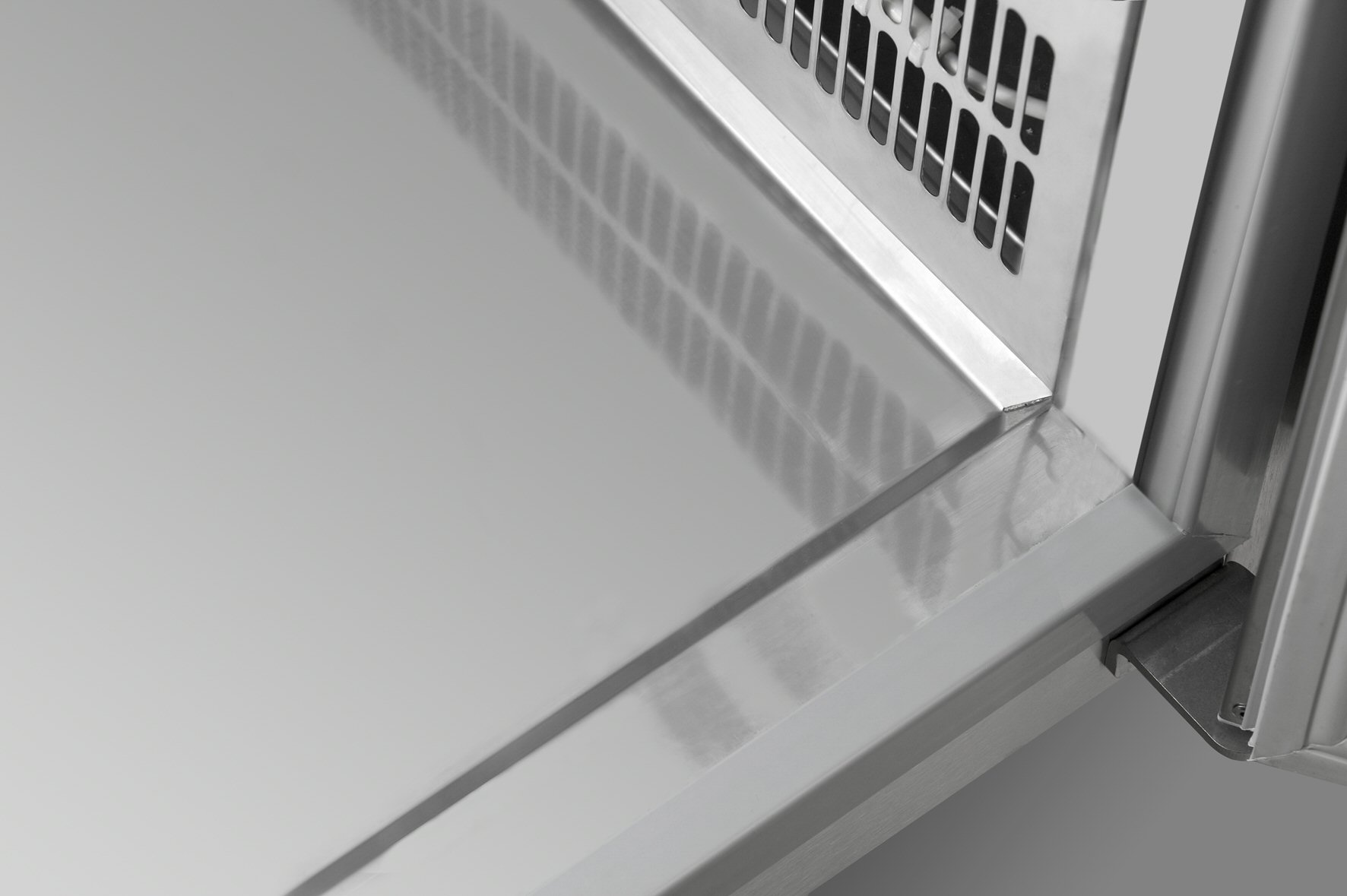

  • Pan-shaped inside base with rounded corners to catches fluid.



Allergy-Proof

Counters are made from nickel-free stainless steel.



Ergonomic and practical design

Anti-tilt shelves and drawers with pull-out stop.

Extra-long telescopic rails on drawers – GN trays can be lifted in and out without tilting.



Specifiche

Specifiche Value
Codice articolo 861402104
Modello GASTRO K 1407 CMH A DL/DR LM
Marchio Gram
Equipaggiato con Stainless steel solid top, 2 door sections each with 2 stainless shelves, marine legs
Larghezza 1289 mm
Profonditá 700 mm
Altezza 905 mm
Dimensioni ripiano 1/1 GN prof.
Product availability -- Non disponibile
Valori di allacciamento 262 kW
Rivestimento esterno Acciao Inox
Rivestimento interno Stainless steel
Peso lordo 124 kg
Spessore isolamento 50 mm
Tipologia isolamento Cyclopentane
Volume netto 196 l
Peso netto 124 kg
Opzioni 50 Hz
Alimentazione 230V, 60Hz
Intervallo di temperatura +2/+12°C
Volume lordo 345 l
Tipologia porta Solid Door
Capacitá di refrigerazione 314
Equivalente CO2 200.2 kg
Refrigerante 0.14 kg
Tipologia refrigerante R134a
SKU 861402104
