960820131

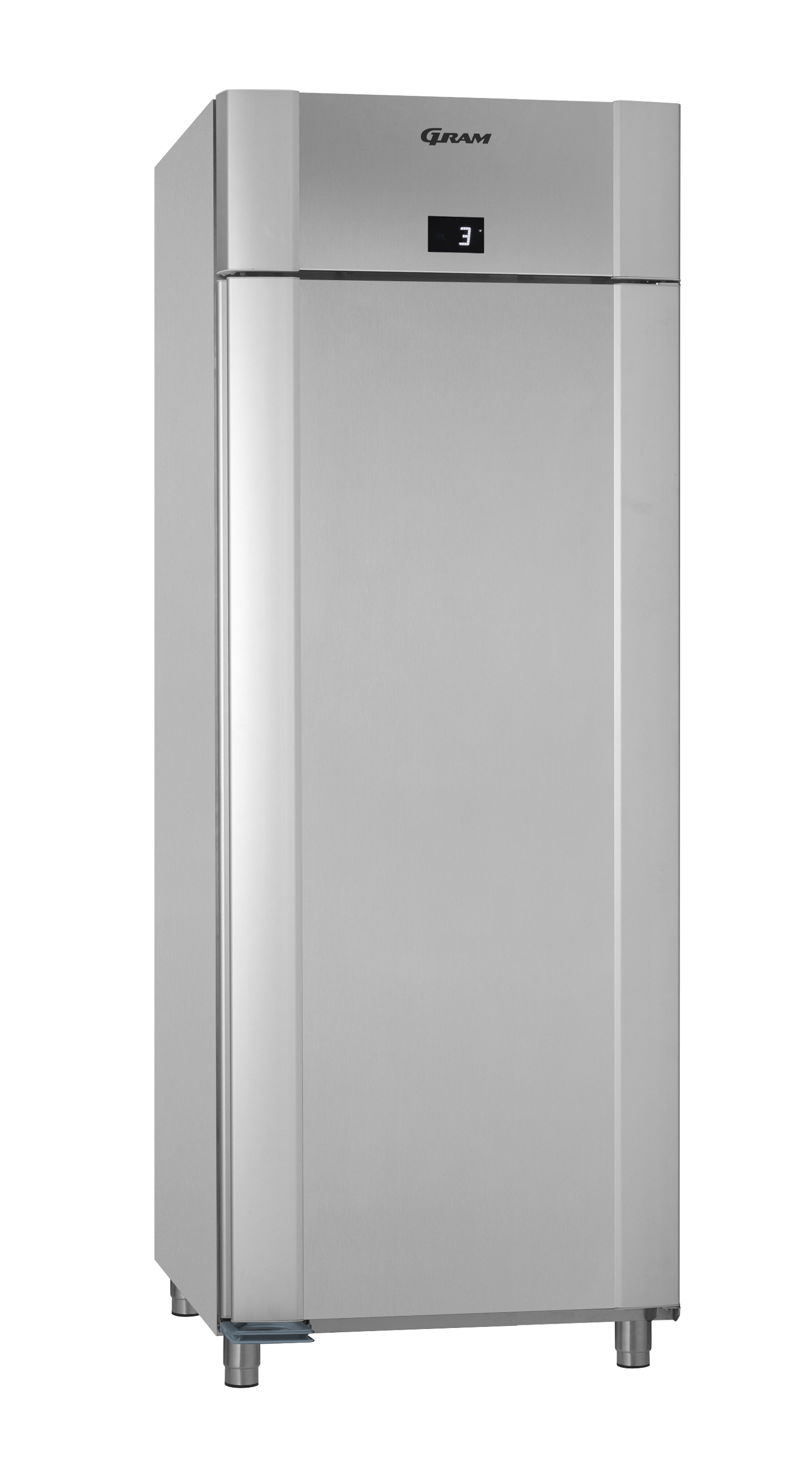

ECO TWIN M 82 RCG L2 4N

B

These cabinets combine stylish design with high functionality and low energy consumption. • The controls are concealed behind the top panel, protected against splashing water. • Design principle of "no broken surfaces" makes the cabinets easy to clean. • The distinctive aluminum profiles stretching from top to bottom on both sides of the cabinet impart strength and enhance appearance. • The modular rails can go directly in the dishwasher • Pedal opener with finesse - read more in the brochure. ECO TWIN is suitable for the wide 2/1 GN system where 2 pcs. 1/1 GN pans can be placed side by side on the shelves.

Prodotto non disponibile
Richiedi un preventivo Visualizza la scheda tecnica

Caratteristiche principali

Food Safety

The efficient air circulation system helps to maintain perfect storage temperatures. Designed to recover the inside temperature rapidly after each door opening. Temperatures for optimal food safety and enhanced shelf-life are maintained for climate class 5.



Low Running Costs

Tracking and controlling the lifetime costs of equipment is key to any successful professional kitchen. All ECO cabinets strike with excellent energy ratings and help you save running costs on a daily level.

The Energy Efficiency Class of the ECO TWIN M 82 RCG L2 4N is B.



Comfortable Work Environment

The ECO range contributes to a healthier work environment with low noise levels of approximately 45 dB(A) when the compressor is running.



Hygiene & Ergonomic Design

Thanks to the rounded corners and smooth surface, frequented cleaning routines become a quick and simple task. All Cabinets have self-closing doors with full-height handles providing easy access for cleaning. The patented pedal door opener can be placed on the left or right side.



Smart Design

The ECO series strikes with its energy efficiency, food-safe design, and smart extras such as the patented pedal door opener. This helpful feature can be placed on the left or right side. While carrying goods, the cabinet door can be opened with a quick foot tap.

Specifiche

Specifiche Value
Codice articolo 960820131
Modello ECO TWIN M 82 RCG L2 4N
Marchio Gram
Equipaggiato con Right hand hinged reversible door, automatic door closing, pedal door opener, 4 grey shelves, LED lighting, dry cooling and rapid thaw
Larghezza 820 mm
Profonditá 785 mm
Altezza 2125 mm
Consumo elettrico 344 kWh
Classe di efficienza energetica B
Dimensioni ripiano 2/1 GN largh.
Product availability -- Non disponibile
Valori di allacciamento 248 kW
Rivestimento interno Stainless steel
Peso lordo 136 kg
Spessore isolamento 70 mm
Tipologia isolamento Cyclopentane
Piedini / Rotelle H = 135-200 mm (L)
Volume netto 451 l
Peso netto 136 kg
Alimentazione 230V, 50Hz
Livello rumorositá 47.3 dB
Intervallo di temperatura -5/+12°C
Volume lordo 614 l
Tipologia porta Solid Door
Capacitá di refrigerazione 333
Equivalente CO2 0.2 kg
GWP 3 GWP
Refrigerante 0.07 kg
Tipologia refrigerante R600a
SKU 960820131

Documentazione

Documentazione
DWG files Download
Declaration of conformity Download
ECO_TWIN_M_82_G.pdf Download
Instruction manual Download
7460183.pdf Download
