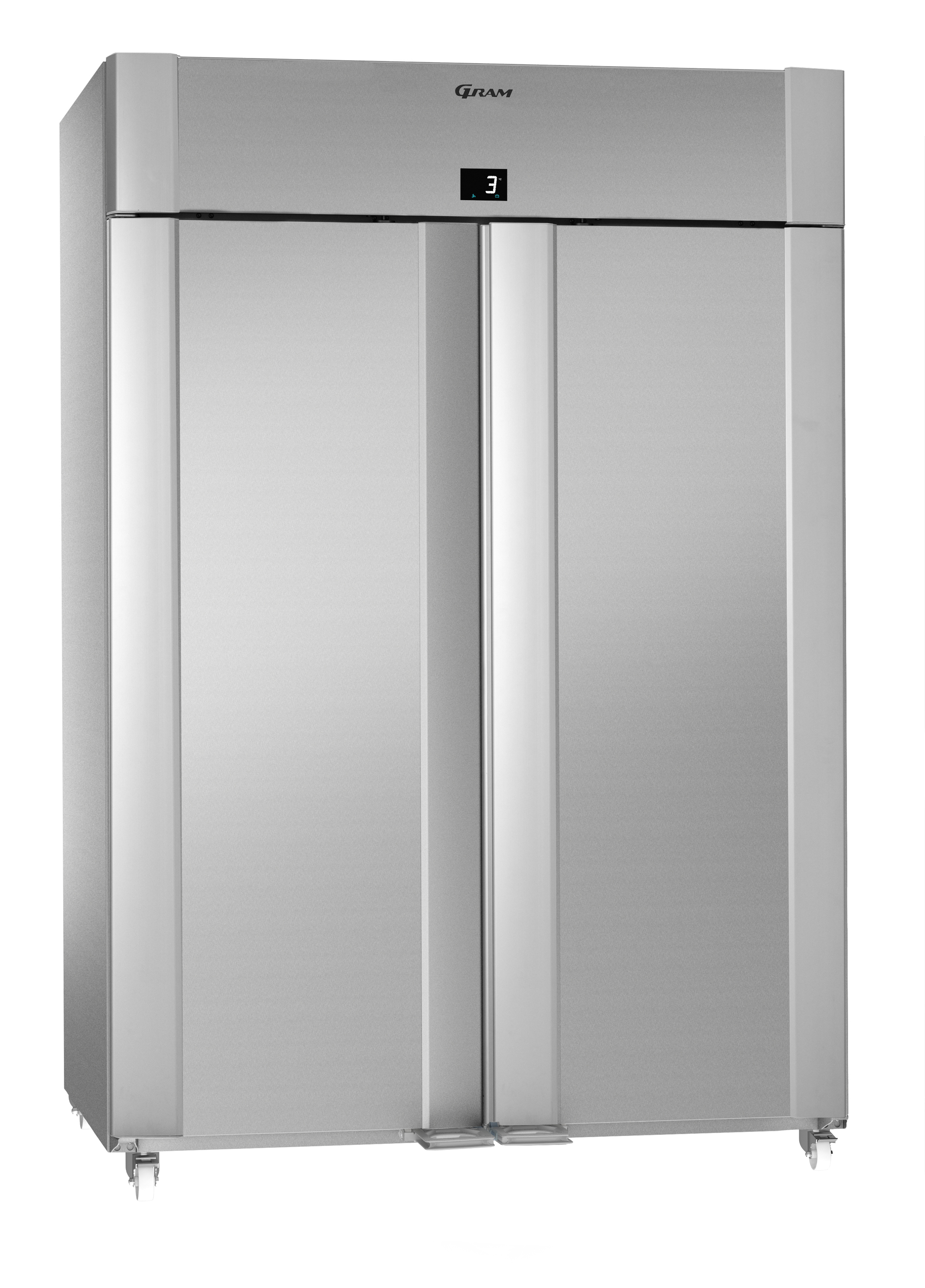

ECO PLUS M 140 CCG C1 8N 4CS

Armadi refrigerati per carne e pesce freschi
A

Please be informed that the ECO PLUS M 140 CCG C1 8N 4CS  reach-in cabinets is phased out.

For enquiries about the availability of the remaining products, please contact your branch office.



Our new Premier 140 will be available instead. You can read more about the Premier https://hoshizaki-europe.com/premier/ or get in contact with your local branch to receive the latest information.

Richiedi un preventivo Visualizza la scheda tecnica

Caratteristiche principali

Food Safety

The efficient air circulation system helps to maintain perfect storage temperatures. Designed to recover the inside temperature rapidly after each door opening. Temperatures for optimal food safety and enhanced shelf-life are maintained for climate class 5.



Low Running Costs

Tracking and controlling the lifetime costs of equipment is key to any successful professional kitchen. All ECO cabinets strike with excellent energy ratings and help you save running costs on a daily level.

The Energy Efficiency Class of the ECO PLUS M 140 CCG C1 8N 4CS is A.



Comfortable Work Environment

The ECO range contributes to a healthier work environment with low noise levels of approximately 45 dB(A) when the compressor is running.



Hygiene & Ergonomic Design

Thanks to the rounded corners and smooth surface, frequented cleaning routines become a quick and simple task. All Cabinets have self-closing doors with full-height handles providing easy access for cleaning. The patented pedal door opener can be placed on the left or right side.



Smart Design

The ECO series strikes with its energy efficiency, food-safe design, and smart extras such as the patented pedal door opener. This helpful feature can be placed on the left or right side. While carrying goods, the cabinet door can be opened with a quick foot tap.

Specifiche

Specifiche Value
Codice articolo 961400114
Modello ECO PLUS M 140 CCG C1 8N 4CS
Marchio Gram
Equipaggiato con 1 right hand and 1 left hand hinged door each with lock, self closing doors and pedal door openers, 8 grey shelves and 4 stainless steel center shelves, LED lighting, dry cooling and controlled rapid thawing, castors.
Larghezza 1400 mm
Profonditá 905 mm
Altezza 2100 mm
Classe di efficienza energetica A
Dimensioni ripiano 2/1 GN prof.
Product availability -- Non disponibile
Classe climatica 5
Rivestimento esterno Acciaio Inox
Rivestimento interno Acciaio Inox
Peso lordo 220 kg
Spessore isolamento 70 mm
Tipologia isolamento Cyclopentane
Piedini / Rotelle H = 125-200 mm (L)
Volume netto 1050 l
Peso netto 220 kg
Alimentazione 230V, 50Hz
Livello rumorositá 42.8 dB
Intervallo di temperatura -5/+12°C
Volume lordo 1359 l
Tipologia porta Double Door
Capacitá di refrigerazione 560
Equivalente CO2 0.447 kg
GWP 3 GWP
Refrigerante 0.149 kg
Tipologia refrigerante R290
SKU 961400114

Documentazione

Documentazione
Declaration of conformity Download
ECO_PLUS_M_140_G.pdf Download
Instruction manual Download
Wiring_diagram_Eco_Plus_K_and_M_140.pdf Download
