ECO MIDI KG 82 CCG 4S K

Armadi gastronomia
B

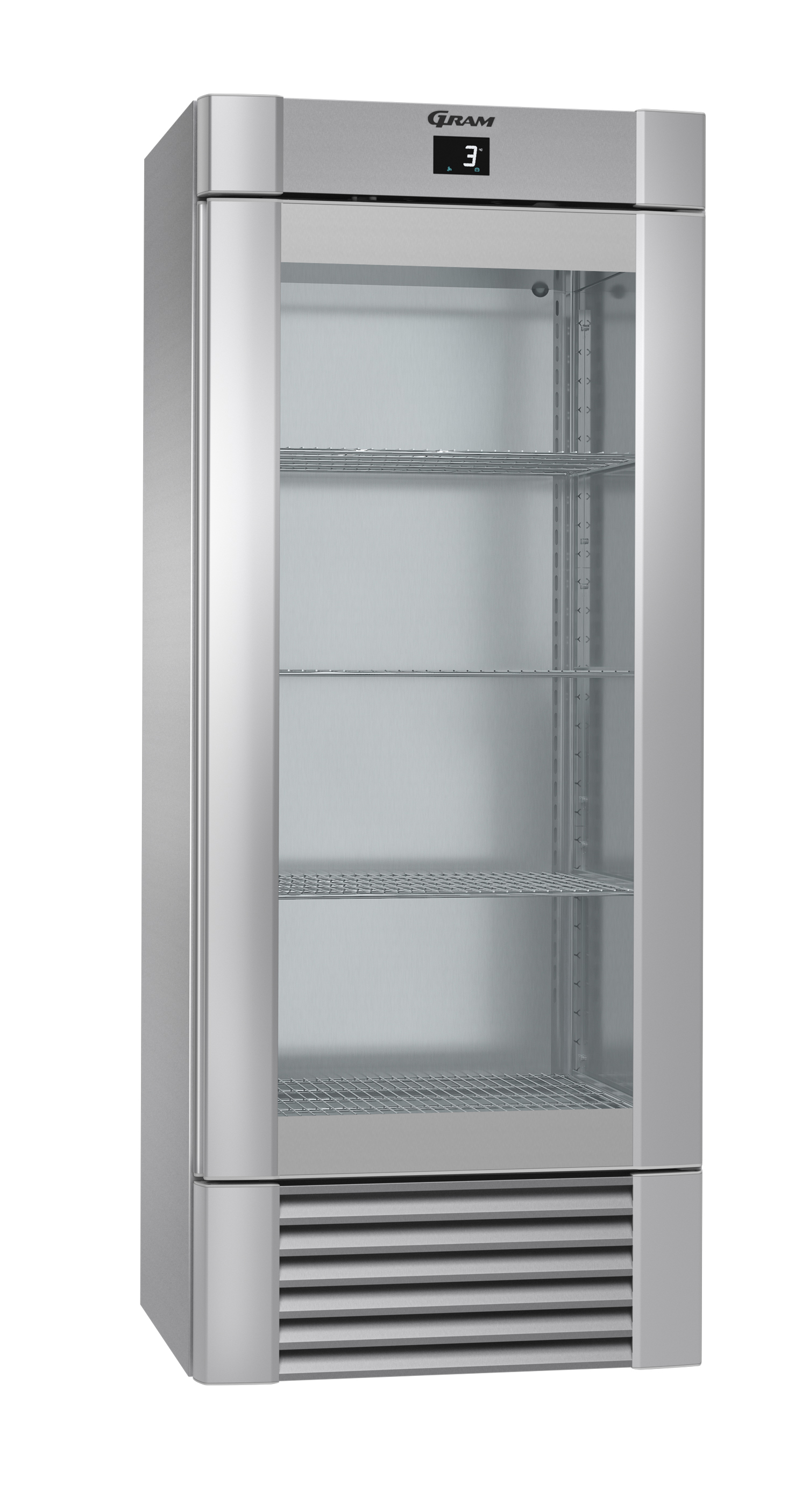

ECO MIDI 82 display cabinets combine stylish design with high functionality. The cabinets are equipped with Internal LED lighting that can be switched off via the control panel. • The controls are concealed behind the top panel, protected against splashing water. • Design principle of "no broken surfaces" makes the cabinets easy to clean. • The distinctive aluminum profiles stretching from top to bottom on both sides of the cabinet impart strength and enhance appearance. ECO MID 82 is suitable for the 2/1 GN wide GN system where two 1/1 GN pans can be placed side by side on each shelf. Energy consumption according to the new EU legislation Ecodesign PR-EN 16825 is not available as display cabinets are not yet regulated.

Prodotto non disponibile
Richiedi un preventivo Visualizza la scheda tecnica

Caratteristiche principali

Food Safety

The efficient air circulation system helps to maintain perfect storage temperatures. Designed to recover the inside temperature rapidly after each door opening. Temperatures for optimal food safety and enhanced shelf-life are maintained for climate class 5.



Low Running Costs

Tracking and controlling the lifetime costs of equipment is key to any successful professional kitchen. All ECO cabinets strike with excellent energy ratings and help you save running costs on a daily level.

The Energy Efficiency Class of the ECO MIDI KG 82 CCG 4S K is B.



Comfortable Work Environment

The ECO range contributes to a healthier work environment with low noise levels of approximately 45 dB(A) when the compressor is running.



Hygiene & Ergonomic Design

Thanks to the rounded corners and smooth surface, frequented cleaning routines become a quick and simple task. All Cabinets have self-closing doors with full-height handles providing easy access for cleaning. The patented pedal door opener can be placed on the left or right side.



Smart Design

The ECO series strikes with its energy efficiency, food-safe design, and smart extras such as the patented pedal door opener. This helpful feature can be placed on the left or right side. While carrying goods, the cabinet door can be opened with a quick foot tap.

Specifiche

Specifiche Value
Codice articolo 962840011
Modello ECO MIDI KG 82 CCG 4S K
Marchio Gram
Equipaggiato con Right hand hinged reversible glass door, automatic door closing, 4 stainless shelves, LED lighting
Larghezza 820 mm
Profonditá 780 mm
Altezza 2000 mm
Consumo elettrico 750 kWh
Classe di efficienza energetica B
Dimensioni ripiano 2/1 GN largh.
Product availability -- Non disponibile
Classe climatica 3 (temperatura ambiente massima 25 °C con 60% di umidità)
Valori di allacciamento 260 kW
Rivestimento esterno Acciao Inox
Rivestimento interno Stainless steel
Peso lordo 156 kg
Spessore isolamento 70 mm
Tipologia isolamento Cyclopentane
Volume netto 450 l
Peso netto 156 kg
Alimentazione 230V, 50Hz
Livello rumorositá 48.2 dB
Intervallo di temperatura +2/+12°C
Volume lordo 603 l
Tipologia porta Glass door
Capacitá di refrigerazione 410
Equivalente CO2 0.41 kg
GWP 3 GWP
Refrigerante 0.12 kg
Tipologia refrigerante R600a
SKU 962840011
