960600151

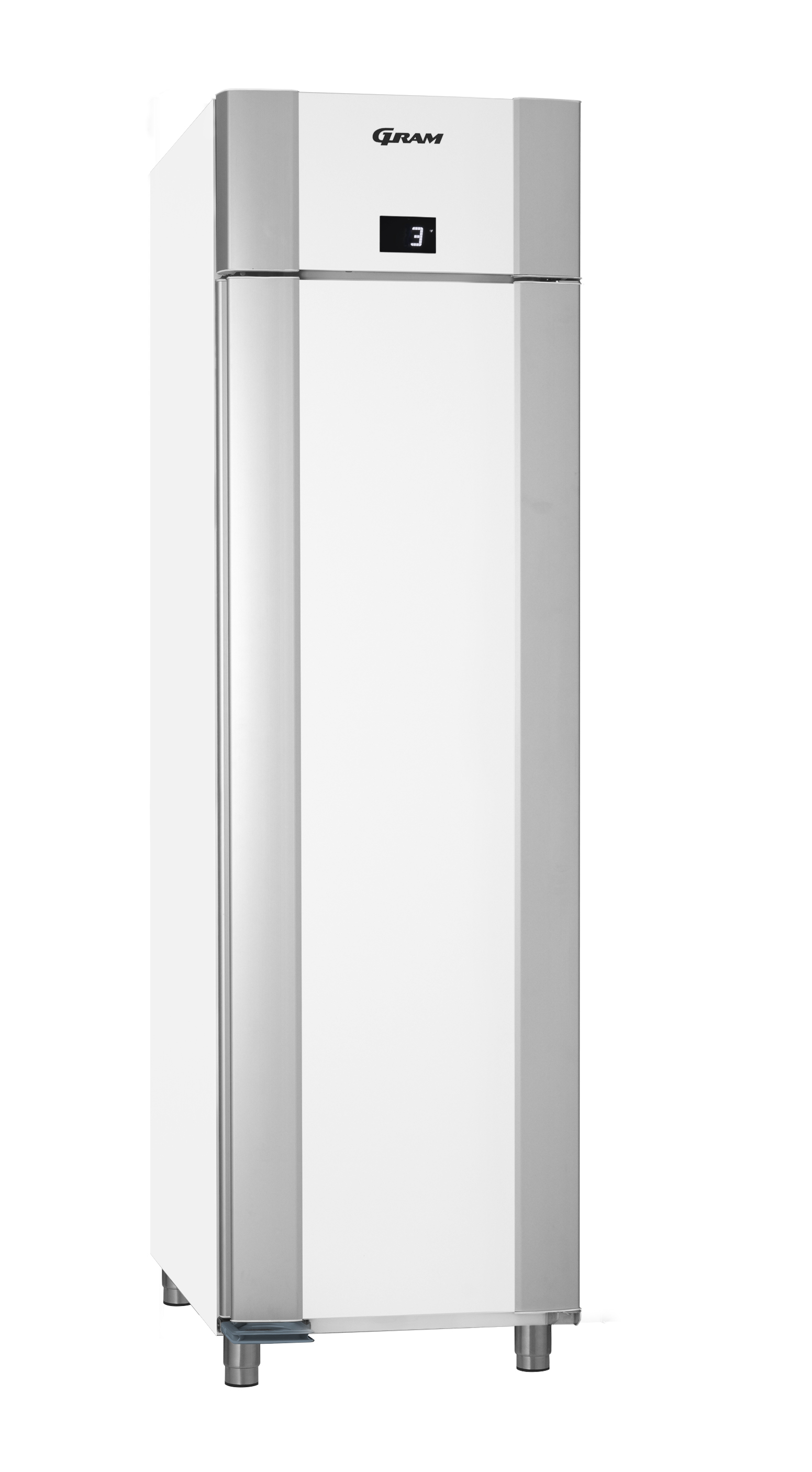

ECO EURO M 60 LCG L2 4N

B

 These cabinets combine stylish design with high functionality and low energy consumption. • The controls are concealed behind the top panel, protected against splashing water. • Design principle of "no broken surfaces" makes the cabinets easy to clean. • The distinctive aluminum profiles stretching from top to bottom on both sides of the cabinet impart strength and enhance appearance. • The modular rails can go directly in the dishwasher. • Pedal opener with finesse - read more in the brochure. Shelf dimensions are the standard Euronorm, i.e. 40x60 cm.

Prodotto non disponibile
Richiedi un preventivo Visualizza la scheda tecnica

Caratteristiche principali

Food Safety

The efficient air circulation system helps to maintain perfect storage temperatures. Designed to recover the inside temperature rapidly after each door opening. Temperatures for optimal food safety and enhanced shelf-life are maintained for climate class 5.



Low Running Costs

Tracking and controlling the lifetime costs of equipment is key to any successful professional kitchen. All ECO cabinets strike with excellent energy ratings and help you save running costs on a daily level.

The Energy Efficiency Class of the ECO EURO M 60 LCG L2 4N is B.



Comfortable Work Environment

The ECO range contributes to a healthier work environment with low noise levels of approximately 45 dB(A) when the compressor is running.



Hygiene & Ergonomic Design

Thanks to the rounded corners and smooth surface, frequented cleaning routines become a quick and simple task. All Cabinets have self-closing doors with full-height handles providing easy access for cleaning. The patented pedal door opener can be placed on the left or right side.



Smart Design

The ECO series strikes with its energy efficiency, food-safe design, and smart extras such as the patented pedal door opener. This helpful feature can be placed on the left or right side. While carrying goods, the cabinet door can be opened with a quick foot tap.

Specifiche

Specifiche Value
Codice articolo 960600151
Modello ECO EURO M 60 LCG L2 4N
Marchio Gram
Equipaggiato con Right hand hinged reversible door, automatic door closing, pedal door opener, 4 grey shelves, LED lighting, dry cooling and rapid thaw
Larghezza 600 mm
Profonditá 855 mm
Altezza 2125 mm
Consumo elettrico 302 kWh
Classe di efficienza energetica B
Dimensioni ripiano Ripiano Euronorm 400x600mm | Adatto per vassoi 1/1 EN
Product availability -- Non disponibile
Valori di allacciamento 248 kW
Rivestimento esterno White finish
Rivestimento interno Stainless steel
Peso lordo 122 kg
Spessore isolamento 70 mm
Tipologia isolamento Cyclopentane
Piedini / Rotelle H = 135-200 mm (L)
Volume netto 322 l
Peso netto 122 kg
Alimentazione 230V, 50Hz
Intervallo di temperatura -5/+12°C
Volume lordo 465 l
Tipologia porta Solid Door
Capacitá di refrigerazione 333
Equivalente CO2 0.2 kg
GWP 3 GWP
Refrigerante 0.07 kg
Tipologia refrigerante R600a
SKU 960600151
