960690506

BAKER STANDARD F 69 FFG L2 15A

Freezers
D

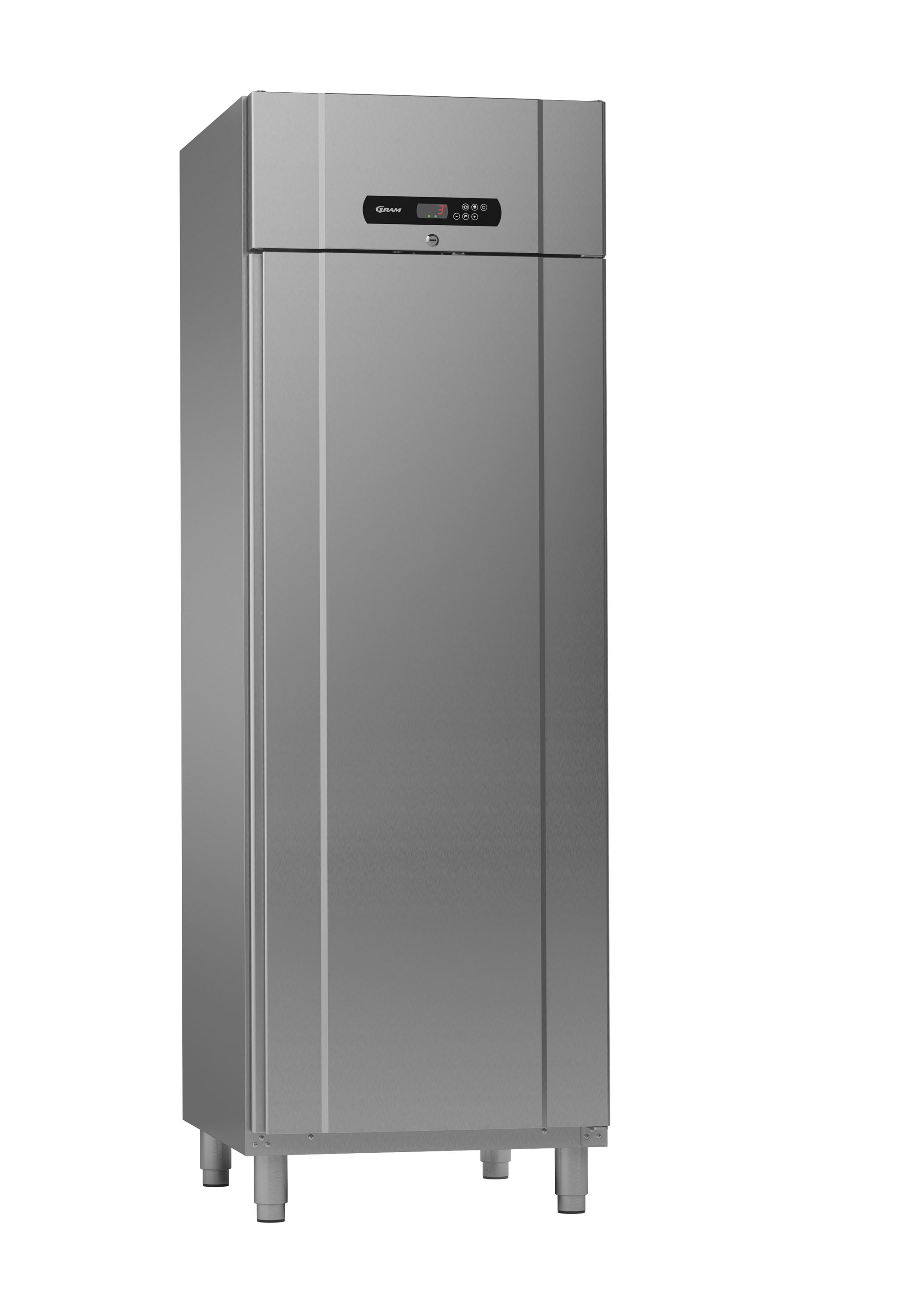

The GRAM BAKER STANDARD F 69 FFG L2 15A  is a with a net internal volume of  342 Ltr.



Generations of bakeries, confectioners, and patisseries are trusting GRAM BAKER storage and process cabinets to accommodate their bakery products. The GRAM air circulation system is key to maintain correct and uniform temperature and humidity levels inside the cabinet. The air is exhausted and refrigerated before being directed back into the cabinet, circulating around all food items. Thus, unwanted dehydration and skin forming of doughs can be avoided almost entirely.

Prodotto non disponibile
Richiedi un preventivo Visualizza la scheda tecnica

Caratteristiche principali

Preserving Quality

Both storage and process cabinets come with built-in functionalities that preserve the quality of your bakery products at all times.



Low Running Costs

The energy-efficient refrigeration technology implemented in this wide line-up of storage cabinets can help saving running costs on a day-to-day basis.



Built-in Safety

All BAKER Cabinets come with a controller equipped with safety functions: Door alarm, alarms for high-temperature levels, or when the cleaning of the condenser filter is required to avoid overheating. A top panel perfectly protects the controller from water splashes.



Multi-Functional

The SF can be used as a quick chiller/freezer, storage freezer, storage refrigerator, or thawing cabinet. If required, the GA can be also used continuously as a freezer, as a refrigerator, or as a prover.



Designed for Bakers

The GRAM BAKER series strikes with features, specifically designed for the requirements of bakery businesses. The cabinet meets standard bakery tray sizes and the support rails can be individually positioned.



The BAKER STANDARD F 69 FFG L2 15A comes with the following extras:

  • Right-hand hinged door with lock
  • Air circulation system
  • Dry cooling and controlled thawing (M versions)
  • Automatic defrost and reevaporation of water



Specifiche

Specifiche Value
Codice articolo 960690506
Modello BAKER STANDARD F 69 FFG L2 15A
Marchio Gram
Periodo di garanzia 5 anni di garanzia su parti di ricambio & manodopera
Equipaggiato con Right hand hinged door with lock, automatic door closing, LED light, 15 pairs of adjustable trayslides, legs L2 height 135-200 mm.
Larghezza 700 mm
Profonditá 895 mm
Altezza 2125 mm
Consumo elettrico 1937 kWh
Classe di efficienza energetica D
Product availability -- Non disponibile
Classe climatica 5
Valori di allacciamento 346 kW
Rivestimento esterno Acciao Inox
Rivestimento interno Stainless steel
Peso lordo 136 kg
Spessore isolamento 70 mm
Tipologia isolamento Cyclopentane
Piedini / Rotelle H = 135-200 mm (L)
Volume netto 342 l
Peso netto 136 kg
Alimentazione 230V, 50Hz
Livello rumorositá 44.5 dB
Intervallo di temperatura -25/-5°C
Volume lordo 610 l
Tipologia porta Solid Door
Capacitá di refrigerazione 339
Equivalente CO2 0.195 kg
GWP 3 GWP
Refrigerante 0.07 kg
Tipologia refrigerante R290
SKU 960690506

Documentazione

Documentazione
DWG files Download
Declaration of conformity Download
BAKER_Standard_F_69_G_46x61__A__3005874.pdf Download
Instruction manual Download
765073055_wiring_diagram_BAKER_STANDARD_PLUS_F_69.pdf Download
