960700176

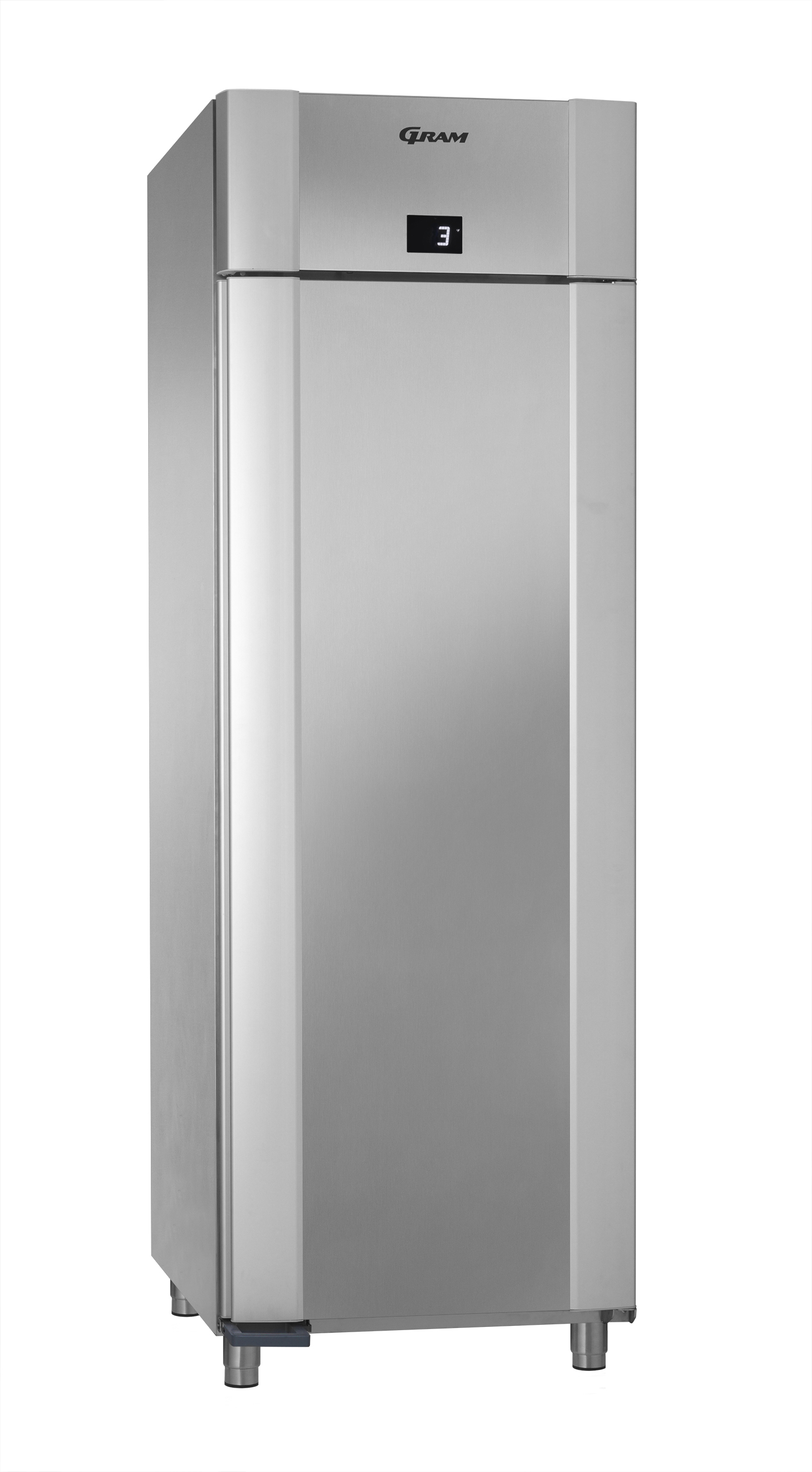

BAKER M 70 CCG L2 25E

Refrigerators
B

The Baker 70 cabinets are storage refrigerators (M) and storage freezers (F) with a high storage capacity and a simple to use control system. The storage refrigerator (M) is equipped with humidity control and a thawing function. Equipped with right hand hinged reversible door with lock, automatic door closing, pedal door opener, dry cooling, thawing function. 25 sets of adjustable trayslides (46x61 cm)

Richiedi un preventivo Visualizza la scheda tecnica

Caratteristiche principali

Preserving Quality

Both storage and process cabinets come with built-in functionalities that preserve the quality of your bakery products at all times.



Low Running Costs

The energy-efficient refrigeration technology implemented in this wide line-up of storage cabinets can help saving running costs on a day-to-day basis.



Built-in Safety

All BAKER Cabinets come with a controller equipped with safety functions: Door alarm, alarms for high-temperature levels, or when the cleaning of the condenser filter is required to avoid overheating. A top panel perfectly protects the controller from water splashes.



Multi-Functional

The SF can be used as a quick chiller/freezer, storage freezer, storage refrigerator, or thawing cabinet. If required, the GA can be also used continuously as a freezer, as a refrigerator, or as a prover.



Designed for Bakers

The GRAM BAKER series strikes with features, specifically designed for the requirements of bakery businesses. The cabinet meets standard bakery tray sizes and the support rails can be individually positioned.



The BAKER M 70 CCG L2 25E comes with the following extras:

  • Right-hand hinged door with lock
  • Air circulation system
  • Dry cooling and controlled thawing (M versions)
  • Automatic defrost and reevaporation of water



Specifiche

Specifiche Value
Codice articolo 960700176
Modello BAKER M 70 CCG L2 25E
Marchio Gram
Periodo di garanzia 5 anni di garanzia su parti di ricambio & manodopera
Equipaggiato con Right hand hinged reversible door with lock, automatic door closing and pedal door opener, LED light, drycooling, rapid thaw, 25 pairs of adjustable trayslides (46x61 cm)
Larghezza 700 mm
Profonditá 905 mm
Altezza 2125 mm
Classe di efficienza energetica B
Product availability -- Non disponibile
Classe climatica 5
Rivestimento esterno Acciaio Inox
Rivestimento interno Acciaio Inox
Peso lordo 136 kg
Spessore isolamento 70 mm
Tipologia isolamento Cyclopentane
Piedini / Rotelle H = 125-200 mm (L)
Volume netto 383 l
Peso netto 136 kg
Alimentazione 230V, 50Hz
Livello rumorositá 46.6 dB
Intervallo di temperatura -5/+12°C
Volume lordo 610 l
Tipologia porta Solid Door
Capacitá di refrigerazione 333
Equivalente CO2 0.207 kg
GWP 3 GWP
Refrigerante 0.0669 kg
Tipologia refrigerante R600a
SKU 960700176

Documentazione

Documentazione
Declaration of conformity Download
BAKER_PLUS_M_70_G_25A__1_.pdf Download
Instruction manual Download
7464450.pdf Download
